HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

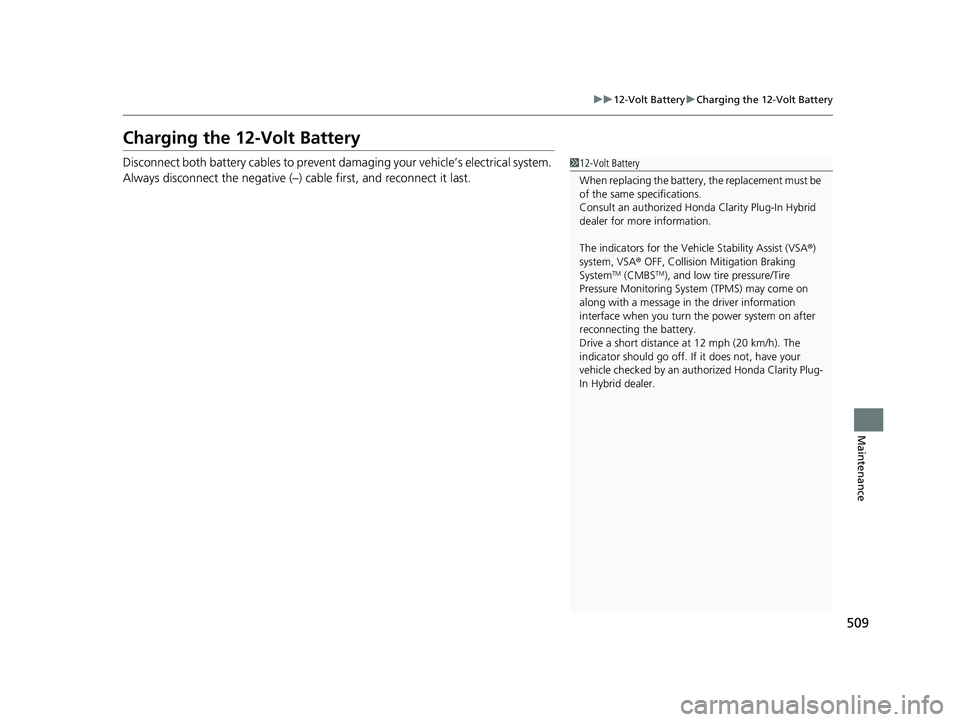

509uu 12-Volt Battery u Charging the 12-Volt Battery
Maintenance
Charging the 12-Volt Battery Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last. 1 12-Volt Battery
When replacing the battery, the replacement must be
of the same specifications.
Consult an authorized Honda Clarity Plug-In Hybrid
dealer for more information.
The indicators for the Vehicle Stability Assist (VSA ® )
system, VSA ® OFF, Collision Mitigation Braking
System TM
(CMBS TM
), and low tire pressure/Tire
Pressure Monitoring System (TPMS) may come on
along with a message in the driver information
interface when you turn the power system on after
reconnecting the battery.
Drive a short distance at 12 mph (20 km/h). The
indicator should go off. If it does not, have your
vehicle checked by an aut horized Honda Clarity Plug-
In Hybrid dealer.18 CLARITY PHEV CSS-31TRW6000.book 509 ページ ２０１７年８月３１日　木曜日　午後２時４９分

510
Maintenance Remote Transmitter Care Replacing the Button BatteryIf the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
3. Make sure to replace the battery with the
correct polarity. 1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at an authorized Honda Clar ity Plug-In Hybrid dealer.3
WARNING CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.Battery type: CR2032
Battery18 CLARITY PHEV CSS-31TRW6000.book 510 ページ ２０１７年８月３１日　木曜日　午後２時４９分

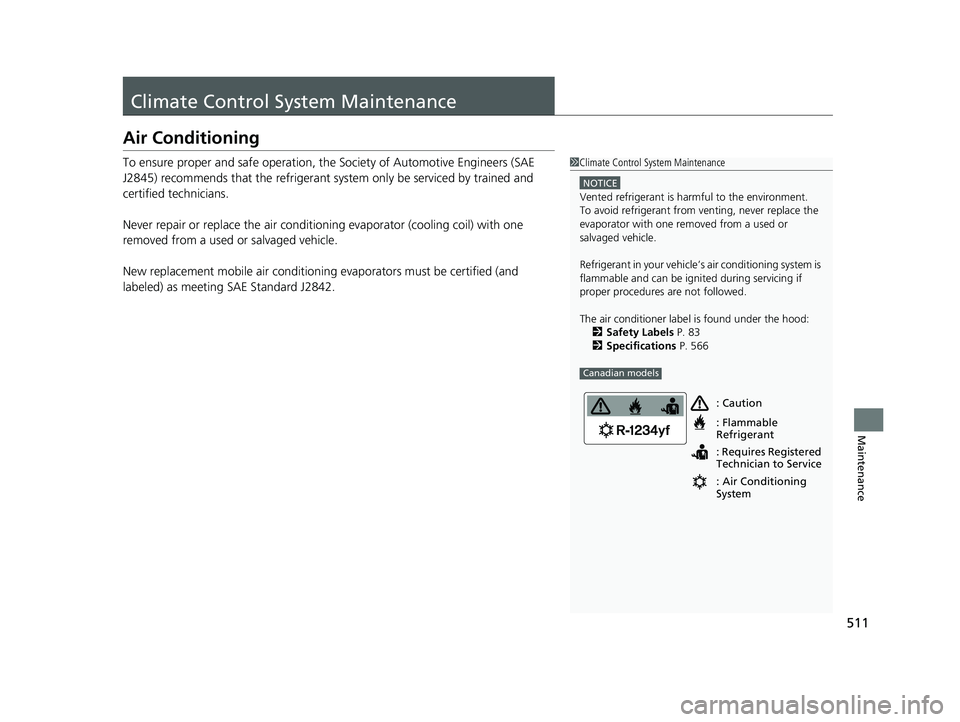

511
Maintenance
Climate Control System Maintenance Air Conditioning To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant sy stem only be serviced by trained and
certified technicians.
Never repair or replace the air conditio ning evaporator (coo ling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842. 1 Climate Control System Maintenance NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicle.
Refrigerant in your vehicle’s air conditioning system is
flammable and can be igni ted during servicing if
proper procedures are not followed.
The air conditioner labe l is found under the hood:
2 Safety Labels P. 83
2 Specifications P. 566Canadian models
: Caution
: Flammable
Refrigerant
: Requires Registered
Technician to Service
: Air Conditioning
System18 CLARITY PHEV CSS-31TRW6000.book 511 ページ ２０１７年８月３１日　木曜日　午後２時４９分

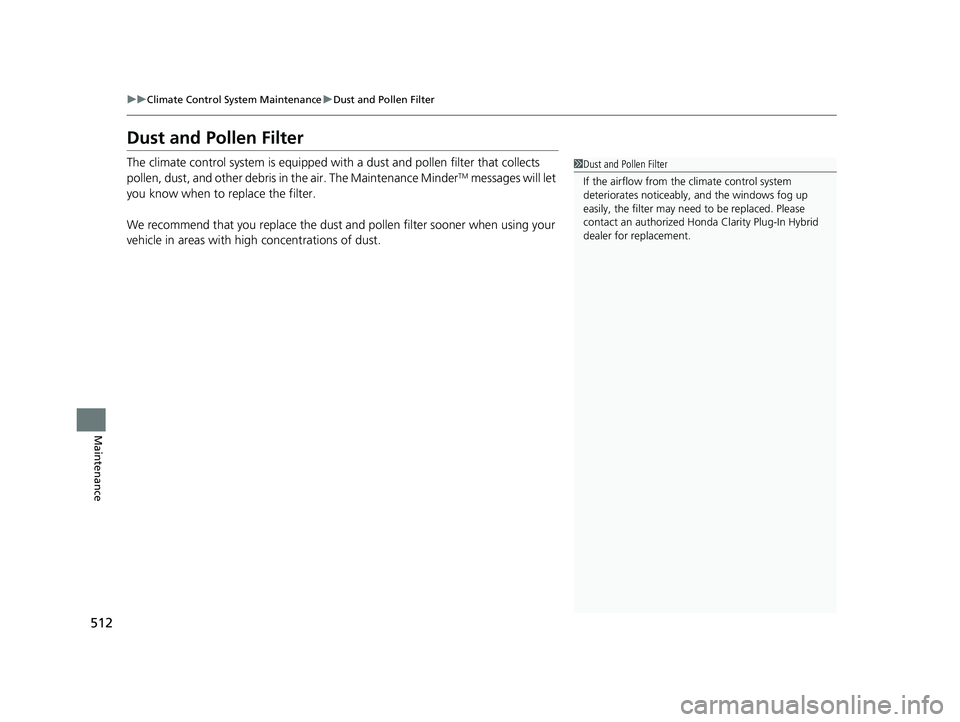

512 uu Climate Control System Maintenance u Dust and Pollen Filter
Maintenance Dust and Pollen Filter The climate control system is equipped wi th a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance Minder TM
messages will let
you know when to replace the filter.
We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust. 1 Dust and Pollen Filter
If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact an authorized Honda Clarity Plug-In Hybrid
dealer for replacement.18 CLARITY PHEV CSS-31TRW6000.book 512 ページ ２０１７年８月３１日　木曜日　午後２時４９分

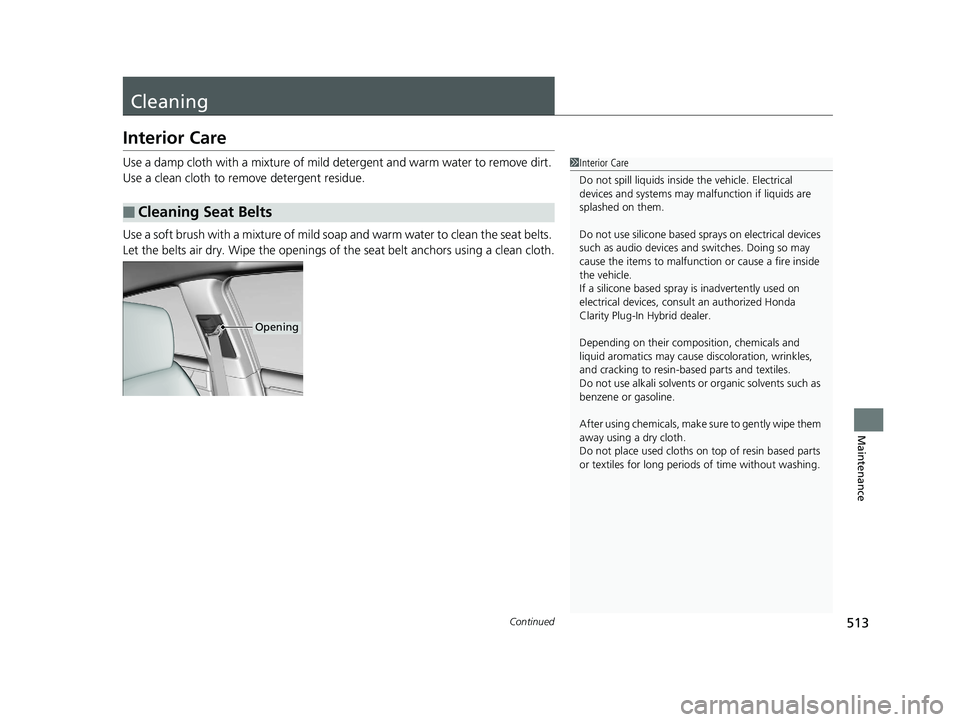

513Continued
Maintenance
Cleaning Interior Care Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
■ Cleaning Seat Belts 1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sp rays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, cons ult an authorized Honda
Clarity Plug-In Hybrid dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.Opening18 CLARITY PHEV CSS-31TRW6000.book 513 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Cleaning u Interior Care
514
Maintenance Wipe using a glass cleaner.
The front and rear floor mats hook over floor
anchors, which keep them from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mats.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampen ed with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residu e with a clean damp cloth.
4. Wipe away residual water and allow leather to air dry in the shade.■ Cleaning the Window
■ Floor Mats 1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the cover of the front sensor
camera.
2 Front Sensor Camera P. 394
1 Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.Unlock
Lock
■ Maintaining Genuine Leather *
1 Maintaining Genuine Leather *
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust ca n cause abrasions in the
leather. In addition, pl ease note that some dark
colored clothing can rub onto the leather seats
resulting in discol oration or stains.
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 514 ページ ２０１７年８月３１日　木曜日　午後２時４９分

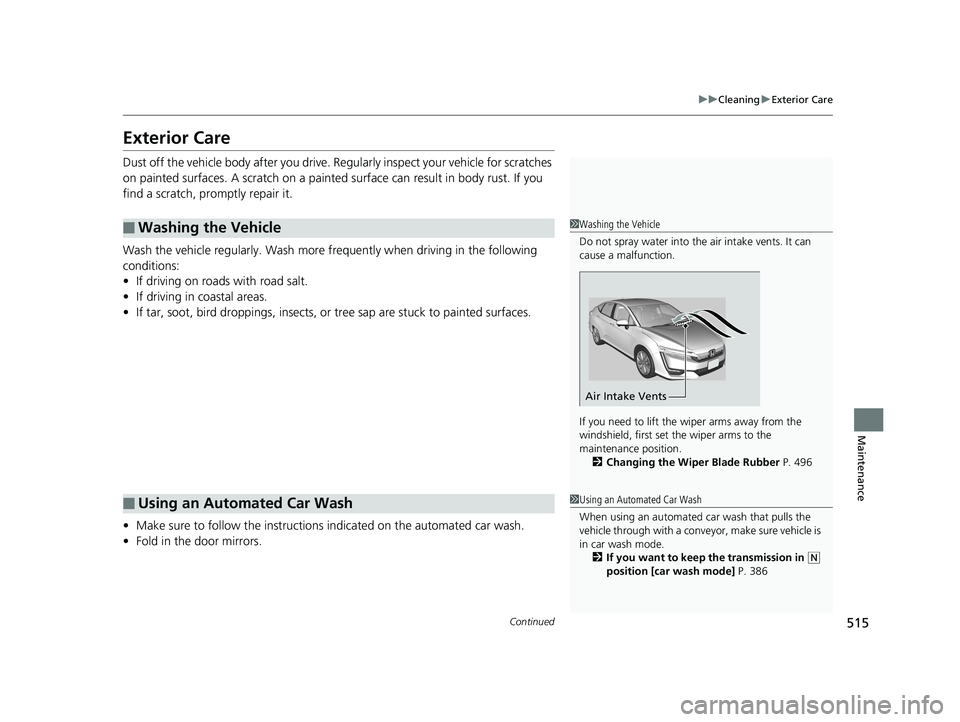

515 uu Cleaning u Exterior Care
Continued
Maintenance
Exterior Care Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.■ Washing the Vehicle
■ Using an Automated Car Wash 1 Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position.
2 Changing the Wiper Blade Rubber P. 496Air Intake Vents
1 Using an Automated Car Wash
When using an automated car wash that pulls the
vehicle through with a convey or, make sure vehicle is
in car wash mode.
2 If you want to keep the transmission in ( N

position [car wash mode] P. 38618 CLARITY PHEV CSS-31TRW6000.book 515 ページ ２０１７年８月３１日　木曜日　午後２時４９分

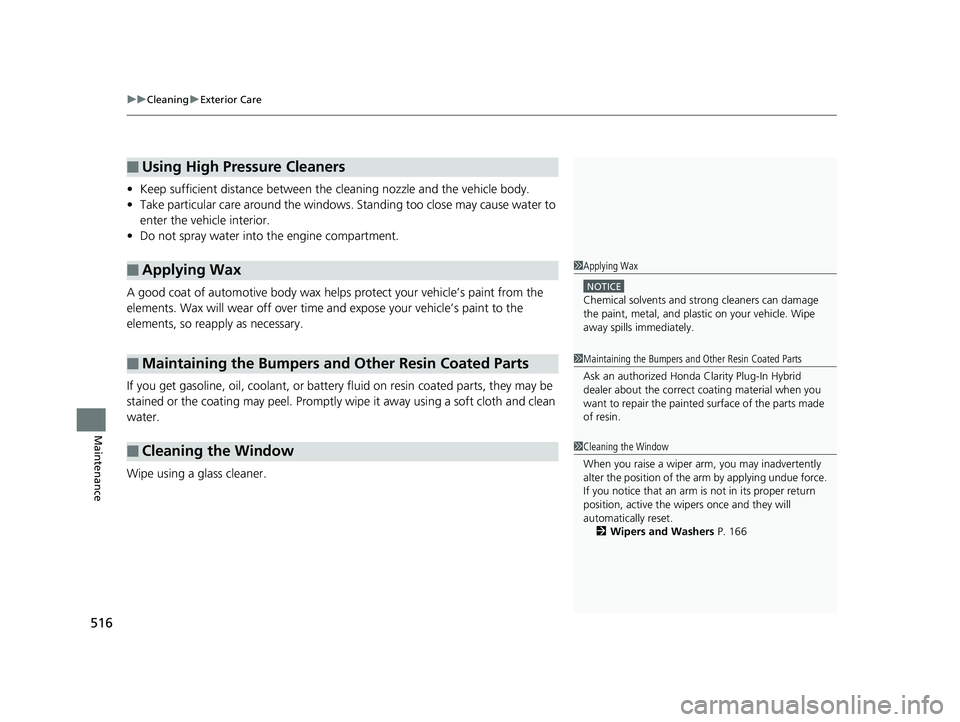

uu Cleaning u Exterior Care
516
Maintenance • Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray water into the engine compartment.
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, coolant, or batter y fluid on resin coated parts, they may be
stained or the coating may peel. Promptly wipe it away using a soft cloth and clean
water.
Wipe using a glass cleaner.■ Using High Pressure Cleaners
■ Applying Wax
■ Maintaining the Bumpers and Other Resin Coated Parts
■ Cleaning the Window 1 Applying Wax NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask an authorized Honda Clarity Plug- In Hybrid
dealer about the correct coating material when you
want to repair the painted surface of the parts made
of resin.
1 Cleaning the Window
When you raise a wiper arm, you may inadvertently
alter the position of the arm by applying undue force.
If you notice that an arm is not in its proper return
position, active the wipers once and they will
automatically reset.
2 Wipers and Washers P. 16618 CLARITY PHEV CSS-31TRW6000.book 516 ページ ２０１７年８月３１日　木曜日　午後２時４９分

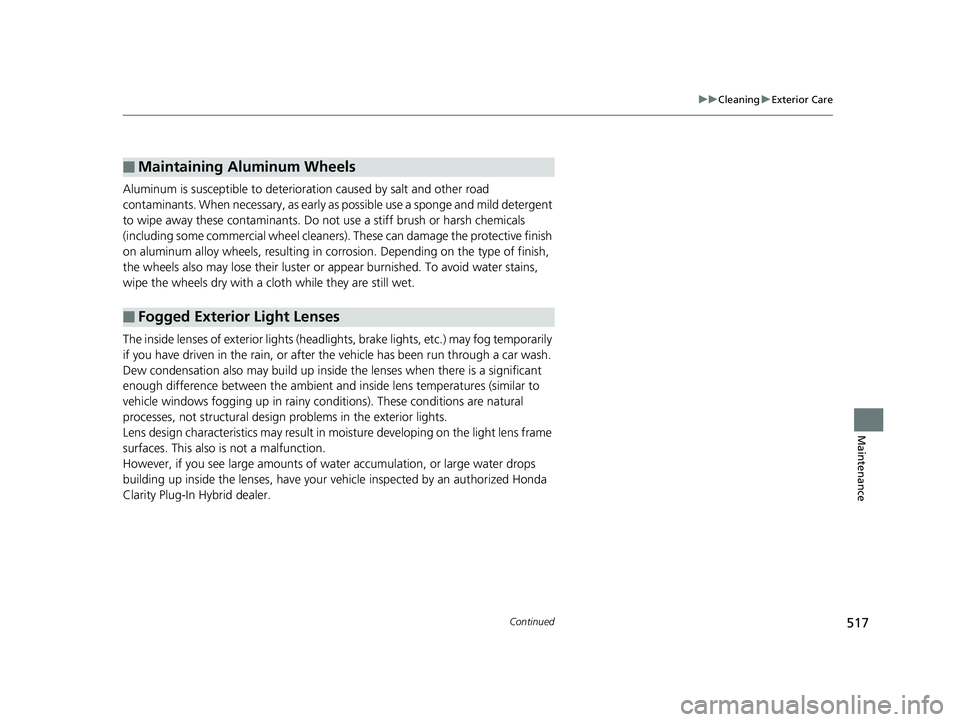

517 uu Cleaning u Exterior Care
Continued
Maintenance
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
The inside lenses of exterior lights (headlights, brake light s, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by an authorized Honda
Clarity Plug-In Hybrid dealer.■ Maintaining Aluminum Wheels
■ Fogged Exterior Light Lenses 18 CLARITY PHEV CSS-31TRW6000.book 517 ページ ２０１７年８月３１日　木曜日　午後２時４９分

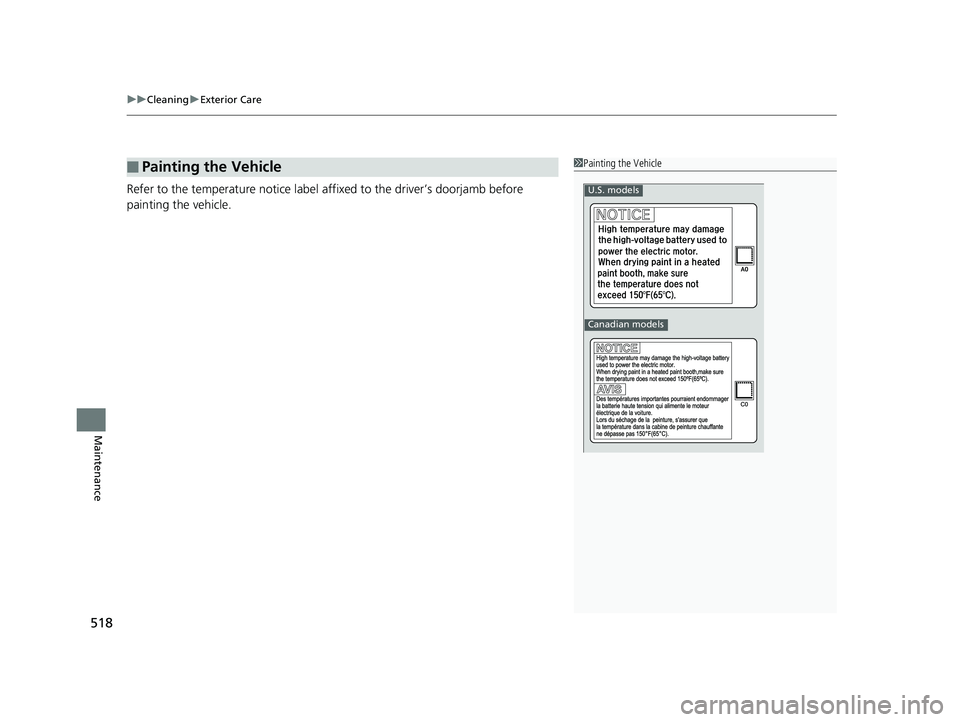

uu Cleaning u Exterior Care
518
Maintenance Refer to the temperature notice label a ffixed to the driver’s doorjamb before
painting the vehicle.
■ Painting the Vehicle 1 Painting the Vehicle U.S. models
Canadian models18 CLARITY PHEV CSS-31TRW6000.book 518 ページ ２０１７年８月３１日　木曜日　午後２時４９分
