Continued
129uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel

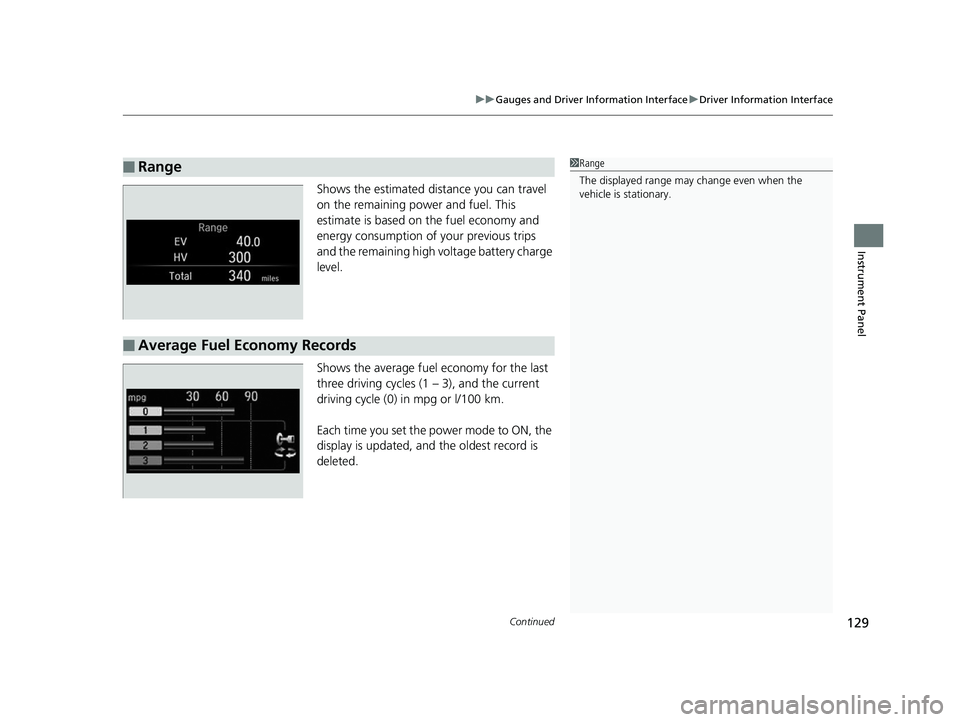

Shows the estimated distance you can travel
on the remaining power and fuel. This
estimate is based on the fuel economy and
energy consumption of your previous trips
and the remaining high voltage battery charge
level.
Shows the average fuel economy for the last
three driving cycles (1 – 3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.■ Range 1 Range
The displayed ra nge may change even when the
vehicle is stationary.
■ Average Fuel Economy Records 19 CLARITY PHEV-31TRW6100.book 129 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

130 uu Gauges and Driver Information Interface u Driver Information Interface

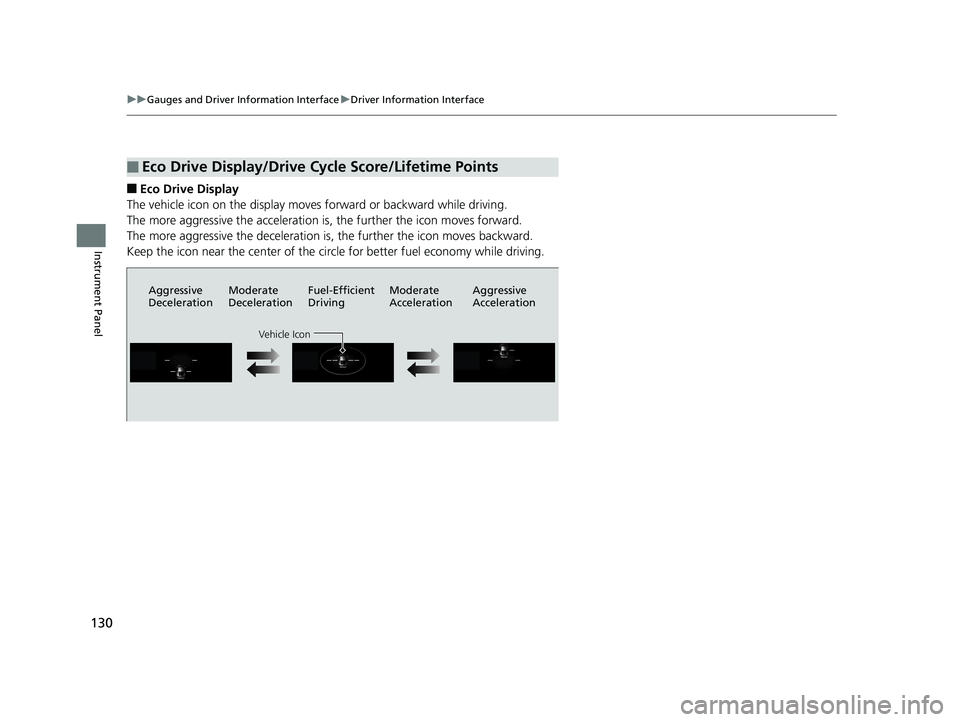

Instrument Panel ■ Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circ le for better fuel economy while driving.
■ Eco Drive Display/Drive Cycle Score/Lifetime Points Aggressive
Deceleration Moderate
Deceleration Fuel-Efficient
Driving Moderate
Acceleration Aggressive
Acceleration
Vehicle Icon19 CLARITY PHEV-31TRW6100.book 130 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

131uu Gauges and Driver Information Interface u Driver Information Interface
Continued
Instrument Panel

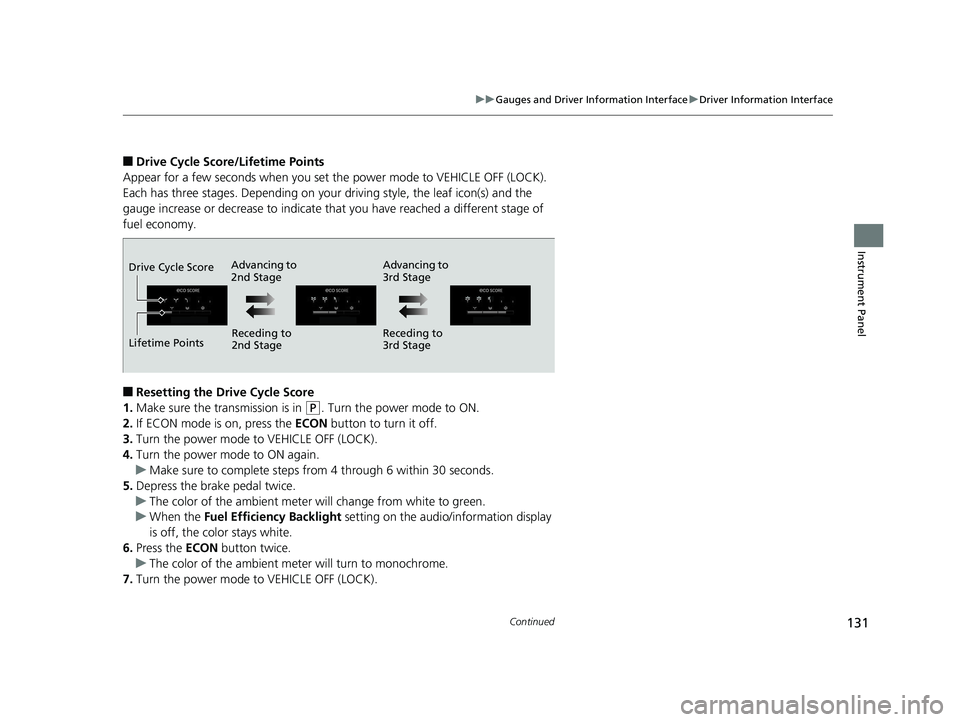

■ Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set the power mode to VEHICLE OFF (LOCK).
Each has three stages. Depending on your driving style, the leaf icon(s) and the
gauge increase or decrease to indicate that you have reached a different stage of
fuel economy.
■ Resetting the Drive Cycle Score
1. Make sure the transmission is in ( P
. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF (LOCK).
4. Turn the power mode to ON again.
u Make sure to complete steps fro m 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
u The color of the ambient meter wi ll change from white to green.
u When the Fuel Efficiency Backlight setting on the audi o/information display
is off, the color stays white.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Turn the power mode to VEHICLE OFF (LOCK). Advancing to
2nd Stage Advancing to
3rd Stage
Receding to
2nd Stage Receding to
3rd StageLifetime PointsDrive Cycle Score19 CLARITY PHEV-31TRW6100.book 131 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Gauges and Driver Information Interface u Driver Information Interface
132

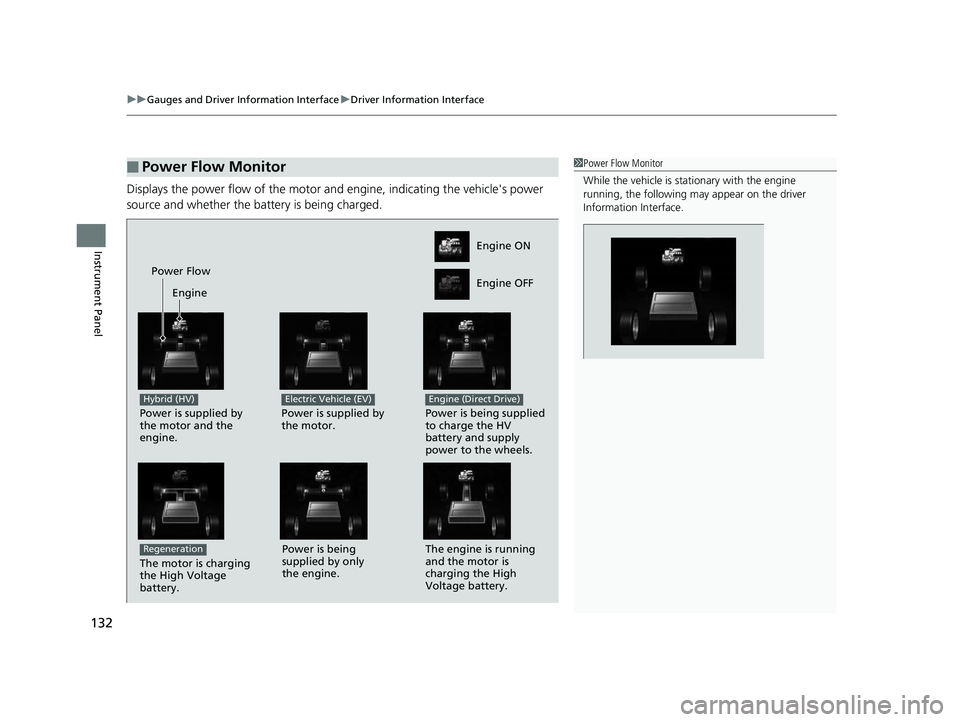

Instrument Panel Displays the power flow of the motor an d engine, indicating the vehicle's power
source and whether the battery is being charged.
■ Power Flow Monitor 1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following ma y appear on the driver
Information Interface.
Engine ON
Engine OFFPower Flow
Engine
Power is supplied by
the motor and the
engine. Hybrid (HV)
Power is supplied by
the motor. Electric Vehicle (EV)
Power is being supplied
to charge the HV
battery and supply
power to the wheels. Engine (Direct Drive)
The motor is charging
the High Voltage
battery. Regeneration
Power is being
supplied by only
the engine. The engine is running
and the motor is
charging the High
Voltage battery.19 CLARITY PHEV-31TRW6100.book 132 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

133uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel

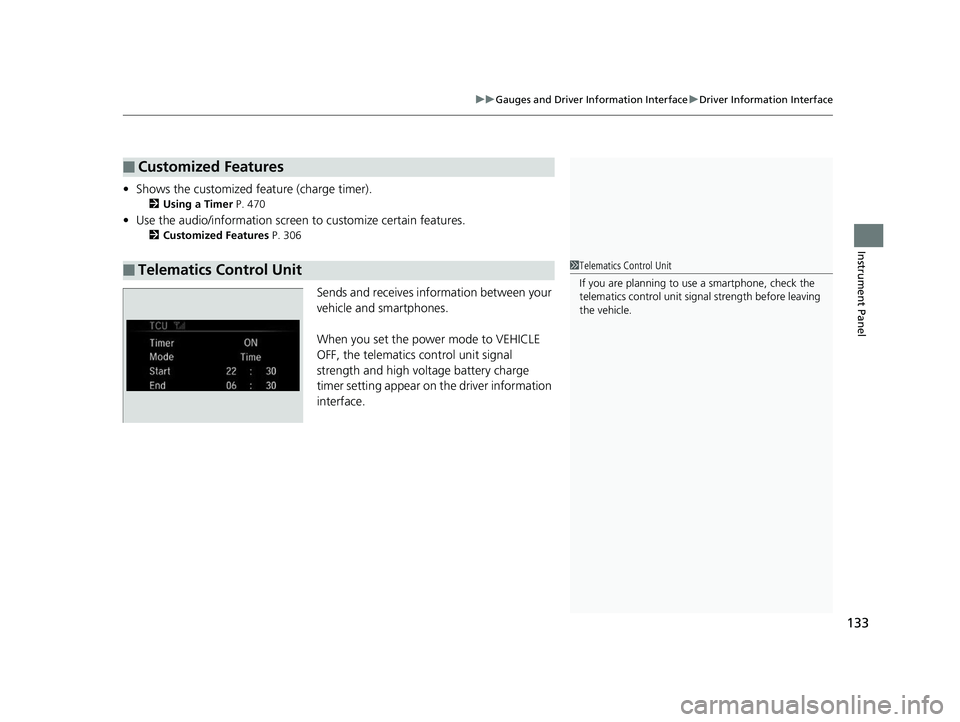

• Shows the customized feature (charge timer). 2 Using a Timer P. 470
• Use the audio/informat ion screen to custom ize certain features.2 Customized Features P. 306
Sends and receives information between your
vehicle and smartphones.
When you set the power mode to VEHICLE
OFF, the telematics control unit signal
strength and high voltage battery charge
timer setting appear on the driver information
interface.■ Customized Features
■ Telematics Control Unit 1 Telematics Control Unit
If you are planning to use a smartphone, check the
telematics control unit sign al strength be fore leaving
the vehicle.19 CLARITY PHEV-31TRW6100.book 133 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

134 19 CLARITY PHEV-31TRW6100.book 134 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

135Controls This chapter explains how to operate th e various controls necessary for driving.
Clock .................................................. 136
Locking and Unlocking the Doors
Key Types and Functions .................. 137 Low Smart Entry Remote Signal Strength .. 138
Locking/Unlocking the Doors from the
Outside .......................................... 139
Locking/Unlocking the Doors from the
Inside ............................................. 146
Childproof Door Locks ..................... 148
Auto Door Locking/Unlocking .......... 149
Opening and Closing the Trunk ....... 150
Security System ................................ 153
Immobilizer System .......................... 153 Security System Alarm...................... 153
Opening and Closing the Windows ... 156
Operating the Switches Around the
Steering Wheel
POWER Button................................. 158
Turn Signals ..................................... 161
Light Switches.................................. 162
Daytime Running Lights ................... 165
Wipers and Washers ........................ 166
Brightness Control ........................... 168
Rear Defogger/Heated Door Mirror
Button........................................ 169
Driving Position Memory System *
.... 170 Adjusting the Steering Wheel .......... 172
Adjusting the Mirrors ....................... 173
Interior Rearview Mirror ................... 173
Power Door Mirrors ......................... 174
Adjusting the Seats .......................... 175
Front Seats ...................................... 175
Interior Lights/Interior Convenience
Items ................................................ 183
Interior Lights .................................. 183
Interior Convenience Items .............. 185
Climate Control System ................... 193
Using Automatic Climate Control .... 193
Automatic Climate Control Sensors ... 201
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 135 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

136

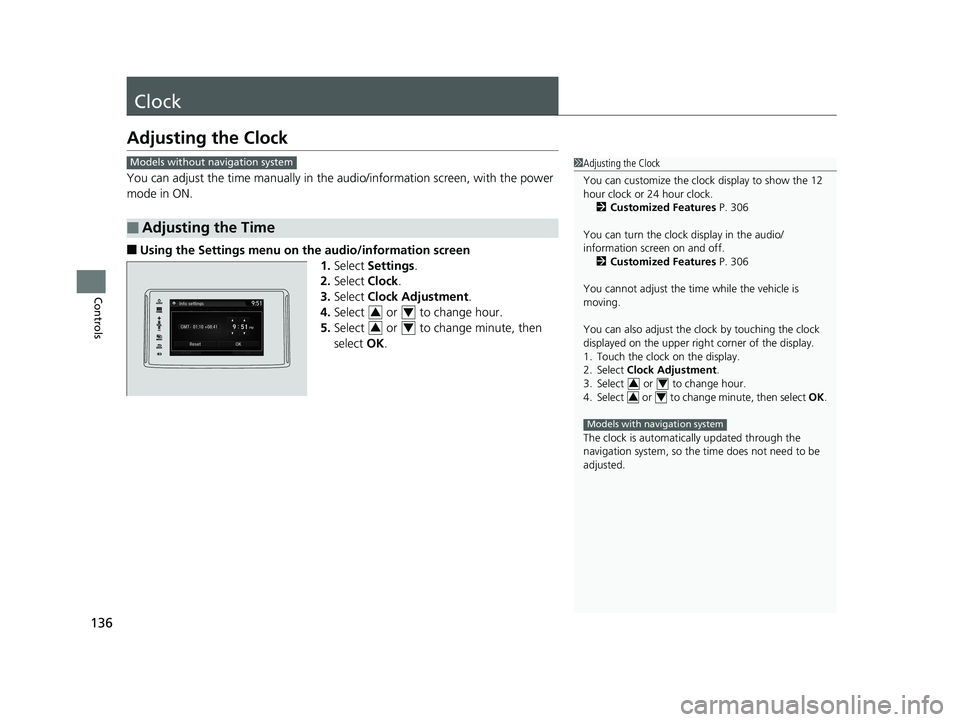

Controls Clock Adjusting the Clock You can adjust the time manually in the audio/information scr een, with the power
mode in ON.
■ Using the Settings menu on th e audio/information screen
1. Select Settings .
2. Select Clock .
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK .
■ Adjusting the Time 1 Adjusting the Clock
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 306
You can turn the clock display in the audio/
information screen on and off.
2 Customized Features P. 306
You cannot adjust the time while the vehicle is
moving.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK .
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted. 3 4
3 4
Models with navigation systemModels without navigation system
3 4
3 419 CLARITY PHEV-31TRW6100.book 136 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

137Continued
Controls
Locking and Unlocking the Doors Key Types and Functions This vehicle comes wi th the following keys:
Use the keys to turn on and off the power
system, and to lock and unlock the doors and
to open the trunk. You can also use the
remote transmitter to lock and unlock the
doors and trunk, and open the charge lid.
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks. 1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.
2 Immobilizer System P. 153
Follow the advice below to prevent damage to the
keys:
• Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
• Do not drop the keys or set heavy objects on them.
• Keep the keys away from liquids, dust and sand.
• Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by an authorized Honda Clarity Plug-In
Hybrid dealer.
■ Built-in Key
Built-in KeyRelease Knob19 CLARITY PHEV-31TRW6100.book 137 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Locking and Unlocking the Doors u Low Smart Entry Remote Signal Strength
138
Controls Contains a number that you will need if you
purchase a replacement key.
Low Smart Entry Remo te Signal StrengthThe vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the trunk, or to activate the power system.
In the following cases, locking/unlocking the doors, opening the trunk, or activating
the power system may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.■ Key Number Tag 1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact an
authorized Honda Clarity Plug-In Hybrid dealer.
If you lose your key an d you cannot activate the
power system, contact an authorized Honda Clarity
Plug-In Hybrid dealer.
1 Low Smart Entry Remote Signal Strength
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.19 CLARITY PHEV-31TRW6100.book 138 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
