139uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside When you carry the smart entry remote, you
can lock/unlock the doors and open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle or trunk release button.
■ Locking the doors and trunk
Press the door lock button on the front door.
u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.■ Using the Smart Entry with Push Button Start System 1 Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The li ght fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 183
1 Using the Smart Entry with Push Button Start System
If you do not open a door within 30 seconds of
unlocking the vehicle with the smart entry system,
the doors will auto matically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.Door Lock
Button19 CLARITY PHEV-31TRW6100.book 139 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
140
Controls ■ Locking the doors and trunk (Walk
away auto lock ® )
When you walk away from the vehicle while
carrying the smart entry remote, the doors will
automatically lock.
The auto lock function activates when all
doors are closed, and the smart entry remote
is within about 5 feet (1.5 m) radius of the
outside door handle.
Exit vehicle while carrying smart entry remote
and close door(s).
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the smart entry remote beyond about
5 feet (1.5 m) from the vehicle and remain
outside this range fo r 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors will then lock. 1 Locking the doors and trunk (Walk away auto lock ® )
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/information screen.
If you set the auto lock function to ON using the
audio/information screen, only the remote
transmitter that was used to unlock the driver’s door
prior to the setting change can activate auto lock.
2 Customized Features P. 306
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicator on the smart entry
remote will continue to flash until the doors are
locked.
When you stay beside the vehicle within the
operation range, the doors wi ll automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.
When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be delayed until al l doors are closed.
When all doors have been closed and the smart entry
remote is inside the vehicle, or if the smart entry
remote is not detect ed within about 5 feet (1.5 m) of
the vehicle, auto lock func tion will not be activated.The activation range of
the auto lock function is
about 5 feet (1.5 m)19 CLARITY PHEV-31TRW6100.book 140 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued

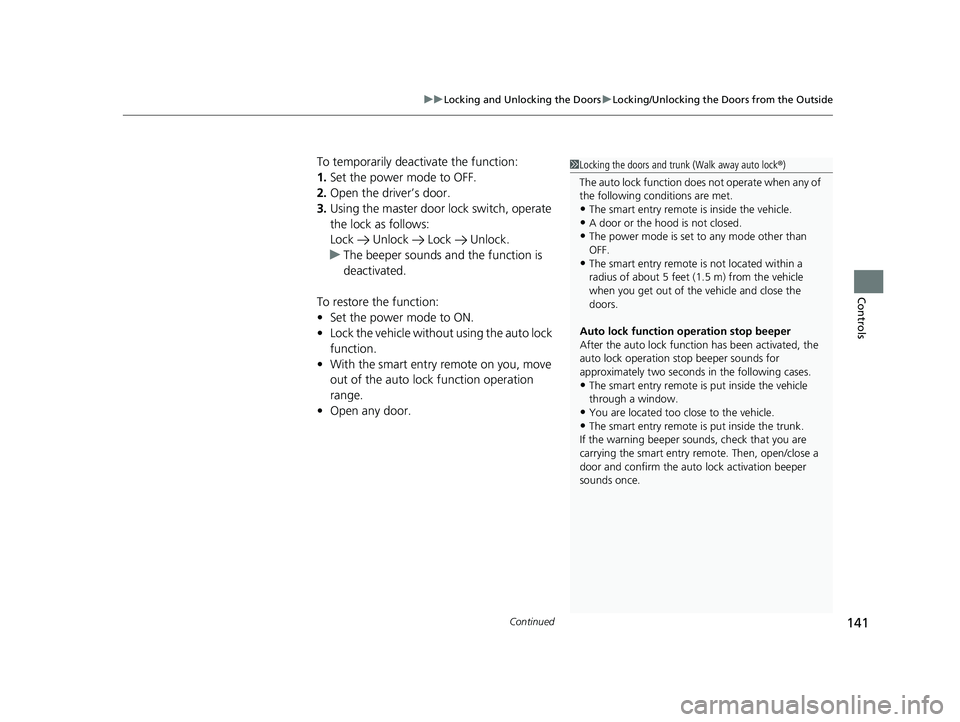

141uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds an d the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle withou t using the auto lock
function.
• With the smart entry remote on you, move
out of the auto lock function operation
range.
• Open any door. 1 Locking the doors and trunk (Walk away auto lock ® )
The auto lock function does not operate when any of
the following conditions are met.
• The smart entry remote is inside the vehicle.
• A door or the hood is not closed.
• The power mode is set to any mode other than
OFF.
• The smart entry remote is not located within a
radius of about 5 feet (1 .5 m) from the vehicle
when you get out of th e vehicle and close the
doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
• The smart entry remote is put inside the vehicle
through a window.
• You are located too close to the vehicle.
• The smart entry remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the smart entry remote. Then, open/close a
door and confirm the auto lock activation beeper
sounds once.19 CLARITY PHEV-31TRW6100.book 141 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
142
Controls ■ Unlocking the doors and trunk
Grab the driver’s door handle:
u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button:
u The trunk unlocks and opens.
u Some exterior lights flash and the beeper
sounds. 2 Using the Trunk Release Button P. 151
Trunk Release
Button 1 Using the Smart Entry with Push Button Start System
• Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
• Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
• The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
• If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
• After locking the door, you have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after lockin g it, wait
at least two seconds befo re gripping the handle,
otherwise the door will not unlock.
• The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
• Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is a bove or below the outside
handle.
• The smart entry remote may not operate if it is too
close to the door and door glass.
The light flash, beep and door unlock mode settings
can be customized using the audio/information
screen.
2 Customized Features P. 30619 CLARITY PHEV-31TRW6100.book 142 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued

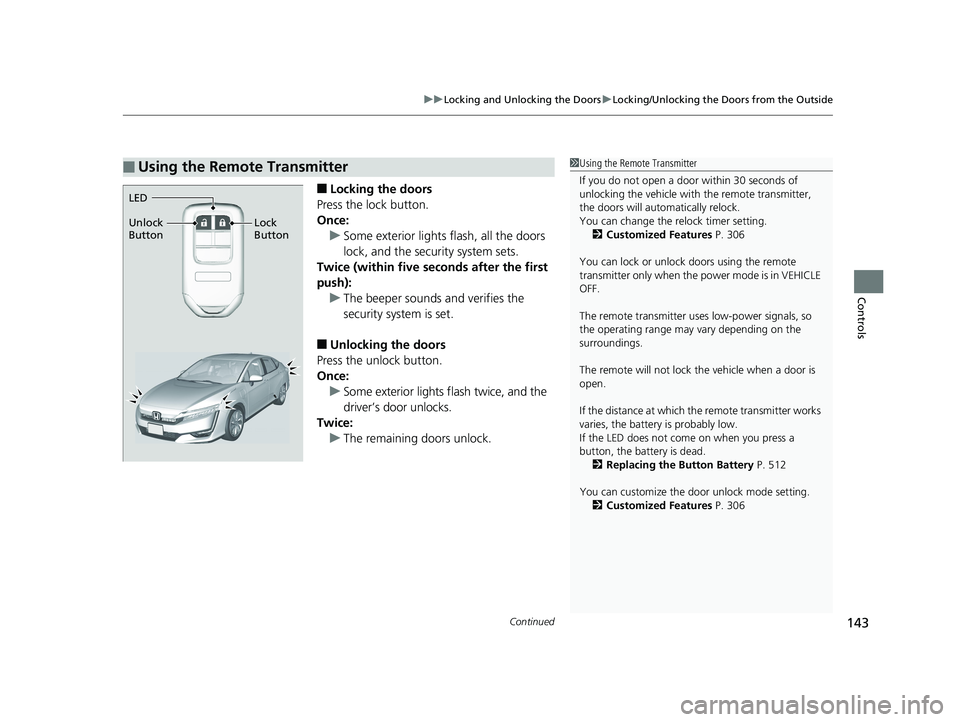

143uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
■ Locking the doors
Press the lock button.
Once:
u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five se conds after the first
push):
u The beeper sounds and verifies the
security system is set.
■ Unlocking the doors
Press the unlock button.
Once:
u Some exterior lights flash twice, and the
driver’s door unlocks.
Twice:
u The remaining doors unlock.■ Using the Remote Transmitter 1 Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting.
2 Customized Features P. 306
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 512
You can customize the door unlock mode setting.
2 Customized Features P. 306LED
Unlock
Button Lock
Button19 CLARITY PHEV-31TRW6100.book 143 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
144
Controls If the lock or unlock button of the sma rt entry remote does not work, use the key
instead. 2 Replacing the Button Battery P. 512
Fully insert the key and turn it.
■ Locking/Unlocking the Doors Using a Key 1 Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
You can customize the door unlock mode setting.
2 Customized Features P. 306Lock
Unlock19 CLARITY PHEV-31TRW6100.book 144 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

145uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.
■ Locking the front doors
Push the lock tab forward a
or push the
master door lock switch in the lock direction b
, and close the door.
■ Locking the rear doors
Push the lock tab forward and close the door.
■ Lockout prevention system
The doors cannot be locked when the sm art entry remote is inside the vehicle.■ Locking a Door Without Using a Key 1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.19 CLARITY PHEV-31TRW6100.book 145 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

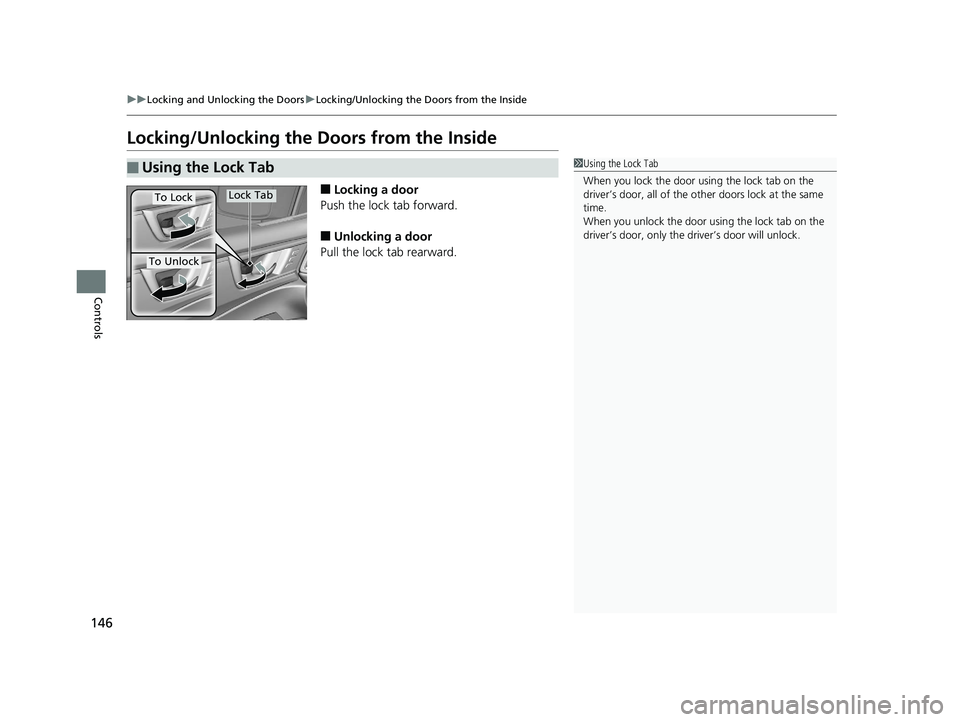

146 uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Inside
Controls Locking/Unlocking the Doors from the Inside ■ Locking a door
Push the lock tab forward.
■ Unlocking a door
Pull the lock tab rearward.
■ Using the Lock Tab 1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors lock at the same
time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock To Lock Lock Tab19 CLARITY PHEV-31TRW6100.book 146 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued

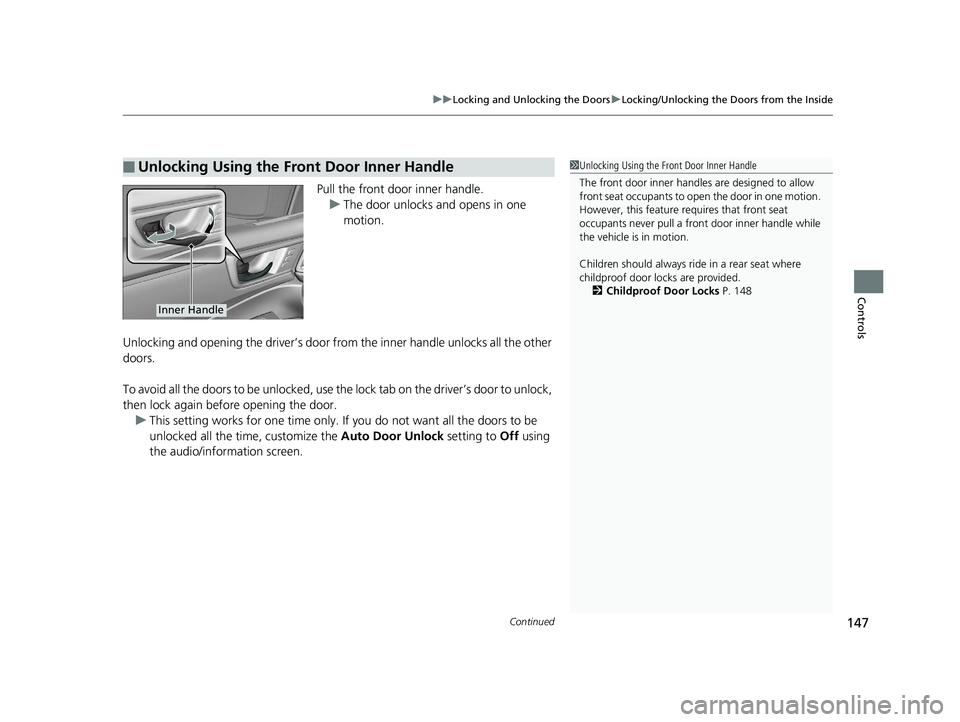

147uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door.
u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the audio/information screen.■ Unlocking Using the Front Door Inner Handle 1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 148
Inner Handle19 CLARITY PHEV-31TRW6100.book 147 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

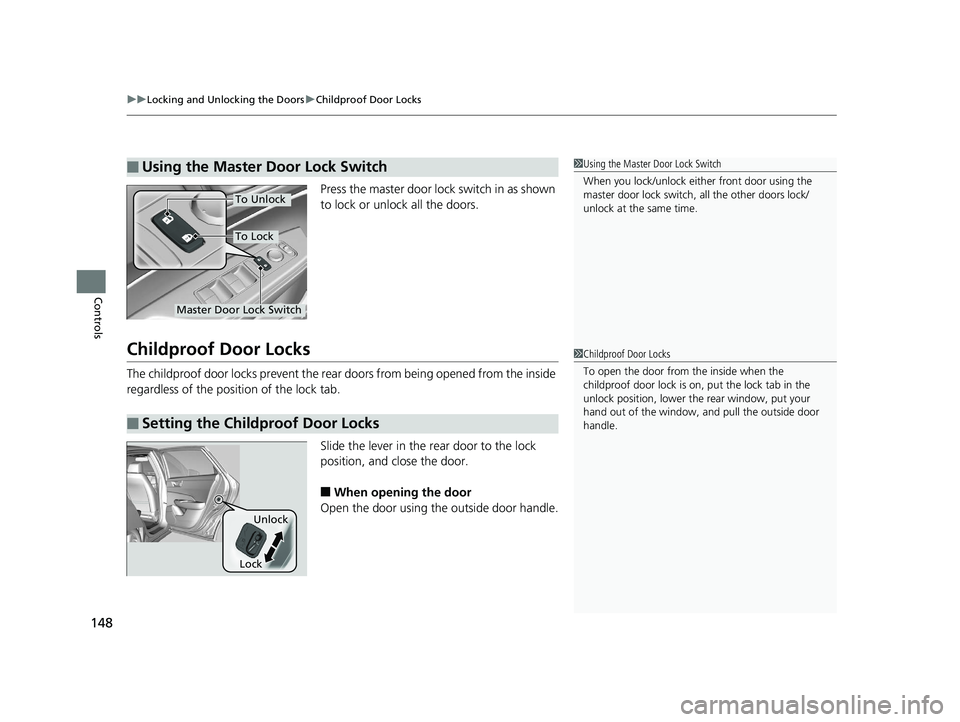

uu Locking and Unlocking the Doors u Childproof Door Locks
148
Controls Press the master door lock switch in as shown
to lock or unlock all the doors.
Childproof Door Locks The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■ When opening the door
Open the door using the outside door handle.■ Using the Master Door Lock Switch 1 Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors lock/
unlock at the same time.
Master Door Lock Switch To Unlock
To Lock
■ Setting the Childproof Door Locks 1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock19 CLARITY PHEV-31TRW6100.book 148 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
