engine coolant HONDA CR-V 2014 RM1, RM3, RM4 / 4.G User Guide

uuOverheating uHow to Handle Overheating
332
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle goes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature needle has gone down, re sume driving. If it has not gone down,
contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
14 CR-V-31T0A6200.book 332 ページ ２０１４年２月１０日　月曜日　午後７時１分

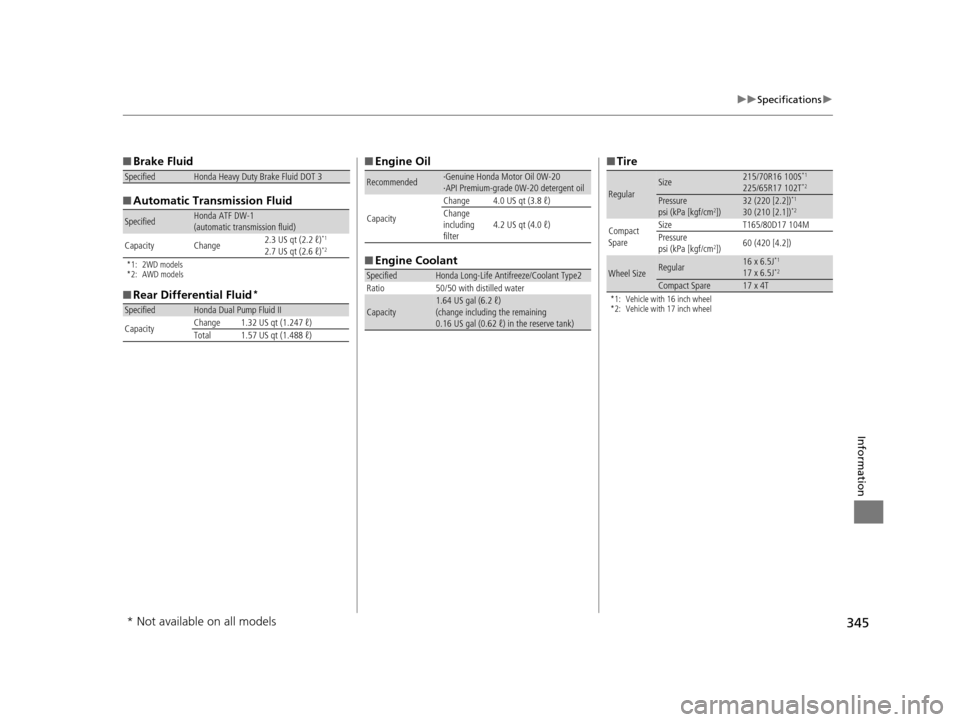

345
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.3 US qt (2.2 ℓ)
*1
2.7 US qt (2.6 ℓ)*2
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.32 US qt (1.247 ℓ)
Total 1.57 US qt (1.488 ℓ)
■
Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.0 US qt (3.8 ℓ)
Change
including
filter
4.2 US qt (4.0 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.64 US gal (6.2 ℓ)
(change including the remaining
0.16 US gal (0.62 ℓ) in the reserve tank)
■ Tire
*1: Vehicle with 16 inch wheel
*2: Vehicle with 17 inch wheel
RegularSize215/70R16 100S*1
225/65R17 102T*2
Pressure
psi (kPa [kgf/cm2])32 (220 [2.2])*1
30 (210 [2.1])*2
Compact
Spare Size
T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 6.5J*1
17 x 6.5J*2
Compact Spare17 x 4T
* Not available on all models
14 CR-V-31T0A6200.book 345 ページ ２０１４年２月１０日　月曜日　午後７時１分

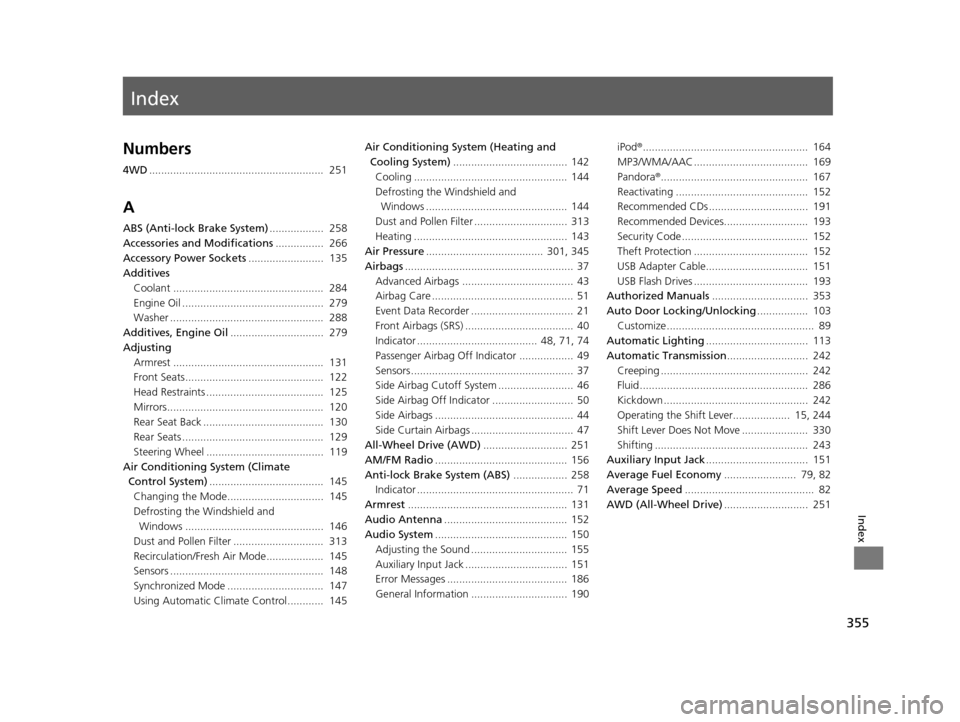

Index
355
Index
Index
Numbers
4WD.......................................................... 251
A
ABS (Anti-lock Brake System) .................. 258
Accessories and Modifications ................ 266
Accessory Power Sockets ......................... 135
Additives Coolant .................................................. 284
Engine Oil ............................................... 279
Washer ................................................... 288
Additives, Engine Oil ............................... 279
Adjusting Armrest .................................................. 131
Front Seats.............................................. 122
Head Restraints ....................................... 125
Mirrors.................................................... 120
Rear Seat Back ........................................ 130
Rear Seats ............................................... 129
Steering Wheel ....................................... 119
Air Conditioning System (Climate Control System) ...................................... 145
Changing the Mode................................ 145
Defrosting the Windshield and Windows .............................................. 146
Dust and Pollen Filter .............................. 313
Recirculation/Fresh Air Mode................... 145
Sensors ................................................... 148
Synchronized Mode ................................ 147
Using Automatic Climate Control............ 145 Air Conditioning System (Heating and
Cooling System) ...................................... 142
Cooling ................................................... 144
Defrosting the Windshield and Windows ............................................... 144
Dust and Pollen Filter ............................... 313
Heating ................................................... 143
Air Pressure ....................................... 301, 345
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
Airbag Care ............................................... 51
Event Data Recorder .................................. 21
Front Airbags (SRS) .................................... 40
Indicator ........................................ 48, 71, 74
Passenger Airbag Off Indicator .................. 49
Sensors ...................................................... 37
Side Airbag Cutoff System ......................... 46
Side Airbag Off Indicator ........................... 50
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 47
All-Wheel Drive (AWD) ............................ 251
AM/FM Radio ............................................ 156
Anti-lock Brake System (ABS) .................. 258
Indicator .................................................... 71
Armrest ..................................................... 131
Audio Antenna ......................................... 152
Audio System ............................................ 150
Adjusting the Sound ................................ 155
Auxiliary Input Jack .................................. 151
Error Messages ........................................ 186
General Information ................................ 190 iPod
®....................................................... 164
MP3/WMA/AAC ...................................... 169
Pandora ®................................................. 167
Reactivating ............................................ 152
Recommended CDs ................................. 191
Recommended Devices............................ 193
Security Code .......................................... 152
Theft Protection ...................................... 152
USB Adapter Cable.................................. 151
USB Flash Drives ...................................... 193
Authorized Manuals ................................ 353
Auto Door Locking/Unlocking ................. 103
Customize ................................................. 89
Automatic Lighting .................................. 113
Automatic Transmission ........................... 242
Creeping ................................................. 242
Fluid ........................................................ 286
Kickdown ................................................ 242
Operating the Shift Lever................... 15, 244
Shift Lever Does Not Move ...................... 330
Shifting ................................................... 243
Auxiliary Input Jack .................................. 151
Average Fuel Economy ........................ 79, 82
Average Speed ........................................... 82
AWD (All-Wheel Drive) ............................ 251
14 CR-V-31T0A6200.book 355 ページ ２０１４年２月１０日　月曜日　午後７時１分

356
Index
B
Battery....................................................... 309
Charging System Indicator ................. 69, 333
Jump Starting .......................................... 328
Maintenance (Checking the Battery) ........ 309
Maintenance (Replacing).......................... 310
Behind a Motorhome ............................... 235
Belts (Seat) .................................................. 29
Beverage Holders ...................................... 134
Bluetooth ® Audio ..................................... 172
Bluetooth ® HandsFreeLink ®..................... 194
Booster Seats (For Children) ....................... 64
Brake System ............................................. 256
Anti-lock Brake System (ABS) ................... 258
Brake Assist System ................................. 259
Fluid ........................................................ 287
Foot Brake ............................................... 257
Indicator ............................................ 68, 335
Parking Brake .......................................... 256
Brightness Control (Instrument Panel) .... 117
Bulb Replacement ..................................... 289
Brake Light, Taillight , Back-Up Light, Rear
Turn Signal Light a nd Lower Rear Side
Marker Light ........................................ 292
Fog Lights ................................................ 290
Front Turn Signal/Parking Light ................ 292
Headlights ............................................... 289
High-Mount Brake Light .......................... 295
Rear License Plate Light............................ 295
Side Marker Lights ................................... 291
Upper Rear Side Marker/Taillight .............. 294 Bulb Specifications
................................... 344
C
Carbon Monoxide Gas ............................... 65
Cargo Hook ............................................... 137
Cargo Side Net .......................................... 136
Carrying Cargo ................................. 227, 229
CD Player ................................................... 161
Certification Label .................................... 346
Changing Bulbs ........................................ 289
Charging System Indicator ................. 69, 333
Child Safety ................................................. 52
Childproof Door Locks............................. 102
Child Seat .................................................... 52
Booster Seats ............................................ 64
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 60
Larger Children ......................................... 63
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Childproof Door Locks ............................. 102
Cleaning the Exterior ............................... 316
Cleaning the Interior ................................ 314
Climate Control System ............................ 145
Changing the Mode ................................ 145
Defrosting the Windshield and Windows ............................................... 146
Dust and Pollen Filter............................... 313 Recirculation/Fresh Air Mode................... 145
Sensors ................................................... 148
Synchronized Mode ................................ 147
Using Automatic Climate Control............ 145
Clock ........................................................... 96
Coat Hook ................................................ 136
Compact Spare Tire .......................... 321, 345
Compass .................................................... 223
Console Compartment ............................. 133
Controls ...................................................... 95
Coolant (Engine) ...................................... 284
Adding to the Radiator ........................... 285
Adding to the Reserve Tank .................... 284
Overheating ............................................ 331
Creeping (Automatic Transmission) ........ 242
Cruise Control .......................................... 246
Indicator ................................................... 76
Cup Holders .............................................. 134
Customer Service Information ................ 354
Customized Features ................................. 84
D
Daytime Running Lights .......................... 114
Dead Battery ............................................ 328
Defrosting the Windshield and Windows ......................................... 144, 146
Detachable Anchor .................................... 34
Devices that Emit Radio Waves ............... 347
Dimming
Headlights .............................................. 112
14 CR-V-31T0A6200.book 356 ページ ２０１４年２月１０日　月曜日　午後７時１分

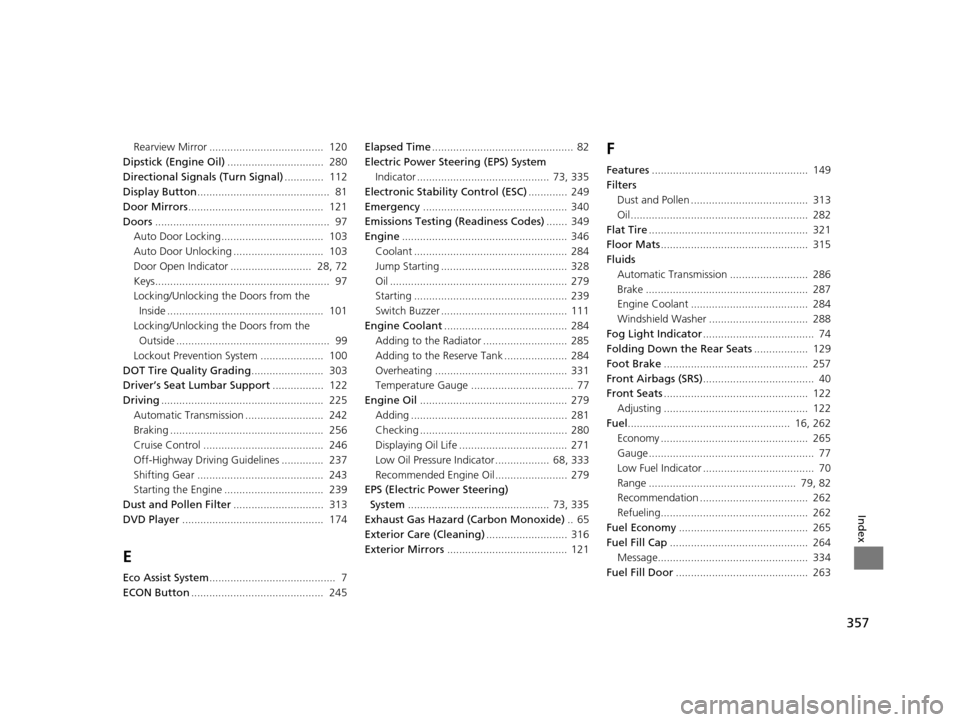

357
Index
Rearview Mirror ...................................... 120
Dipstick (Engine Oil) ................................ 280
Directional Signals (Turn Signal) ............. 112
Display Button ............................................ 81
Door Mirrors ............................................. 121
Doors .......................................................... 97
Auto Door Locking.................................. 103
Auto Door Unlocking .............................. 103
Door Open Indicator ........................... 28, 72
Keys.......................................................... 97
Locking/Unlocking the Doors from the
Inside .................................................... 101
Locking/Unlocking the Doors from the Outside ................................................... 99
Lockout Prevention System ..................... 100
DOT Tire Quality Grading ........................ 303
Driver’s Seat Lumbar Support ................. 122
Driving ...................................................... 225
Automatic Transmission .......................... 242
Braking ................................................... 256
Cruise Control ........................................ 246
Off-Highway Driving Guidelines .............. 237
Shifting Gear .......................................... 243
Starting the Engine ................................. 239
Dust and Pollen Filter .............................. 313
DVD Player ............................................... 174
E
Eco Assist System .......................................... 7
ECON Button ............................................ 245 Elapsed Time
............................................... 82
Electric Power Steering (EPS) System
Indicator ............................................ 73, 335
Electronic Stability Control (ESC) ............. 249
Emergency ................................................ 340
Emissions Testing (Readiness Codes) ....... 349
Engine ....................................................... 346
Coolant ................................................... 284
Jump Starting .......................................... 328
Oil ........................................................... 279
Starting ................................................... 239
Switch Buzzer .......................................... 111
Engine Coolant ......................................... 284
Adding to the Radiator ............................ 285
Adding to the Reserve Tank ..................... 284
Overheating ............................................ 331
Temperature Gauge .................................. 77
Engine Oil ................................................. 279
Adding .................................................... 281
Checking ................................................. 280
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator .................. 68, 333
Recommended Engine Oil ........................ 279
EPS (Electric Power Steering) System ............................................... 73, 335
Exhaust Gas Hazard (Carbon Monoxide) .. 65
Exterior Care (Cleaning) ........................... 316
Exterior Mirrors ........................................ 121
F
Features.................................................... 149
Filters Dust and Pollen ....................................... 313
Oil ........................................................... 282
Flat Tire ..................................................... 321
Floor Mats ................................................. 315
Fluids
Automatic Transmission .......................... 286
Brake ...................................................... 287
Engine Coolant ....................................... 284
Windshield Washer ................................. 288
Fog Light Indicator ..................................... 74
Folding Down the Rear Seats .................. 129
Foot Brake ................................................ 257
Front Airbags (SRS) ..................................... 40
Front Seats ................................................ 122
Adjusting ................................................ 122
Fuel ...................................................... 16, 262
Economy ................................................. 265
Gauge ....................................................... 77
Low Fuel Indicator ..................................... 70
Range ................................................. 79, 82
Recommendation .................................... 262
Refueling................................................. 262
Fuel Economy ........................................... 265
Fuel Fill Cap .............................................. 264
Message.................................................. 334
Fuel Fill Door ............................................ 263
14 CR-V-31T0A6200.book 357 ページ ２０１４年２月１０日　月曜日　午後７時１分
