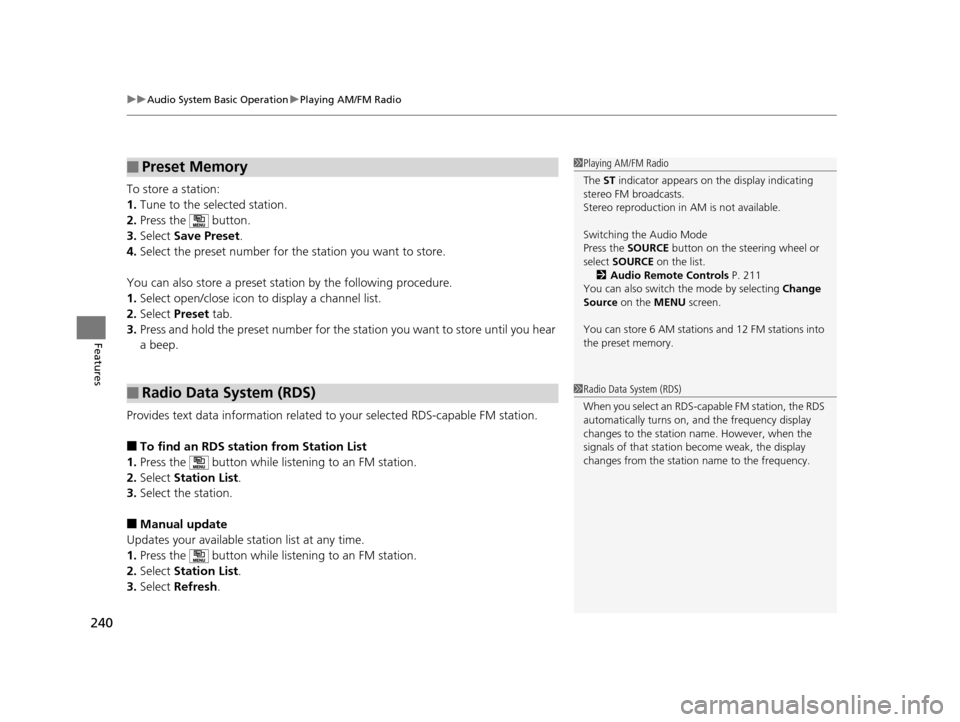

HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Owners Manual

uuAudio System Basic Operation uPlaying AM/FM Radio
240
Features
To store a station:
1. Tune to the selected station.
2. Press the button.
3. Select Save Preset .
4. Select the preset number for the station you want to store.
You can also store a preset station by the following procedure.
1. Select open/close icon to display a channel list.
2. Select Preset tab.
3. Press and hold the preset number for the st ation you want to store until you hear
a beep.
Provides text data information related to your selected RDS-capable FM station.
■To find an RDS station from Station List
1. Press the button while listening to an FM station.
2. Select Station List .
3. Select the station.
■Manual update
Updates your available station list at any time.
1. Press the button while listening to an FM station.
2. Select Station List .
3. Select Refresh .
■Preset Memory
■Radio Data System (RDS)
1Playing AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the SOURCE button on the steering wheel or
select SOURCE on the list.
2 Audio Remote Controls P. 211
You can also switch the mode by selecting Change
Source on the MENU screen.
You can store 6 AM stations and 12 FM stations into
the preset memory.
1 Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the statio n name to the frequency.
15 CR-V-31T0A6300.book 240 ページ ２０１５年２月２日　月曜日　午前１０時３５分

241
uuAudio System Basic Operation uPlaying AM/FM Radio
Features

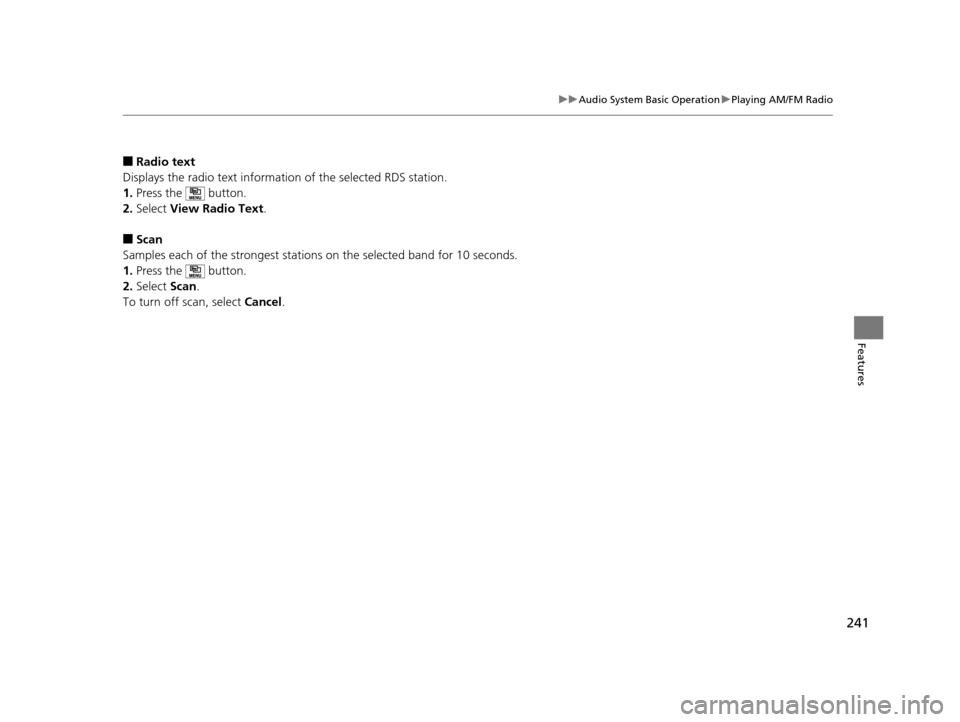

■Radio text
Displays the radio text informat ion of the selected RDS station.
1. Press the button.
2. Select View Radio Text .
■Scan
Samples each of the strongest stations on the selected band for 10 seconds.
1. Press the button.
2. Select Scan.
To turn off scan, select Cancel.
15 CR-V-31T0A6300.book 241 ページ ２０１５年２月２日　月曜日　午前１０時３５分

242
uuAudio System Basic Operation uPlaying SiriusXM ® Radio*
Features

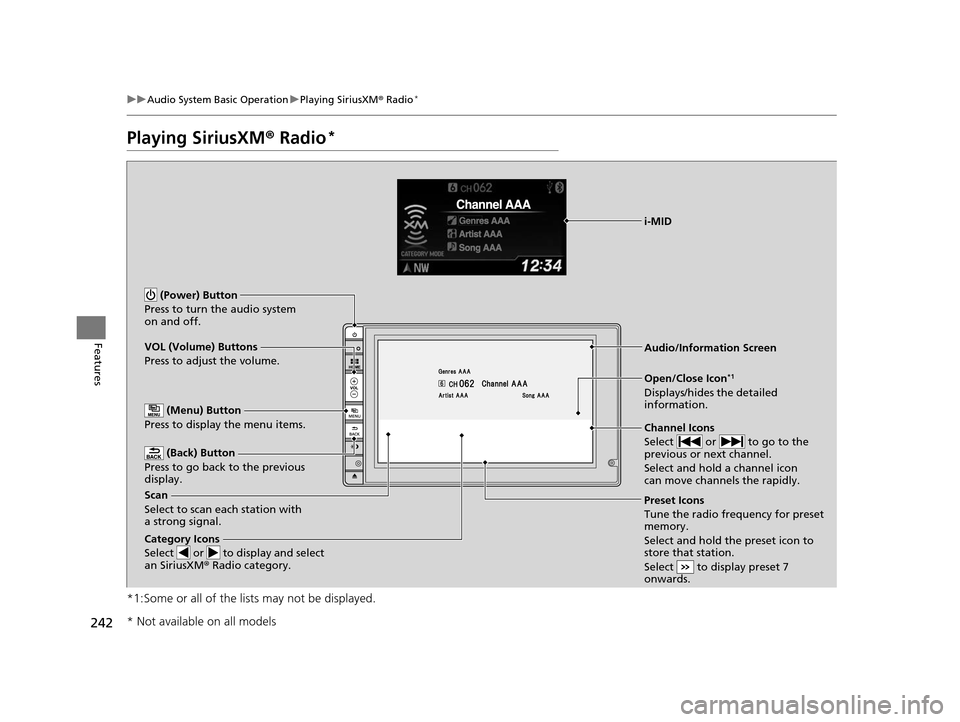

Playing SiriusXM ® Radio*
*1:Some or all of the lists may not be displayed.
VOL (Volume) Buttons
Press to adjust the volume.
(Back) Button
Press to go back to the previous
display.
Channel Icons
Select or to go to the
previous or next channel.
Select and hold a channel icon
can move channels the rapidly.
(Power) Button
Press to turn the audio system
on and off.
Open/Close Icon*1
Displays/hides the detailed
information.
(Menu) Button
Press to display the menu items.
i-MID
Category Icons
Select or to display and select
an SiriusXM ® Radio category.
Audio/Information Screen
Scan
Select to scan each station with
a strong signal. Preset Icons
Tune the radio frequency for preset
memory.
Select and hold the preset icon to
store that station.
Select to display preset 7
onwards.
* Not available on all models
15 CR-V-31T0A6300.book 242 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Continued243
uuAudio System Basic Operation uPlaying SiriusXM ® Radio*
Features

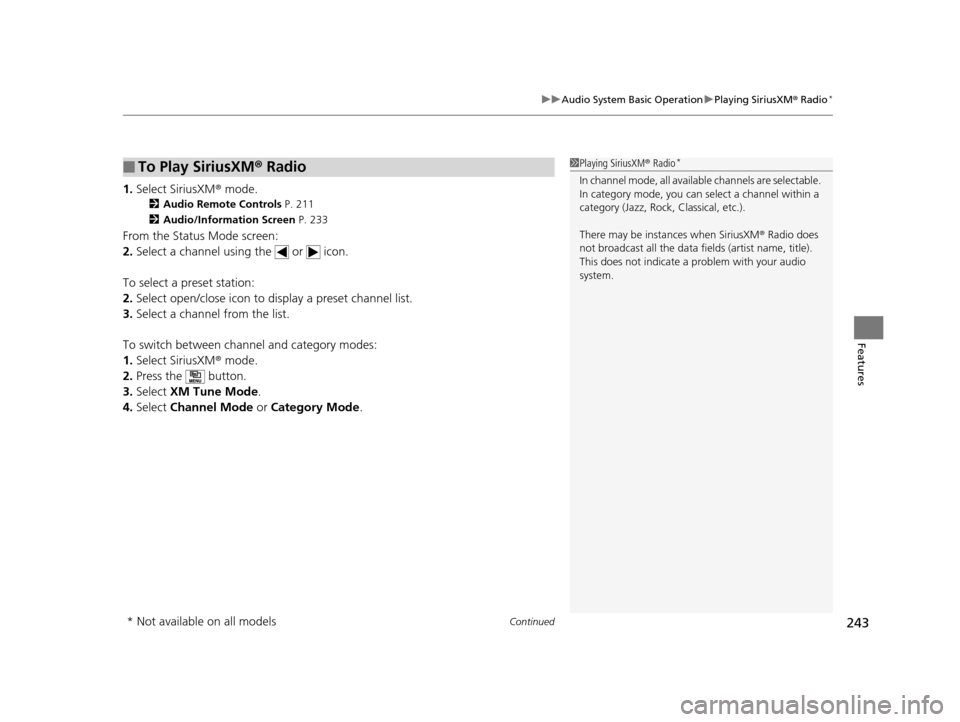

1. Select SiriusXM ® mode.
2 Audio Remote Controls P. 211
2 Audio/Information Screen P. 233
From the Status Mode screen:
2.Select a channel using the or icon.
To select a preset station:
2. Select open/close ic on to display a preset channel list.
3. Select a channel from the list.
To switch between channel and category modes:
1. Select SiriusXM ® mode.
2. Press the button.
3. Select XM Tune Mode .
4. Select Channel Mode or Category Mode .
■To Play SiriusXM® Radio1 Playing SiriusXM ® Radio*
In channel mode, all available channels are selectable.
In category mode, you can select a channel within a
category (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fi elds (artist name, title).
This does not indicate a problem with your audio
system.
* Not available on all models
15 CR-V-31T0A6300.book 243 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuAudio System Basic Operation uPlaying SiriusXM ® Radio*
244
Features

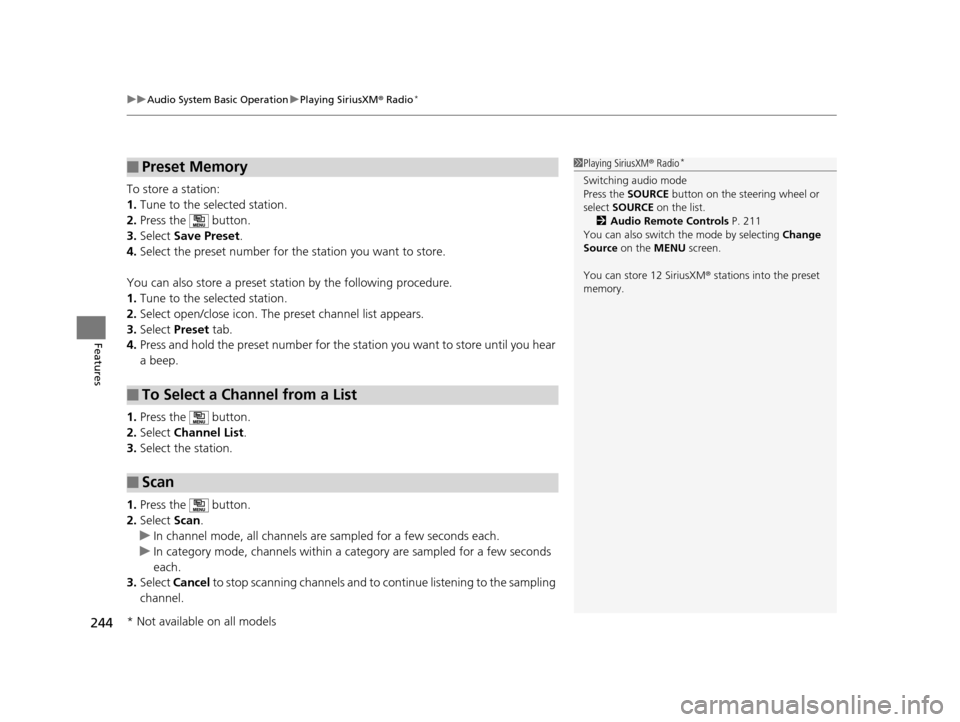

To store a station:
1. Tune to the selected station.
2. Press the button.
3. Select Save Preset .
4. Select the preset number for the station you want to store.
You can also store a preset station by the following procedure.
1. Tune to the selected station.
2. Select open/close icon. The preset channel list appears.
3. Select Preset tab.
4. Press and hold the preset number for the st ation you want to store until you hear
a beep.
1. Press the button.
2. Select Channel List.
3. Select the station.
1. Press the button.
2. Select Scan.
u In channel mode, all channels ar e sampled for a few seconds each.
u In category mode, channels within a category are sampled for a few seconds
each.
3. Select Cancel to stop scanning channels and to continue listening to the sampling
channel.
■Preset Memory
■To Select a Channel from a List
■Scan
1 Playing SiriusXM ® Radio*
Switching audio mode
Press the SOURCE button on the steering wheel or
select SOURCE on the list.
2 Audio Remote Controls P. 211
You can also switch the mode by selecting Change
Source on the MENU screen.
You can store 12 SiriusXM ® stations into the preset
memory.
* Not available on all models
15 CR-V-31T0A6300.book 244 ページ ２０１５年２月２日　月曜日　午前１０時３５分

245
uuAudio System Basic Operation uPlaying a CD
Continued
Features
Playing a CD
Your audio system supports audio CDs, CD-Rs , and CD-RWs in either MP3 or WMA,
or AAC*1 format. With the CD loaded, select the CD mode.
*1:Only AAC format files recorded with iTunes are playable on this unit.
*2:Some or all of the lists may not be displayed.
NO>dNO>d‡Šƒ>___
_ _Š€“‹>___
VOL (Volume) Buttons
Press to adjust the volume.
(Back) Button
Press to go back to the previous
display.
Track Icons
Select or to change
tracks (files in MP3, WMA, or AAC).
Select and hold to move rapidly
within a track.
(Power) Button
Press to turn the audio system
on and off.
Open/Close Icon*2
Displays/hides the detailed
information.
(Menu) Button
Press to display the menu items.
i-MID
(Eject/CLOSE) Button
Press to eject a CD.
Audio/Information Screen
Folder Icons
Select to skip to the next folder, and to skip to the
beginning of the previous folder in MP3, WMA, or AAC.
15 CR-V-31T0A6300.book 245 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuAudio System Basic Operation uPlaying a CD
246
Features

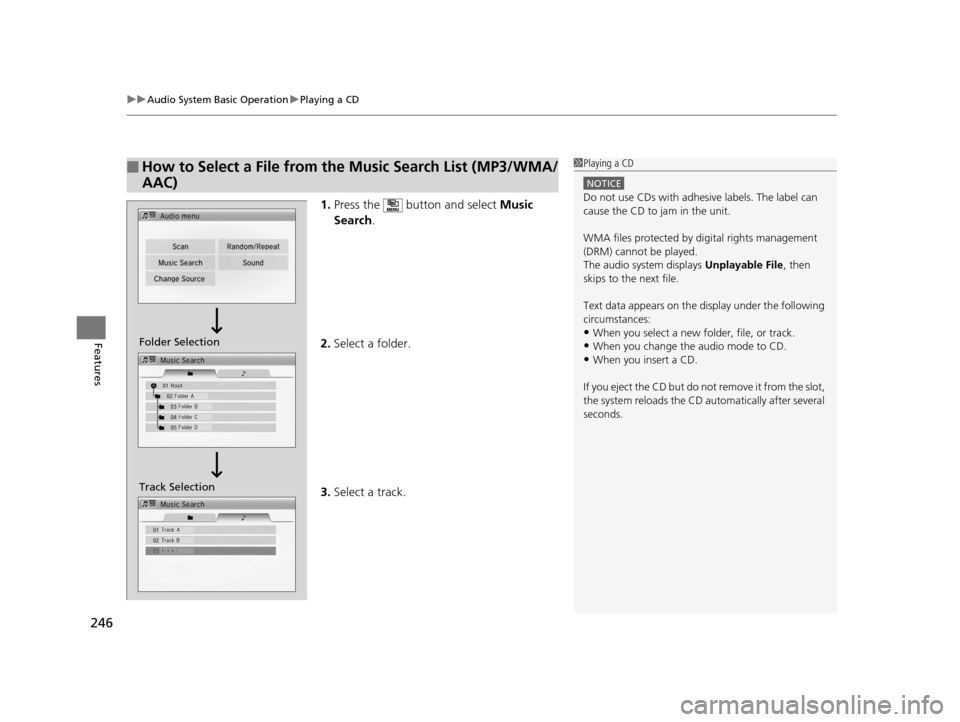

1. Press the button and select Music
Search .
2. Select a folder.
3. Select a track.
■How to Select a File from the Music Search List (MP3/WMA/
AAC)1Playing a CD
NOTICE
Do not use CDs with adhesive labels. The label can
cause the CD to jam in the unit.
WMA files protected by di gital rights management
(DRM) cannot be played.
The audio system displays Unplayable File, then
skips to the next file.
Text data appears on the di splay under the following
circumstances:
•When you select a new folder, file, or track.
•When you change the audio mode to CD.
•When you insert a CD.
If you eject the CD but do not remove it from the slot,
the system reloads the CD automatically after several
seconds.
Track Selection Folder Selection
15 CR-V-31T0A6300.book 246 ページ ２０１５年２月２日　月曜日　午前１０時３５分

247
uuAudio System Basic Operation uPlaying a CD
Features

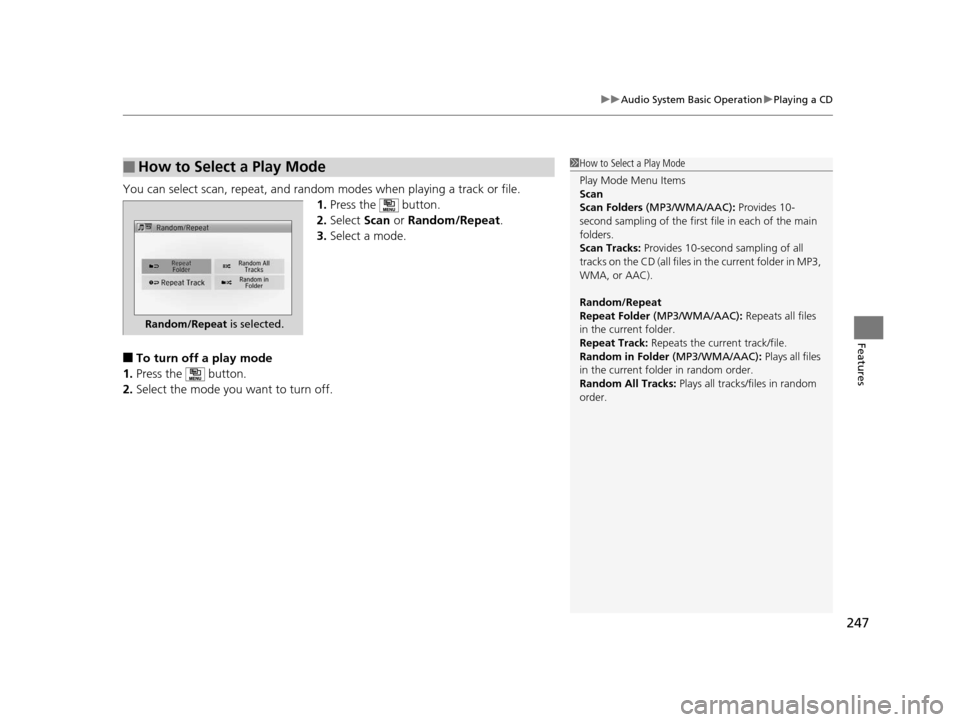

You can select scan, repeat, and random modes when playing a track or file.
1.Press the button.
2. Select Scan or Random/Repeat .
3. Select a mode.
■To turn off a play mode
1. Press the button.
2. Select the mode you want to turn off.
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders (MP3/WMA/AAC): Provides 10-
second sampling of the first f ile in each of the main
folders.
Scan Tracks: Provides 10-second sampling of all
tracks on the CD (all files in the current folder in MP3,
WMA, or AAC).
Random/Repeat
Repeat Folder (MP3/WMA/AAC): Repeats all files
in the current folder.
Repeat Track: Repeats the current track/file.
Random in Folder (MP3/WMA/AAC) : Plays all files
in the current folder in random order.
Random All Tracks: Plays all tracks/files in random
order.
Random/Repeat is selected.
15 CR-V-31T0A6300.book 247 ページ ２０１５年２月２日　月曜日　午前１０時３５分

248
uuAudio System Basic Operation uPlaying an iPod
Features

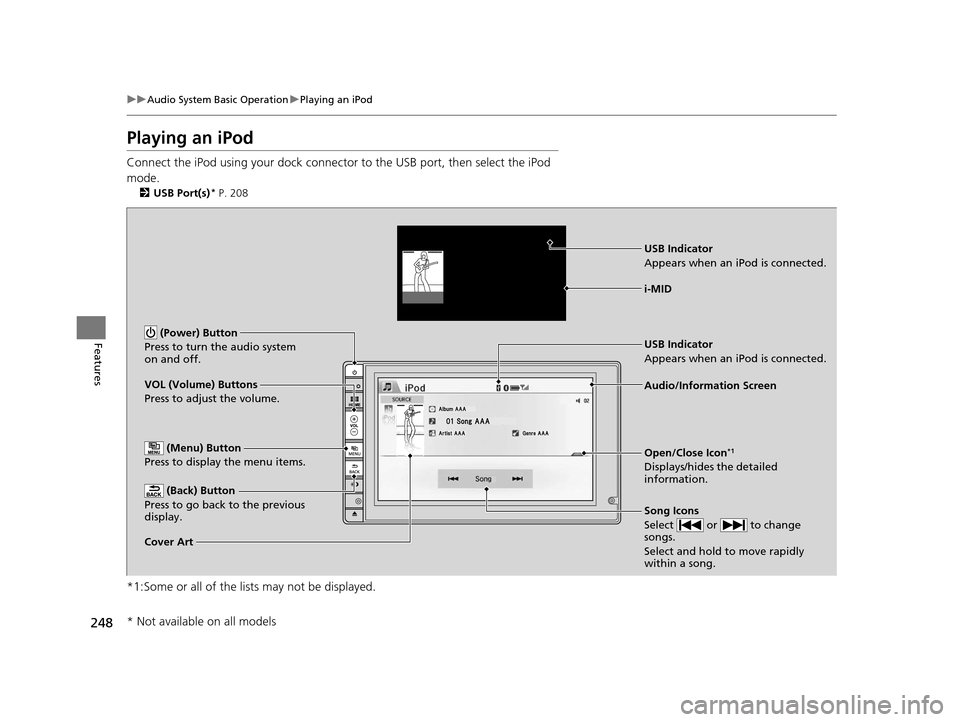

Playing an iPod
Connect the iPod using your dock connector to the USB port, then select the iPod
mode.
2 USB Port(s)* P. 208
*1:Some or all of the lists may not be displayed.
VOL (Volume) Buttons
Press to adjust the volume.
(Back) Button
Press to go back to the previous
display.
Song Icons
Select or to change
songs.
Select and hold to move rapidly
within a song.
(Power) Button
Press to turn the audio system
on and off.
Open/Close Icon*1
Displays/hides the detailed
information.
(Menu) Button
Press to display the menu items.
i-MID
Cover Art Audio/Information Screen
USB Indicator
Appears when an iPod is connected.
USB Indicator
Appears when an iPod is connected.
* Not available on all models
15 CR-V-31T0A6300.book 248 ページ ２０１５年２月２日　月曜日　午前１０時３５分

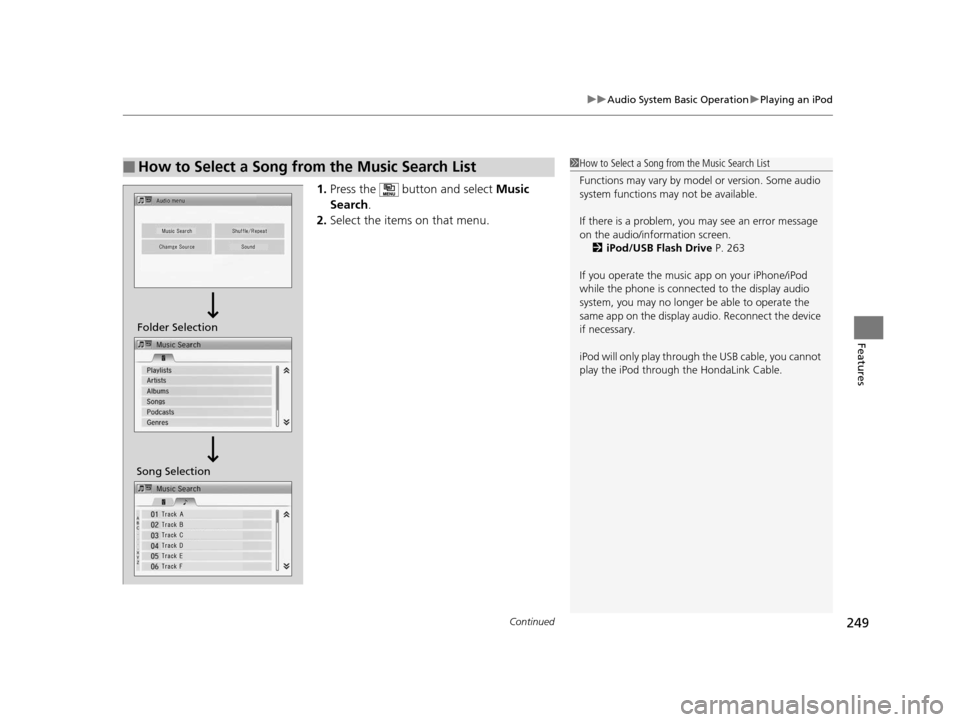

Continued249
uuAudio System Basic Operation uPlaying an iPod
Features
1. Press the button and select Music
Search .
2. Select the items on that menu.
■How to Select a Song from the Music Search List1How to Select a Song from the Music Search List
Functions may vary by mode l or version. Some audio
system functions may not be available.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 263
If you operate the musi c app on your iPhone/iPod
while the phone is connecte d to the display audio
system, you may no longer be able to operate the
same app on the display audi o. Reconnect the device
if necessary.
iPod will only play through th e USB cable, you cannot
play the iPod through the HondaLink Cable.
Song Selection Folder Selection
15 CR-V-31T0A6300.book 249 ページ ２０１５年２月２日　月曜日　午前１０時３５分
