173
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you. This feature is
always active.
■Rearview Mirror with Day and Night Positions*
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Adjusting the Seat Positions P. 175
Tab
Daytime
Position
Night PositionUp
Down
■Automatic Dimming Rearview Mirror*
Sensor
1 Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the shift
position is in (R.
* Not available on all models
15 CR-V-31T0A6300.book 173 ページ ２０１５年２月２日　月曜日　午前１０時３５分

185Continued
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver's door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
Only the cargo area light comes on when the
tailgate is opened.
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver's door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 114
The interior lights go off i mmediately in the following
situations:
•When you lock the driver's door.
•When you close the driver's door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
•When you turn the ignition switch to ON ( w*1.
If you leave any doors open in VEHICLE OFF (LOCK)
mode, or without the key in the ignition switch, the
interior lights go off after about 15 minutes.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Front
Door Activated Position
On
Off
Rear and Cargo Area
Front
Models with moonroof
Models without moonroof
Off
Door
Activated
Position
Models without smart entry system
Models with smart entry system
15 CR-V-31T0A6300.book 185 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuInterior Lights/Interior Convenience Items uInterior Lights
186
Controls
The map lights can be turned on and off by
pressing the lenses.
■Map Lights1Map Lights
When the interior light swit ch is in the door activated
position and any door is open, pressing the lens does
not turn off the map light.
15 CR-V-31T0A6300.book 186 ページ ２０１５年２月２日　月曜日　午前１０時３５分

187
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key or
the built-in key.
Pull the handle to open the console
compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
■Console Compartment
15 CR-V-31T0A6300.book 187 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
188
Controls

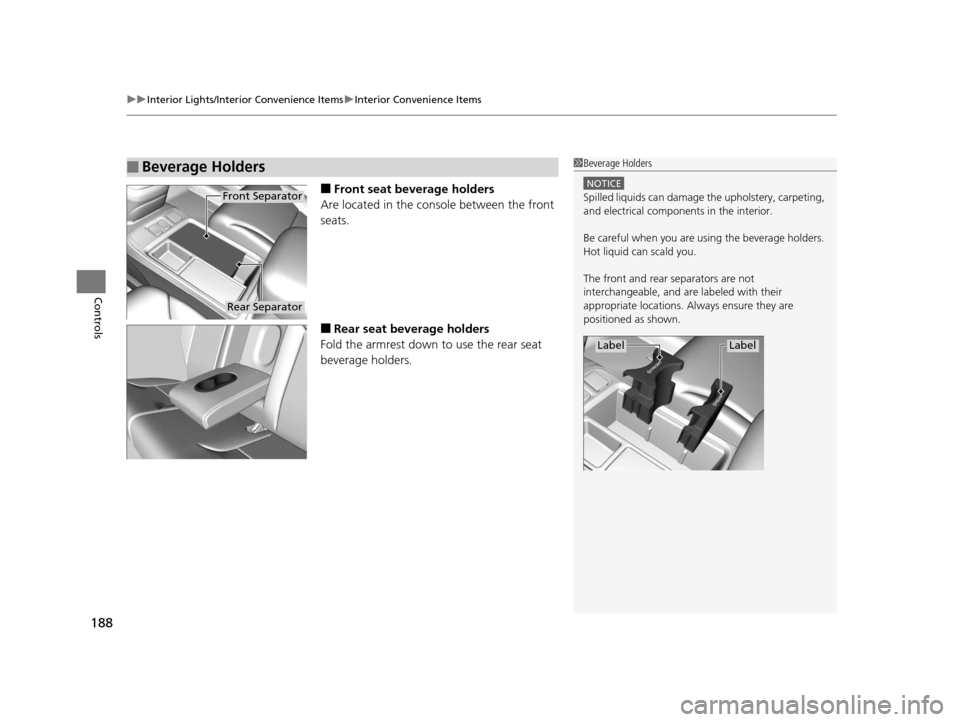

■Front seat beverage holders
Are located in the console between the front
seats.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
The front and rear separators are not
interchangeable, and are labeled with their
appropriate locations. Al ways ensure they are
positioned as shown.
LabelLabel
Front Separator
Rear Separator
15 CR-V-31T0A6300.book 188 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Continued189
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power so ckets can be used when the i gnition switch is in ACCESSORY
(q or ON (w*1.
■Accessory power socket on the console
panel
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts or less (15 amps).
To prevent battery drain, only use the power socket
with the engine running.
15 CR-V-31T0A6300.book 189 ページ ２０１５年２月２日　月曜日　午前１０時３５分

190
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

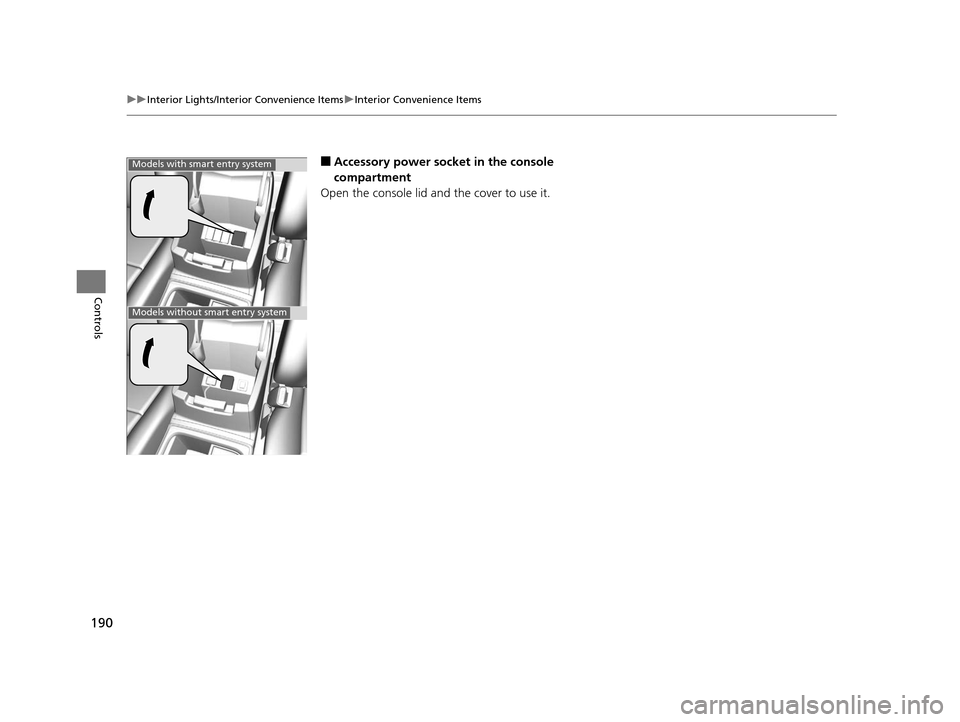

■Accessory power socket in the console
compartment
Open the console lid and the cover to use it.Models with smart entry system
Models without smart entry system
15 CR-V-31T0A6300.book 190 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Continued191
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
There is a coat hook on the rear left grab
handle. Pull it down to use it.
Use the cargo side net to secure items to the
side.
■Coat Hook1Coat Hook
The coat hook is not desi gned for large or heavy
items.
■Cargo Side Net
15 CR-V-31T0A6300.book 191 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
192
Controls
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
The cargo hooks on both sides of the cargo
area can be used to hang a light items.
■Tie-down Anchors1Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items ca n cause injury if you have
to brake hard.
Hooks
Hooks
■Cargo Hooks1 Cargo Hooks
NOTICE
Do not hang a large object or an object that weighs
more than 6 lbs (3 kg) on the side cargo hooks.
Hanging heavy or large objects may damage the
hooks.
Hook
15 CR-V-31T0A6300.book 192 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Continued193
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent.
You can use the mirror to view the rear seats.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
