515Continued
Information

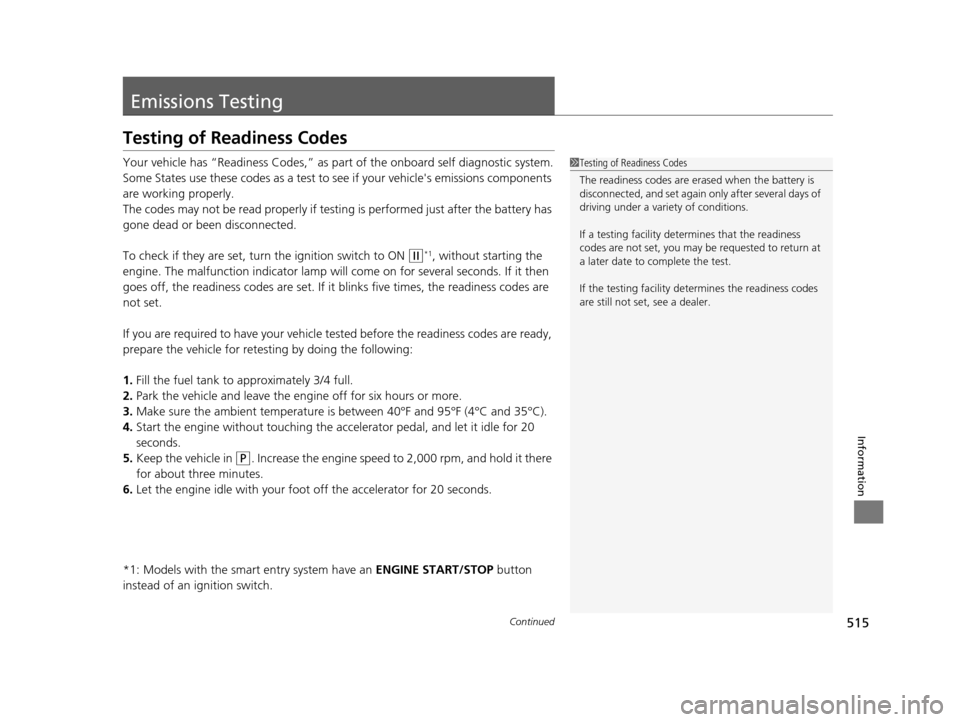

Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the fuel tank to approximately 3/4 full.
2. Park the vehicle and leave the engi ne off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
15 CR-V-31T0A6300.book 515 ページ ２０１５年２月２日　月曜日　午前１０時３５分

524
Index
D
Daytime Running Lights........................... 163
Dead Battery ............................................. 494
Defrosting the Windshield and Windows .......................................... 199, 201
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 513
Dimming
Headlights ............................................... 159
Rearview Mirror ....................................... 173
Dipstick (Engine Oil) ................................. 443
Directional Signals (Turn Signals) ............ 158
Display Button .......................................... 111
Display Setup ............................................ 238
Door Mirrors ............................................. 174
Doors ......................................................... 130
Auto Door Locking .................................. 139
Auto Door Unlocking ............................... 139
Door Open Indicator .................................. 32
Keys ........................................................ 130
Locking/Unlocking the Doors from the Inside ..................................................... 137
Locking/Unlocking the Doors from the Outside .................................................. 133
Lockout Prevention System ...................... 136
DOT Tire Quality Grading ........................ 468
Driver’s Seat Lumbar Support .................. 175
Driving ....................................................... 347
Adaptive Cruise Control (ACC) ................ 375
Braking .................................................... 405
Continuously Variable Transmission ......... 367 Cruise Control ......................................... 371
Off-Highway Driving Guidelines............... 358
Shifting Gear ........................................... 368
Starting the Engine.......................... 360, 362
Driving Position Memory System ............ 170
Dust and Pollen Filter ............................... 477
E
Eco Assist System.......................................... 9
ECON Button ............................................ 370
Elapsed Time ............................................. 112
Electric Power Steering (EPS) System
Indicator............................................ 76, 501
Electronic Stability Control (ESC) ............. 396
Emergency ................................................ 506
Emissions Testing (Readiness Codes) ....... 515
Engine ....................................................... 512
Coolant ................................................... 447
Jump Starting .......................................... 494
Oil ........................................................... 442
Starting ........................................... 360, 362
Switch Buzzer.................................. 153, 156
Engine Coolant ......................................... 447
Adding to the Radiator ............................ 448
Adding to the Reserve Tank..................... 447
Overheating ............................................ 497
Temperature Gauge .................................. 92
Engine Oil ................................................. 442
Adding .................................................... 444
Checking................................................. 443 Displaying Oil Life ................................... 429
Low Oil Pressure Indicator ................. 70, 499
Recommended Engine Oil ....................... 442
ENGINE START/STOP Button .................... 154
EPS (Electric Power Steering)
System ............................................... 76, 501
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 67
Exterior Care (Cleaning) .......................... 480
Exterior Mirrors ........................................ 174
F
Features.................................................... 205
Filters Dust and Pollen....................................... 477
Oil .......................................................... 445
Flat Tire ..................................................... 485
Floor Mats ................................................ 479
Fluids Brake ...................................................... 450
Continuously Variable Transmission ........ 449
Engine Coolant ....................................... 447
Windshield Washer ................................. 451
Fog Light Indicator .................................... 77
Folding Down the Rear Seats .................. 182
Foot Brake ................................................ 406
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 374
15 CR-V-31T0A6300.book 524 ページ ２０１５年２月２日　月曜日　午前１０時３５分

529
Index
Stopping................................................... 416
Summer Tires ............................................ 473
Sunglasses Holder .................................... 193
Supplemental Restraint System (SRS) ....... 44
Switches (Around the Steering
Wheel) ............................................ 4, 5, 153
Synchronized Mode ................................. 202
T
Tachometer................................................ 92
Tailgate ..................................................... 140
Remote Transmitter ................................ 142
Unable to Open ...................................... 507
Temperature Gauge .................................. 92
Temperature Sensor ................................ 203
Text Message .................................... 296, 308
Time (Setting) ........................................... 128
Tire Pressure Monitoring System (TPMS) ..................................................... 401
Button .................................................... 401
Indicator ................................................... 76
Tires .......................................................... 465
Air Pressure..................................... 466, 511
Checking and Maintaining ...................... 465
Inspection ............................................... 465
Labeling .................................................. 466
Puncture (Flat Tire) .................................. 485
Regulations ............................................. 468
Rotation.................................................. 472
Spare Tire ....................................... 485, 511 Summer .................................................. 473
Tire Chains .............................................. 473
Wear Indicators ....................................... 470
Winter ..................................................... 473
Tonneau Cover ......................................... 195
Tools .......................................................... 484
Towing a Trailer ....................................... 353
Equipment and Accessories ..................... 354
Load Limits .............................................. 353
Towing Your Vehicle ................................ 357
Behind a Motorhome .............................. 357
Emergency .............................................. 506
TPMS (Tire Pressure Monitoring System) .................................................... 401
Button ..................................................... 401
Indicator .................................................... 76
Transmission ............................................. 368
Continuously Variable .............................. 368
Fluid ........................................................ 449
Number ................................................... 512
Shift Lever Position Indicator .............. 71, 369
Trip Meter ............................................. 94, 97
Troubleshooting ....................................... 483
Blown Fuse ...................................... 503, 504
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door .......... 25
Emergency Towing .................................. 506
Engine Won’t Start .................................. 491
Noise When Braking .................................. 26
Overheating ............................................ 497
Puncture/Flat Tire ..................................... 485 Rear Door Won’t Open...................... 25, 138
Select Lever Won’t Move ......................... 496
Warning Indicators .................................... 70
Turn Signals .............................................. 158
Indicators (Instrument Panel) ..................... 77
U
Unlocking the Doors ................................ 133
Unlocking the Fron t Doors from the
Inside ......................................................... 14
USB Adapter Cable ........................... 206, 207
USB Flash Drives ....................................... 270
USB Port(s) ........................................ 206, 208
V
Valet Key................................................... 131
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 512
Vehicle Stability Assist (VSA ®).................. 396
Off Button............................................... 397
Off Indicator.............................................. 74
System Indicator ........................................ 74
Viscosity (Oil) .................................... 442, 511
VSA ® (Vehicle Stability Assist) .................. 396
W
Wallpaper......................................... 123, 235
Warning and Info rmation Messages ......... 86
Warning Indicator On/Blinking ............... 499
15 CR-V-31T0A6300.book 529 ページ ２０１５年２月２日　月曜日　午前１０時３５分
