Page 4 of 533

Contents
Child Safety P. 54Exhaust Gas Hazard P. 67Safety Labels P. 68
Opening and Closing the Tailgate P. 140 Security System P. 147 Opening and Closing the Windows P. 150
Operating the Switches Around the Steering Wheel P. 153 Adjusting the Mirrors P. 173
Interior Lights/Interior Convenience Items P. 185 Heating and Cooling System
* P. 197
Audio Error Messages P. 262General Information on the Audio System P. 267
Bluetooth ® HandsFreeLink ® P. 284 Compass P. 342
Off-Highway Driving Guidelines P. 358 When Driving P. 360 Braking P. 405
Refueling P. 420 Fuel Economy P. 423Accessories and Modifications P. 424
Maintenance Under the Hood P. 440 Replacing Light Bulbs P. 452
Checking and Maintaining Tires P. 465 Battery P. 474 Remote Transmitter Care P. 475
Heating and Cooling System
*/Climate Control System* Maintenance P. 477 Cleaning P. 478
Engine Does Not Start P. 491 Jump Starting P. 494 Shift Lever Does Not Move P. 496
Fuses P. 503 Emergency Towing P. 506
When You Cannot Open the Tailgate P. 507
Devices that Emit Radio Waves P. 513 Reporting Safety Defects P. 514
Authorized Manuals P. 519 Customer Service Information P. 520
Quick Reference GuideP. 4
Safe DrivingP. 27
Instrument PanelP. 69
ControlsP. 127
FeaturesP. 205
DrivingP. 347
MaintenanceP. 425
Handling the UnexpectedP. 483
InformationP. 509
IndexP. 522
15 CR-V-31T0A6300.book 3 ページ 2015年2月2日 月曜日 午前10時35分
Page 5 of 533

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙ECON Button (P 370)
❙Ignition Switch* (P 153)
❙Steering Wheel Adjustments (P 172)
❙Information Display* (P 93)
❙Tire Pressure Monitoring System (TPMS) Button* (P 401)
❙Hazard Warning Button
❙System Indicators (P 70)
❙Rear Window Defogger (P 168)
❙Heated Mirror Button* (P 168)
❙Gauges (P 92)
❙intelligent Multi-Information Display
(i-MID)
(P 111)
❙Multi-Information Display* (P 96)
❙ENGINE START/STOP Button* (P 154)
❙Heating and Cooling System* (P 197)
❙Audio System (P 206)
❙Navigation System*
() See the Navigation System Manual
❙ (Vehicle Stability Assist (VSA ®) System OFF) Button (P 396)
❙Lane Departure Warning (LDW) Button* (P 387)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P 412)
❙Heated Windshield Button* (P 169)
❙Power Tailgate Button* (P 145)
❙Climate Control System* (P 200)
15 CR-V-31T0A6300.book 4 ページ 2015年2月2日 月曜日 午前10時35分
Page 9 of 533

Visual Index
8
Quick Reference Guide
❙Audio Antenna (P 209)
❙Windshield Wipers (P 164, 461)
❙Door Lock/Unlock Control (P 133)
❙How to Refuel (P 421)
❙High-Mount Brake Light (P 460)
❙Rear Wiper (P 165, 463)
❙Back-Up Lights (P 457)
❙Brake/Taillights (P 457)
❙Rear Turn Signal Lights (P 457)
❙Rear Side Marker Lights (P 457)
❙Power Door Mirrors (P 174)
❙Maintenance Under the Hood (P 440)
❙Fog Lights* (P 162, 453)
❙Multi-View Rear Camera* (P 417)
❙Front Turn Signal/Side Marker Lights (P 158, 455, 456)
❙Parking Lights (P 159, 456)
❙Tires (P 465, 485)
❙Headlights (P 159, 452)
❙Opening/Closing the Tailgate
(P 140)
❙Tailgate Release Button (P141)
15 CR-V-31T0A6300.book 8 ページ 2015年2月2日 月曜日 午前10時35分
Page 12 of 533

11
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator*Parking Brake
and Brake System
Indicator Supplemental
Restraint System
Indicator
Door and Tailgate
*
Open Indicator
CRUISE MAIN Indicator
*
Tachometer
Speedometer Fuel
Gauge
Security System Alarm Indicator
*
Shift Lever Position Indicator
Low Fuel Indicator
Gauges (P 92)/Information Display* (P 93)/Multi-Information Display* (P96)/
intelligent Multi-Inform ation Display (i-MID)
(P 111)/System Indicators (P 70)
Tailgate Open
Indicator
*
ECON Mode Indicator Maintenance Minder
Indicator
*
Washer Level
Indicator*
Ambient MeterTemperature Gauge
Electric Power
Steering (EPS)
Indicator Turn Signal and
Hazard Warning
Indicators
All-Wheel Drive
(
AWD ) System
Indicator
*
System Indicators
Canada U.S.
Smart Entry System
Indicator*
Lane Keeping Assist
System (
LKAS) Indicator*
Adaptive Cruise Control
(ACC ) Indicator*
Starter System
Indicator*
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator*
Lane Departure
Warning Indicator*
System Message
Indicator*
Multi-Information Display*
Canada U.S.
Brake System
Indicator (Amber)
*
Not available on all models
15 CR-V-31T0A6300.book 11 ページ 2015年2月2日 月曜日 午前10時35分
Page 15 of 533

14
Quick Reference Guide
Steering Wheel (P172)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P137)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P140)
● With all the doors unlocked, press the
tailgate release butto n and lift open the
tailgate.
● Press the tailgate release button to
unlock and open the tailgate when you
carry the smart entry remote.
● Press the power tailgate button on the
driver side control panel or the remote
transmitter to open and close the power
tailgate.
Models without smart entry system
Models with smart entry system
Models with power tailgate
Power Door Mirrors
(P174)
●With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Selector Switch
Adjustment Switch
15 CR-V-31T0A6300.book 14 ページ 2015年2月2日 月曜日 午前10時35分

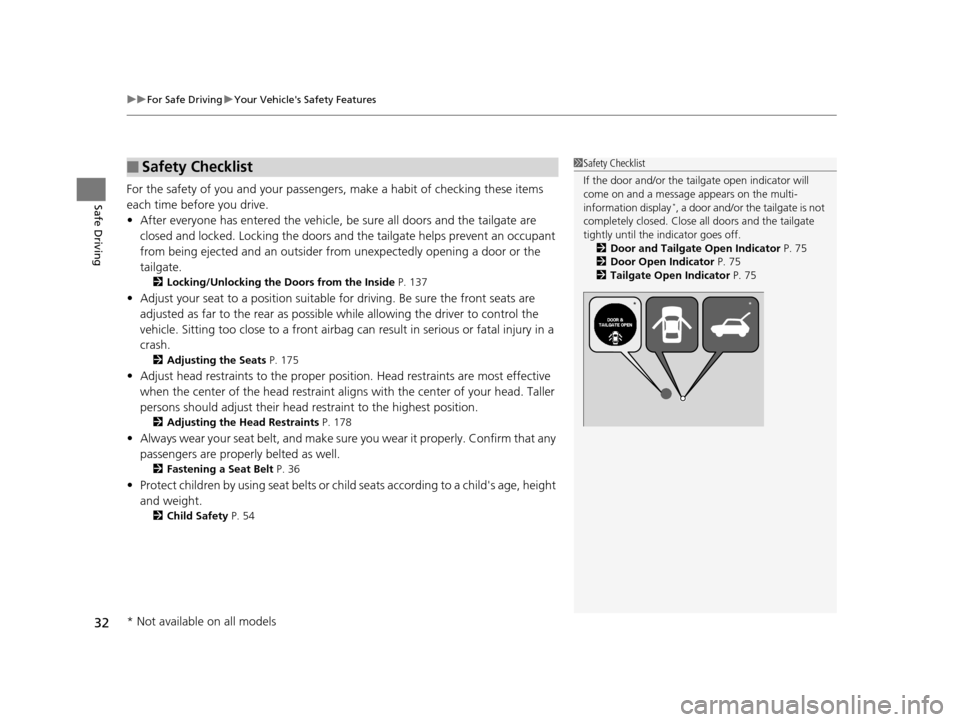

Page 33 of 533

uuFor Safe Driving uYour Vehicle's Safety Features
32
Safe DrivingFor the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 137
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 175
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Head Restraints P. 178
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 36
•Protect children by using seat belts or chil d seats according to a child's age, height
and weight.
2 Child Safety P. 54
■Safety Checklist1Safety Checklist
If the door and/or the tail gate open indicator will
come on and a message appears on the multi-
information display
*, a door and/or the tailgate is not
completely closed. Close all doors and the tailgate
tightly until the indicator goes off. 2 Door and Tailgate Open Indicator P. 75
2 Door Open Indicator P. 75
2 Tailgate Open Indicator P. 75
* *
* Not available on all models
15 CR-V-31T0A6300.book 32 ページ 2015年2月2日 月曜日 午前10時35分
Page 68 of 533

67
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is ma king an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailga te open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the heating and cooling system
*/climate control
system* as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the heating and cooling system
*/climate control system* in the same manner
if you sit in your parked vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
* Not available on all models
15 CR-V-31T0A6300.book 67 ページ 2015年2月2日 月曜日 午前10時35分
Page 76 of 533

75
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Door and Tailgate
Open Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if any door or the tailgate
is not completely closed.
●The beeper sounds and the indicator
comes on if any door or the tailgate is
opened while driving.
●Goes off when all doors and the tailgate are
closed.
Door Open
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if any door is not
completely closed.
●The beeper sounds and the indicator
comes on if any door is opened while
driving.
●Goes off when all doors are closed.
—
Tailgate Open
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if the tailgate is not
completely closed.
●Goes off when the tailgate is closed.
—
Models with
multi-information
display
Models without
multi-information
display
Models without
multi-information
display
* Not available on all models
15 CR-V-31T0A6300.book 75 ページ 2015年2月2日 月曜日 午前10時35分
Page 89 of 533

88
uuIndicators uDisplay Warning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the power tailgate
system.●Manually open or close the power tailgate.●Have your vehicle checked by a dealer.
MessageConditionExplanation
●Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the radar sensor gets di rty, stop your vehicle in a
safe place, and wipe off dirt using soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even af ter you clean the sensor
cover.
2 Adaptive Cruise Control (ACC)* P. 375
Models with power tailgate system
U.S.
Canada
Models with ACC
* Not available on all models
15 CR-V-31T0A6300.book 88 ページ 2015年2月2日 月曜日 午前10時35分
Page 104 of 533

103
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
SEL/RESET
EXIT
KEYLESS OPEN MODESEL/RESET
POWER OPEN BY OUTER HANDLE
POWER TAILGATE SETUP
MAINTENANCE RESET
DEFAULT ALL
EXIT
15 CR-V-31T0A6300.book 103 ページ 2015年2月2日 月曜日 午前10時35分
