climate control HONDA CR-V 2017 RM1, RM3, RM4 / 4.G Owner's Guide

592
Maintenance

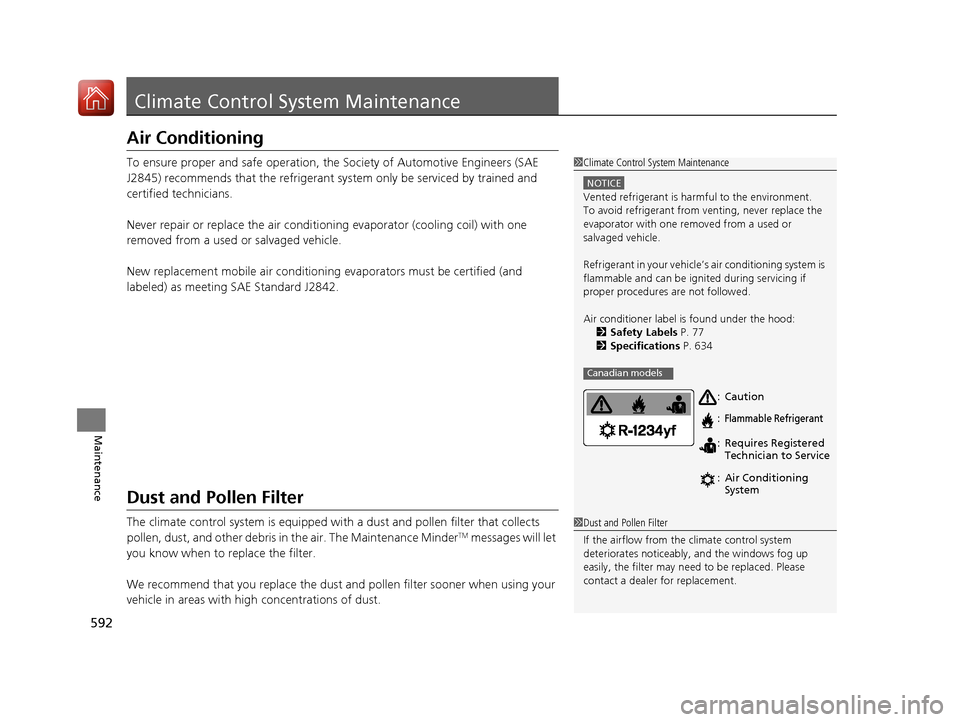

Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, th e Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant sy stem only be serviced by trained and
certified technicians.
Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The climate control system is equipped wi th a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1Climate Control System Maintenance
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicle.
Refrigerant in your vehicle’s air conditioning system is
flammable and can be igni ted during servicing if
proper procedures are not followed.
Air conditioner label is found under the hood: 2 Safety Labels P. 77
2 Specifications P. 634
Canadian models
Caution
Flammable Refrigerant
Requires Registered
Technician to Service
Air Conditioning
System
:
:
:
:
1
Dust and Pollen Filter
If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.
17 CR-V-31TLA6000.book 592 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

619
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 555
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems. Immediately cont act a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
17 CR-V-31TLA6000.book 619 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

Index
647
Index
Index
Numbers
4WD.......................................................... 500
A
ABS (Anti-lock Brake System) .................. 512
Accessories and Modifications ................ 598
Accessory Power Sockets ......................... 212
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 97, 465
Adding the Coolant ................................. 562
Additives Coolant .......................................... 561, 563
Engine Oil ............................................... 554
Washer ................................................... 567
Additives, Engine Oil ............................... 554
Adjusting Armrest .................................................. 202
Front Seats.............................................. 194
Head Restraints ....................................... 198
Mirrors.................................................... 192
Rear Seats ............................................... 201
Steering Wheel ....................................... 191
Temperature ................................... 120, 128
Adjusting the Sound ........................ 240, 278
Agile Handling Assist ............................... 494
Air Conditioning System (Climate
Control System) ...................................... 221
Changing the Mode................................ 222
Defrosting the Windshield and
Windows .............................................. 222 Dust and Pollen Filter ............................... 592
Recirculation/Fresh Air Mode ................... 222
Sensor ..................................................... 225
Synchronized Mode ................................. 224
Using Automatic Climate Control ............ 221
Air Pressure ....................................... 580, 635
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care ............................................... 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 85
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
All-Wheel Drive (AWD) ............................ 500
AM/FM Radio .................................... 242, 285
Android Auto
TM........................................ 321
Anti-lock Brake System (ABS) .................. 512
Indicator .................................................... 85
Apple CarPlay
TM........................................ 318
Armrest ..................................................... 202
Audio Remote Controls ............................ 231
Audio System ............................ 228, 235, 256
Adjusting the Sound ........................ 240, 278
AM/FM Radio .................................. 242, 285
Android Auto
TM....................................... 321
Apple CarPlayTM....................................... 318
Audio/Information Screen ................ 236, 257
Changing the Home Screen Icon Layout .. 261 Changing the Screen Interface ................ 275
Closing Apps ........................................... 277
Customizing the Meter............................ 262
Display Setup .................................. 241, 279
Error Messages ........................................ 325
General Information ................................ 330
Home Screen........................................... 268
HondaLink
®............................................. 310
How to use Siri ® Eyes Free .............. 255, 317
iPod ................................................ 244, 296
Limitations for Manual Operation ............ 280
Menu Customize ..................................... 276
MP3/WMA/AAC .............................. 249, 305
Pandora ®......................................... 247, 303
Playing Bluetooth ® Audio ................ 252, 308
Playing SiriusXM ® Radio .......................... 289
Reactivating ............................................ 230
Recommended Devices............................ 331
Remote Controls ..................................... 231
Security Code .......................................... 230
Selecting an Audio Source ....................... 280
Song By Voice
TM (SBV) ............................. 299
Status Area ............................................. 274
Theft Protection ...................................... 230
USB Flash Drives ...................... 249, 305, 331
USB Port(s) .............................................. 229
Voice Control Operation.......................... 281
Wallpaper Setup.............................. 238, 266
Wi-Fi Connection .................................... 315
Audio/Information Screen ............... 236, 257
Authorized Manuals ................................ 644
17 CR-V-31TLA6000.book 647 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

648
Index
Auto Door Locking/Unlocking................. 146
Auto High-Beam System .......................... 178
Automatic Brake Hold .............................. 510
Indicator ............................................ 82, 510
Automatic Intermittent Wipers ............... 183
Automatic Lighting .................................. 175
Average Fuel Economy ..................... 119, 124
Average Speed .......................................... 124
AWD (All-Wheel Drive) ............................ 500
B
Battery....................................................... 588
Charging System Indicator ................. 83, 619
Jump Starting .......................................... 611
Maintenance (Checking the Battery) ........ 588
Maintenance (Replacing).......................... 590
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 210
Blind spot information (BSI) System ........ 495
Bluetooth ® Audio ............................. 252, 308
Bluetooth ® HandsFreeLink ®............. 371, 394
Booster Seats (For Children) ....................... 75
Brake System ............................................. 506
Anti-lock Brake System (ABS) ................... 512
Automatic Brake Hold.............................. 510
Brake Assist System ................................. 513
Fluid ........................................................ 566
Foot Brake ............................................... 509
Indicator (Red) ........................... 80, 621, 622
Parking Brake .......................................... 506 Brightness Control
(Instrument Panel).... 185
Bulb Replacement .................................... 568
Brake/Taillight, Rear Turn Signal Light and
Rear Side Marker Lights ......................... 572
Fog Lights ............................................... 570
Front Turn Signal/ Front Side Marker Lights .................................................... 572
Headlights ............................................... 568
High-Mount Brake Light .......................... 574
Parking/Daytime Running Lights .............. 572
Rear License Plate Light ........................... 574
Side Turn Signal/Emergency Indicator Lights .................................................... 572
Taillight and Back-Up Lights .................... 573
Bulb Specifications ................................... 634
C
Carbon Monoxide Gas ............................... 76
Cargo Hook ............................................... 215
Carrying Cargo ................................. 433, 435
Certification Label .................................... 636
Changing Bulbs ........................................ 568
Charging System Indicator ................. 83, 619
Child Safety ................................................. 63
Childproof Door Locks............................. 145
Child Seat .................................................... 63
Booster Seats ............................................ 75
Child Seat for Infants................................. 65
Child Seat for Small Children ..................... 66 Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 74
Rear-facing Child Seat............................... 65
Selecting a Child Seat ............................... 67
Childproof Door Locks ............................. 145
Cleaning the Exterior ............................... 595
Cleaning the Interior ............................... 593
Climate Control System ........................... 221
Changing the Mode................................ 221
Defrosting the Windshield and
Windows .............................................. 222
Dust and Pollen Filter .............................. 592
Recirculation/Fresh Air Mode................... 222
Sensors ................................................... 225
Synchronized Mode ................................ 224
Using Automatic Climate Control............ 221
Clock ......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 514
Coat Hook ................................................ 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 514
Compact Spare Tire .......................... 601, 635
Compass .................................................... 428
Continuously Variable Transmission ....... 452
Creeping................................................. 452
Fluid ....................................................... 565
Kickdown ............................................... 452
Operating the Shift Lever .................. 23, 454
Shift Lever Does Not Move ...................... 614
17 CR-V-31TLA6000.book 648 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

655
Index
V
Valet Key.................................................. 135
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 636
Vehicle Stability Assist (VSA ®) ................. 492
Off Button .............................................. 493
Off Indicator ............................................. 87
System Indicator ....................................... 86
Viscosity (Oil) .................................... 554, 635
Voice Control Operation ......................... 281
Audio Commands ................................... 283
Climate Control Commands.................... 284
General Commands ................................ 284
Music Search Commands ........................ 284
On Screen Commands ............................ 284
Phone Commands .................................. 283
Useful Commands .................................. 283
Voice Portal Screen ................................. 282
Voice Recognition ................................... 281
VSA ® (Vehicle Stability Assist) ................. 492
W
Wallpaper......................................... 238, 266
Warning and Information
Messages ......................................... 102, 103
Warning Indicator On/Blinking ............... 619
Warning Labels .......................................... 77
Warranties (Warranty Manual provided separately) .............................................. 642
Watts ........................................................ 634 WAV
.......................................................... 249
Wear Indicators (Tire) ............................... 584
Wheel Nut Wrench (Jack Handle) ........... 604
Wi-Fi Connection ...................................... 315
Window Washers ...................................... 182
Adding/Refilling Fluid ............................... 567
Switch ..................................................... 182
Windows (Opening and Closing) ............. 161
Windshield ................................................ 182
Cleaning .......................................... 593, 596
Defrosting/Defogging .............................. 222
Washer Fluid ........................................... 567
Wiper Blades ........................................... 575
Wipers and Washers ................................ 182
Winter Tires .............................................. 587
Snow Tires ............................................... 587
Tire Chains .............................................. 587
Wipers and Washers ................................. 182
Automatic Intermittent Wipers................. 183
Checking and Replacing Wiper Blades ..... 575
Front ....................................................... 182
Rear ........................................................ 184
WMA ................................................. 249, 305
Worn Tires ................................................. 579
17 CR-V-31TLA6000.book 655 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
