4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Ignition Switch* (P168)
❙Steering Wheel Adjustments (P191)
❙Information Display* (P118)
❙Tire Pressure Monitoring System (TPMS) Button* (P501)
❙Hazard Warning Button
❙System Indicators (P80)
❙Rear Window Defogger (P187)
❙Gauges (P117)
❙Driver Information Interface* (P121)
❙ENGINE START/STOP Button* (P169)
❙Audio System (P235, 256)
❙Navigation System*
() See the Navigation System Manual
❙ (Vehicle Stability Assist (VSA ®) System OFF) Button (P493)
❙Road Departure Mitigation (RDM) Button* (P481)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P518)
❙Heated Windshield Button* (P188)
❙Power Tailgate Button* (P151)
❙Heated Door Mirror Button* (P187)
❙Climate Control System (P221)
❙Front Seat Heater Buttons* (P218)
17 CR-V-31TLA6000.book 4 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

5
Quick Reference Guide
❙ (TRIP) Knob (P118, 122)
❙Brightness Control (P185)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P371, 394)
❙Cruise Control Buttons (P456, 459)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P465)
❙Horn (Press an area around .)
❙(+ / (- / / Buttons* (P231)
❙SOURCE Button* (P231)
❙ / / / Buttons* (P121, 231)
❙ENTER Button* (P121, 231)
❙Wipers/Washers (P182)
❙Headlights/Turn Signals (P173, 174)
❙Fog Lights* (P177)
❙LaneWatchTM * (P498)
❙Km/Mile Change Knob* (P117)
❙Interval Button* (P474)
❙Heated Steering Wheel Button* (P217)
❙Lane Keeping Assist System (LKAS) Button*
(P484)
❙ (Display/Information) Button* (P121)
* Not available on all models
17 CR-V-31TLA6000.book 5 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

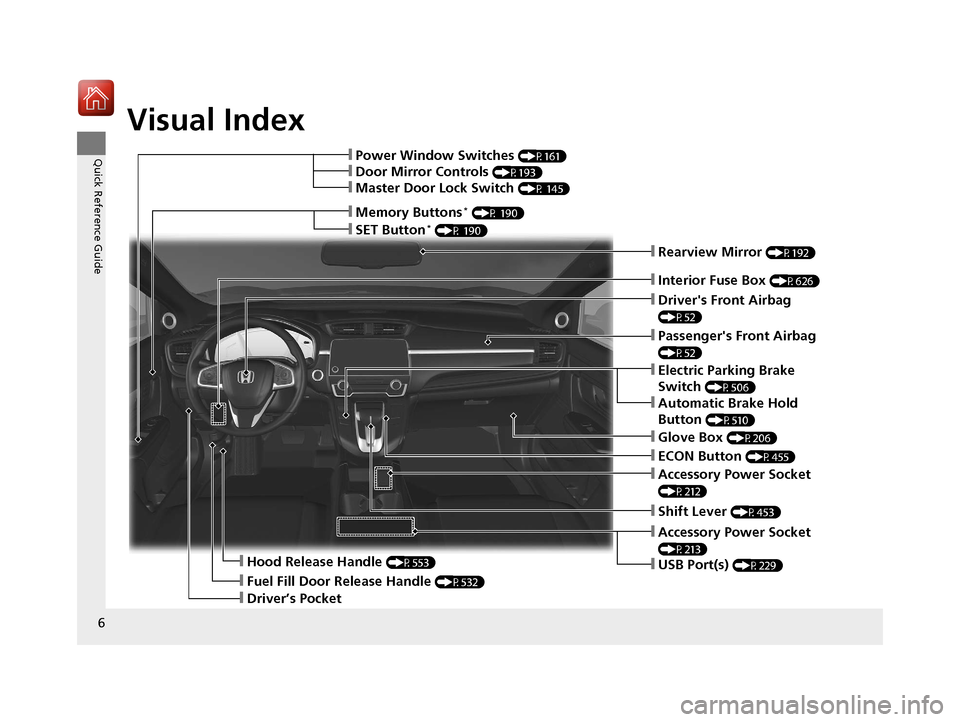

Visual Index
6
Quick Reference Guide
❙Rearview Mirror (P192)
❙Driver's Front Airbag
(P52)
❙Hood Release Handle (P553)
❙Driver’s Pocket
❙Fuel Fill Door Release Handle (P532)
❙Memory Buttons* (P 190)
❙Interior Fuse Box (P626)
❙Passenger's Front Airbag
(P52)
❙SET Button* (P 190)
❙Power Window Switches (P161)
❙Door Mirror Controls (P193)
❙Master Door Lock Switch (P 145)
❙Electric Parking Brake
Switch
(P506)
❙Automatic Brake Hold
Button
(P510)
❙Glove Box (P206)
❙Accessory Power Socket
(P212)
❙ECON Button (P455)
❙Shift Lever (P453)
❙Accessory Power Socket
(P213)
❙USB Port(s) (P229)
17 CR-V-31TLA6000.book 6 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

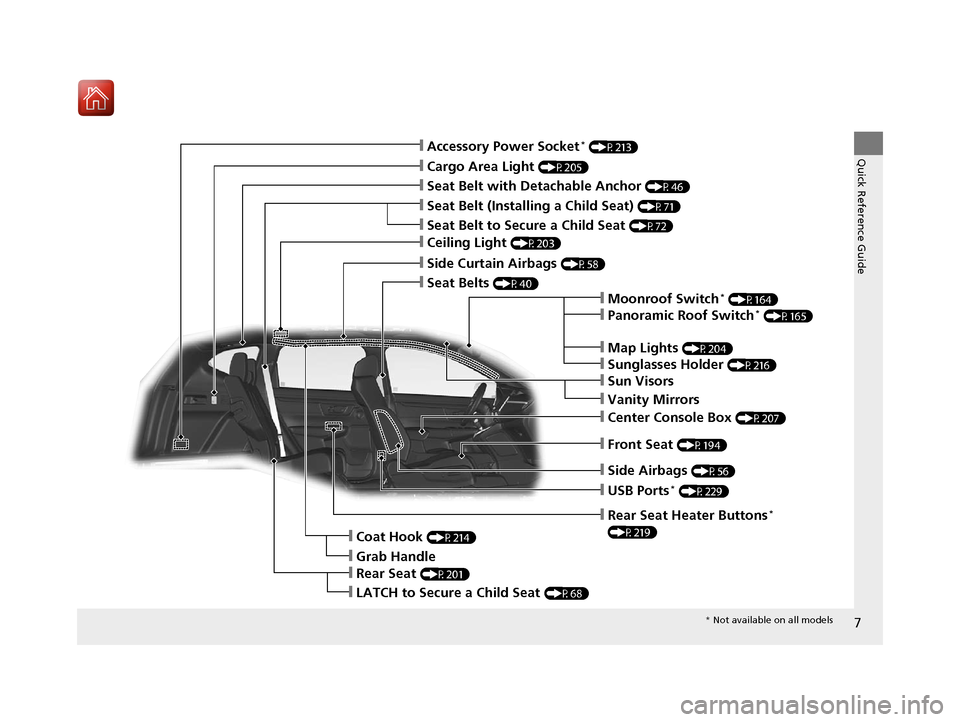

7
Quick Reference Guide
❙Moonroof Switch* (P164)
❙Side Airbags (P56)
❙Rear Seat (P201)
❙LATCH to Secure a Child Seat (P68)
❙Grab Handle
❙Coat Hook (P214)
❙Panoramic Roof Switch* (P165)
❙Map Lights (P204)
❙Seat Belts (P40)
❙Ceiling Light (P203)
❙Side Curtain Airbags (P58)
❙Seat Belt with Detachable Anchor (P46)
❙Cargo Area Light (P205)
❙Seat Belt to Secure a Child Seat (P72)
❙Seat Belt (Installing a Child Seat) (P71)
❙Accessory Power Socket* (P213)
❙USB Ports* (P229)
❙Front Seat (P194)
❙Sun Visors
❙Vanity Mirrors
❙Center Console Box (P207)
❙Rear Seat Heater Buttons*
(P219)
❙Sunglasses Holder (P216)
* Not available on all models
17 CR-V-31TLA6000.book 7 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

Quick Reference Guide
19
Features (P227)
Audio Remote Controls
(P231)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/USB or iPod/Pandora ®/
Bluetooth ®Audio.
Models with color audio system
SOURCE Button
(+ / (- / / Button
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
iPod, USB device, or Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
USB device or Bluetooth® Audio
*:
Press and hold to change a folder.
Pandora ®:
Press to skip to the next track. Press
and hold to select the next or
previous station.
●( + / (- Bar
Press to adjust the volume up/down.
Sliding up or down also increases or
decreases the volume.
Swipe down quickly to mute the volume
and swipe up to cancel the mute.
● / Button
Press or to cycl e through the audio
mode as follows:
FM/AM/SiriusXM ®
*/USB/iPod/
Bluetooth ®Audio/Pandora®*/Apps*/
Audio Apps*
• When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
Models with Display Audio
ENTER Button
/ / / Button34(+ / (- Bar
34
34
34
* Not available on all models
17 CR-V-31TLA6000.book 19 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

21
Quick Reference Guide
Audio system (P228)
(P235)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
*
Not available on all models
17 CR-V-31TLA6000.book 21 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

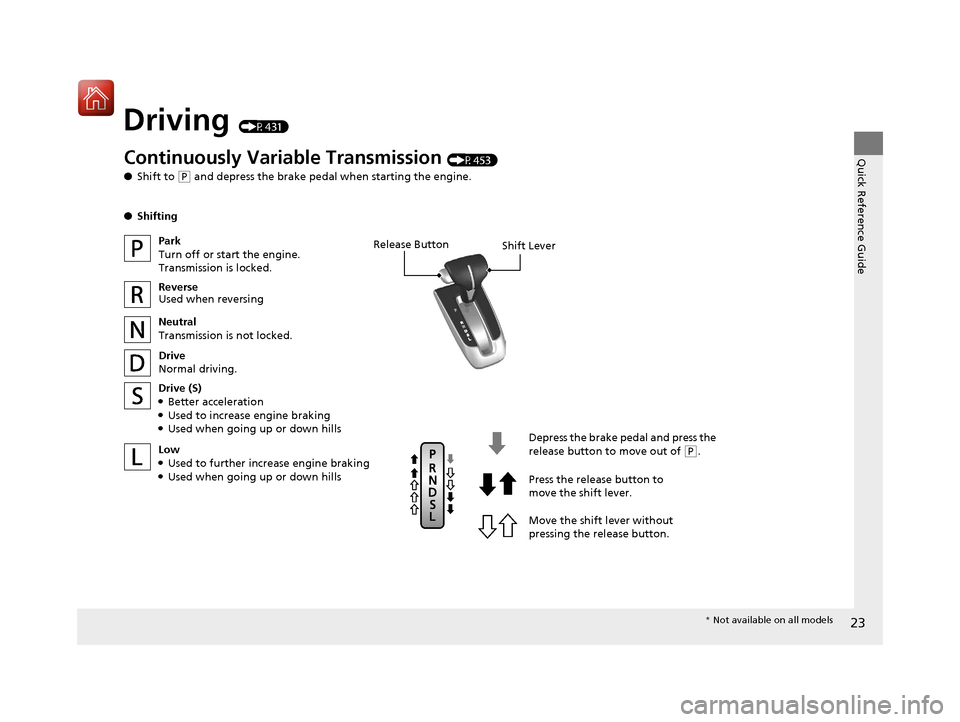

23
Quick Reference Guide
Driving (P431)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button. Press the release button to
move the shift lever.
Continuously Variable Transmission (P453)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Low
●Used to further increase engine braking●Used when going up or down hills
* Not available on all models
17 CR-V-31TLA6000.book 23 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

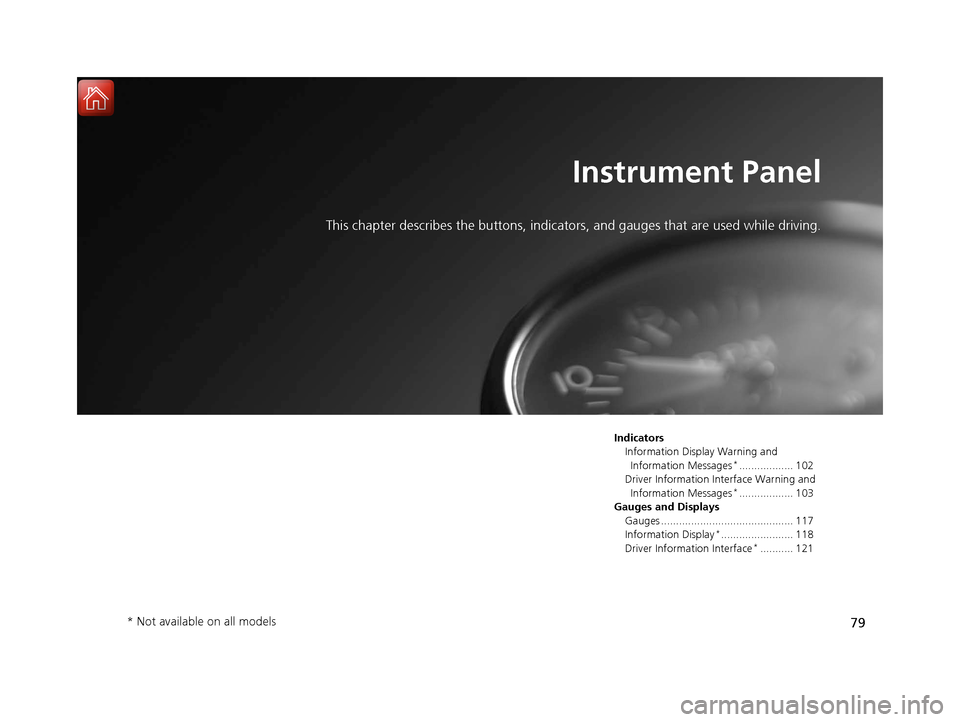

79
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
IndicatorsInformation Display Warning and Information Messages
*.................. 102
Driver Information Interface Warning and Information Messages
*.................. 103
Gauges and Displays Gauges ............................................ 117
Information Display
*........................ 118
Driver Information Interface*........... 121
* Not available on all models
17 CR-V-31TLA6000.book 79 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

134
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following key:
Use the key to start and stop the engine, and to lock and unlock the doors and
tailgate. You can also lock and unlock the doors and tailgate pressing the buttons
on remote transmitter.
■Keys
1Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps protect against vehicle
theft.
2 Immobilizer System P. 158
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the one-way
smart entry remote. 2 Remote Engine Start with Vehicle
Feedback
* P. 448
Models with remote engine starter
Smart Entry Remote*Ignition Keys with Remote
Transmitter*
* Not available on all models
17 CR-V-31TLA6000.book 134 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

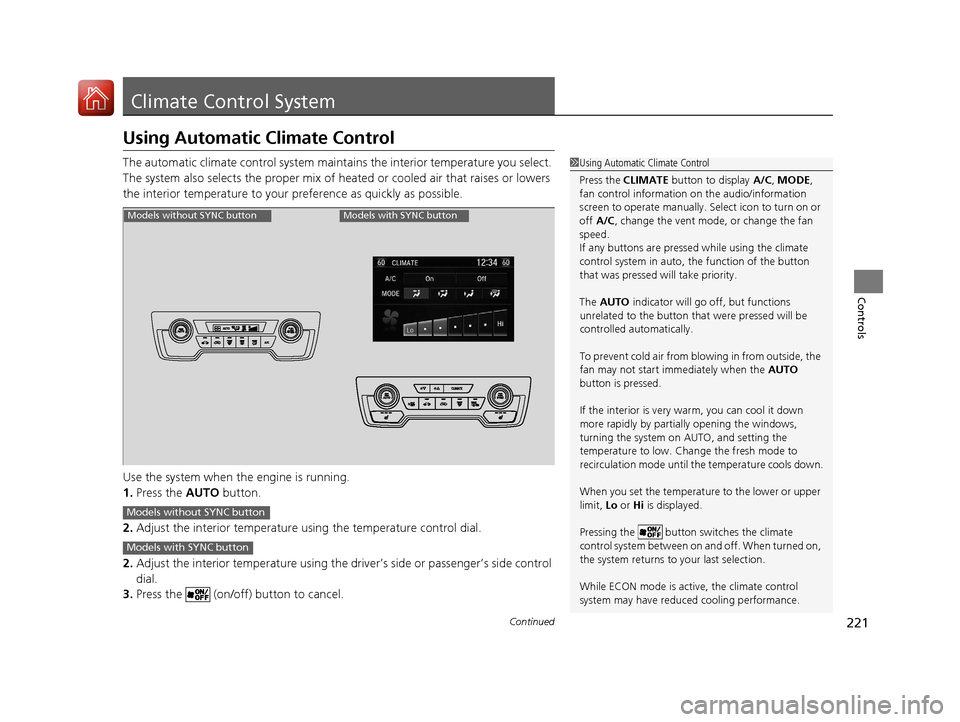

221Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
dial.
3. Press the (on/off) button to cancel.1Using Automatic Climate Control
Press the CLIMATE button to display A/C, MODE,
fan control information on the audio/information
screen to operate manually. Select ic on to turn on or
off A/C , change the vent mode , or change the fan
speed.
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on AUTO, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Models without SYNC buttonModels with SYNC button
Models without SYNC button
Models with SYNC button
17 CR-V-31TLA6000.book 221 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
