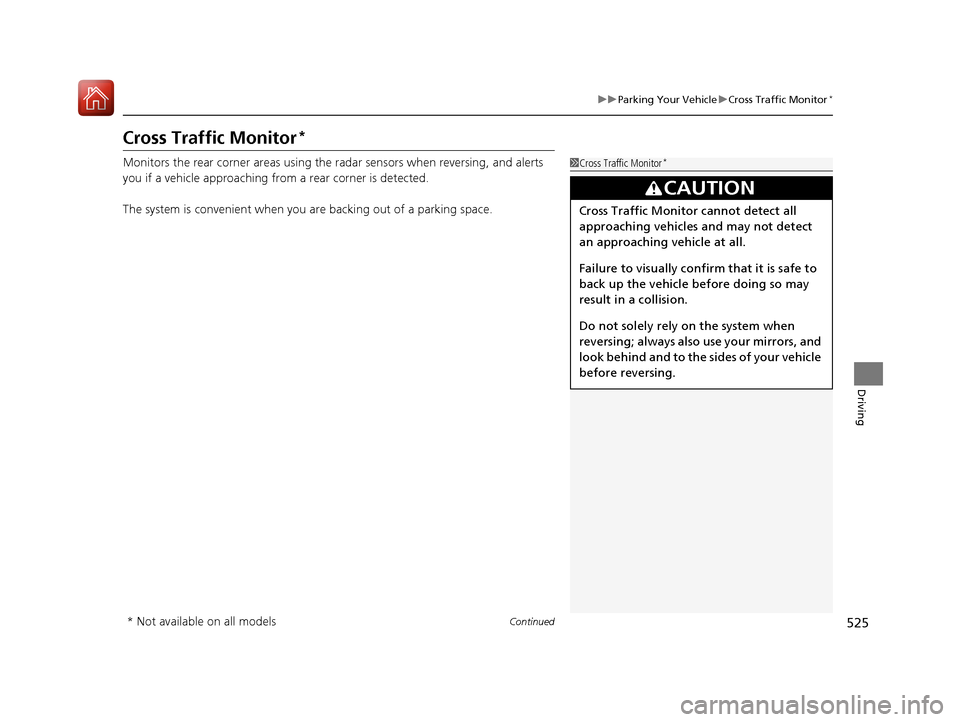

parking sensors HONDA CR-V 2017 RM1, RM3, RM4 / 4.G Owners Manual

525
uuParking Your Vehicle uCross Traffic Monitor*
Continued
Driving
Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.
The system is convenient when you are backing out of a parking space.1Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
17 CR-V-31TLA6000.book 525 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

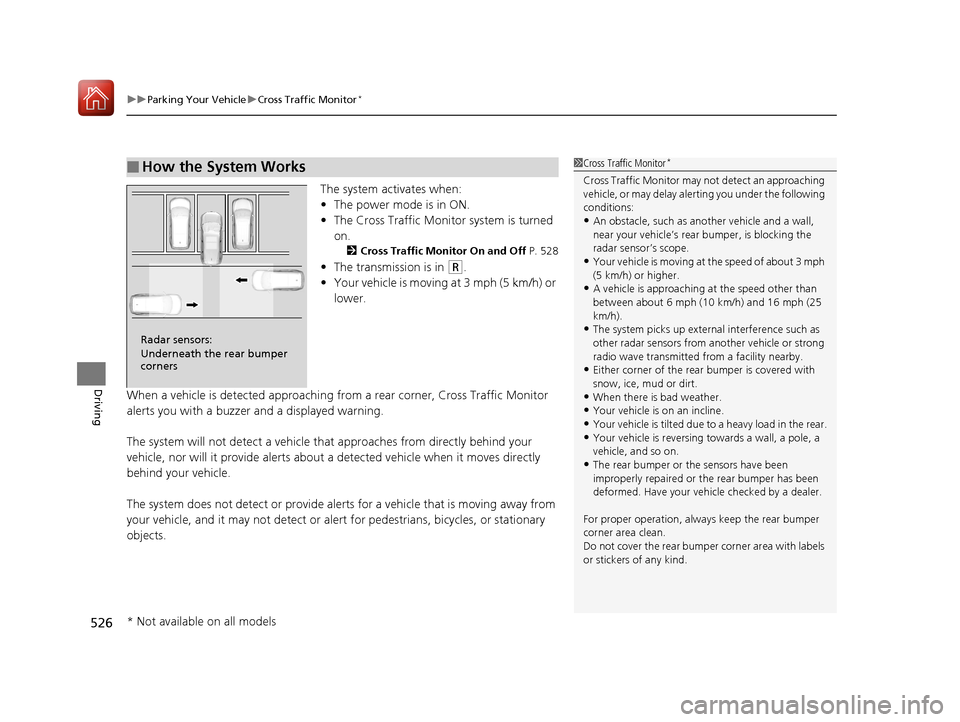

uuParking Your Vehicle uCross Traffic Monitor*
526
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned
on.
2 Cross Traffic Monitor On and Off P. 528
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not detect or provide aler ts for a vehicle that is moving away from
your vehicle, and it may not detect or ale rt for pedestrians, bicycles, or stationary
objects.
■How the System Works1 Cross Traffic Monitor*
Cross Traffic Monitor may not detect an approaching
vehicle, or may delay aler ting you under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilt ed due to a heavy load in the rear.
•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
•The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have your vehi cle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
17 CR-V-31TLA6000.book 526 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

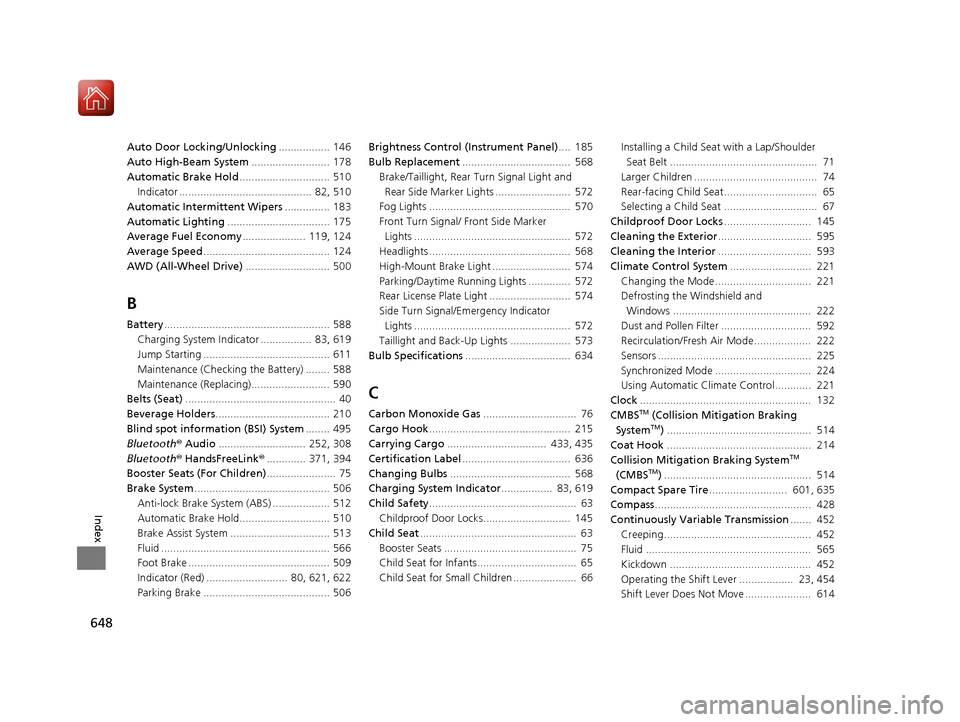

648
Index
Auto Door Locking/Unlocking................. 146
Auto High-Beam System .......................... 178
Automatic Brake Hold .............................. 510
Indicator ............................................ 82, 510
Automatic Intermittent Wipers ............... 183
Automatic Lighting .................................. 175
Average Fuel Economy ..................... 119, 124
Average Speed .......................................... 124
AWD (All-Wheel Drive) ............................ 500
B
Battery....................................................... 588
Charging System Indicator ................. 83, 619
Jump Starting .......................................... 611
Maintenance (Checking the Battery) ........ 588
Maintenance (Replacing).......................... 590
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 210
Blind spot information (BSI) System ........ 495
Bluetooth ® Audio ............................. 252, 308
Bluetooth ® HandsFreeLink ®............. 371, 394
Booster Seats (For Children) ....................... 75
Brake System ............................................. 506
Anti-lock Brake System (ABS) ................... 512
Automatic Brake Hold.............................. 510
Brake Assist System ................................. 513
Fluid ........................................................ 566
Foot Brake ............................................... 509
Indicator (Red) ........................... 80, 621, 622
Parking Brake .......................................... 506 Brightness Control
(Instrument Panel).... 185
Bulb Replacement .................................... 568
Brake/Taillight, Rear Turn Signal Light and
Rear Side Marker Lights ......................... 572
Fog Lights ............................................... 570
Front Turn Signal/ Front Side Marker Lights .................................................... 572
Headlights ............................................... 568
High-Mount Brake Light .......................... 574
Parking/Daytime Running Lights .............. 572
Rear License Plate Light ........................... 574
Side Turn Signal/Emergency Indicator Lights .................................................... 572
Taillight and Back-Up Lights .................... 573
Bulb Specifications ................................... 634
C
Carbon Monoxide Gas ............................... 76
Cargo Hook ............................................... 215
Carrying Cargo ................................. 433, 435
Certification Label .................................... 636
Changing Bulbs ........................................ 568
Charging System Indicator ................. 83, 619
Child Safety ................................................. 63
Childproof Door Locks............................. 145
Child Seat .................................................... 63
Booster Seats ............................................ 75
Child Seat for Infants................................. 65
Child Seat for Small Children ..................... 66 Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 74
Rear-facing Child Seat............................... 65
Selecting a Child Seat ............................... 67
Childproof Door Locks ............................. 145
Cleaning the Exterior ............................... 595
Cleaning the Interior ............................... 593
Climate Control System ........................... 221
Changing the Mode................................ 221
Defrosting the Windshield and
Windows .............................................. 222
Dust and Pollen Filter .............................. 592
Recirculation/Fresh Air Mode................... 222
Sensors ................................................... 225
Synchronized Mode ................................ 224
Using Automatic Climate Control............ 221
Clock ......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 514
Coat Hook ................................................ 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 514
Compact Spare Tire .......................... 601, 635
Compass .................................................... 428
Continuously Variable Transmission ....... 452
Creeping................................................. 452
Fluid ....................................................... 565
Kickdown ............................................... 452
Operating the Shift Lever .................. 23, 454
Shift Lever Does Not Move ...................... 614
17 CR-V-31TLA6000.book 648 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
