201

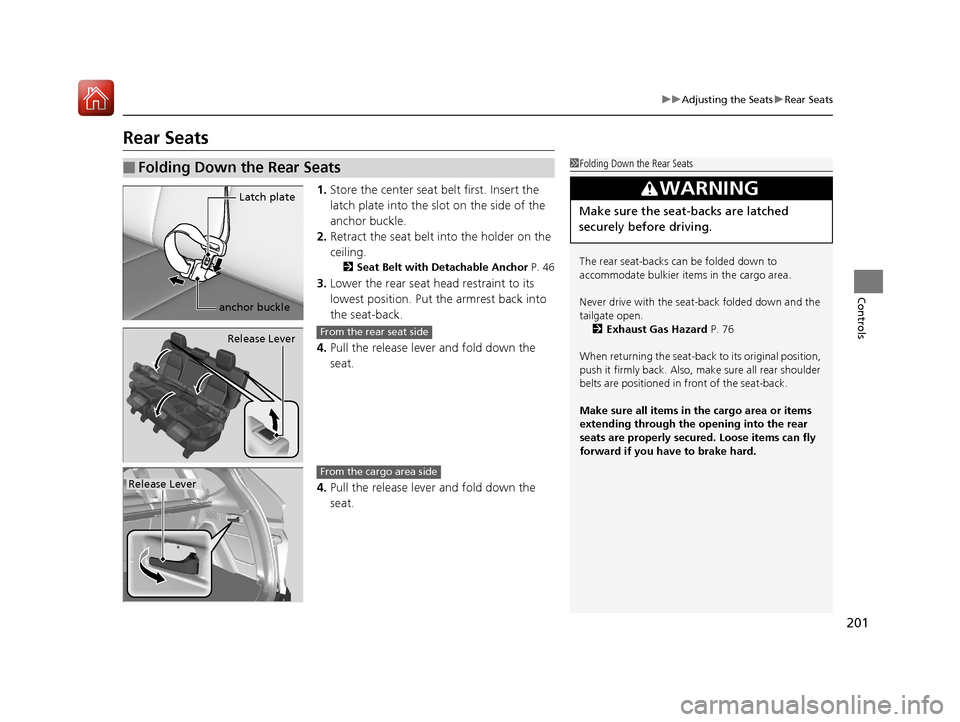

uuAdjusting the Seats uRear Seats
Controls
Rear Seats
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 46
3.Lower the rear seat head restraint to its
lowest position. Put the armrest back into
the seat-back.
4. Pull the release lever and fold down the
seat.
4. Pull the release lever and fold down the
seat.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the cargo area.
Never drive with the seat-back folded down and the
tailgate open.
2 Exhaust Gas Hazard P. 76
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure all items in the cargo area or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
3WARNING
Make sure the seat-backs are latched
securely before driving.
Latch plate
anchor buckle
Release LeverFrom the rear seat side
Release LeverFrom the cargo area side
17 CR-V-31TLA6000.book 201 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
210
Controls
■Front seat beverage holders
Are located in the console between the front
seats.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
17 CR-V-31TLA6000.book 210 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

650
Index
F
Features..................................................... 227
Filters Dust and Pollen ....................................... 592
Oil ........................................................... 558
Flat Tire ..................................................... 601
Floor Mats ................................................. 594
Fluids
Brake ....................................................... 566
Continuously Variable Transmission ......... 565
Engine Coolant ................................ 561, 563
Windshield Washer .................................. 567
FM/AM Radio .................................... 242, 285
Fog Light Indicator ..................................... 91
Folding Down the Rear Seats ................... 201
Foot Brake ................................................. 509
Front Airbags (SRS) ..................................... 52
Front Seat Heaters .................................... 218
Front Seats ................................................ 194
Adjusting ................................................. 194
Front Sensor Camera ................................ 463
Fuel ...................................................... 25, 531
Fuel Economy and CO
2 Emissions............. 534
Gauge ..................................................... 117
Instant Fuel Economy ....................... 119, 128
Low Fuel Indicator ..................................... 84
Range .............................................. 119, 124
Recommendation .................................... 531
Refueling ................................................. 531
Fuel Economy and CO
2 Emissions ............ 534
Fuel Fill Door ............................................. 532 Fuses
.......................................................... 625
Inspecting and Changing......................... 628
Locations......................................... 625, 626
G
Gasoline (Fuel)
Fuel Economy and CO
2 Emissions ............ 534
Gauge ..................................................... 117
Information ............................................. 531
Instant Fuel Economy ...................... 119, 128
Low Fuel Indicator ..................................... 84
Refueling................................................. 531
Gauges ...................................................... 117
Gear Shift Lever Positions Continuously Variable Transmission ......... 453
Glass (care) ........................................ 593, 596
Glove Box .................................................. 206
H
Handling the Unexpected ........................ 599
HandsFreeLink ® (HFL) ....................... 371, 394
Automatic Import of Cellular Phonebook
and Call History ............................. 384, 407
Caller’s ID Information............................. 382
Displaying Messages................................ 422
HFL Buttons..................................... 371, 394
HFL Menus ...................................... 373, 397
HFL Status Display ........................... 372, 396
In Case of Emergency .............................. 426 Limitations for Manual Operation .... 372, 396
Making a Call ................................. 388, 415
Options During a Call...................... 393, 419
Phone Setup ................................... 377, 402
Phonebook Phonetic M
odification........... 411
Receiving a Call............................... 392, 418
Receiving a Text Message/E-mail ............. 420
Ring Tone ....................................... 382, 406
Selecting a Mail Account......................... 421
Speed Dial ...................................... 385, 408
To Clear the System ................................ 383
To Set Up Text Message/E-mail Options .. 405
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 285
Head Restraints ........................................ 198
Headlights ................................................ 174
Aiming.................................................... 568
Auto High-Beam System ......................... 178
Automatic Operation .............................. 175
Dimming......................................... 174, 181
Operating ............................................... 174
Heated Door Mirror Button .................... 187
Heated Steering Wheel ........................... 217
Heated Windshield Button ...................... 188
Heaters (Front Seat) ................................. 218
Heaters (Seat) ........................................... 219
Heating and Cooling System Dust and Pollen Filter .............................. 592
HFL (HandsFreeLink ®) ...................... 371, 394
High Beam Indicator .................................. 90
Hill Start Assist System ..................... 445, 450
17 CR-V-31TLA6000.book 650 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

653
Index
Parking Brake and Brake System Indicator (Amber) ..................................... 81
Parking Brake and Brake System Indicator (Red) .......................... 80, 621, 622
Passenger Airbag Off Indicator ................. 61
Passing Indicators ..................................... 174
Playing Bluetooth ® Audio ............... 252, 308
Power Tailgate ......................................... 149
Power Windows ....................................... 161
Precautions While Driving ....................... 451
Driving Guidelines for Your Utility
Vehicle .................................................. 451
Rain ........................................................ 451
Pregnant Women ....................................... 47
Puncture (Tire) ......................................... 601
R
Radiator.................................................... 564
Radio (FM/AM) ................................. 242, 285
Radio (SiriusXM ®)..................................... 289
Radio Data System (RDS) ................. 243, 287
Range ................................................ 119, 124
RDS (Radio Data System) ................. 243, 287
Readiness Codes (Emissions Testing) ...... 640
Real Time AWD with Intelligent Control System
TM.................................................. 500
Rear Seat Heaters ..................................... 219
Rear Seats (Folding Down) ...................... 201
Rearview Mirror ....................................... 192 Refueling
................................................... 531
Fuel Gauge .............................................. 117
Gasoline .......................................... 531, 634
Low Fuel Indicator ..................................... 84
Regulations ............................... 504, 582, 638
Remote Transmitter ................................. 141
Replacement Battery .................................................... 590
Bulbs ....................................................... 568
Fuses ............................................... 625, 626
Rear Wiper Blade Rubber ......................... 577
Tires ........................................................ 585
Wiper Blade Rubber ................................. 575
Reporting Safety Defects ......................... 639
Resetting a Trip Meter ..................... 119, 123
Road Departure Mitigation (RDM) .......... 480
On and Off .............................................. 481
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 77
Safety Message ............................................. 1
Seat Belts ..................................................... 40
Adjusting the Shoulder Anchor .................. 45
Automatic Seat Belt Tensioners .................. 43
Checking ................................................... 48
Detachable Anchor .................................... 46
Fastening ................................................... 44 Installing a Child Seat
with a Lap/Shoulder
Seat Belt .................................................. 71
Pregnant Women ...................................... 47
Reminder .................................................. 42
Warning Indicator ............................... 42, 84
Seat Heaters .............................................. 219
Seats .......................................................... 194
Adjusting ................................................ 194
Driver’s Seat Lumbar Support .................. 194
Front Seat Heaters ................................... 218
Front Seats .............................................. 194
Rear Seats ............................................... 201
Seat Heaters ............................................ 219
Security System ......................................... 158
Security System Alarm Indicator................. 92
Select Lever ......................................... 23, 453
Operation.......................................... 23, 454
Releasing................................................. 614
Won’t Move ............................................ 614
Selecting a Child Seat ................................. 67
Selector Knob (Audio) .............................. 235
Setting the Clock ...................................... 132
Shift Lever ........................................... 23, 453
Shift Lever Position Indicator ............ 83, 454
Shifting (Transmission) ............................. 453
Shoulder Anchor ........................................ 45
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
Siri ® Eyes Free ................................... 255, 317
SiriusXM ® Radio ........................................ 289
Smart Entry System .................................. 137
17 CR-V-31TLA6000.book 653 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
