Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle's emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
18 CR-V-31TLA6100.book 658 ページ ２０１７年９月７日　木曜日　午後３時５６分

659
uuEmissions Testing uTesting of Readiness Codes
Information

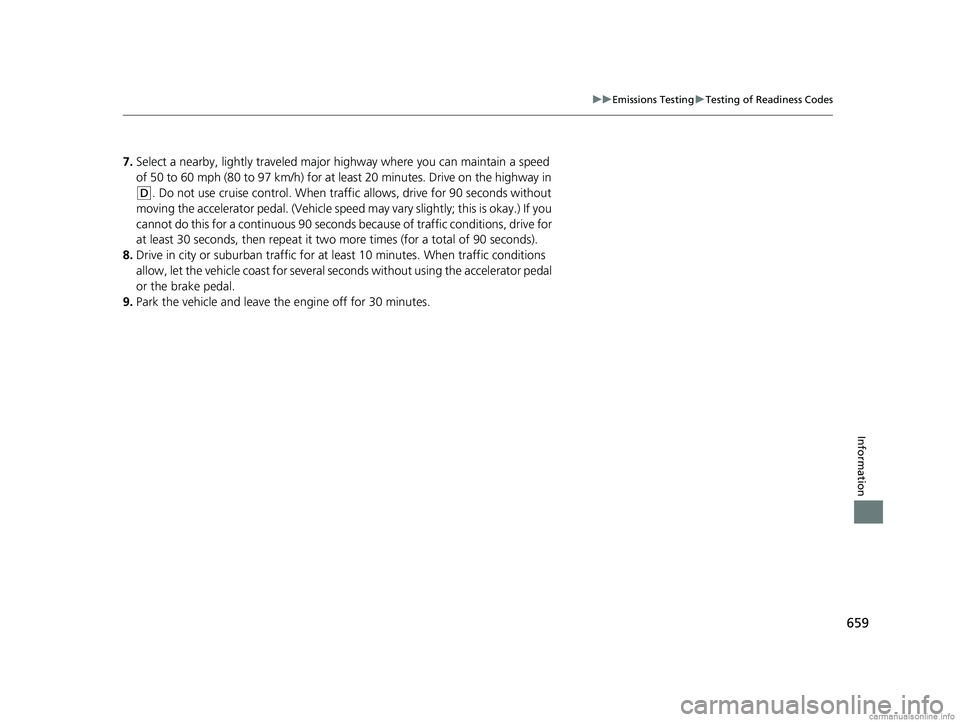

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
18 CR-V-31TLA6100.book 659 ページ ２０１７年９月７日　木曜日　午後３時５６分

Index
665
Index
Index
Numbers
4WD.......................................................... 517
A
ABS (Anti-lock Brake System) .................. 530
Accessories and Modifications ................ 616
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 481
Adding the Coolant ................................. 580
Additives Coolant .......................................... 579, 581
Engine Oil ............................................... 572
Washer ................................................... 585
Additives, Engine Oil ............................... 572
Adjusting Armrest .................................................. 206
Front Seats.............................................. 197
Head Restraints ....................................... 203
Mirrors.................................................... 195
Rear Seats ............................................... 201
Steering Wheel ....................................... 194
Temperature ................................... 121, 129
Adjusting the Sound ........................ 244, 282
Agile Handling Assist ............................... 511
Air Conditioning System (Climate
Control System) ...................................... 226
Changing the Mode................................ 227
Defrosting the Windshield and
Windows .............................................. 227 Dust and Pollen Filter ............................... 610
Recirculation/Fresh Air Mode ................... 227
Sensor ..................................................... 230
Synchronized Mode ................................. 229
Using Automatic Climate Control ............ 226
Air Pressure ....................................... 598, 653
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care ............................................... 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 85
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
All-Wheel Drive (AWD) ............................ 517
AM/FM Radio .................................... 246, 289
Android Auto
TM........................................ 325
Anti-lock Brake System (ABS) .................. 530
Indicator .................................................... 85
Apple CarPlay
TM........................................ 322
Armrest ..................................................... 206
Audio Remote Controls ............................ 235
Audio System ............................ 232, 239, 260
Adjusting the Sound ........................ 244, 282
AM/FM Radio .................................. 246, 289
Android Auto
TM....................................... 325
Apple CarPlayTM....................................... 322
Audio/Information Screen ................ 240, 261
Changing the Home Screen Icon Layout .. 265 Changing the Screen Interface ................ 279
Closing Apps ........................................... 281
Customizing the Meter............................ 266
Display Setup .................................. 245, 283
Error Messages ........................................ 329
General Information ................................ 334
Home Screen........................................... 272
HondaLink
®............................................. 314
How to use Siri ® Eyes Free .............. 259, 321
iPod ................................................ 248, 300
Limitations for Manual Operation ............ 284
Menu Customize ..................................... 280
MP3/WMA/AAC .............................. 253, 309
Pandora ®......................................... 251, 307
Playing Bluetooth ® Audio ................ 256, 312
Playing SiriusXM ® Radio .......................... 293
Reactivating ............................................ 234
Recommended Devices............................ 335
Remote Controls ..................................... 235
Security Code .......................................... 234
Selecting an Audio Source ....................... 284
Song By Voice
TM (SBV) ............................. 303
Status Area ............................................. 278
Theft Protection ...................................... 234
USB Flash Drives ...................... 253, 309, 335
USB Port(s) .............................................. 233
Voice Control Operation.......................... 285
Wallpaper Setup.............................. 242, 270
Wi-Fi Connection .................................... 319
Audio/Information Screen ............... 240, 261
Authorized Manuals ................................ 662
18 CR-V-31TLA6100.book 665 ページ ２０１７年９月７日　木曜日　午後３時５６分

667
Index
Shift Lever Does Not Move ...................... 632
Shifting ................................................... 469
Controls .................................................... 131
Coolant (Engine) .............................. 579, 581
Adding the Coolant ................................ 580
Adding to the Radiator ........................... 582
Adding to the Reserve Tank .................... 581
Overheating ............................................ 633
Creeping (Continuously Variable Transmission) .......................................... 468
Cross Traffic Monitor ............................... 543
Cruise Control .................................. 472, 475
Indicator ................................................... 93
Cup Holders .............................................. 215
Customer Service Information ................ 663
Customized Features ............................... 351
Customizing the Auto Door Locking/
Unlocking Setting .................................. 147
D
Daytime Running Lights .......................... 184
Dead Battery ............................................ 629
Defaulting All the Settings ...................... 383
Defrosting the Windshield and Windows ................................................. 227
Detachable Anchor .................................... 46
Devices that Emit Radio Waves ............... 656
Dimming Headlights .............................................. 177
Rearview Mirror ...................................... 195 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signals) ............ 176
Display Setup .................................... 245, 283
Display/Information Button ..................... 122
Door Mirrors ............................................. 196
Doors ......................................................... 134
Auto Door Locking .................................. 146
Auto Door Unlocking ............................... 146
Door Open Indicator ............................ 38, 87
Keys ........................................................ 134
Locking/Unlocking the Doors from the
Inside..................................................... 144
Locking/Unlocking the Doors from the Outside.................................................. 137
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 600
Driver Information Interface ................... 122
Driver’s Seat Lumbar Support .................. 197
Driving ....................................................... 447
Braking .................................................... 524
Continuously Variable Transmission ......... 468
Cruise Control ................................. 472, 475
Off-Highway Driving Guidelines ............... 458
Shifting Gear ........................................... 469
Starting the Engine .......................... 460, 462
Driving Position Memory System ............. 192
Dust and Pollen Filter ............................... 610
E
Eco Assist System.......................................... 9
ECON Button ............................................ 471
Elapsed Time ............................................. 125
Electric Power Steering (EPS) System
Indicator............................................ 88, 641
Electronic Stability Control (ESC) ............. 509
Emergency ................................................ 648
Emissions Testing (Readiness Codes) ....... 658
Engine Coolant ........................................... 579, 581
Jump Starting .......................................... 629
Number................................................... 654
Oil ........................................................... 572
Starting ........................................... 460, 462
Switch Buzzer.................................. 171, 174
Engine Coolant ................................. 579, 581
Adding the Coolant................................. 580
Adding to the Radiator ............................ 582
Adding to the Reserve Tank..................... 581
Overheating ............................................ 633
Temperature Gauge ................................ 118
Engine Oil ................................................. 572
Adding .................................................... 575
Checking................................................. 573
Displaying Oil Life ............................ 559, 564
Low Oil Pressure Indicator ................. 83, 637
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 172
EPS (Electric Power Steering) System ...... 641
Exhaust Gas Hazard (Carbon Monoxide) .. 76
18 CR-V-31TLA6100.book 667 ページ ２０１７年９月７日　木曜日　午後３時５６分

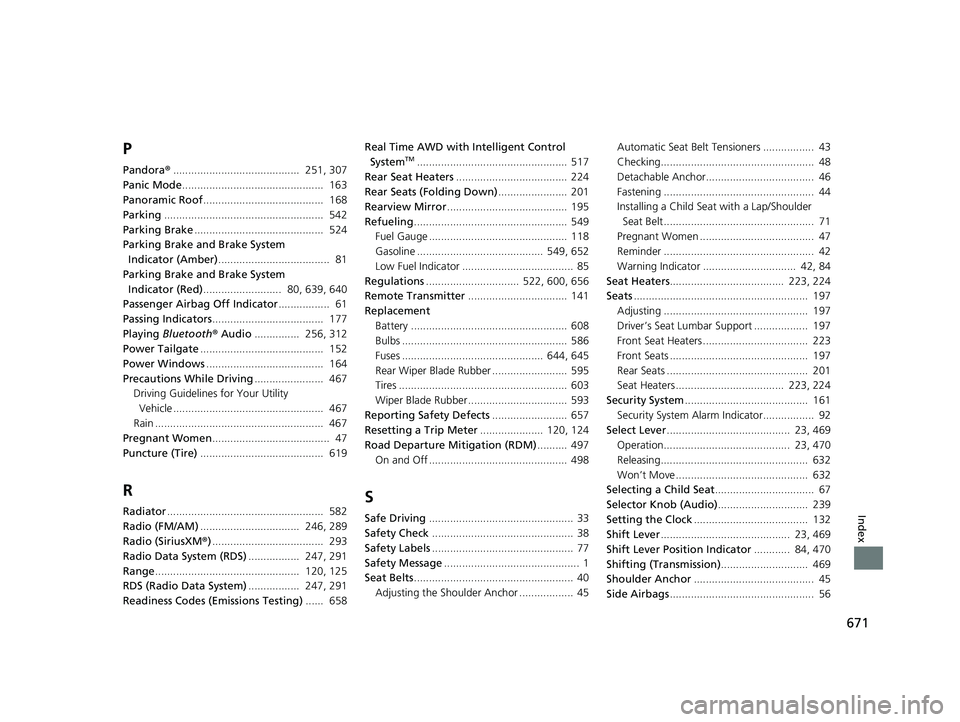

671
Index
P
Pandora®.......................................... 251, 307
Panic Mode ............................................... 163
Panoramic Roof ........................................ 168
Parking ..................................................... 542
Parking Brake ........................................... 524
Parking Brake and Brake System Indicator (Amber) ..................................... 81
Parking Brake and Brake System Indicator (Red) .......................... 80, 639, 640
Passenger Airbag Off Indicator ................. 61
Passing Indicators ..................................... 177
Playing Bluetooth ® Audio ............... 256, 312
Power Tailgate ......................................... 152
Power Windows ....................................... 164
Precautions While Driving ....................... 467
Driving Guidelines for Your Utility
Vehicle .................................................. 467
Rain ........................................................ 467
Pregnant Women ....................................... 47
Puncture (Tire) ......................................... 619
R
Radiator.................................................... 582
Radio (FM/AM) ................................. 246, 289
Radio (SiriusXM ®)..................................... 293
Radio Data System (RDS) ................. 247, 291
Range ................................................ 120, 125
RDS (Radio Data System) ................. 247, 291
Readiness Codes (Emissions Testing) ...... 658Real Time AWD with Intelligent Control
System
TM.................................................. 517
Rear Seat Heaters ..................................... 224
Rear Seats (Folding Down) ....................... 201
Rearview Mirror ........................................ 195
Refueling ................................................... 549
Fuel Gauge .............................................. 118
Gasoline .......................................... 549, 652
Low Fuel Indicator ..................................... 85
Regulations ............................... 522, 600, 656
Remote Transmitter ................................. 141
Replacement Battery .................................................... 608
Bulbs ....................................................... 586
Fuses ............................................... 644, 645
Rear Wiper Blade Rubber ......................... 595
Tires ........................................................ 603
Wiper Blade Rubber ................................. 593
Reporting Safety Defects ......................... 657
Resetting a Trip Meter ..................... 120, 124
Road Departure Mitigation (RDM) .......... 497
On and Off .............................................. 498
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 77
Safety Message ............................................. 1
Seat Belts ..................................................... 40
Adjusting the Shoulder Anchor .................. 45 Automatic Seat Belt Tensioners ................. 43
Checking................................................... 48
Detachable Anchor.................................... 46
Fastening .................................................. 44
Installing a Child Seat
with a Lap/Shoulder
Seat Belt .................................................. 71
Pregnant Women ...................................... 47
Reminder .................................................. 42
Warning Indicator ............................... 42, 84
Seat Heaters ...................................... 223, 224
Seats .......................................................... 197
Adjusting ................................................ 197
Driver’s Seat Lumbar Support .................. 197
Front Seat Heaters ................................... 223
Front Seats .............................................. 197
Rear Seats ............................................... 201
Seat Heaters .................................... 223, 224
Security System ......................................... 161
Security System Alarm Indicator................. 92
Select Lever ......................................... 23, 469
Operation.......................................... 23, 470
Releasing................................................. 632
Won’t Move ............................................ 632
Selecting a Child Seat ................................. 67
Selector Knob (Audio) .............................. 239
Setting the Clock ...................................... 132
Shift Lever ........................................... 23, 469
Shift Lever Position Indicator ............ 84, 470
Shifting (Transmission) ............................. 469
Shoulder Anchor ........................................ 45
Side Airbags ................................................ 56
18 CR-V-31TLA6100.book 671 ページ ２０１７年９月７日　木曜日　午後３時５６分
