HONDA CR-V 2018 Owner's Manual (in English)

569Continued
Maintenance
Maintenance Under the Hood
Maintenance Items Under the Hood
1.5 L engine models
Brake Fluid
(Black Cap)
Engine Coolant
Reserve Tank
Radiator Cap Washer Fluid
(Blue Cap) Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
18 CR-V-31TLA6100.book 569 ページ ２０１７年９月７日　木曜日　午後３時５６分

570
uuMaintenance Under the Hood uMaintenance Items Under the Hood
Maintenance
2.4 L engine models
Brake Fluid
(Black Cap)
Engine Coolant
Reserve Tank Radiator Cap
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
18 CR-V-31TLA6100.book 570 ページ ２０１７年９月７日　木曜日　午後３時５６分

571
uuMaintenance Under the Hood uOpening the Hood
Maintenance
Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
lower left corner of the dashboard.
u The hood will pop up slightly.
3. Push the hood latch lever (located under
the front edge of the hood to the center) to
the side and raise the hood. Once you have
raised the hood slightly , you can release the
lever.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised. The hood will strike the wipers, resulting in
damage to the hood and/or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cleaned and lubricated.
3WARNING
The hood support rod can become very hot
due to heat from the engine.
To ensure against po ssible burns, do not
handle the metal section of the rod:
Use the foam grip instead.
Hood Release Handle
Pull
Lever
Support Rod
Grip
Clamp
18 CR-V-31TLA6100.book 571 ページ ２０１７年９月７日　木曜日　午後３時５６分

572
uuMaintenance Under the Hood uRecommended Engine Oil
Maintenance

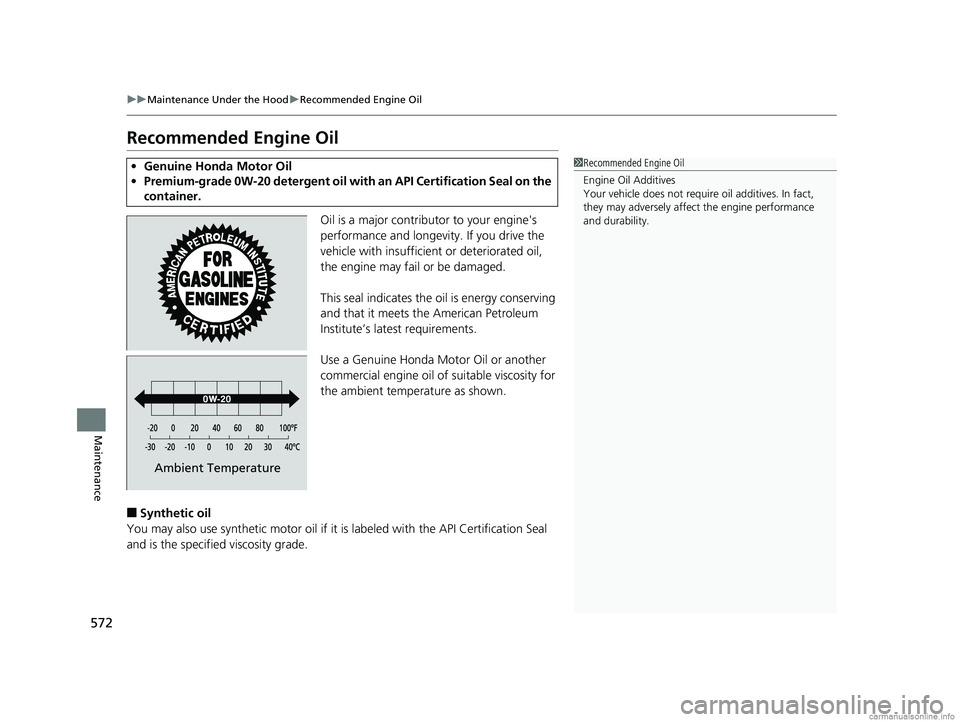

Recommended Engine Oil
Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use a Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.
■Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
• Genuine Honda Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container.1 Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature
18 CR-V-31TLA6100.book 572 ページ ２０１７年９月７日　木曜日　午後３時５６分

573
uuMaintenance Under the Hood uOil Check
Continued
Maintenance
Oil Check
We recommend that you check the engi ne oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turn ing the engine off before you check the
oil. 1.Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.1Oil Check
If the oil level is near or below the lower mark, slowly
add oil, being careful not to overfill.
1.5 L engine models
2.4 L engine models
18 CR-V-31TLA6100.book 573 ページ ２０１７年９月７日　木曜日　午後３時５６分

574
uuMaintenance Under the Hood uOil Check
Maintenance
4. Remove the dipstick again, and check the
l

evel. It should be between the upper and
lower marks. Add oil if necessary.1.5 L engine models
Upper Mark
Lower Mark
Upper Mark
Lower Mark
2.4 L engine models
18 CR-V-31TLA6100.book 574 ページ ２０１７年９月７日　木曜日　午後３時５６分
1 Oil Check

Under certain driving conditions, it is normal for the
engine oil level to rise above the upper mark. If you

have a concern, consult a dealer for details.

575
uuMaintenance Under the Hood uAdding Engine Oil
Maintenance
Adding Engine Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck
the
engi

ne oil dipstick.1Adding Engine Oil
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
NOTICE
Do not fill the engine
oil above the upper mark.
Overfilling the engine oil may
result in leaks
and engine damage.

Engine Oil
Fill Cap

1.5 L engine models

2.4 L engine models

Engine Oil
Fill Cap

18 CR-V-31TLA6100.book 575 ページ ２０１７年９月７日　木曜日　午後３時５６分

576
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance
Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine's lubrication. The engine may be damaged if they are not changed regularly.
Specialized equipment and proc edures are required to change the engine oil and oil
filter. Have an authorized Honda dealer replace them.
Do not attempt to change the engi ne oil and oil filter yourself.
Change the oil and filter in accordance with the maintenance message on the
information display
*/driver information interface*.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the phillips head screws and
slotted head screws by turning 90°
counterclockwise on the undercarriage
and remove the under cover.
1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
1.5 L engine models
Screw Under Cover
2.4 L engine models
Screw
Under Cover
* Not available on all models
18 CR-V-31TLA6100.book 576 ページ ２０１７年９月７日　木曜日　午後３時５６分

577
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Continued
Maintenance
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.1.5 L engine models
Drain Bolt
Washer
2.4 L engine models
Drain Bolt
Washer
18 CR-V-31TLA6100.book 577 ページ ２０１７年９月７日　木曜日　午後３時５６分

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
578
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including filter):
3.7 US qt (3.5 L)
4.7 US qt (4.4 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that ther e is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes, and
then check the oil level on the dipstick.
u If necessary, add more engine oil.
13. Reinstall the under cover in the same order
it was removed.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Be sure to verify that the o il filter is designed for your
vehicle. A genuine Honda oil filter is recommended
for optimum lubrication flow and filtration properties
to assure the reliability of the engine.1.5 L engine models
Oil Filter
2.4 L engine models
Oil Filter1.5 L engine models
2.4 L engine models
18 CR-V-31TLA6100.book 578 ページ ２０１７年９月７日　木曜日　午後３時５６分
