HONDA CR-V 2018 Owner's Manual (in English)

649
Handling the Unexpected

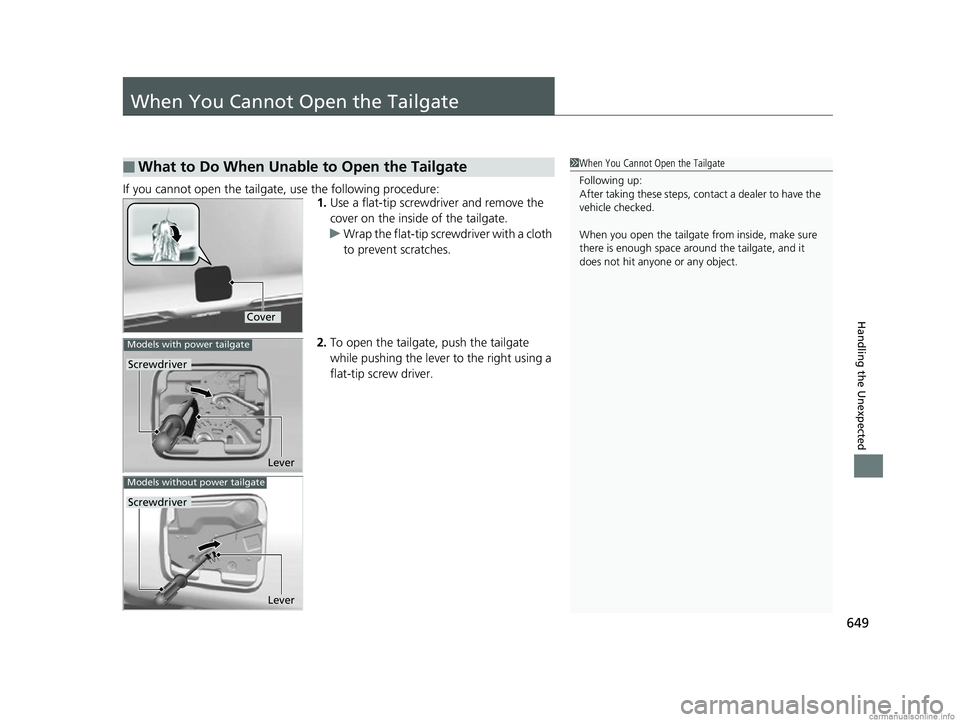

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure:1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right using a
flat-tip screw driver.
■What to Do When Unable to Open the Tailgate1When You Cannot Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Models without power tailgate
Lever
Screwdriver
18 CR-V-31TLA6100.book 649 ページ ２０１７年９月７日　木曜日　午後３時５６分

650
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
cargo area.
2 Types of Tools P. 618
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
18 CR-V-31TLA6100.book 650 ページ ２０１７年９月７日　木曜日　午後３時５６分

651
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 652
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 654
Devices that Emit Radio Waves ....... 656
Reporting Safety Defects ................. 657Emissions Testing
Testing of Readiness Codes.............. 658
Warranty Coverages ........................ 660
Authorized Manuals ......................... 662
Customer Service Information ......... 663
18 CR-V-31TLA6100.book 651 ページ ２０１７年９月７日　木曜日　午後３時５６分

652
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: AWD models
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.:4,695 lbs (2,130 kg)Canada:2,130 kgGross Axle Weight
Rating (Front)U.S.:2,425 lbs (1,100 kg)Canada:1,100 kg
Gross Axle Weight
Rating (Rear)U.S.:2,292 lbs (1,040 kg)*1
2,369 lbs (1,075 kg)*2
Canada:1,040 kg*1
1,075 kg*2
■ Air Conditioning
*1: 2.4 L engine models
*2: 1.5 L engine models
■Engine Specifications
*1: 2.4 L engine models
*2: 1.5 L engine models
■Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)*1
15.3 – 17.1 oz (435 – 485 g)*2
Lubricant TypeRB100EV-01*1
RL85HM (POE)*2
Quantity5.80 - 6.53 cu-in (95 - 107 cm3)*1
4.70 - 6.28 cu-in (77 – 103 cm3)*2
Displacement143.72 cu-in (2,356 cm3)*1
91.38 cu-in (1,498 cm3)*2
Spark PlugsNGKDILKAR7H11GS*1
DILKAR7G11GS*1
ILZKAR8J8SY*2
DENSODXE22HQR-D11S*1
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)*
LED*
Headlights (High Beam)60 W (HB3)*
LED*
Fog Lights*35 W (H8)
Front Turn Signal/
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Side Turn Signal Lights
(on Door Mirrors)
*LED
Tail and Brake/Rear Turn Signal/
Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights
Map Lights 8 W
*
LED*
Ceiling Light8 W*
LED*
Cargo Area Lights 5 W
Vanity Mirror Lights*1.8 W
* Not available on all models
18 CR-V-31TLA6100.book 652 ページ ２０１７年９月７日　木曜日　午後３時５６分

653
uuSpecifications u
Information
■Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 L)*1
4.5 US qt (4.3 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.32 US qt (1.247 L)
■ Engine Oil
*1: 2.4 L engine models
*2: 1.5 L engine models
■Engine Coolant
*1: 2.4 L engine models
*2: 1.5 L engine models
Recommended·Genuine Honda Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
CapacityChange4.4 US qt (4.2 L)*1
3.4 US qt (3.2 L)*2
Change including
filter 4.7 US qt (4.4 L)*1
3.7 US qt (3.5 L)*2
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.65 US gal (6.24 L)*1
1.64 US gal (6.20 L)*2
(change including the remaining 0.17 US gal
(0.65 L) in the reserve tank)*1
(change including the remaining 0.2 US gal
(0.75 L) in the reserve tank)*2
■ Tire
*1: Vehicle with 17 inch wheel
*2: Vehicle with 18 inch wheel
Regular
Size*1235/65R17 104HPressure*1
psi (kPa [kgf/cm2])Front32 (220 [2.2])Rear30 (210 [2.1])Size*2235/60R18 103HPressure*2
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear30 (210 [2.1])
Compact
Spare Size
T155/90D17 112M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 7 1/2J*2
Compact Spare17 x 4T
* Not available on all models
18 CR-V-31TLA6100.book 653 ページ ２０１７年９月７日　木曜日　午後３時５６分

654
Information

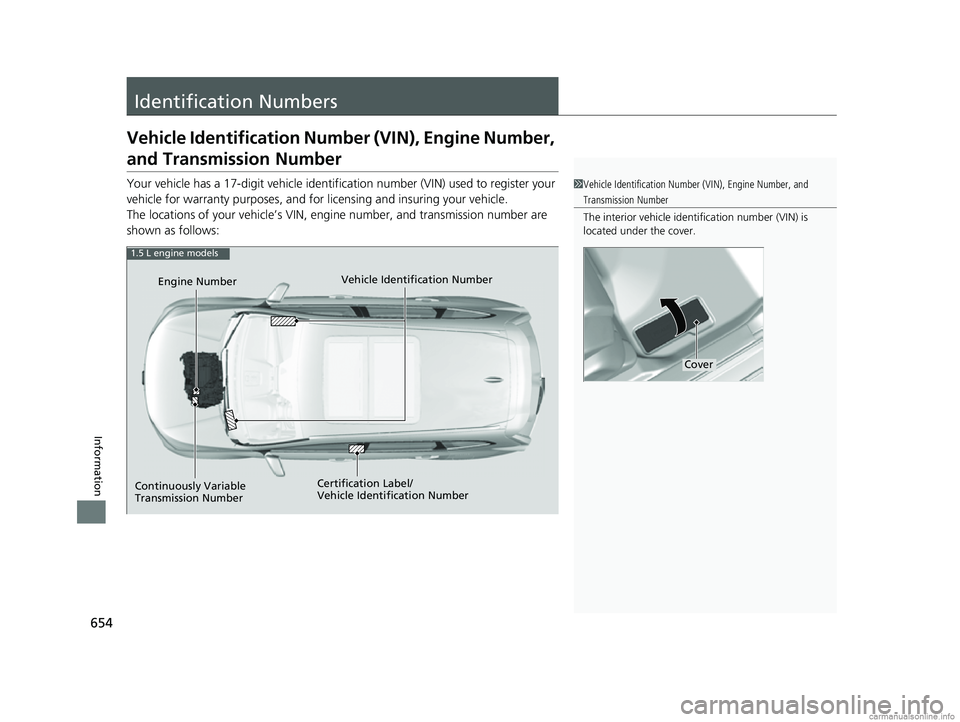

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows:1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Continuously Variable
Transmission Number
1.5 L engine models
18 CR-V-31TLA6100.book 654 ページ ２０１７年９月７日　木曜日　午後３時５６分

655

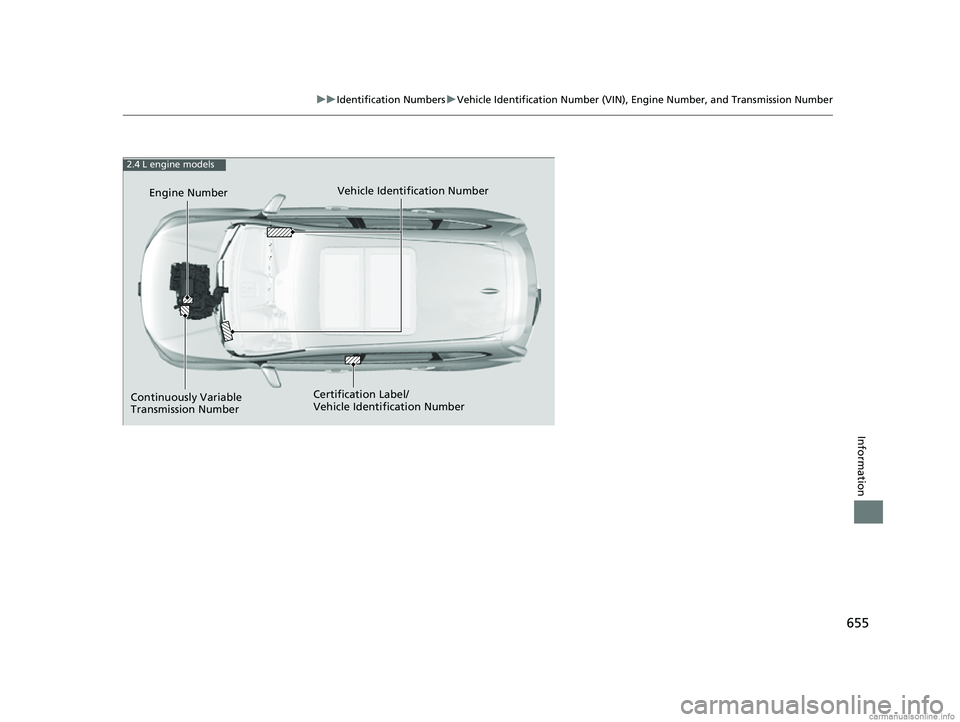

uuIdentification Numbers uVehicle Identification Number (VIN), Engine Number, and Transmission Number
Information
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Continuously Variable
Transmission Number
2.4 L engine models
18 CR-V-31TLA6100.book 655 ページ ２０１７年９月７日　木曜日　午後３時５６分

656
Information

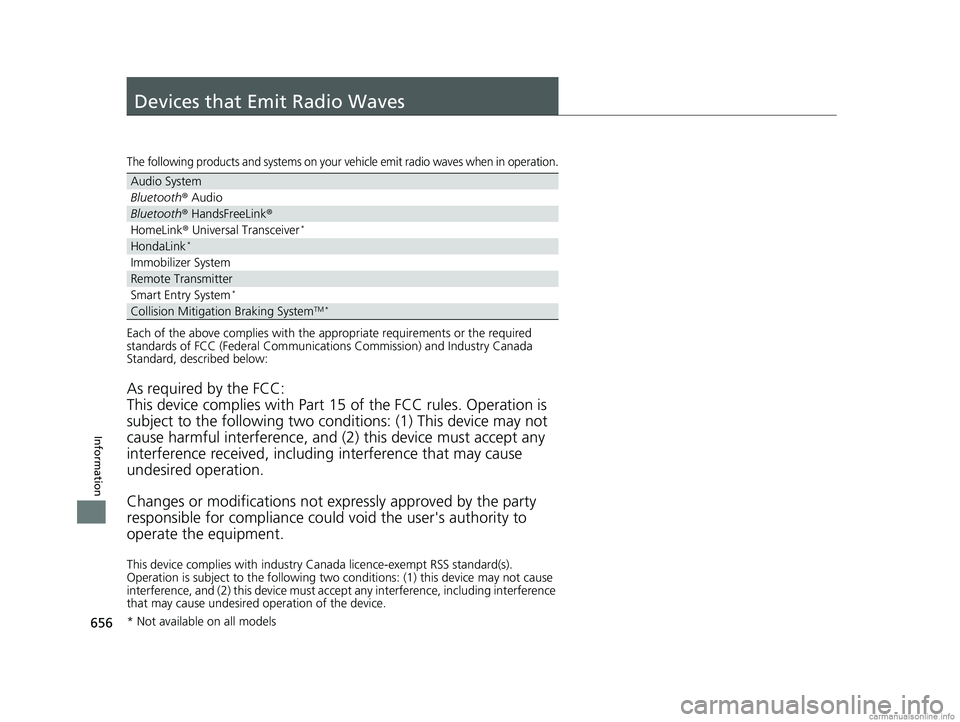

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interference, and (2 ) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compli ance could void the user's authority to
operate the equipment.
This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth ® HandsFreeLink ®
HomeLink® Universal Transceiver*
HondaLink*
Immobilizer System
Remote Transmitter
Smart Entry System*
Collision Mitigation Braking SystemTM *
* Not available on all models
18 CR-V-31TLA6100.book 656 ページ ２０１７年９月７日　木曜日　午後３時５６分

657
Information

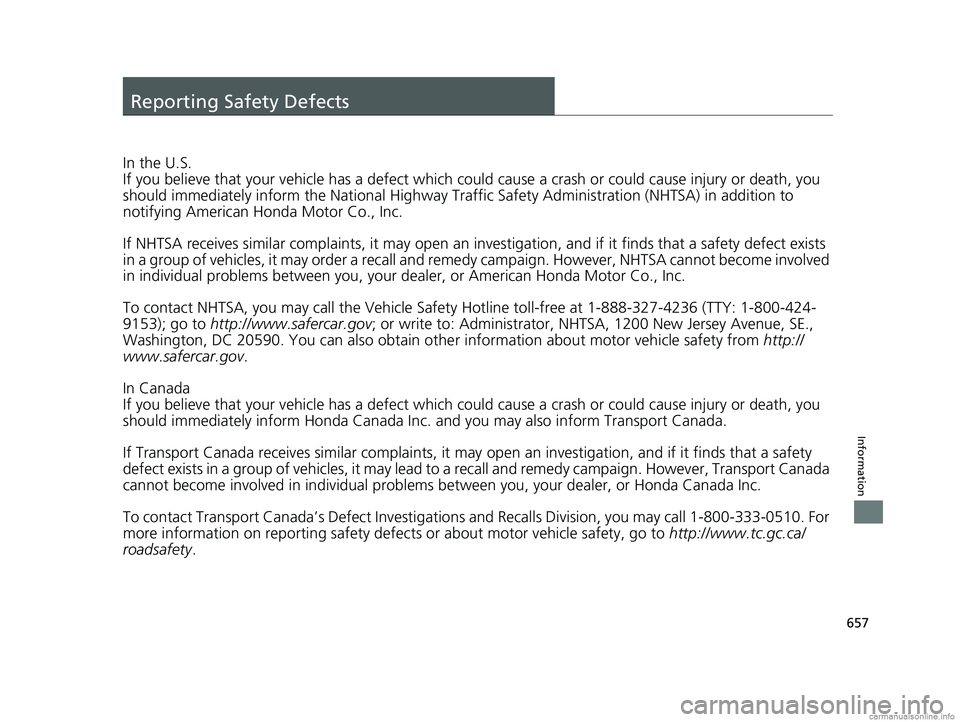

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Admi nistration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defe cts or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
18 CR-V-31TLA6100.book 657 ページ ２０１７年９月７日　木曜日　午後３時５６分

658
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle's emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
18 CR-V-31TLA6100.book 658 ページ ２０１７年９月７日　木曜日　午後３時５６分
