spark plug HONDA CR-V 2018 Owner's Manual (in English)

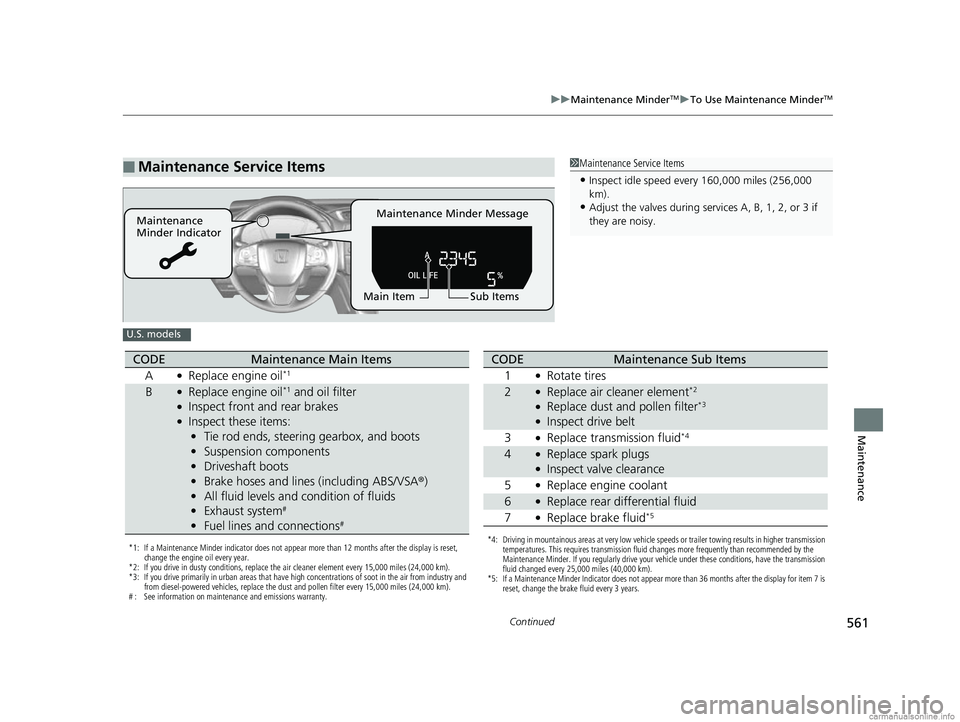

561
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder indicator does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid
7●Replace brake fluid*5
18 CR-V-31TLA6100.book 561 ページ ２０１７年９月７日　木曜日　午後３時５６分

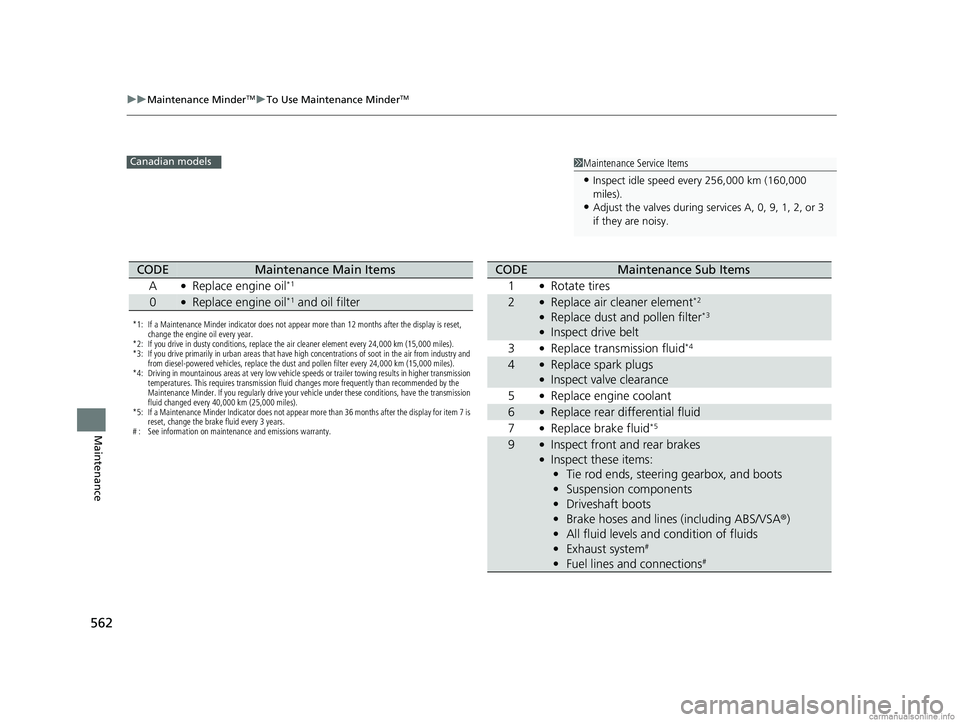

562
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Inspect idle speed every 256,000 km (160,000
miles).
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder indicator does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 40,000 km (25,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid
7●Replace brake fluid*5
9●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
18 CR-V-31TLA6100.book 562 ページ ２０１７年９月７日　木曜日　午後３時５６分

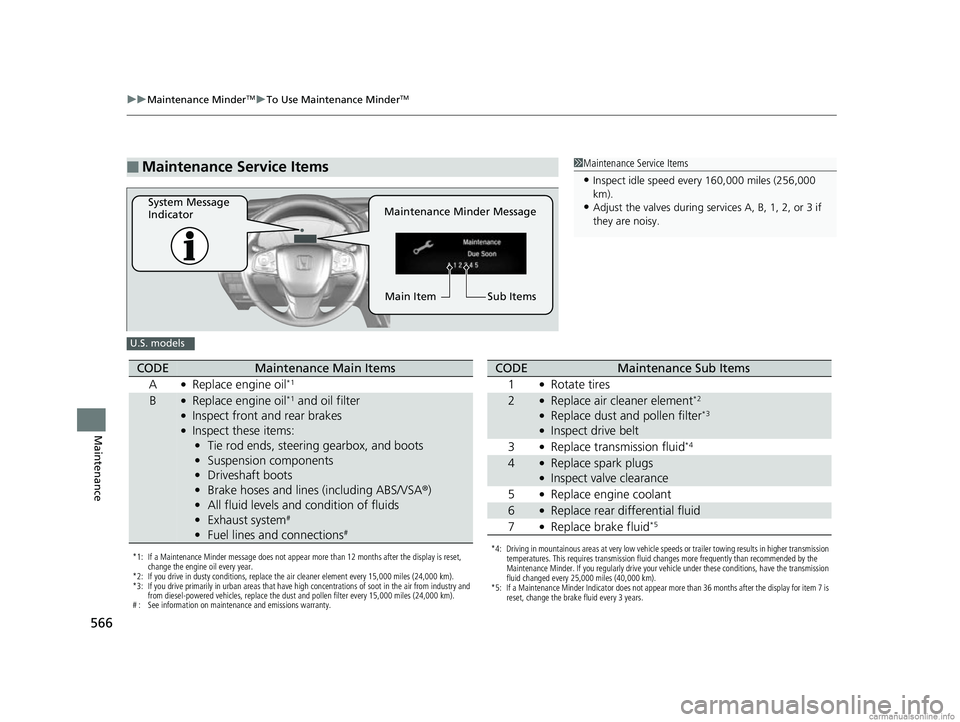

566
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid
7●Replace brake fluid*5
18 CR-V-31TLA6100.book 566 ページ ２０１７年９月７日　木曜日　午後３時５６分

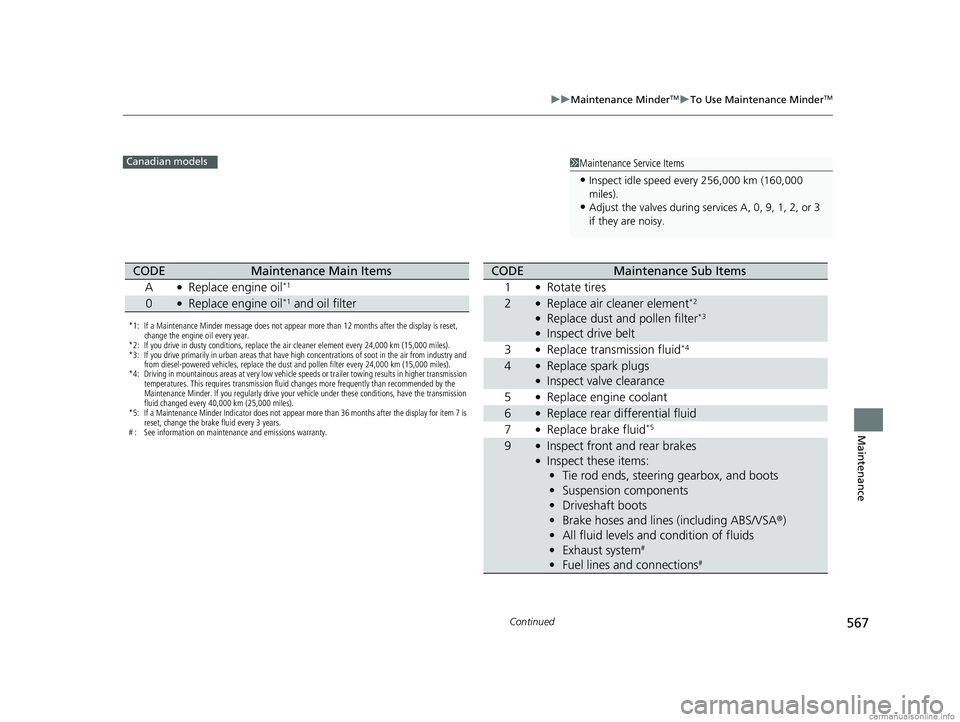

567
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Inspect idle speed every 256,000 km (160,000
miles).
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 40,000 km (25,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid
7●Replace brake fluid*5
9●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
18 CR-V-31TLA6100.book 567 ページ ２０１７年９月７日　木曜日　午後３時５６分

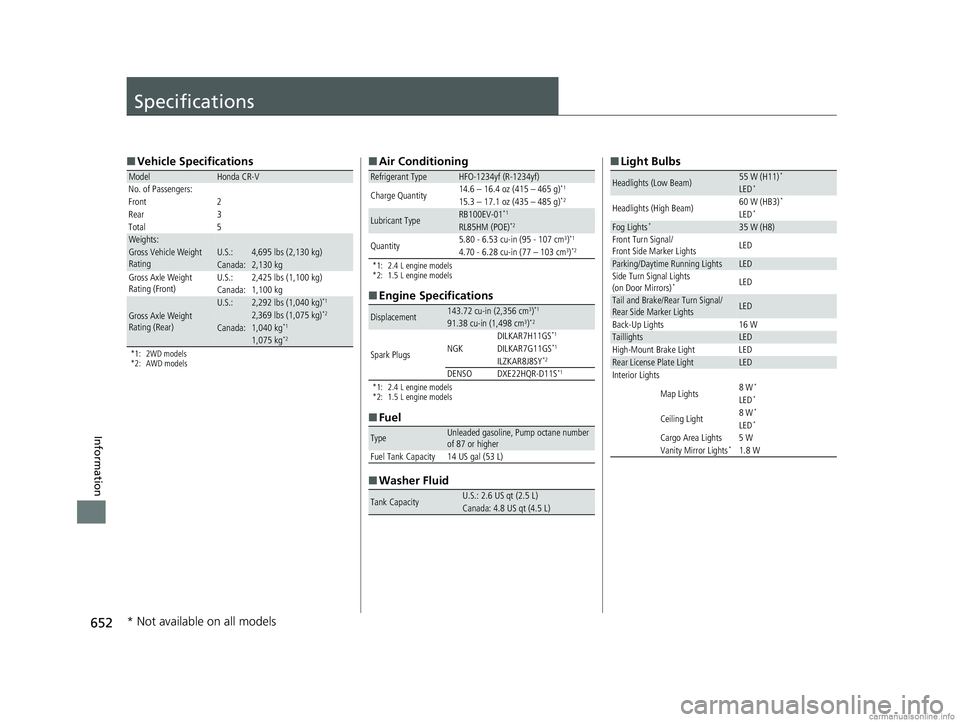

652
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: AWD models
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.:4,695 lbs (2,130 kg)Canada:2,130 kgGross Axle Weight
Rating (Front)U.S.:2,425 lbs (1,100 kg)Canada:1,100 kg
Gross Axle Weight
Rating (Rear)U.S.:2,292 lbs (1,040 kg)*1
2,369 lbs (1,075 kg)*2
Canada:1,040 kg*1
1,075 kg*2
■ Air Conditioning
*1: 2.4 L engine models
*2: 1.5 L engine models
■Engine Specifications
*1: 2.4 L engine models
*2: 1.5 L engine models
■Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)*1
15.3 – 17.1 oz (435 – 485 g)*2
Lubricant TypeRB100EV-01*1
RL85HM (POE)*2
Quantity5.80 - 6.53 cu-in (95 - 107 cm3)*1
4.70 - 6.28 cu-in (77 – 103 cm3)*2
Displacement143.72 cu-in (2,356 cm3)*1
91.38 cu-in (1,498 cm3)*2
Spark PlugsNGKDILKAR7H11GS*1
DILKAR7G11GS*1
ILZKAR8J8SY*2
DENSODXE22HQR-D11S*1
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)*
LED*
Headlights (High Beam)60 W (HB3)*
LED*
Fog Lights*35 W (H8)
Front Turn Signal/
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Side Turn Signal Lights
(on Door Mirrors)
*LED
Tail and Brake/Rear Turn Signal/
Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights
Map Lights 8 W
*
LED*
Ceiling Light8 W*
LED*
Cargo Area Lights 5 W
Vanity Mirror Lights*1.8 W
* Not available on all models
18 CR-V-31TLA6100.book 652 ページ ２０１７年９月７日　木曜日　午後３時５６分

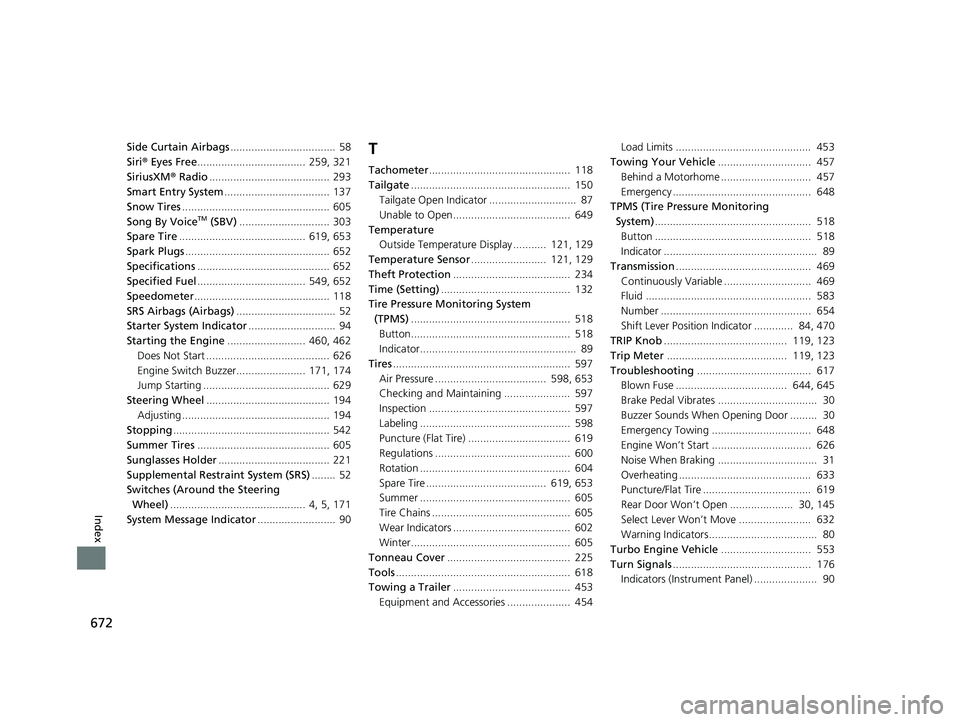

672
Index
Side Curtain Airbags................................... 58
Siri ® Eyes Free .................................... 259, 321
SiriusXM ® Radio ........................................ 293
Smart Entry System ................................... 137
Snow Tires ................................................. 605
Song By Voice
TM (SBV) .............................. 303
Spare Tire .......................................... 619, 653
Spark Plugs ................................................ 652
Specifications ............................................ 652
Specified Fuel .................................... 549, 652
Speedometer ............................................. 118
SRS Airbags (Airbags) ................................. 52
Starter System Indicator ............................. 94
Starting the Engine .......................... 460, 462
Does Not Start ......................................... 626
Engine Switch Buzzer....................... 171, 174
Jump Starting .......................................... 629
Steering Wheel ......................................... 194
Adjusting ................................................. 194
Stopping .................................................... 542
Summer Tires ............................................ 605
Sunglasses Holder ..................................... 221
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering Wheel) ............................................. 4, 5, 171
System Message Indicator .......................... 90
T
Tachometer............................................... 118
Tailgate ..................................................... 150
Tailgate Open Indicator ............................. 87
Unable to Open....................................... 649
Temperature Outside Temperature Display ........... 121, 129
Temperature Sensor ......................... 121, 129
Theft Protection ....................................... 234
Time (Setting) ........................................... 132
Tire Pressure Monitoring System
(TPMS) ..................................................... 518
Button..................................................... 518
Indicator.................................................... 89
Tires ........................................................... 597
Air Pressure ..................................... 598, 653
Checking and Maintaining ...................... 597
Inspection ............................................... 597
Labeling .................................................. 598
Puncture (Flat Tire) .................................. 619
Regulations ............................................. 600
Rotation .................................................. 604
Spare Tire ........................................ 619, 653
Summer .................................................. 605
Tire Chains .............................................. 605
Wear Indicators ....................................... 602
Winter..................................................... 605
Tonneau Cover ......................................... 225
Tools .......................................................... 618
Towing a Trailer ....................................... 453
Equipment and Accessories ..................... 454 Load Limits ............................................. 453
Towing Your Vehicle ............................... 457
Behind a Motorhome .............................. 457
Emergency .............................................. 648
TPMS (Tire Pressure Monitoring
System) .................................................... 518
Button .................................................... 518
Indicator ................................................... 89
Transmission ............................................. 469
Continuously Variable ............................. 469
Fluid ....................................................... 583
Number .................................................. 654
Shift Lever Position Indicator ............. 84, 470
TRIP Knob ......................................... 119, 123
Trip Meter ........................................ 119, 123
Troubleshooting ...................................... 617
Blown Fuse ..................................... 644, 645
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 648
Engine Won’t Start ................................. 626
Noise When Braking ................................. 31
Overheating ............................................ 633
Puncture/Flat Tire .................................... 619
Rear Door Won’t Open ..................... 30, 145
Select Lever Won’t Move ........................ 632
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 553
Turn Signals .............................................. 176
Indicators (Instru ment Panel) ..................... 90
18 CR-V-31TLA6100.book 672 ページ ２０１７年９月７日　木曜日　午後３時５６分
