display HONDA CR-V 2019 (in English) Owner's Guide

120

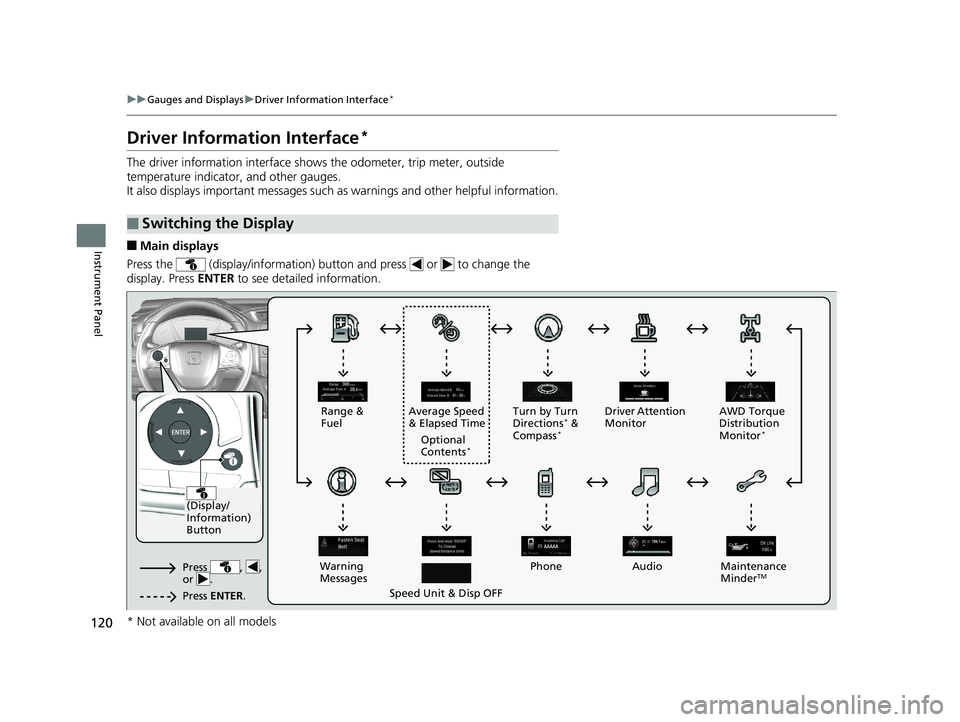

uuGauges and Displays uDriver Information Interface*
Instrument Panel
Driver Information Interface*
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (display/information) butto n and press or to change the
display. Press ENTER to see detailed information.
■Switching the Display

(Display/
Information)
Button
Warning
Messages
Speed Unit & Disp OFF Maintenance
MinderTMPhone
Optional
Contents
*
Audio
Turn by Turn
Directions
* &
Compass*
Range &
Fuel
Press , ,
or .
Press ENTER .
Average Speed
& Elapsed Time Driver Attention
MonitorAWD Torque
Distribution
Monitor
*
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 120 ページ ２０１８年８月２２日　水曜日　午後２時５９分

Continued121

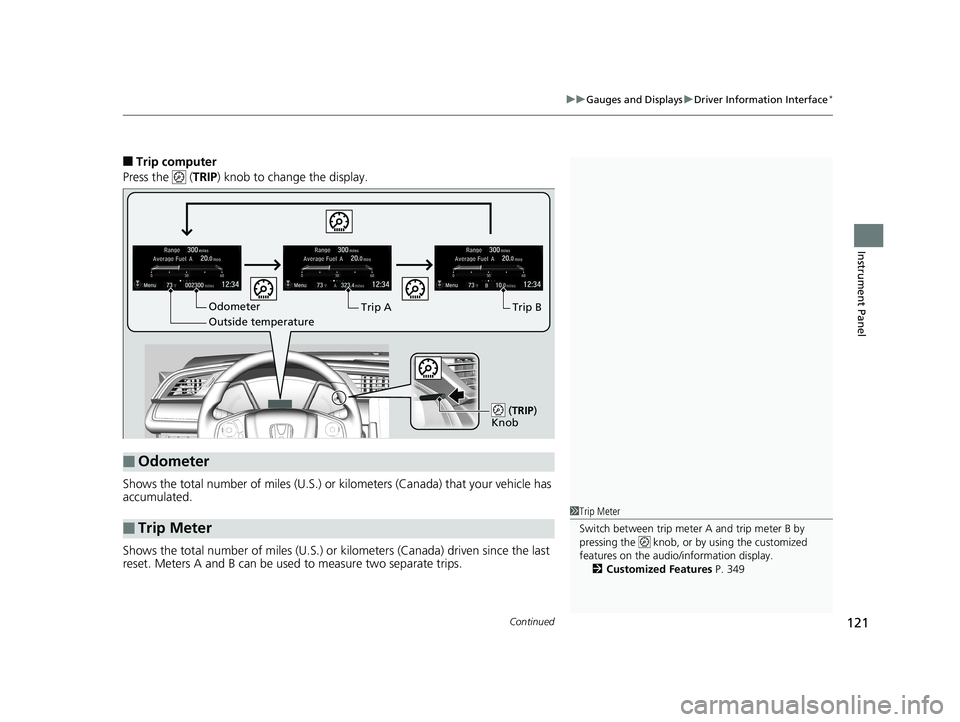

uuGauges and Displays uDriver Information Interface*
Instrument Panel
■Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Odometer
■Trip Meter
Odometer
Outside temperatureTrip ATrip B
(
TRIP )
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob, or by using the customized
features on the audio/ information display.
2 Customized Features P. 349
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 121 ページ ２０１８年８月２２日　水曜日　午後２時５９分

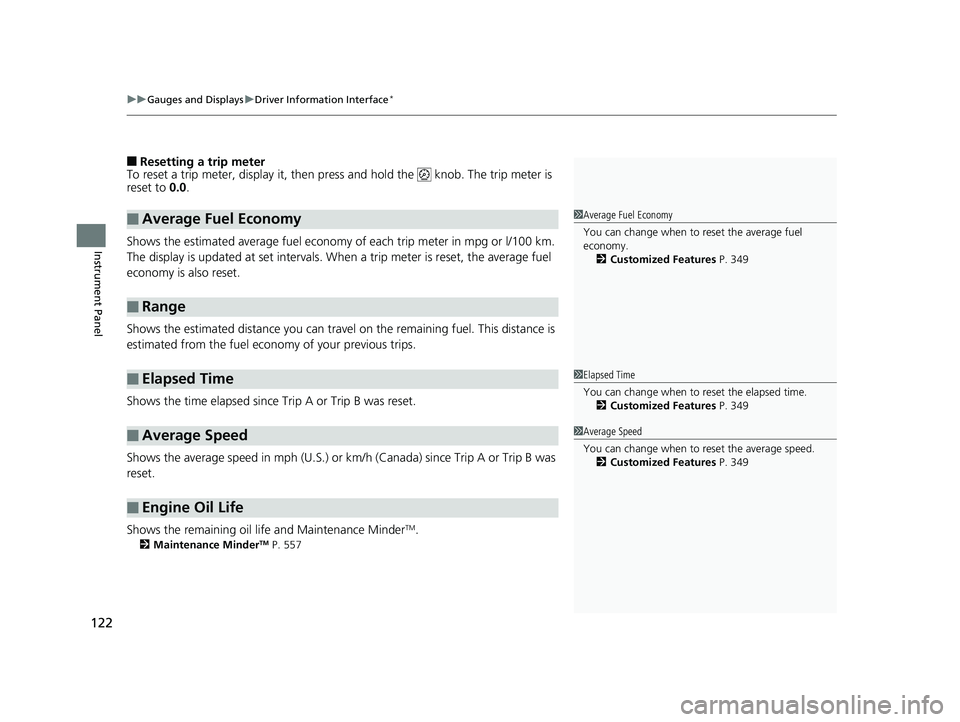

uuGauges and Displays uDriver Information Interface*
122
Instrument Panel
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in m ph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 557
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 349
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 349
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 349
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 122 ページ ２０１８年８月２２日　水曜日　午後２時５９分

Continued123

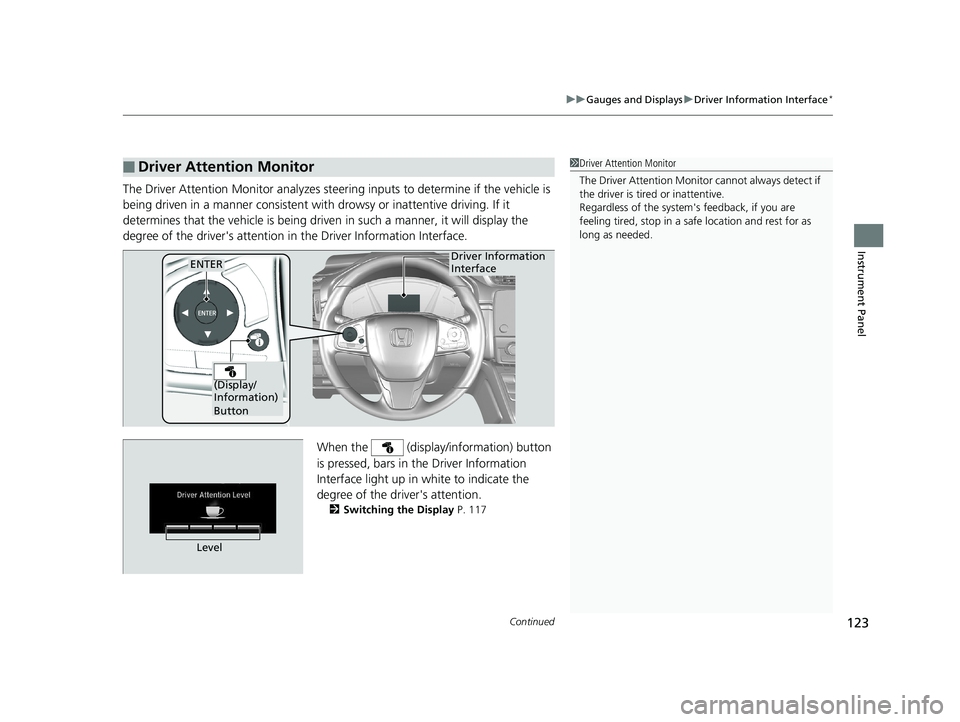

uuGauges and Displays uDriver Information Interface*
Instrument Panel
The Driver Attention Monitor an alyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver's attention in the Driver Information Interface.
When the (display/information) button
is pressed, bars in the Driver Information
Interface light up in white to indicate the
degree of the driver's attention.
2Switching the Display P. 117
■Driver Attention Monitor1Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system's feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information
InterfaceENTER

(Display/
Information)
Button
Level
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 123 ページ ２０１８年８月２２日　水曜日　午後２時５９分

124
uuGauges and Displays uDriver Information Interface*
Instrument Panel
If two bars light up, the Driver Attention
Level Low message will appear.
If one bar lights up, the Driver Attention
Level Low. Time For A Break message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the ENTER
button is pressed or when the system has
determined that the driv er is driving normally.
If the driver does not take a break and the
monitor continues to dete ct that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
■The Driver Attention Monitor resets when
• the engine is turned off.
• the driver unfastens the seat belt and opens the door while the vehicle is stopped.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 124 ページ ２０１８年８月２２日　水曜日　午後２時５９分

Continued125
uuGauges and Displays uDriver Information Interface*
Instrument Panel
■For the Driver Attention Monitor to function
• the vehicle must be traveling above 25 mph (40 km/h).
• the electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or ot her factors, the Driver Attention
Monitor may not function in the following circumstances.
• the steering assist function of the Lane Keeping Assist System (LKAS)
* is active.
2Lane Keeping Assist System (LKAS)* P. 499
•the condition of the road is poor, e.g. the surface is unpaved or bumpy.
• it is windy.
• the driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■Customizing
You can change the Driver Atte ntion Monitor settings. Select Tactile And Audible
Alert , Tactile Alert , or OFF .
2Customized Features P. 349
1For the Driver Attention Monitor to function
The bars in the Driver Information Interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 125 ページ ２０１８年８月２２日　水曜日　午後２時５９分

uuGauges and Displays uDriver Information Interface*
126
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the customized features in the audio/information screen to correct the
temperature.
2 Customized Features P. 349
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
The indicators on th e display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM* P. 515
■Outside Temperature
■Instant Fuel Economy
■AWD Torque Distribution Monitor*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 126 ページ ２０１８年８月２２日　水曜日　午後２時５９分

127
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
Show the current audio information.
2Audio System Basic Operation P. 258
Show the current phone information.
2Bluetooth ® HandsFreeLink ® P. 385
■Turn-by-Turn Directions*
■Audio
■Phone
1 Turn-by-Turn Directions*
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 349
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 127 ページ ２０１８年８月２２日　水曜日　午後２時５９分

130
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 349
Models with navigation system
Models with color audio system
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 130 ページ ２０１８年８月２２日　水曜日　午後２時５９分

131
uuClock uAdjusting the Clock
Controls
■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
Models with Display Audio1Using the Settings menu on the audio/information screen
You can customize the clock display to show the 12
hour clock or 24 hour clock and turn the clock display
on and off.
2 Customized Features P. 349
The clock is automatica lly updated when your
smartphone is connected to the audio system.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK.
Models with Display Audio
Models with Display Audio
34
34
34
34
