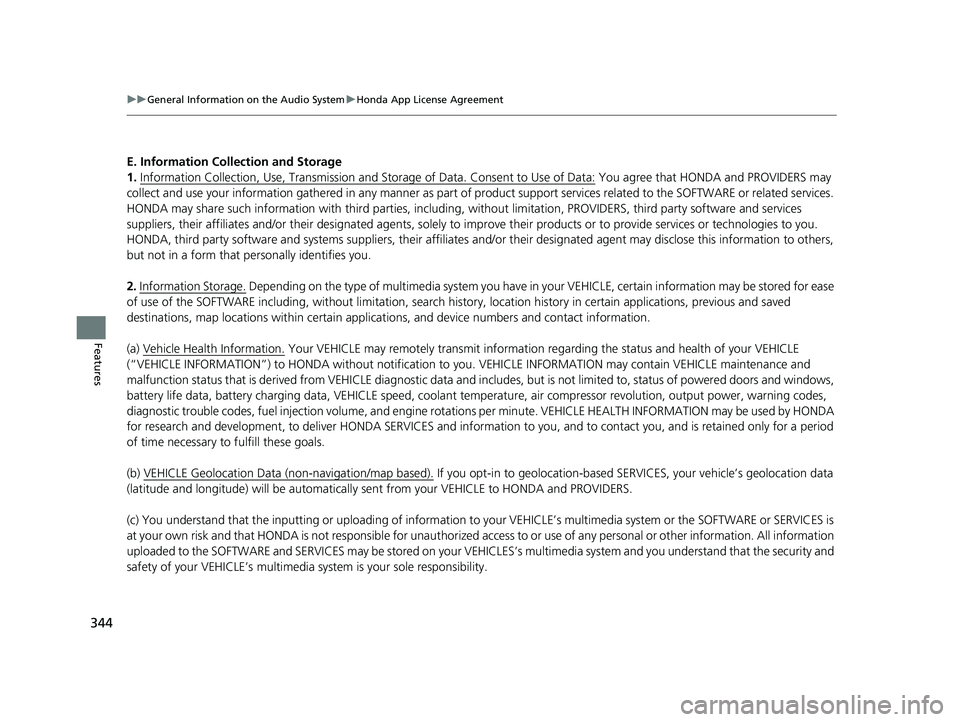

344
uuGeneral Information on the Audio System uHonda App License Agreement
Features
E. Information Coll ection and Storage
1. Information Collection, Use, Transmission and Storage of Data. Consent to Use of Data:
You agree that HONDA and PROVIDERS may
collect and use your information gathered in any manner as part of product support services related to the SOFTWARE or related services.
HONDA may share such information with third parties, including, without limitation, PROVIDERS, th ird party software and services
suppliers, their affiliates and/or their desi gnated agents, solely to improve their products or to provide services or technolo gies to you.
HONDA, third party software and systems s uppliers, their affiliates and/or their designated agent may disclose this information to others,
but not in a form that pe rsonally identifies you.
2. Information Storage.
Depending on the type of multimedia system you have in your VEHICLE, certain information may be stored for ease
of use of the SOFTWARE including, without limitation, search hi story, location history in certain applications, previous and saved
destinations, map locations within certain applications, and device numbers and contact information.
(a) Vehicle Health Information.
Your VEHICLE may remotely trans mit information regarding the status and health of your VEHICLE
(“VEHICLE INFORMATION”) to HONDA without notification to you. VEHICLE INFORMATION may contain VEHICLE maintenance and
malfunction status that is derived from VEHICLE diagnostic data and includes, but is not limited to, status of powered doors and windows,
battery life data, battery charging data, VEHICLE speed, coolant temperat ure, air compressor revolution, output power, warning codes,
diagnostic trouble codes, fuel injection volu me, and engine rotations per minute. VEHICL E HEALTH INFORMATION may be used by HON DA
for research and development, to deliver HONDA SERVICES and information to you, and to contact you, and is retained only for a period
of time necessary to fulfill these goals.
(b) VEHICLE Geolocation Data (non-navigation/map based).
If you opt-in to geolocation-based SERVICES, your vehicle’s geolocation data
(latitude and longitude) will be automatically se nt from your VEHICLE to HONDA and PROVIDERS.
(c) You understand that the inputting or uploading of information to your VEHICLE’s multimedia system or the SOFTWARE or SERVIC ES is
at your own risk and that HONDA is not responsible for unauthorized access to or use of any personal or other information. All information
uploaded to the SOFTWARE and SERVICES may be stored on your VEHICLES’s multimedia system and you understand that the security and
safety of your VEHICLE’s multimedia system is your sole responsibility.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 344 ページ ２０１９年１０月３日　木曜日　午後４時５５分

377
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Does not appear when you chan ge the screen interface design.
Setup
Group Customizable Features Desc
ription Selectable Settings
System
Display
Display
Settings
BrightnessChanges the brightness of the audio/information
screen.—
ContrastChanges the contrast of the audio/information
screen.—
Black LevelChanges the black level of the audio/information
screen.—
Background Color*2Changes the background color of the audio/
information screen.Blue/Amber /Red/
Violet/ BlueGreen*1
Touch Panel SensitivitySets the sensitivity of the touch panel screen.High/Low*1
Sound/
BeepGuidance Volume
Changes the sound volume.
Adjusts the guidance volume of the navigation
system.
1 ~6*1~11
Text Message VolumeChanges the text/e-mail message reading
volume. 1~6*1~11
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 377 ページ ２０１９年１０月３日　木曜日　午後４時５５分

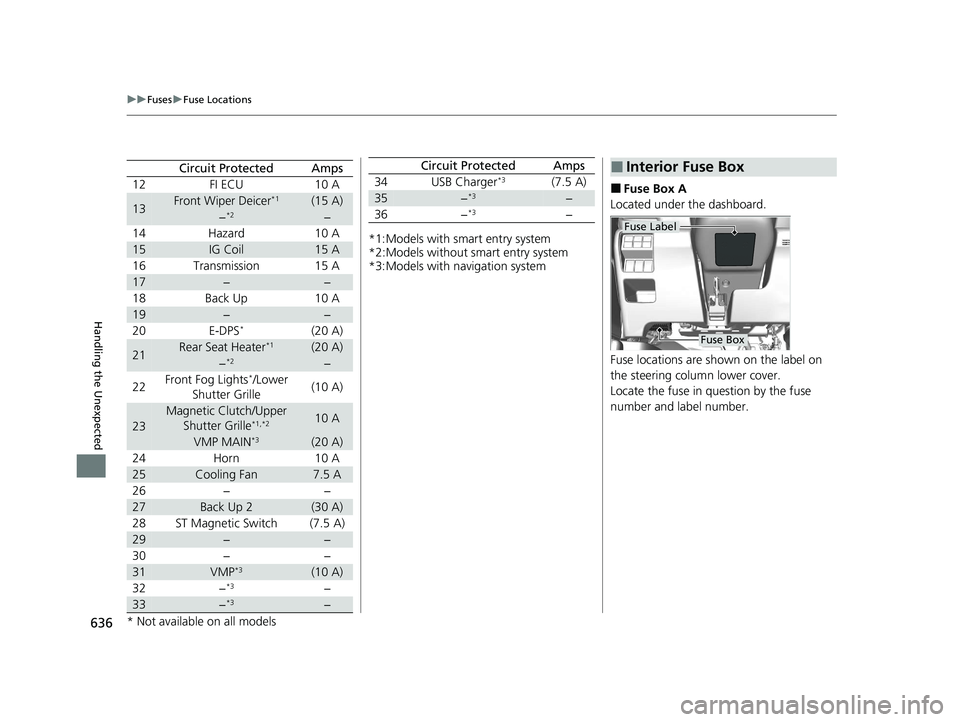

636
uuFuses uFuse Locations
Handling the Unexpected
Circuit ProtectedAmps
12FI ECU10 A
13Front Wiper Deicer*1(15 A)
−*2−
14Hazard10 A
15IG Coil15 A
16Transmission15 A
17−−
18Back Up10 A
19−−
20E-DPS*(20 A)
21Rear Seat Heater*1(20 A)
−*2−
22Front Fog Lights*/Lower
Shutter Grille(10 A)
23
Magnetic Clutch/Upper Shutter Grille*1,*210 A
VMP MAIN*3(20 A)
24Horn10 A
25Cooling Fan7.5 A
26−−
27Back Up 2(30 A)
28ST Magnetic Switch(7.5 A)
29−−
30−−
31VMP*3(10 A)
32−*3−
33−*3−
*1:Models with smart entry system
*2:Models without smart entry system
*3:Models with navigation system
34USB Charger*3(7.5 A)
35−*3−
36−*3−
Circuit ProtectedAmps
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 636 ページ ２０１９年１０月３日　木曜日　午後４時５５分
