key HONDA CR-V 2020 (in English) Workshop Manual

626
Handling the Unexpected

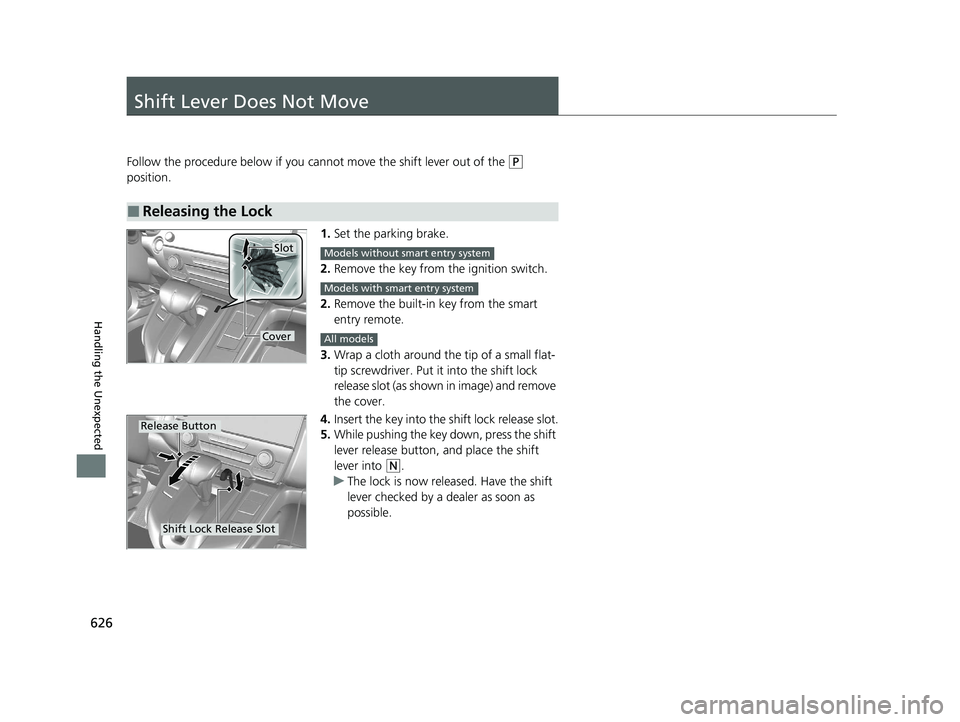

Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot (as shown in image) and remove
the cover.
4. Insert the key into the sh ift lock release slot.
5. While pushing the key down, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Slot
Cover
Models without smart entry system
Models with smart entry system
All models
Release Button
Shift Lock Release Slot
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 626 ページ ２０１９年１０月３日　木曜日　午後４時５５分

637
uuFuses uFuse Locations
Continued
Handling the Unexpected

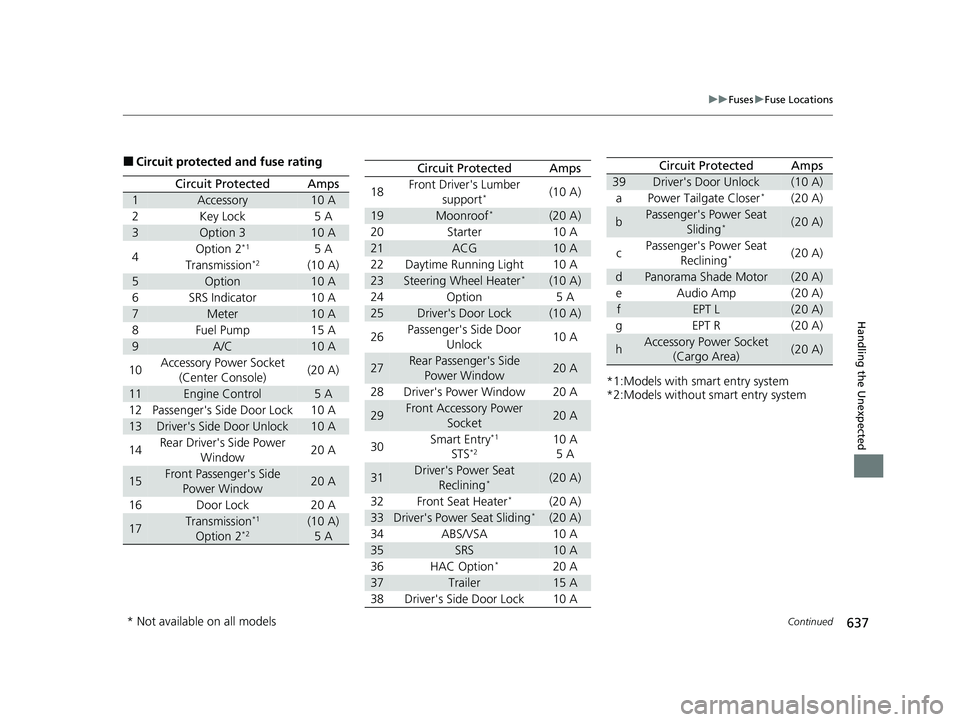

■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock5 A
3Option 310 A
4Option 2*15 A
Transmission*2(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
9A/C10 A
10Accessory Power Socket
(Center Console)(20 A)
11Engine Control5 A
12Passenger's Side Door Lock10 A
13Driver's Side Door Unlock10 A
14Rear Driver's Side Power Window20 A
15Front Passenger's Side Power Window20 A
16Door Lock20 A
17Transmission*1
Option 2*2(10 A)
5 A
Circuit ProtectedAmps
18Front Driver's Lumber support*(10 A)
19Moonroof*(20 A)
20Starter10 A
21ACG10 A
22Daytime Running Light10 A
23Steering Wheel Heater* (10 A)
24Option5 A
25Driver's Door Lock(10 A)
26Passenger's Side Door Unlock10 A
27Rear Passenger's Side
Power Window20 A
28Driver's Power Window20 A
29Front Accessory Power Socket20 A
30Smart Entry*1
STS*210 A5 A
31Driver's Power Seat
Reclining*(20 A)
32Front Seat Heater*(20 A)
33Driver's Power Seat Sliding*(20 A)
34ABS/VSA10 A
35SRS10 A
36HAC Option*20 A
37Trailer15 A
38Driver's Side Door Lock10 A
*1:Models with smart entry system
*2:Models without smart entry system
39Driver's Door Unlock(10 A)
aPower Tailgate Closer*(20 A)
bPassenger's Power Seat Sliding*(20 A)
cPassenger's Power Seat Reclining*(20 A)
dPanorama Shade Motor(20 A)
eAudio Amp(20 A)
fEPT L(20 A)
gEPT R(20 A)
hAccessory Power Socket (Cargo Area)(20 A)
Circuit ProtectedAmps
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 637 ページ ２０１９年１０月３日　木曜日　午後４時５５分

659
Index
Continuously Variable Transmission....... 473
Creeping................................................. 473
Fluid ....................................................... 578
Kickdown ............................................... 473
Operating the Shift Lever .................. 23, 475
Shift Lever Does Not Move ...................... 626
Shifting ................................................... 474
Controls .................................................... 131
Coolant (Engine) ...................................... 576
Adding the Coolant ................................ 577
Overheating ............................................ 627
Creeping (Continuously Variable Transmission) .......................................... 473
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 215
Customer Service Information ................ 654
Customized Features ............... 121, 353, 360
D
Daytime Running Lights .......................... 185
Dead Battery ............................................ 623
Defaulting All the Settings ...................... 386
Defrosting the Windshield and
Windows ................................................. 229
Detachable Anchor .................................... 45
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 176
Rearview Mirror ...................................... 196
Dipstick (Engine Oil) ................................ 572 Directional Signals (Turn Signals)
............ 175
Display Setup .................................... 246, 284
Display/Information Button ..................... 113
Door Mirrors ............................................. 197
Doors ......................................................... 135
Auto Door Locking .................................. 148
Auto Door Unlocking ............................... 148
Keys ........................................................ 135
Locking/Unlocking the Doors from the Inside..................................................... 146
Locking/Unlocking the Doors from the
Outside.................................................. 138
Lockout Prevention System ...................... 145
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 113
Driver’s Seat Lumbar Support .................. 198
Driving ....................................................... 451
Braking .................................................... 528
Continuously Variable Transmission ......... 473
Off-Highway Driving Guidelines ............... 463
Shifting Gear ........................................... 474
Starting the Engine .......................... 465, 467
Driving Position Memory System ............. 193
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 482
Elapsed Time ............................................. 115 Electric Power Steering (EPS) System
Indicator............................................ 85, 633
Electronic Stability Control (ESC) ............. 513
Emergency ................................................ 640
Emissions Testing (Readiness Codes) ....... 649
Engine Coolant ................................................... 576
Jump Starting .......................................... 623
Number................................................... 646
Oil ........................................................... 571
Starting ........................................... 465, 467
Switch Buzzer.................................. 170, 173
Engine Coolant ......................................... 576
Adding the Coolant................................. 577
Overheating ............................................ 627
Temperature Gauge ................................ 112
Engine Oil ................................................. 571
Adding .................................................... 573
Checking................................................. 572
Displaying Oil Life .................................... 564
Low Oil Pressure Indicator ................. 81, 629
Recommended Engine Oil ....................... 571
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 633
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 606
Exterior Mirrors ........................................ 197
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 659 ページ ２０１９年１０月３日　木曜日　午後４時５５分

661
Index
High Beam Indicator.................................. 87
Hill Start Assist System ..................... 466, 471
HomeLink ® Universal Transceiver ........... 387
Honda App License Agreement .............. 338
Honda Sensing ®........................................ 26
HondaLink ®............................................ 316
I
Identification Numbers ............................ 646
Engine and Transmission ......................... 646
Vehicle Identification............................... 646
Ignition Switch ......................................... 170
Illumination Control ................................ 189
Knob ...................................................... 189
Immobilizer System .................................. 160
Immobilizer System Indicator..................... 88
Indicators .................................................... 78
Adaptive Cruise Control (ACC) with Low Speed Follow ............................ 92, 93, 485
Anti-lock Brake System (ABS) .................... 83
Auto Idle Stop (Amber) ............................. 90
Auto Idle Stop (Green) .............................. 89
Automatic Brake Hold ....................... 80, 532
Blind spot information ...................... 89, 517
Charging System............................... 81, 629
Collision Mitigati on Braking System
TM
(CMBSTM) .................................... 94, 95, 96
ECON Mode ..................................... 89, 482
Electric Power Steering (EPS)
System ............................................ 85, 633 Fog Light ................................................... 87
High Beam ................................................ 87
Immobilizer System .................................... 88
Lane Keeping Assist System (LKAS) ...... 93, 94
Lights On ................................................... 87
Low Fuel .................................................... 83
Low Oil Pressure ................................ 81, 629
Low Tire Pressure/TPMS ............... 85, 86, 526
Maintenance Minder ............................... 563
Malfunction Indicator Lamp ............... 81, 630
Parking Brake and Brake System
(Amber) ............................................. 79, 80
Parking Brake and Brake System (Red)........................................ 78, 631, 632
Road Departure Mitigation (RDM) .. 90, 91, 92
Seat Belt Reminder .............................. 41, 82
Security System Alarm ............................... 88
Shift Lever Position .................................... 82
Supplemental Restraint System ............ 59, 83
System Message ........................................ 86
Transmission .............................................. 82
Turn Signal ................................................ 87
Vehicle Stability Assist
TM (VSA ®)
System............................................. 84, 513
VSA ® OFF .......................................... 84, 514
Information ............................................... 643
Instant Fuel Economy ............................... 119
Instrument Panel ........................................ 77
Brightness Control ................................... 189
Interior Lights ........................................... 208
Interior Rearview Mirror .......................... 196iPod
................................................... 249, 301
J
Jack (Wheel Nut Wrench) ........................ 616
Jump Starting ........................................... 623
K
Key Number Tag ....................................... 136
Keyless Lockout Prevention ..................... 145
Keys ........................................................... 135
Lockout Prevention.................................. 145
Master Keys ............................................ 135
Number Tag ............................................ 136
Rear Door Won’t Open............................ 147
Remote Transmitter ................................. 142
Types and Functions ................................ 135
Valet Key................................................. 136
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 473
L
Lane Keeping Assist System (LKAS) ......... 505
LaneWatchTM............................................ 519
LATCH (Child Seats) .............................. 67, 71
Lights ................................................. 176, 581
Auto High-Beam ..................................... 181
Automatic ............................................... 177
Bulb Replacement ................................... 581
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 661 ページ ２０１９年１０月３日　木曜日　午後４時５５分

662
Index
Daytime Running Lights ........................... 185
Fog Lights ................................................ 180
High Beam Indicator .................................. 87
Interior .................................................... 208
Light Switches ......................................... 176
Lights On Indicator .................................... 87
Turn Signals ............................................. 175
Load Limits ................................................ 455
Locking/Unlocking .................................... 135
Auto Door Locking/Unlocking .................. 148
Childproof Door Locks ............................. 147
From Inside .............................................. 146
From Outside ........................................... 138
Keys ........................................................ 135
Using a Key ............................................. 144
Lockout Prevention System ...................... 145
Low Battery Charge .................................. 629
Low Fuel Indicator ...................................... 83
Low Oil Pressure Indicator ................. 81, 629
Low Smart Entry Remote Signal Strength ................................................... 137
Lower Anchors ...................................... 67, 71
Luggage (Maximum Load Limit) .............. 455
Lumbar Support ........................................ 199
Lumbar Support Adjustment Switch ....... 199
M
Maintenance............................................. 559
Adding the Coolant ................................. 577
Battery..................................................... 599 Brake Fluid .............................................. 579
Cleaning ................................................. 604
Coolant ................................................... 576
Maintenance Minder
TM............................ 563
Oil ........................................................... 572
Precautions ............................................. 560
Remote Transmitter ................................. 601
Replacing Light Bulbs .............................. 581
Safety...................................................... 561
Service Items ........................................... 566
Tires ........................................................ 590
Transmission Fluid ................................... 578
Under the Hood ...................................... 569
Malfunction Indicator Lamp .............. 81, 630
Map Lights ................................................ 210
Maximum Load Limit ............................... 455
Meters, Gauges ......................................... 112
Mirrors ...................................................... 196
Adjusting ................................................ 196
Door ....................................................... 197
Exterior ................................................... 197
Interior Rearview ..................................... 196
Modifications (and Accessories) .............. 609
Moonroof ................................................. 166
MP3 ................................................... 254, 310
Multi-View Rear Camera .......................... 552
N
Numbers (Identification).......................... 646
O
Odometer................................................. 114
Off-Highway Driving Guidelines ............. 463
Oil (Engine) .............................................. 571
Adding ................................................... 573
Checking ................................................ 572
Displaying Oil Life ................................... 564
Low Oil Pressure Indicator ................. 81, 629
Recommended Engine Oil ....................... 571
Viscosity.................................................. 571
Open Source Licenses .............................. 352
Opening/Closing Hood ...................................................... 570
Moonroof ............................................... 166
Power Windows...................................... 163
Tailgate................................................... 149
Outside Temperature Display ................. 119
Overheating ............................................. 627
P
Pandora®......................................... 252, 308
Panic Mode ............................................... 162
Panoramic Roof ........................................ 167
Parking ..................................................... 546
Parking Brake ........................................... 528
Parking Brake and Brake System
Indicator (Amber) ............................... 79, 80
Parking Brake and Brake System Indicator (Red) .......................... 78, 631, 632
Passenger Airbag Off Indicator ................. 60
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 662 ページ ２０１９年１０月３日　木曜日　午後４時５５分

664
Index
Speedometer............................................. 112
SRS Airbags (Airbags) ................................. 51
Starting Assist Brake Function ................. 481
Starting the Engine .......................... 465, 467
Does Not Start ......................................... 620
Engine Switch Buzzer....................... 170, 173
Jump Starting .......................................... 623
Steering Wheel ......................................... 195
Adjusting ................................................. 195
Stopping .................................................... 546
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 223
Supplemental Restraint System (SRS) ........ 51
Switches (Around the Steering
Wheel) ............................................. 4, 5, 170
System Message Indicator .......................... 86
T
Tachometer............................................... 112
Tailgate ..................................................... 149
Unable to Open ....................................... 641
Temperature Outside Temperature Display ................... 119
Temperature Sensor ................................. 119
Theft Protection ........................................ 236
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ...................................................... 522
Indicator .............................................. 85, 86 Tires
........................................................... 590
Air Pressure ..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation .................................................. 597
Spare Tire ........................................ 613, 645
Summer .................................................. 598
Tire Chains .............................................. 598
Wear Indicators ....................................... 595
Winter..................................................... 598
Tonneau Cover ......................................... 227
Tools .......................................................... 612
Towing a Trailer ....................................... 457
Equipment and Accessories ..................... 458
Load Limits .............................................. 457
Towing Your Vehicle ................................ 462
Behind a Motorhome .............................. 462
Emergency .............................................. 640
TPMS (Tire Pressure Monitoring
System) .................................................... 522
Indicator.............................................. 85, 86
Transmission ............................................. 474
Continuously Variable ............................. 474
Fluid ........................................................ 578
Number................................................... 646
Shift Lever Position Indicator.............. 82, 475
TRIP Knob ................................................. 114
Trip Meter ................................................. 114 Troubleshooting
...................................... 611
Blown Fuse ..................................... 635, 636
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 640
Engine Won’t Start ................................. 620
Noise When Braking ................................. 31
Overheating ............................................ 627
Puncture/Flat Tire .................................... 613
Rear Door Won’t Open ..................... 30, 147
Select Lever Won’t Move ........................ 626
Warning Indicators.................................... 78
Turbo Engine Vehicle .............................. 558
Turn Signals .............................................. 175
Indicators (Instru ment Panel) ..................... 87
U
Under-floor Storage Area ....................... 214
Unlocking the Doors ................................ 138
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 254, 310, 337
USB Port(s) ................................................ 235
V
Valet Key.................................................. 136
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 646
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 664 ページ ２０１９年１０月３日　木曜日　午後４時５５分
