setting the seat HONDA CR-V 2020 Owner's Manual (in English)

California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as we ll as the applications, services,
functions, and content provided through the software. Your use of
the installed software wi ll serve as your consent to the terms and
conditions of the End User License Agreement.
You may opt out within 30 days of your initial use of the Software
by sending a signed, written noti ce to HONDA at American Honda
Motor Co., Inc. Honda Automobile Customer Services Mail Stop
100-5E-8A, 1919 Torrance Blvd. Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location a nd usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices.
A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
NOTICE
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information al erts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.
You will find this impo rtant safety information in a variety of forms,
including:
●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with im portant safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 1 ページ ２０１９年１０月３日　木曜日　午後４時５５分

146
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
Pull the front door inner handle. u
The door unlocks and opens in one motion.
Unlocking and opening the driver's door from
the inner handle unlocks all the other doors.
To avoid all the doors to be unlocked, use the
lock tab on the driver's door to unlock, then
lock again before opening the door. This
setting works for one time only. If you do not
want all the doors to be unlocked all the time,
customize the Auto Door Unlock setting to
Off using the Display Audio
* or driver
information interface*.
2 Auto Door Locking/Unlocking P. 148
■Using the Lock Tab1Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all of the other doors and tailgate lock
at the same time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
To Unlock
Lock TabTo Lock
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 147
Inner
Handle
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 146 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Continued225
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

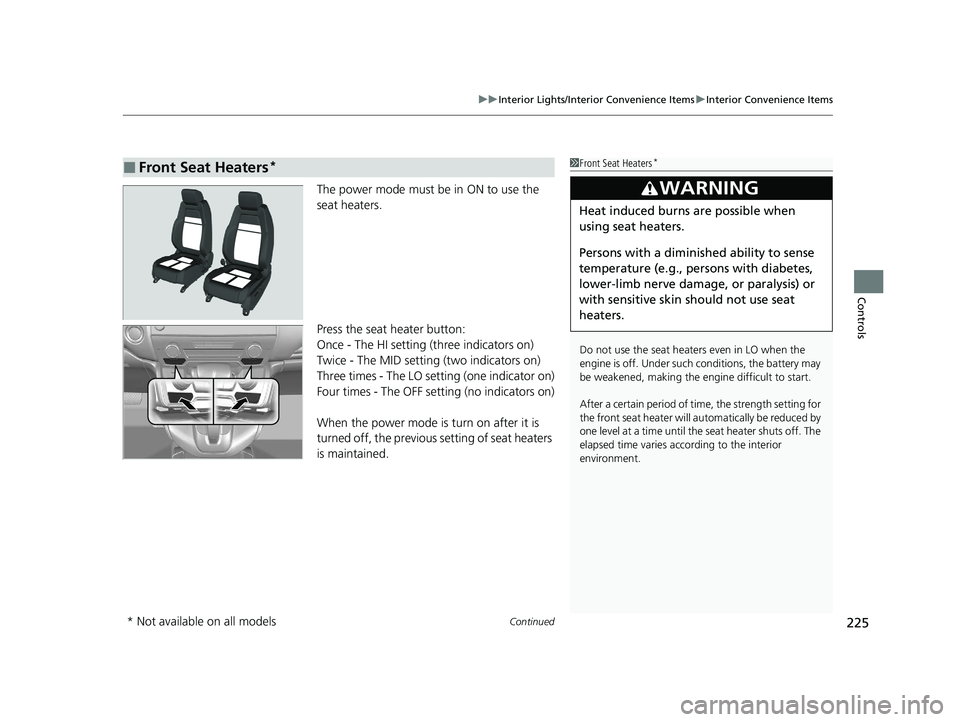

The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
When the power mode is turn on after it is
turned off, the previous setting of seat heaters
is maintained.
■Front Seat Heaters*1Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
After a certain period of time, the strength setting for
the front seat heater will automatically be reduced by
one level at a time until the seat heater shuts off. The
elapsed time varies according to the interior
environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 225 ページ ２０１９年１０月３日　木曜日　午後４時５５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
226
Controls

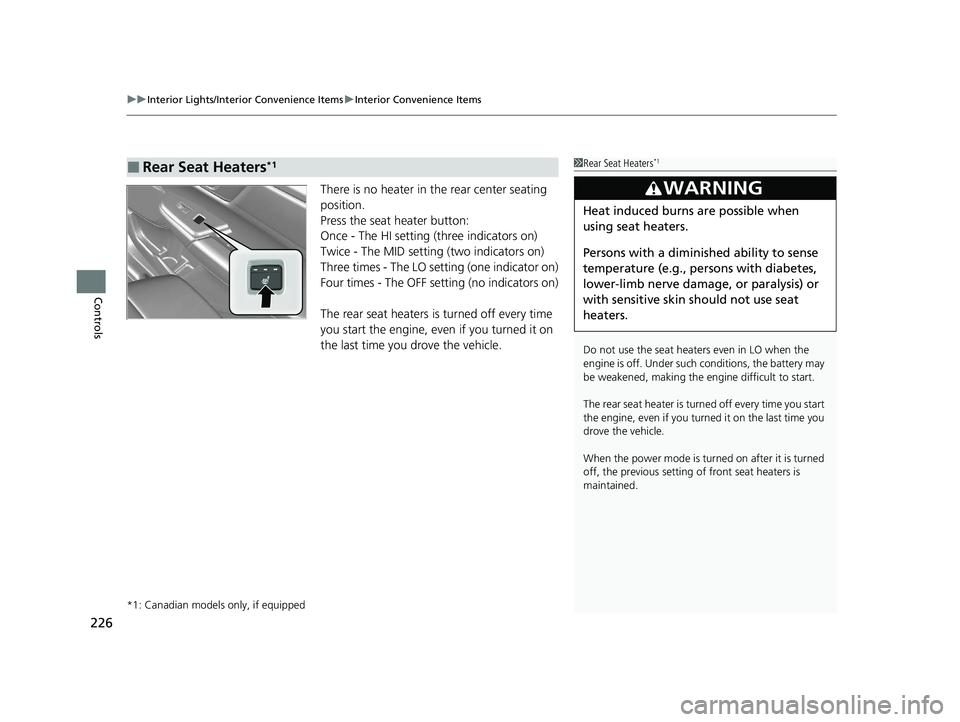

There is no heater in the rear center seating
position.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
The rear seat heaters is turned off every time
you start the engine, even if you turned it on
the last time you drove the vehicle.
*1: Canadian models only, if equipped
■Rear Seat Heaters*11 Rear Seat Heaters*1
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
The rear seat heater is turned off every time you start
the engine, even if you turned it on the last time you
drove the vehicle.
When the power mode is turned on after it is turned
off, the previous setting of front seat heaters is
maintained.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 226 ページ ２０１９年１０月３日　木曜日　午後４時５５分

659
Index
Continuously Variable Transmission....... 473
Creeping................................................. 473
Fluid ....................................................... 578
Kickdown ............................................... 473
Operating the Shift Lever .................. 23, 475
Shift Lever Does Not Move ...................... 626
Shifting ................................................... 474
Controls .................................................... 131
Coolant (Engine) ...................................... 576
Adding the Coolant ................................ 577
Overheating ............................................ 627
Creeping (Continuously Variable Transmission) .......................................... 473
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 215
Customer Service Information ................ 654
Customized Features ............... 121, 353, 360
D
Daytime Running Lights .......................... 185
Dead Battery ............................................ 623
Defaulting All the Settings ...................... 386
Defrosting the Windshield and
Windows ................................................. 229
Detachable Anchor .................................... 45
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 176
Rearview Mirror ...................................... 196
Dipstick (Engine Oil) ................................ 572 Directional Signals (Turn Signals)
............ 175
Display Setup .................................... 246, 284
Display/Information Button ..................... 113
Door Mirrors ............................................. 197
Doors ......................................................... 135
Auto Door Locking .................................. 148
Auto Door Unlocking ............................... 148
Keys ........................................................ 135
Locking/Unlocking the Doors from the Inside..................................................... 146
Locking/Unlocking the Doors from the
Outside.................................................. 138
Lockout Prevention System ...................... 145
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 113
Driver’s Seat Lumbar Support .................. 198
Driving ....................................................... 451
Braking .................................................... 528
Continuously Variable Transmission ......... 473
Off-Highway Driving Guidelines ............... 463
Shifting Gear ........................................... 474
Starting the Engine .......................... 465, 467
Driving Position Memory System ............. 193
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 482
Elapsed Time ............................................. 115 Electric Power Steering (EPS) System
Indicator............................................ 85, 633
Electronic Stability Control (ESC) ............. 513
Emergency ................................................ 640
Emissions Testing (Readiness Codes) ....... 649
Engine Coolant ................................................... 576
Jump Starting .......................................... 623
Number................................................... 646
Oil ........................................................... 571
Starting ........................................... 465, 467
Switch Buzzer.................................. 170, 173
Engine Coolant ......................................... 576
Adding the Coolant................................. 577
Overheating ............................................ 627
Temperature Gauge ................................ 112
Engine Oil ................................................. 571
Adding .................................................... 573
Checking................................................. 572
Displaying Oil Life .................................... 564
Low Oil Pressure Indicator ................. 81, 629
Recommended Engine Oil ....................... 571
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 633
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 606
Exterior Mirrors ........................................ 197
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 659 ページ ２０１９年１０月３日　木曜日　午後４時５５分

663
Index
Passing Indicators..................................... 176
Playing Bluetooth ® Audio ............... 257, 313
Power Tailgate ......................................... 151
Power Windows ....................................... 163
Precautions While Driving ....................... 472
Driving Guidelines for Your Utility Vehicle .................................................. 472
Rain ........................................................ 472
Pregnant Women ....................................... 46
Puncture (Tire) ......................................... 613
R
Radio (FM/AM)................................. 247, 290
Radio (SiriusXM ®)..................................... 294
Radio Data System (RDS) ................. 248, 293
Range ........................................................ 115
RDS (Radio Data System) ................. 248, 293
Readiness Codes (Emissions Testing) ...... 649
Real Time AWD with Intelligent Control System
TM.................................................. 521
Rear Seat Heaters ..................................... 226
Rear Seats (Folding Down) ...................... 202
Rearview Mirror ....................................... 196
Refueling .................................................. 554
Fuel Gauge ............................................. 112
Gasoline ......................................... 554, 644
Low Fuel Indicator..................................... 83
Regulations .............................. 526, 593, 647
Remote Transmitter ................................. 142 Replacement
Battery .................................................... 601
Bulbs ....................................................... 581
Fuses ............................................... 635, 636
Rear Wiper Blade Rubber ......................... 588
Tires ........................................................ 596
Wiper Blade Rubber ................................. 586
Reporting Safety Defects ......................... 648
Resetting a Trip Meter ............................. 115
Road Departure Mitigation (RDM) .......... 501
On and Off .............................................. 503
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 76
Safety Message ............................................. 1
Seat Belts ..................................................... 39
Adjusting the Shoulder Anchor .................. 44
Automatic Seat Belt Tensioners .................. 42
Checking ................................................... 47
Detachable Anchor .................................... 45
Fastening ................................................... 43
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 70
Pregnant Women ...................................... 46
Reminder ................................................... 41
Warning Indicator ................................ 41, 82
Seat Heaters ...................................... 225, 226 Seats
.......................................................... 198
Adjusting ................................................ 198
Driver’s Seat Lumbar Support .................. 198
Front Seat Heaters ................................... 225
Front Seats .............................................. 198
Rear Seats ............................................... 202
Seat Heaters .................................... 225, 226
Security System ......................................... 160
Security System Alarm Indicator................. 88
Select Lever ......................................... 23, 474
Operation.......................................... 23, 475
Releasing................................................. 626
Won’t Move ............................................ 626
Selecting a Child Seat ................................. 66
Selector Knob (Audio) .............................. 240
Setting the Clock ...................................... 132
Shift Lever ........................................... 23, 474
Shift Lever Position Indicator ............ 82, 475
Shifting (Transmission) ............................. 474
Shoulder Anchor ........................................ 44
Side Airbags ................................................ 55
Side Curtain Airbags .................................. 57
Siri ® Eyes Free ................................... 260, 323
SiriusXM ® Radio ........................................ 294
Smart Entry System .................................. 138
Snow Tires ................................................. 598
Song By Voice
TM (SBV) .............................. 304
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 663 ページ ２０１９年１０月３日　木曜日　午後４時５５分
