HONDA CR-V 2021 (in English) Owners Manual

90
Instrument Panel
Indicators
Deceleration Paddle
Selector IndicatorP.95
Parking Brake and
Brake System Indicator
(Red)
Parking Brake and
Brake System Indicator
(Amber)
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
P. 91*1
Malfunction Indicator
Lamp
12-Volt Battery
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Seat Belt Reminder
Indicator Low Fuel Indicator
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message
Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow Indicator
(Amber)
Lane Keeping Assist
System ( LKAS)
Indicator (Amber)
P. 92
P.93
P.93
P.94
P.95
*1
*1
*1 *1
*1
*1
Shift Position IndicatorP. 95
Transmission System
I
ndicatorP. 95
READY Indi
catorP.93
POWER SYSTEM
I
ndicatorP. 93
P.96
P.96
P.97
P.97
P.101
P.97
*1
*1
*1
*1
P.98
*1P.98
P.101
P.105
P.100
P.100
P.102
P.101
P.102
P.100
P.96
P.106
*1Adaptive Cruise Control
(ACC ) with Low Speed
Follow Indicator
(Green)
P. 106
Lane Keeping Assist
Sy
stem ( LKAS)
Indicator (Green)P. 106
*1
EV IndicatorP.94*1
EV Mode IndicatorP.94*1
*1
Immobilizer System
Indicator P.101
Security System Alarm
In
dicator
Low Oil Pressure
IndicatorP. 93*1
Road Departure
Mitigation (RDM)
IndicatorP.103*1
Collision Mitigation
Braking SystemTM
(CMBSTM) IndicatorP. 107*1
Blind spot
information System
Indicator
*P.102*1
Low Tire Pressure/TPMS
IndicatorP.99*1
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 90 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

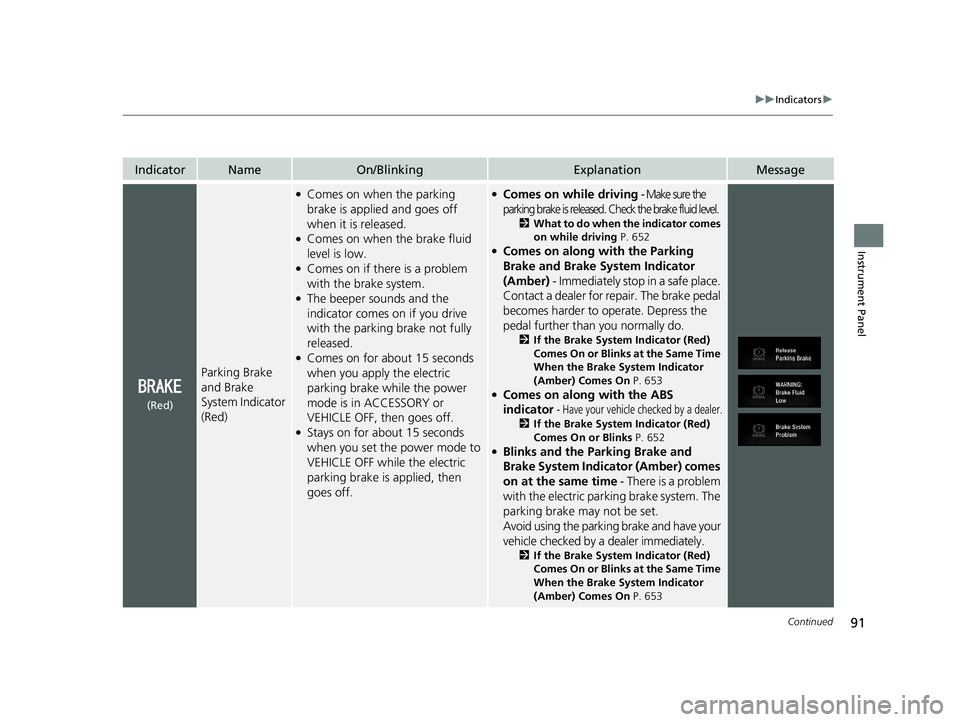

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on when the parking
brake is applied and goes off
when it is released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on for about 15 seconds
when you apply the electric
parking brake while the power
mode is in ACCESSORY or
VEHICLE OFF, then goes off.
●Stays on for about 15 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is applied, then
goes off.
●Comes on while driving - Make sure the
parking brake is released. Check the brake fluid level.
2 What to do when the indicator comes
on while driving P. 652
●Comes on along with the Parking
Brake and Brake System Indicator
(Amber) - Immediately stop in a safe place.
Contact a dealer for repair. The brake pedal
becomes harder to operate. Depress the
pedal further than you normally do.
2If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 653
●Comes on along with the ABS
indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 652
●Blinks and the Parking Brake and
Brake System Indicator (Amber) comes
on at the same time - There is a problem
with the electric parking brake system. The
parking brake may not be set.
Avoid using the parking brake and have your
vehicle checked by a dealer immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 653
(Red)
21 CR-V HYBRID HMIN-31TPG6100.book 91 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

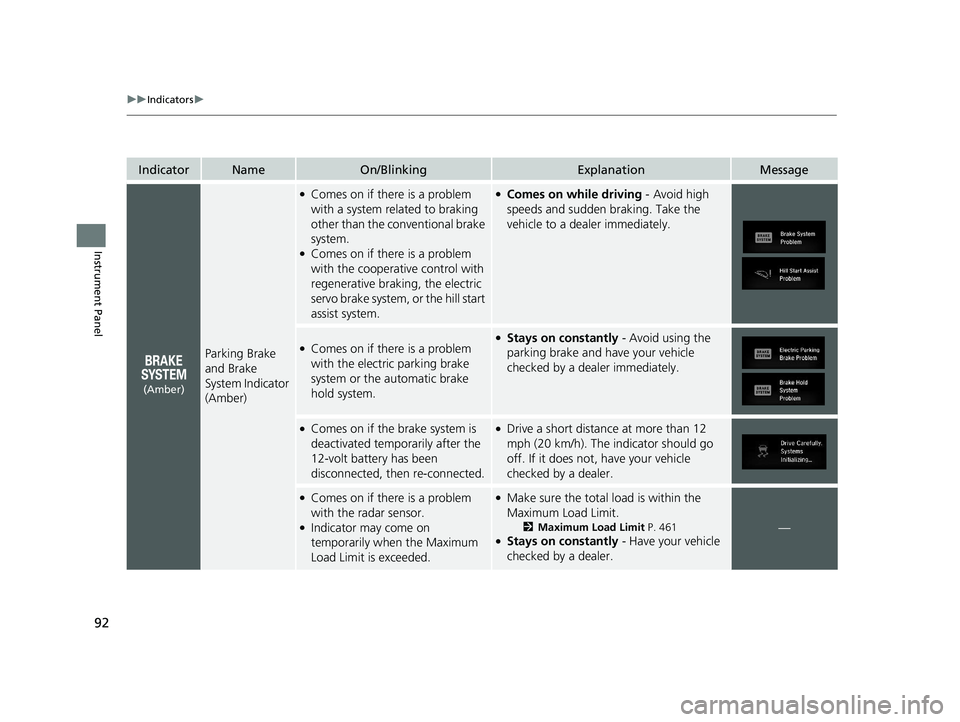

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Amber)
●Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
●Comes on if there is a problem
with the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Comes on while driving - Avoid high
speeds and sudden braking. Take the
vehicle to a dealer immediately.
●Comes on if there is a problem
with the electric parking brake
system or the automatic brake
hold system.●Stays on constantly - Avoid using the
parking brake and have your vehicle
checked by a dealer immediately.
●Comes on if the brake system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
●Comes on if there is a problem
with the radar sensor.
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 461●Stays on constantly - Have your vehicle
checked by a dealer.
—
(Amber)
21 CR-V HYBRID HMIN-31TPG6100.book 92 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 553
Automatic Brake
Hold Indicator●Comes on when the automatic
brake hold is activated.2Automatic Brake Hold P. 553—
Low Oil Pressure
Indicator
●Comes on when the engine oil
pressure is low.●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 650
Power System
Indicator
●Comes on if there is a problem
with the electric vehicle system.
●Comes on when the High Voltage
battery temperature becomes
high.
●Stays on constantly - Have your vehicle
checked by a dealer immediately.
READY
Indicator●Comes on when the vehicle is
ready to drive.
2 Turning on the Power P. 467
21 CR-V HYBRID HMIN-31TPG6100.book 93 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
EV Indicator
●Comes on when the vehicle is
moved by the motor, and the
engine is not operating.
——
EV Mode
Indicator●Comes on when the vehicle is in
EV mode.2 SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive) P. 11
Malfunction
Indicator Lamp
●After you have set the power
mode to ON, the vehicle performs
system checks.
However, if the readiness codes
have not been set by that time,
this indicator will blink five times
and then go off.
●Comes on if there is a problem
with the emissions control systems
or electric vehicle system.
●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 671●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on when there is no gasoline in the
fuel tank, and goes off after vehicle is
refueled, power mode is turned on,
vehicle is driven, and the power system is
turned off multiple times. If it does not go
off, have your vehicl e checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for it to cool
down. Then, take your vehicle to a dealer.
2If the Malfunction Indicator Lamp
Comes On or Blinks P. 651
21 CR-V HYBRID HMIN-31TPG6100.book 94 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
12-volt Battery
Charging
System Indicator●Comes on when the 12-volt
battery is not charging.●Stop in a safe place and have your vehicle
checked by a dealer immediately.
2If the 12-volt Battery Charging
System Indicator Comes On P. 650
Shift Position
Indicator●Indicates the current shift
position.
2Shifting P. 475—
Transmission
System Indicator
●The indicated current shift
position blinks if there is a
problem with th e transmission
system.●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●The indicated current shift
position or all the shift positions
blink if you cannot select
(P due
to the transmission system failure.
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
Deceleration
Paddle Selector
Indicator
●Comes on when the paddle
selector is pulled.
●Blinks when the rate of
deceleration does not change
while pulling the paddle selector.
●Comes on with M when SPORT
mode is selected and pulling the
paddle selector.
2 Deceleration Paddle Selector P. 482—
21 CR-V HYBRID HMIN-31TPG6100.book 95 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

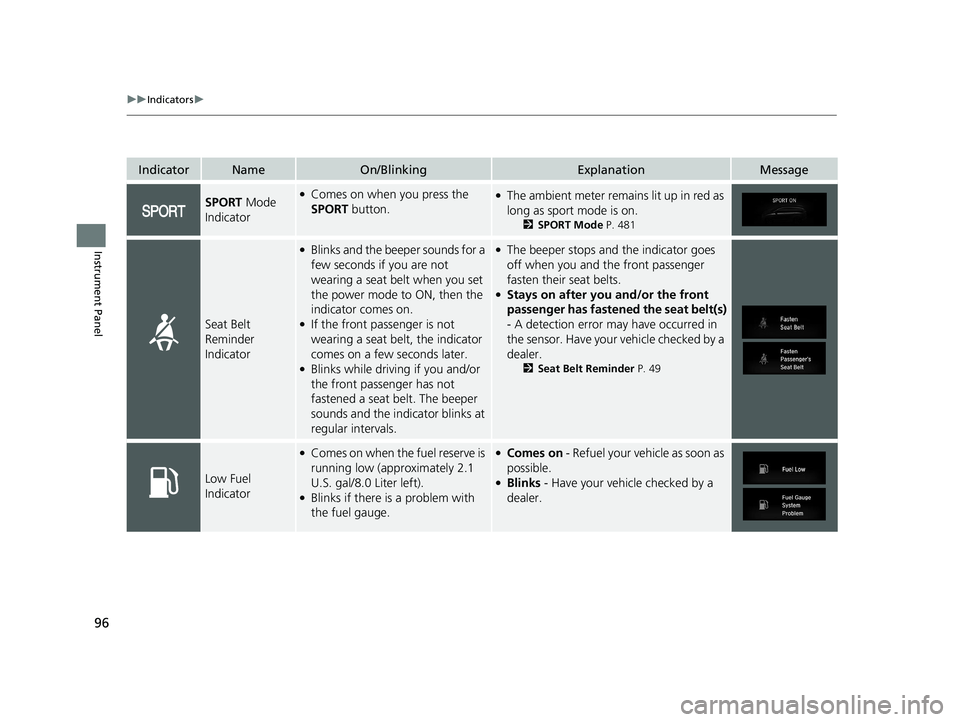

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
SPORT Mode
Indicator●Comes on when you press the
SPORT button.●The ambient meter remains lit up in red as
long as sport mode is on.
2SPORT Mode P. 481
Seat Belt
Reminder
Indicator
●Blinks and the beep er sounds for a
few seconds if you are not
wearing a seat belt when you set
the power mode to ON, then the
indicator comes on.
●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if you and/or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you and/or the front
passenger has fastened the seat belt(s)
- A detection error ma y have occurred in
the sensor. Have your vehicle checked by a
dealer.
2 Seat Belt Reminder P. 49
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 2.1
U.S. gal/8.0 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your ve hicle as soon as
possible.
●Blinks - Have your vehicle checked by a
dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 96 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

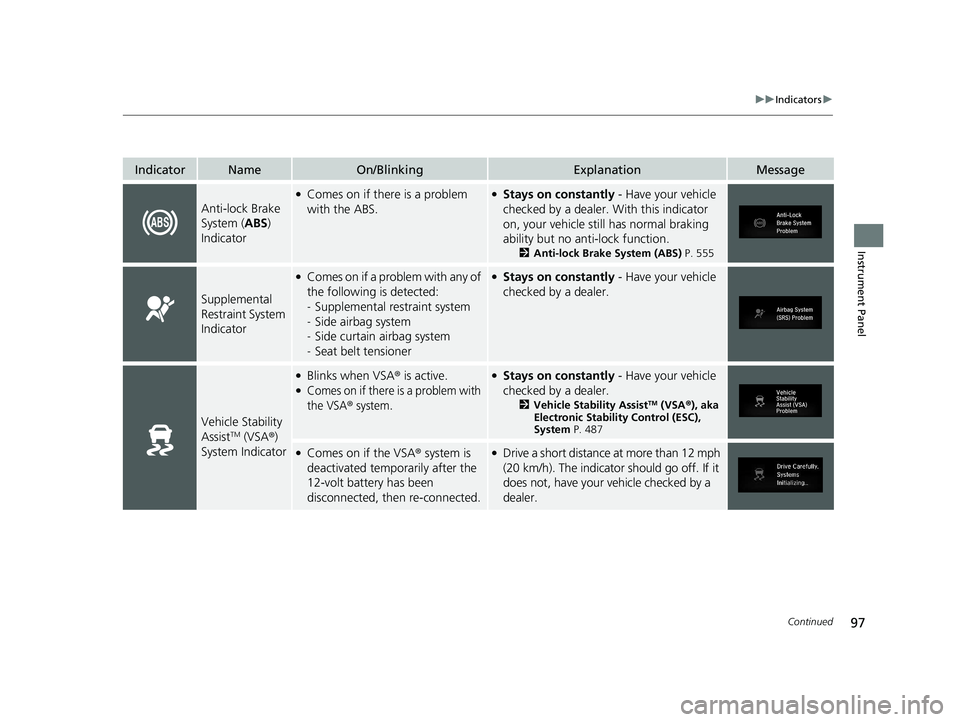

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS)
Indicator
●Comes on if there is a problem
with the ABS.●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 555
Supplemental
Restraint System
Indicator
●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner●Stays on constantly - Have your vehicle
checked by a dealer.
Vehicle Stability
AssistTM (VSA ®)
System Indicator
●Blinks when VSA ® is active.●Comes on if there is a problem with
the VSA
® system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC),
System P. 487
●Comes on if the VSA ® system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 97 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

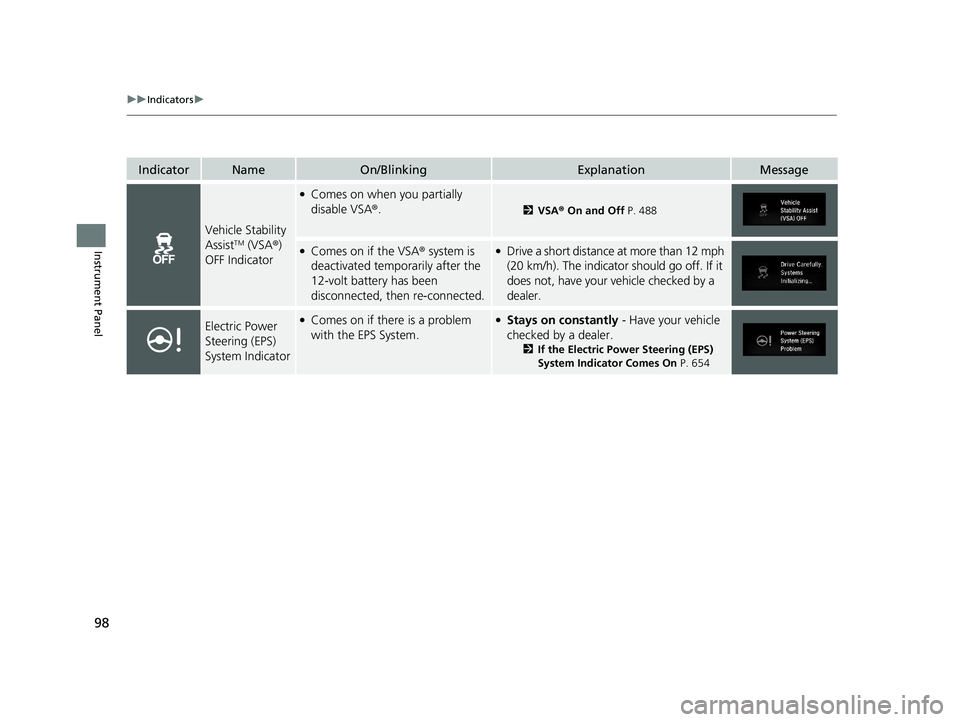

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
●Comes on when you partially
disable VSA ®.
2VSA ® On and Off P. 488
●Comes on if the VSA ® system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
Electric Power
Steering (EPS)
System Indicator●Comes on if there is a problem
with the EPS System.●Stays on constantly - Have your vehicle
checked by a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 654
21 CR-V HYBRID HMIN-31TPG6100.book 98 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
●May come on briefly if the power
mode is set to ON and the vehicle
is not moved within 45 seconds,
to indicate the calibration process
is not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly
low.
- The system has not been
calibrated.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.
2 TPMS Calibration P. 492
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS.●Blinks and remains on - Have your
vehicle checked by a dealer.
●Comes on if the TPMS is
deactivated temporarily after the
12-volt battery has been
disconnected, then reconnected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 99 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
