Latch HONDA CR-V 2021 (in English) User Guide

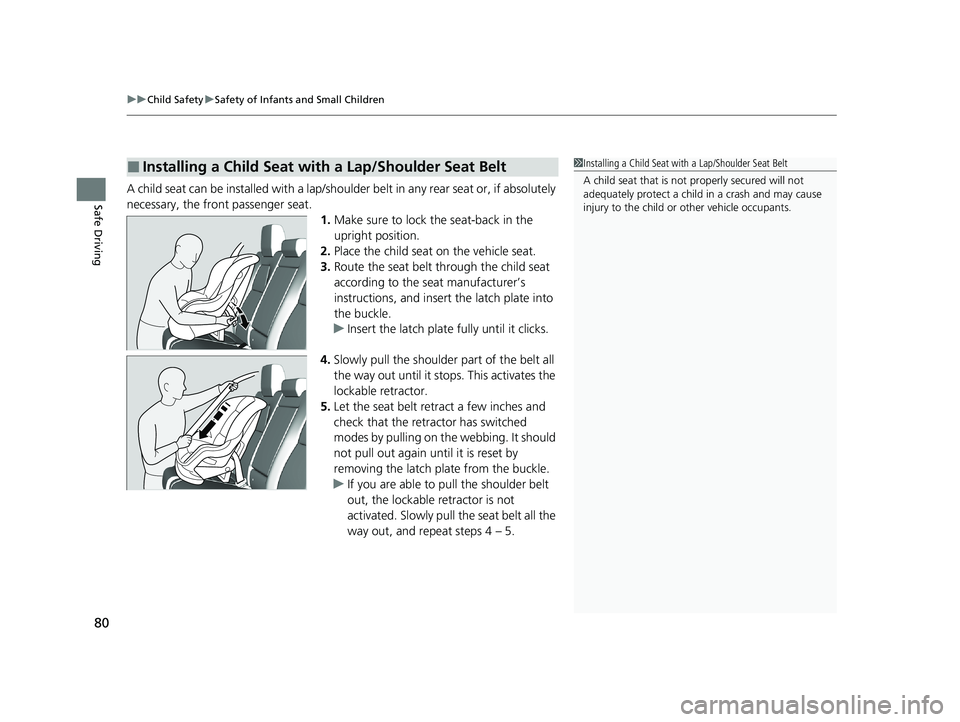

uuChild Safety uSafety of Infants and Small Children
80
Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Make sure to lock th e seat-back in the
upright position.
2. Place the child seat on the vehicle seat.
3. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
4. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
5. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 4 – 5.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
21 CR-V HYBRID HMIN-31TPG6100.book 80 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

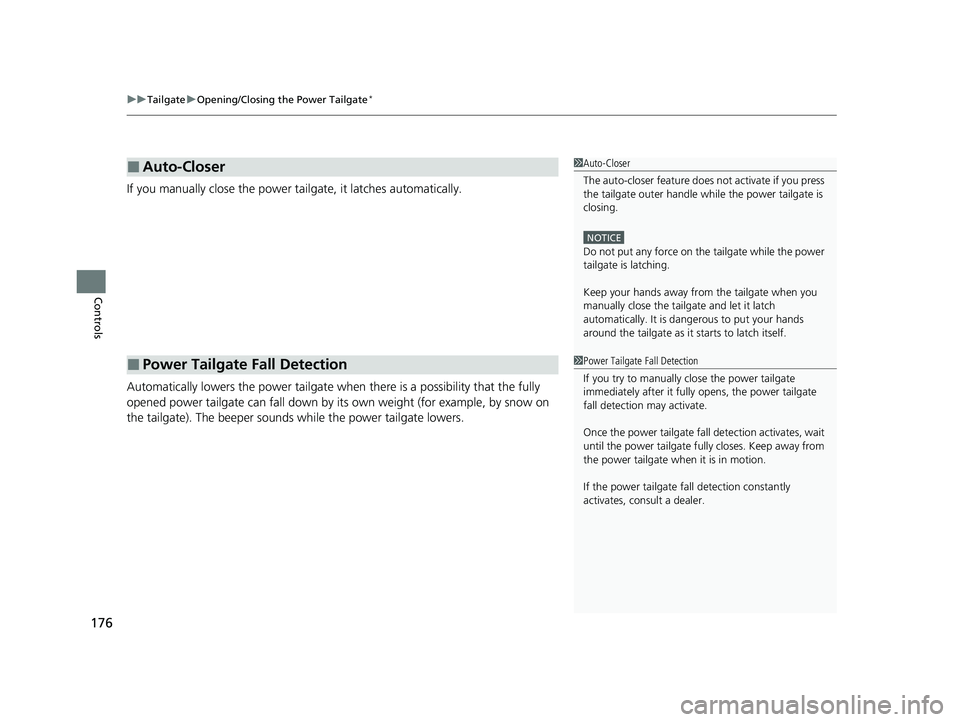

uuTailgate uOpening/Closing the Power Tailgate*
176
Controls
If you manually close the power ta ilgate, it latches automatically.
Automatically lowers the power tailgate wh en there is a possibility that the fully
opened power tailgate can fall down by it s own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.
■Auto-Closer
■Power Tailgate Fall Detection
1 Auto-Closer
The auto-closer feature does not activate if you press
the tailgate outer handle while the power tailgate is
closing.
NOTICE
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailga te and let it latch
automatically. It is dange rous to put your hands
around the tailgate as it st arts to latch itself.
1Power Tailgate Fall Detection
If you try to manually close the power tailgate
immediately after it full y opens, the power tailgate
fall detection may activate.
Once the power tailgate fall detection activates, wait
until the power tailgate full y closes. Keep away from
the power tailgate when it is in motion.
If the power tailgate fa ll detection constantly
activates, consult a dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 176 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

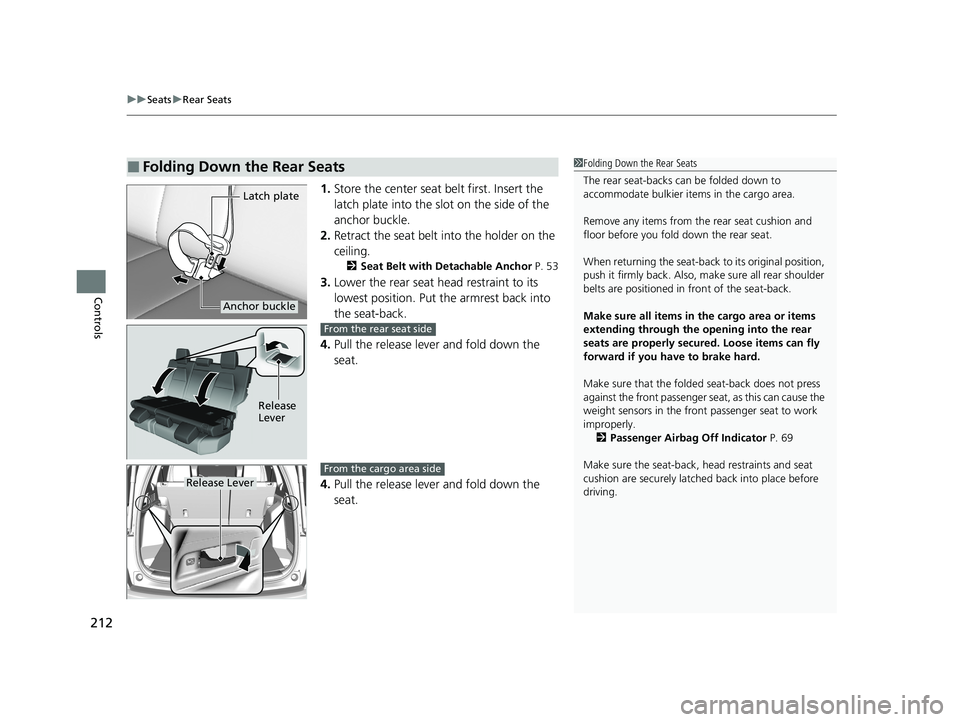

uuSeats uRear Seats
212
Controls
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 53
3.Lower the rear seat head restraint to its
lowest position. Put the armrest back into
the seat-back.
4. Pull the release lever and fold down the
seat.
4. Pull the release lever and fold down the
seat.
■Folding Down the Rear Seats
Latch plate
Anchor buckle
1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the cargo area.
Remove any items from th e rear seat cushion and
floor before you fold down the rear seat.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure all items in the cargo area or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 69
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving.
Release
Lever
From the rear seat side
Release Lever
From the cargo area side
21 CR-V HYBRID HMIN-31TPG6100.book 212 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

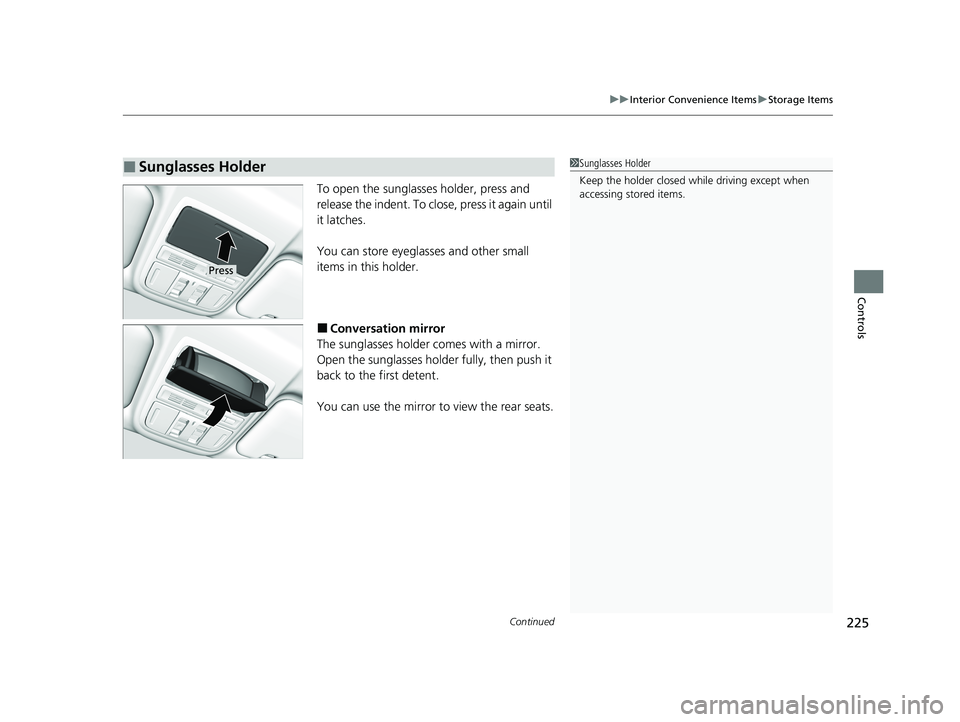

Continued225
uuInterior Convenience Items uStorage Items
Controls
To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent.
You can use the mirror to view the rear seats.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
21 CR-V HYBRID HMIN-31TPG6100.book 225 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

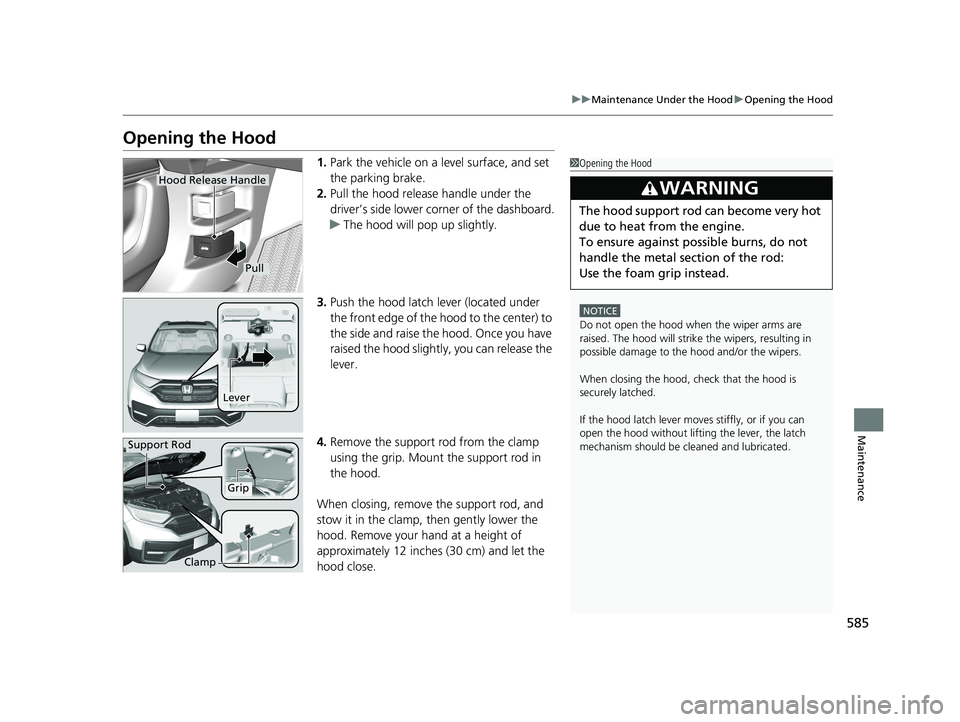

585
uuMaintenance Under the Hood uOpening the Hood
Maintenance
Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
driver’s side lower corner of the dashboard.
u The hood will pop up slightly.
3. Push the hood latch lever (located under
the front edge of the hood to the center) to
the side and raise the hood. Once you have
raised the hood slightly, you can release the
lever.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised. The hood will strike the wipers, resulting in
possible damage to the hood and/or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.
3WARNING
The hood support rod can become very hot
due to heat from the engine.
To ensure against po ssible burns, do not
handle the metal section of the rod:
Use the foam grip instead.
Hood Release Handle
Pull
Lever
Support Rod
Grip
Clamp
21 CR-V HYBRID HMIN-31TPG6100.book 585 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

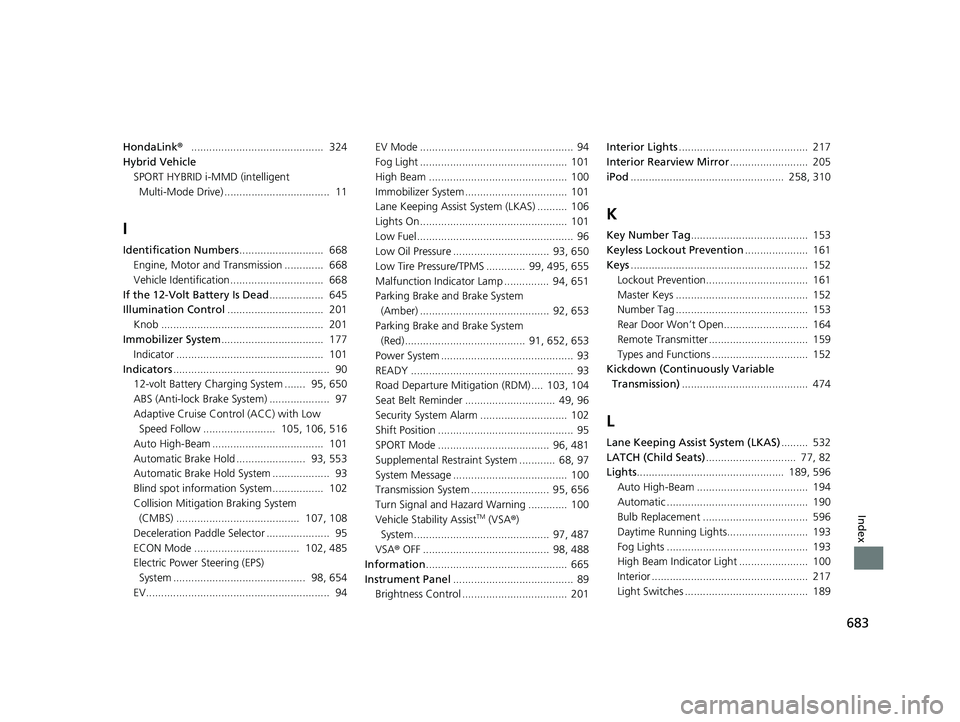

683
Index
HondaLink®............................................ 324
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................................... 11
I
Identification Numbers ............................ 668
Engine, Motor and Transmission ............. 668
Vehicle Identification............................... 668
If the 12-Volt Battery Is Dead .................. 645
Illumination Control ................................ 201
Knob ...................................................... 201
Immobilizer System .................................. 177
Indicator ................................................. 101
Indicators .................................................... 90
12-volt Battery Charging System ....... 95, 650
ABS (Anti-lock Brake System) .................... 97
Adaptive Cruise Control (ACC) with Low Speed Follow ........................ 105, 106, 516
Auto High-Beam ..................................... 101
Automatic Brake Hold ....................... 93, 553
Automatic Brake Hold System ................... 93
Blind spot information System................. 102
Collision Mitigati on Braking System
(CMBS) ......................................... 107, 108
Deceleration Paddle Selector ..................... 95
ECON Mode ................................... 102, 485
Electric Power Steering (EPS) System ............................................ 98, 654
EV............................................................. 94 EV Mode ................................................... 94
Fog Light ................................................. 101
High Beam .............................................. 100
Immobilizer System .................................. 101
Lane Keeping Assist System (LKAS) .......... 106
Lights On ................................................. 101
Low Fuel .................................................... 96
Low Oil Pressure ................................ 93, 650
Low Tire Pressure/TPMS ............. 99, 495, 655
Malfunction Indicator Lamp ............... 94, 651
Parking Brake and Brake System
(Amber) ........................................... 92, 653
Parking Brake and Brake System (Red)........................................ 91, 652, 653
Power System ............................................ 93
READY ...................................................... 93
Road Departure Mitigation (RDM) .... 103, 104
Seat Belt Reminder .............................. 49, 96
Security System Alarm ............................. 102
Shift Position ............................................. 95
SPORT Mode ..................................... 96, 481
Supplemental Restraint System ............ 68, 97
System Message ...................................... 100
Transmission System .......................... 95, 656
Turn Signal and Haza rd Warning ............. 100
Vehicle Stability Assist
TM (VSA ®)
System............................................. 97, 487
VSA ® OFF .......................................... 98, 488
Information ............................................... 665
Instrument Panel ........................................ 89
Brightness Control ................................... 201 Interior Lights
........................................... 217
Interior Rearview Mirror .......................... 205
iPod ................................................... 258, 310
K
Key Number Tag ....................................... 153
Keyless Lockout Prevention ..................... 161
Keys ........................................................... 152
Lockout Prevention.................................. 161
Master Keys ............................................ 152
Number Tag ............................................ 153
Rear Door Won’t Open............................ 164
Remote Transmitter ................................. 159
Types and Functions ................................ 152
Kickdown (Continuously Variable
Transmission) .......................................... 474
L
Lane Keeping Assist System (LKAS) ......... 532
LATCH (Child Seats) .............................. 77, 82
Lights ................................................. 189, 596
Auto High-Beam ..................................... 194
Automatic ............................................... 190
Bulb Replacement ................................... 596
Daytime Running Lights........................... 193
Fog Lights ............................................... 193
High Beam Indicator Light ....................... 100
Interior .................................................... 217
Light Switches ......................................... 189
21 CR-V HYBRID HMIN-31TPG6100.book 683 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
