battery location HONDA CR-V 2021 Owner's Manual (in English)

Quick Reference Guide
37
Handling the Unexpected (P625)
Flat Tire (P627)
●Park in a safe location and repair the flat
tire using the tire repair kit in the cargo
area.
Indicators Come On
(P650)
●Identify the indicator and consult the
owner's manual.
Power System Won't
Start
(P642)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P657)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P647)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing (P661)
●Call a professional towing service if you
need to tow your vehicle.
21 CR-V HYBRID HMIN-31TPG6100.book 37 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°F [-40°C] or below).●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer
location.
●Consult a dealer if necessary.
●Appears if the power system is in diagnostic mode.●You may notice a decrease in available power. Have
your vehicle checked by a dealer.
●As a result of diagnostics, the power system indicator
may come on.
2 Power System Indicator P. 93
●Appears when you have met following situations and
EV mode is canceled.
-Battery Temperature At Limit.
- Battery Charge Too Low.
- Engine Too Cold.
- Cabin Being Heated.
- Speed Too High.
- Hard Acceleration Requested.●EV mode is available once the condition is improved
or the cause that canceled EV mode is cleared.
●Appears when you depress the accelerator pedal while
the shift position is in
(N.
●Remove your foot off the accelerator pedal. When
driving, depress the brake pedal and operate the shift
position.
21 CR-V HYBRID HMIN-31TPG6100.book 116 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

152
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following keys:Use the keys to turn on and off the power
system, and to lock and unlock the doors and
tailgate.
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.1 Key
All the keys have an immobilizer system. The
immobilizer system helps protect against vehicle
theft.
2 Immobilizer System P. 177
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely turn the power system on using the
remote engine start. 2 Remote Engine Start P. 469■Built-in Key
Built-in Key
Release Knob
21 CR-V HYBRID HMIN-31TPG6100.book 152 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

352
uuGeneral Information on the Audio System uHonda App License Agreement
Features
E. Information Coll ection and Storage
1. Information Collection, Use, Transmission and Storage of Data. Consent to Use of Data:
You agree that HONDA and PROVIDERS may
collect and use your information gathered in any manner as part of product support services related to the SOFTWARE or related services.
HONDA may share such information with third parties, including, without limitation, PROVIDERS, th ird party software and services
suppliers, their affiliates and/or their desi gnated agents, solely to improve their products or to provide services or technolo gies to you.
HONDA, third party software and systems s uppliers, their affiliates and/or their designated agent may disclose this information to others,
but not in a form that pe rsonally identifies you.
2. Information Storage.
Depending on the type of multimedia system you have in your VEHICLE, certain information may be stored for ease
of use of the SOFTWARE including, without limitation, search hi story, location history in certain applications, previous and saved
destinations, map locations within certain applications, and device numbers and contact information.
(a) Vehicle Health Information.
Your VEHICLE may remotely trans mit information regarding the status and health of your VEHICLE
(“VEHICLE INFORMATION”) to HONDA without notification to you. VEHICLE INFORMATION may contain VEHICLE maintenance and
malfunction status that is derived from VEHICLE diagnostic data and includes, but is not limited to, status of powered doors and windows,
battery life data, battery charging data, VEHICLE speed, coolant temperat ure, air compressor revolution, output power, warning codes,
diagnostic trouble codes, fuel injection volu me, and engine rotations per minute. VEHICL E HEALTH INFORMATION may be used by HON DA
for research and development, to deliver HONDA SERVICES and information to you, and to contact you, and is retained only for a period
of time necessary to fulfill these goals.
(b) VEHICLE Geolocation Data (non-navigation/map based).
If you opt-in to geolocation-based SERVICES, your vehicle’s geolocation data
(latitude and longitude) will be automatically se nt from your VEHICLE to HONDA and PROVIDERS.
(c) You understand that the inputting or uploading of information to your VEHICLE’s multimedia system or the SOFTWARE or SERVIC ES is
at your own risk and that HONDA is not responsible for unauthorized access to or use of any personal or other information. All information
uploaded to the SOFTWARE and SERVICES may be stored on your VEHICLES’s multimedia system and you understand that the security and
safety of your VEHICLE’s multimedia system is your sole responsibility.
21 CR-V HYBRID HMIN-31TPG6100.book 352 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

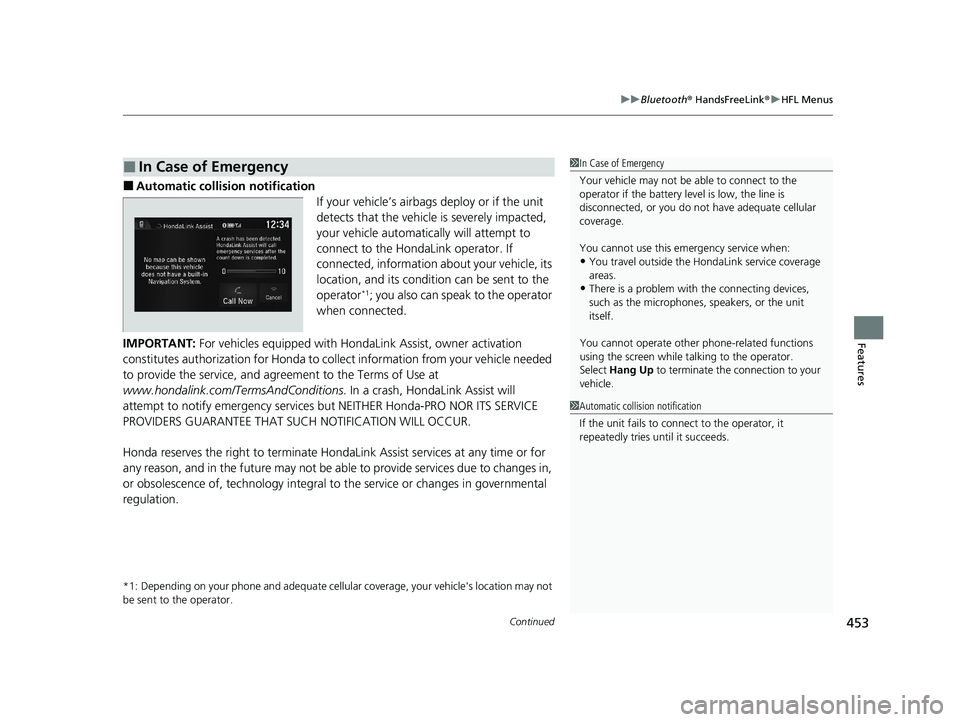

Continued453
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■Automatic collis ion notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information ab out your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with HondaLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at
www.hondalink.com/TermsAndConditions . In a crash, HondaLink Assist will
attempt to notify emergency services but NEITHER Honda-PRO NOR ITS SERVICE
PROVIDERS GUARANTEE THAT SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellul ar coverage, your vehicle's location may not
be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
21 CR-V HYBRID HMIN-31TPG6100.book 453 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

625
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 626
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 627
Handling of the Jack ......................... 641
Power System Won’t Start Checking the Procedure ................... 642
If the Smart Entry Remote Battery is Weak .......................................... 643
Emergency Power System Off........... 644
If the 12-Volt Battery Is Dead .......... 645
Overheating How to Handle Overheating ............. 647 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 650
If the 12-volt Batt ery Charging System
Indicator Comes On ....................... 650
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 651
If the Brake System Indicator (Red) Comes On or Blinks ................................... 652
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 653
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 654
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 655
If the Transmission System Indicator Blinks along with the Warning Message... 656
Fuses Fuse Locations ................................. 657
Inspecting and Changing Fuses ........ 660
Emergency Towing ........................... 661
If You Cannot Open the Tailgate.......... 662Refueling................................................. 663
21 CR-V HYBRID HMIN-31TPG6100.book 625 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

682
Index
Exhaust Gas Hazard (Carbon Monoxide).. 86
Exterior Care (Cleaning) ........................... 619
Exterior Mirrors ......................................... 206
F
Features..................................................... 241
Filters Dust and Pollen ....................................... 616
Oil ........................................................... 589
Flat Tire ..................................................... 627
Floor Mats ................................................. 618
Fluids
Brake ....................................................... 594
Engine Coolant ........................................ 591
Windshield Washer .................................. 595
FM/AM Radio .................................... 256, 299
Fog Light Indicator ................................... 101
Folding Down the Rear Seats ................... 212
Foot Brake ................................................. 552
Front Airbags (SRS) ..................................... 59
Front Seats ................................................ 207
Adjusting ................................................. 207
Front Sensor Camera ................................ 546
Fuel ...................................................... 34, 570
Fuel Economy and CO
2 Emissions............. 573
Gauge ..................................................... 126
Instant Fuel Economy ............................... 130
Low Fuel Indicator ..................................... 96
Range ...................................................... 130
Recommendation .................................... 570 Refueling................................................. 570
Fuel Economy and CO
2 Emissions ............ 573
Fuel Fill Door ...................................... 34, 571
Fuses .......................................................... 657
Inspecting and Changing......................... 660
Locations................................. 657, 658, 659
G
Gasoline (Fuel)
Fuel Economy and CO
2 Emissions ............ 573
Information ............................................. 570
Refueling................................................. 570
Gauges ...................................................... 126
Glass (care) ........................................ 617, 620
Glove Box .................................................. 219
H
Handling of the Jack ................................ 641
Handling the Unexpected ........................ 625
HandsFreeLink ® (HFL) ....................... 397, 421
Automatic Import of Cellular Phonebook
and Call History ............................. 411, 434
Caller’s ID Information............................. 408
Displaying Messages................................ 449
HFL Buttons..................................... 397, 421
HFL Menus ...................................... 399, 424
HFL Status Display ........................... 398, 423
In Case of Emergency .............................. 453
Limitations for Manual Operation .... 398, 423 Making a Call ................................. 415, 442
Options During a Call...................... 420, 446
Phone Setup ................................... 403, 429
Phonebook Phonetic M
odification........... 438
Receiving a Call............................... 419, 445
Receiving a Text/E-mail Message ............. 447
Ring Tone ....................................... 408, 433
Selecting a Text/E-mail Message
Account ................................................ 448
Speed Dial ...................................... 412, 435
To Clear the System ................................ 410
To Set Up Text/E-mail Message Options .. 432
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 301
Head Restraints ........................................ 214
Headlights ................................................ 189
Aiming.................................................... 596
Auto High-Beam ..................................... 194
Automatic Operation .............................. 190
Dimming................................................. 189
Operating ............................................... 189
Heated Door Mirror Button .................... 200
Heated Steering Wheel ........................... 232
Heaters ..................................................... 233
HFL (HandsFreeLink ®) ...................... 397, 421
High Beam Indicator ................................ 100
High Voltage Battery ............................... 500
Hill Start Assist System ............................. 472
HomeLink ® Universal Transceiver ........... 394
Honda App License Agreement .............. 346
Honda Sensing ®................................ 35, 501
21 CR-V HYBRID HMIN-31TPG6100.book 682 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
