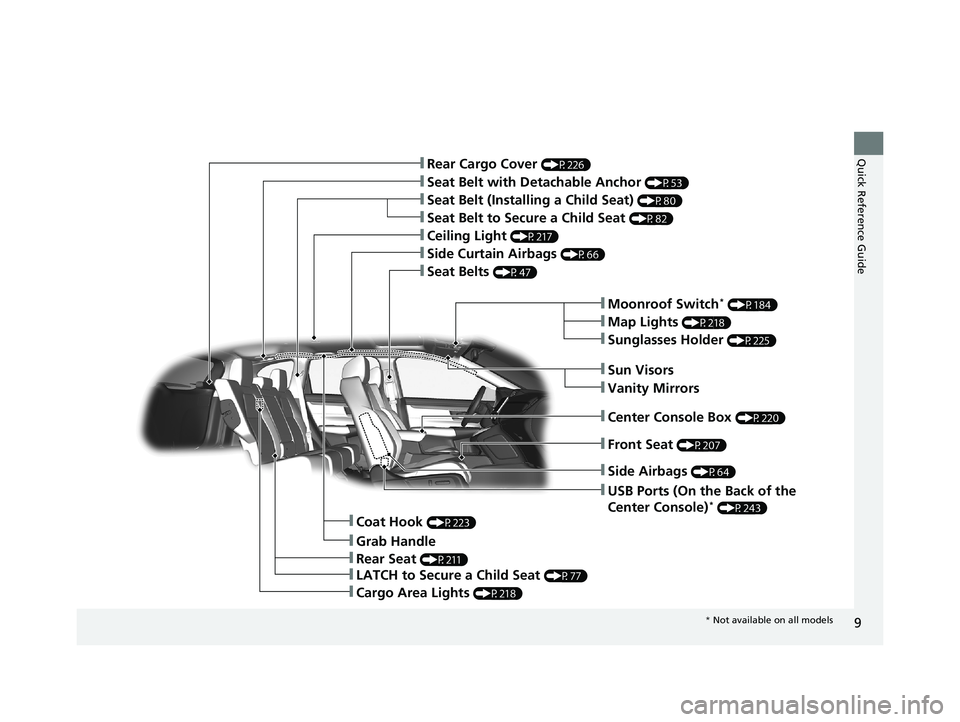

9
Quick Reference Guide
❚Moonroof Switch* (P184)
❚LATCH to Secure a Child Seat (P77)
❚Grab Handle
❚Map Lights (P218)
❚Seat Belts (P47)
❚Ceiling Light (P217)
❚Side Curtain Airbags (P66)
❚Seat Belt with Detachable Anchor (P53)
❚Seat Belt to Secure a Child Seat (P82)
❚Seat Belt (Installing a Child Seat) (P80)
❚Rear Cargo Cover (P226)
❚USB Ports (On the Back of the
Center Console)* (P243)
❚Front Seat (P207)
❚Sun Visors
❚Vanity Mirrors
❚Center Console Box (P220)
❚Sunglasses Holder (P225)
❚Side Airbags (P64)
❚Coat Hook (P223)
❚Rear Seat (P211)
❚Cargo Area Lights (P218)
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 9 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

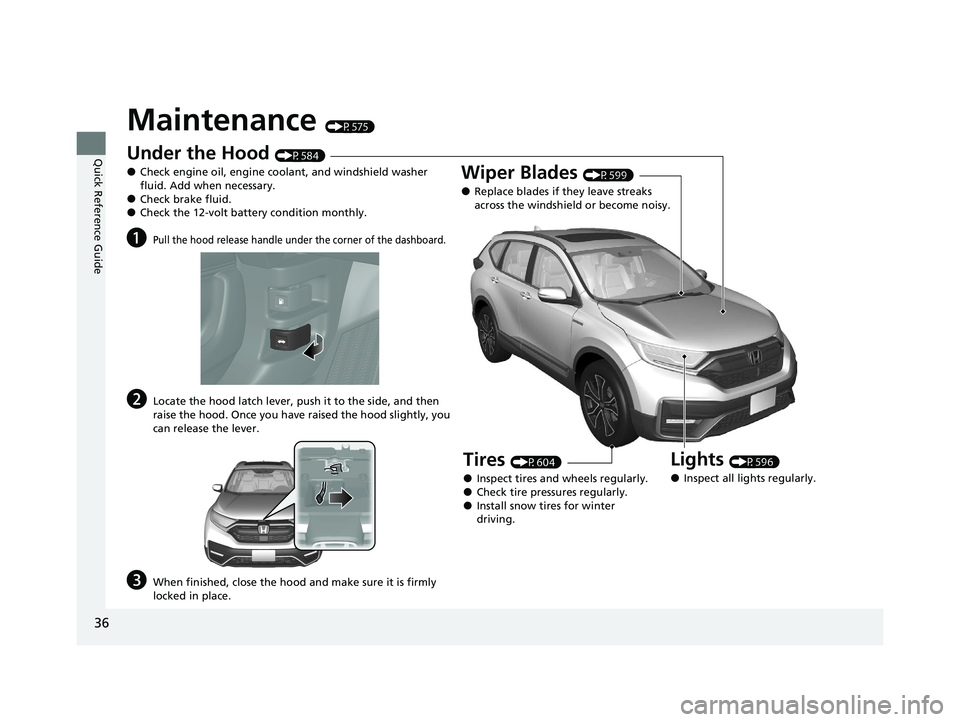

36
Quick Reference Guide
Maintenance (P575)
Under the Hood (P584)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P596)
●Inspect all lights regularly.
Wiper Blades (P599)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P604)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
21 CR-V HYBRID HMIN-31TPG6100.book 36 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

51
uuSeat Belts uFastening a Seat Belt
Continued
Safe Driving

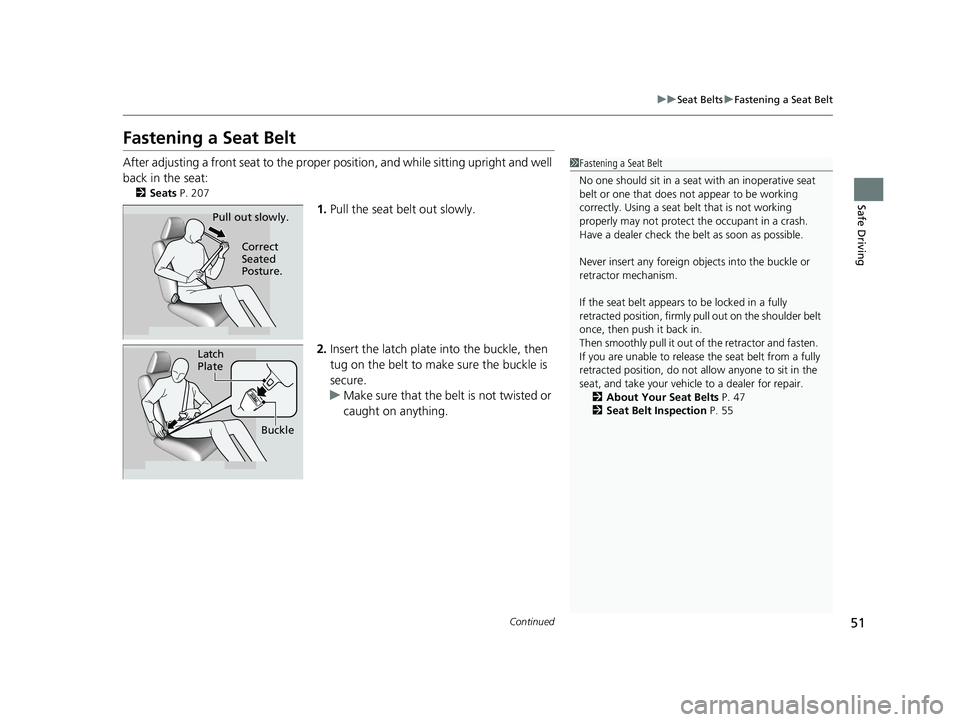

Fastening a Seat Belt
After adjusting a front seat to the proper position, and while sitting upright and well
back in the seat:
2 Seats P. 207
1.Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then
tug on the belt to make sure the buckle is
secure.
u Make sure that the belt is not twisted or
caught on anything.
1Fastening a Seat Belt
No one should sit in a seat with an inoperative seat
belt or one that does not appear to be working
correctly. Using a seat be lt that is not working
properly may not protect the occupant in a crash.
Have a dealer check the belt as soon as possible.
Never insert any foreign obj ects into the buckle or
retractor mechanism.
If the seat belt appears to be locked in a fully
retracted position, firmly pull out on the shoulder belt
once, then push it back in.
Then smoothly pull it out of the retractor and fasten.
If you are unable to release the seat belt from a fully
retracted position, do not al low anyone to sit in the
seat, and take your vehicle to a dealer for repair.
2 About Your Seat Belts P. 47
2 Seat Belt Inspection P. 55
Pull out slowly.
Correct
Seated
Posture.
Latch
Plate
Buckle
21 CR-V HYBRID HMIN-31TPG6100.book 51 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

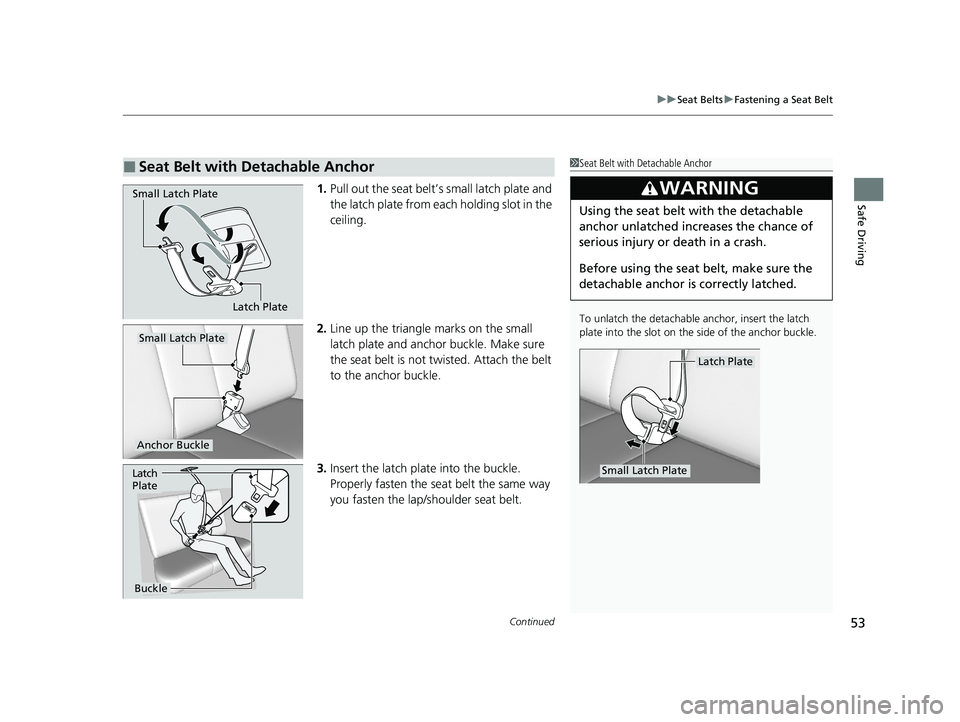

Continued53
uuSeat Belts uFastening a Seat Belt
Safe Driving1. Pull out the seat belt’s small latch plate and
the latch plate from each holding slot in the
ceiling.
2. Line up the triangle marks on the small
latch plate and anchor buckle. Make sure
the seat belt is not tw isted. Attach the belt
to the anchor buckle.
3. Insert the latch plate into the buckle.
Properly fasten the seat belt the same way
you fasten the lap/shoulder seat belt.
■Seat Belt with Detachable Anchor1Seat Belt with Detachable Anchor
To unlatch the detachable anchor, insert the latch
plate into the slot on the side of the anchor buckle.
3WARNING
Using the seat belt with the detachable
anchor unlatched incr eases the chance of
serious injury or death in a crash.
Before using the seat belt, make sure the
detachable anchor is correctly latched.
Small Latch Plate
Latch Plate
Small Latch Plate
Latch Plate
Small Latch Plate
Anchor Buckle
Latch
Plate
Buckle
21 CR-V HYBRID HMIN-31TPG6100.book 53 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

55
uuSeat Belts uSeat Belt Inspection
Safe Driving

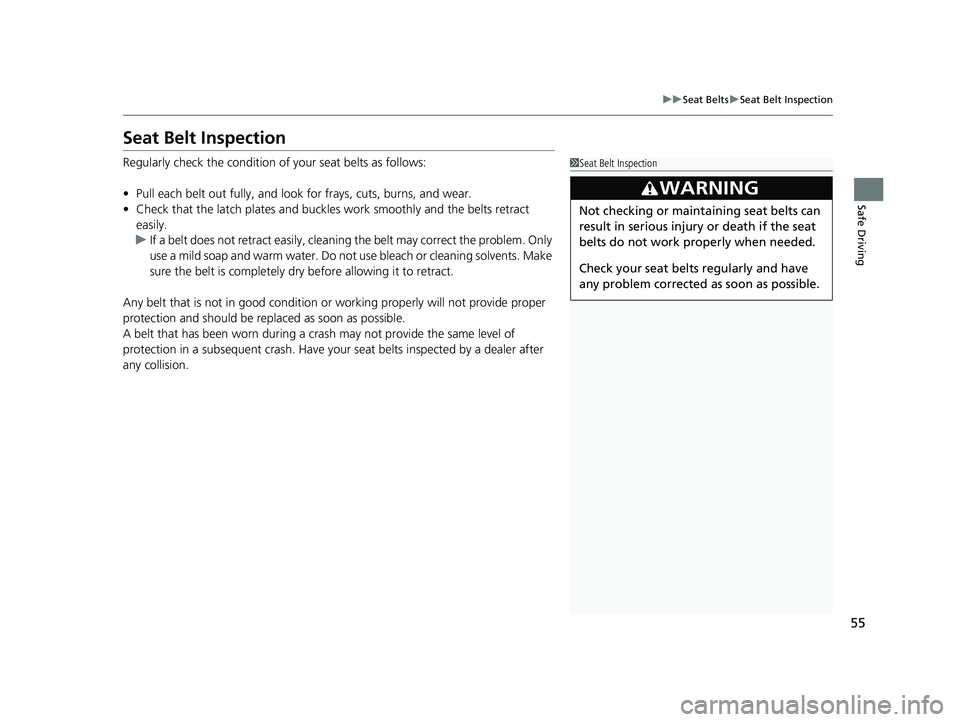

Seat Belt Inspection
Regularly check the condition of your seat belts as follows:
• Pull each belt out fully, and look for frays, cuts, burns, and wear.
• Check that the latch plates and buckle s work smoothly and the belts retract
easily.
u If a belt does not retract easily, cleani ng the belt may correct the problem. Only
use a mild soap and warm water. Do no t use bleach or cleaning solvents. Make
sure the belt is completely dry before allowing it to retract.
Any belt that is not in good condition or working properly will not provide proper
protection and should be replaced as soon as possible.
A belt that has been worn during a crash may not provide the same level of
protection in a subsequent crash. Have your seat belts inspected by a dealer after
any collision.1 Seat Belt Inspection
3WARNING
Not checking or maintaining seat belts can
result in serious injury or death if the seat
belts do not work properly when needed.
Check your seat belts regularly and have
any problem corrected as soon as possible.
21 CR-V HYBRID HMIN-31TPG6100.book 55 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

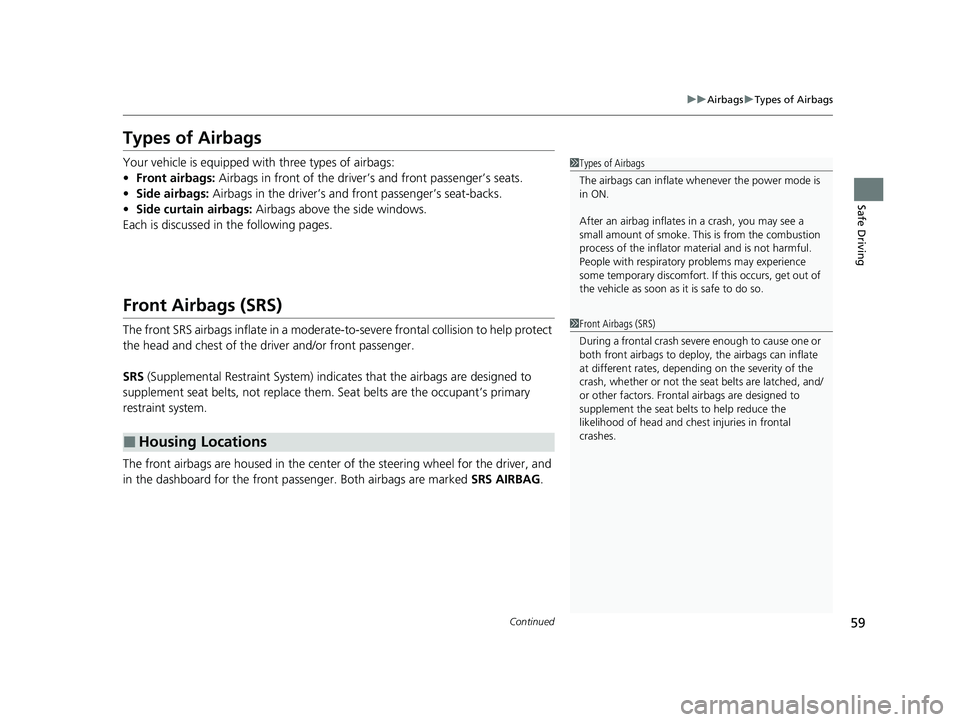

59
uuAirbags uTypes of Airbags
Continued
Safe Driving
Types of Airbags
Your vehicle is equipped wi th three types of airbags:
• Front airbags: Airbags in front of the driver’s and front passenger’s seats.
• Side airbags: Airbags in the driver’s and front passenger’s seat-backs.
• Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect
the head and chest of the driver and/or front passenger.
SRS (Supplemental Restraint System) indica tes that the airbags are designed to
supplement seat belts, not replace them . Seat belts are the occupant’s primary
restraint system.
The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the front pass enger. Both airbags are marked SRS AIRBAG.
■Housing Locations
1Types of Airbags
The airbags can inflate whenever the power mode is
in ON.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the infl ator material and is not harmful.
People with respiratory pr oblems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
1 Front Airbags (SRS)
During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, dependi ng on the severity of the
crash, whether or not the se at belts are latched, and/
or other factors. Frontal airbags are designed to
supplement the seat belts to help reduce the
likelihood of head and chest injuries in frontal
crashes.
21 CR-V HYBRID HMIN-31TPG6100.book 59 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

73
uuChild Safety uProtecting Child Passengers
Safe Driving

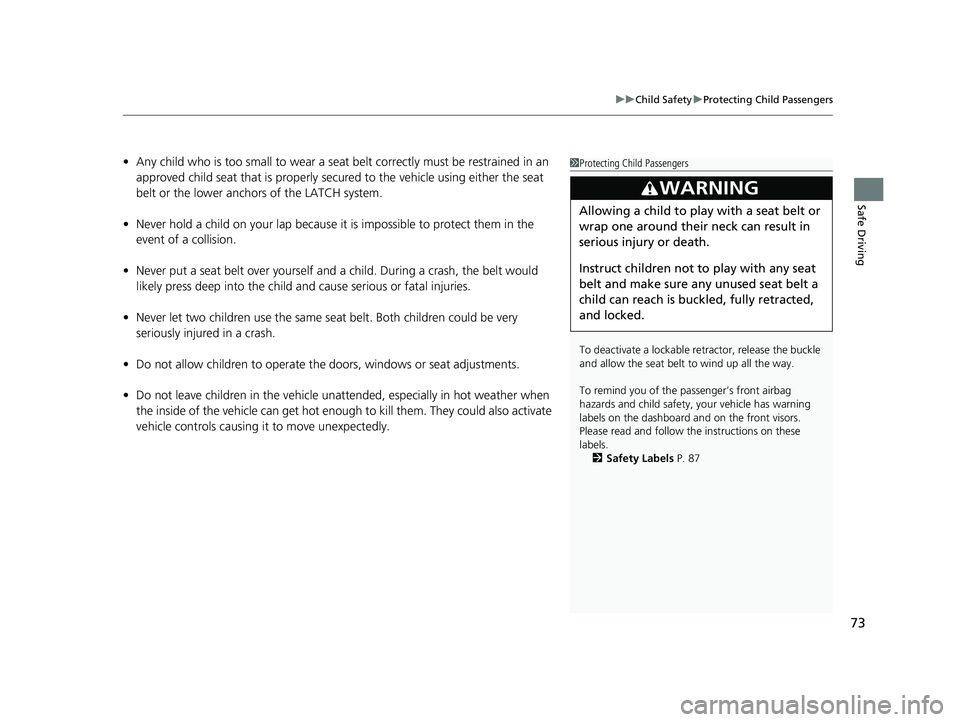

• Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secu red to the vehicle using either the seat
belt or the lower anchors of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the pa ssenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard and on the front visors.
Please read and follow the instructions on these
labels.
2 Safety Labels P. 87
3WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.
21 CR-V HYBRID HMIN-31TPG6100.book 73 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

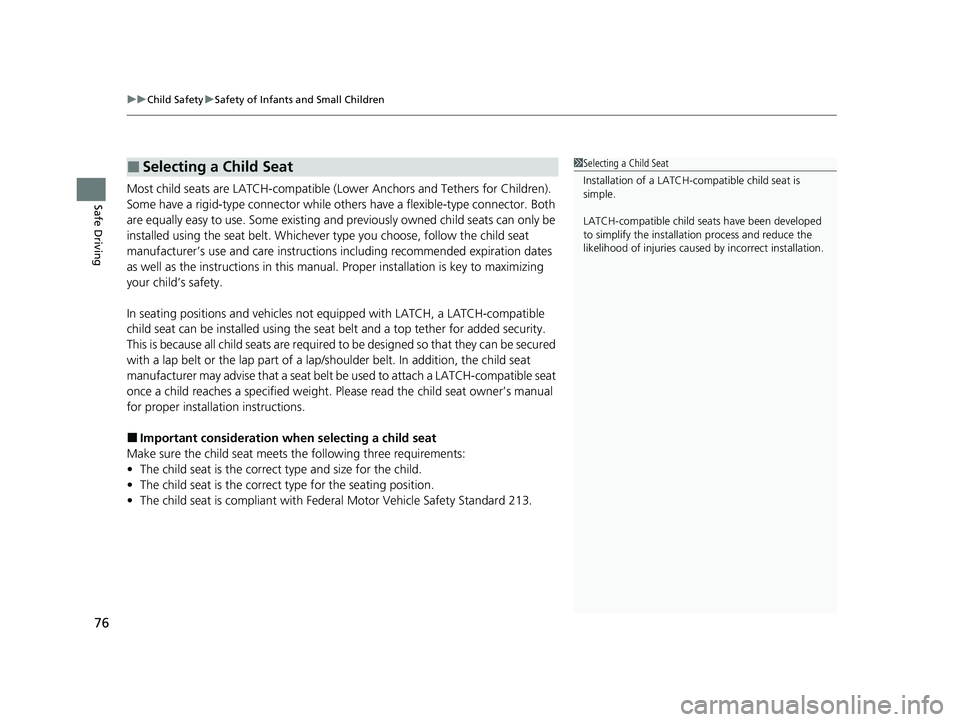

uuChild Safety uSafety of Infants and Small Children
76
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for Children).
Some have a rigid-type conn ector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/sh oulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
■Important consideration wh en selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Fede ral Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-compatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
21 CR-V HYBRID HMIN-31TPG6100.book 76 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

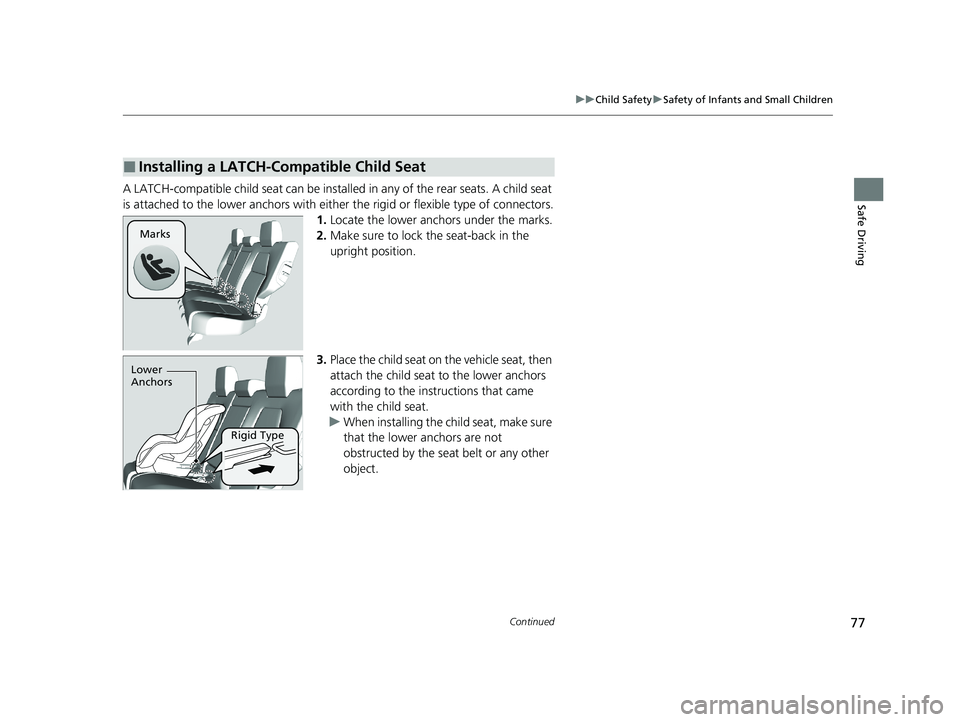

77
uuChild Safety uSafety of Infants and Small Children
Continued
Safe DrivingA LATCH-compatible child seat can be installe d in any of the rear seats. A child seat
is attached to the lower anc hors with either the rigid or flexible type of connectors.
1.Locate the lower anchors under the marks.
2. Make sure to lock the seat-back in the
upright position.
3. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
u When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
■Installing a LATCH-Compatible Child Seat
Marks
Rigid Type
Lower
Anchors
21 CR-V HYBRID HMIN-31TPG6100.book 77 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

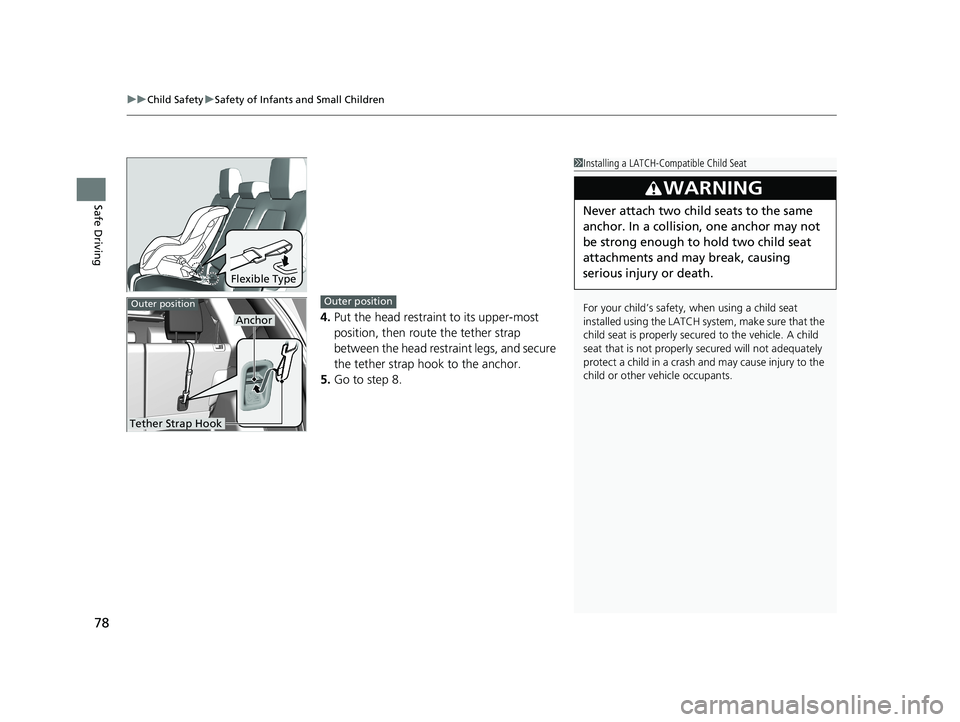

uuChild Safety uSafety of Infants and Small Children
78
Safe Driving
4. Put the head restraint to its upper-most
position, then rout e the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor.
5. Go to step 8.
1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
3WARNING
Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.
Flexible Type
Tether Strap Hook
Anchor
Outer positionOuter position
21 CR-V HYBRID HMIN-31TPG6100.book 78 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
