HONDA CR-V 2021 (in English) Owner's Guide

30
Quick Reference Guide
Audio System (P242)
(P249)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
21 CR-V HYBRID HMIN-31TPG6100.book 30 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

31
Quick Reference Guide
(P270)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Audio) Icon
(Back) Icon
Audio/Information Screen (Instrument Panel) Icon (Day/Night) Icon
*
VOL/ AUDIO (Volume/
Power Audio) Knob
(Home) Icon
(Map) Icon*
(Phone) Icon
Compass Icon*
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 31 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

32
Quick Reference Guide
Driving (P457)
Park
Press the (P button.
Used when parking or before turning
off or starting the power system.
Transmission is locked.
Reverse
Press back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked. Drive
Press the
(
D button.
Used for normal driving.
The deceleration paddle selector can
be used temporarily.
The deceleration paddle selector can
be used when SPORT mode is on.
Shift Position Indicator
The shift position indicator
and the shift button
indicator indicate the
current shift selection.
Transmission (P474)
●Select ( P and depress the brake pedal when turning on the power.●Shift selection
Shift Button
Indicator
Shift Position Indicator
READY Indicator
On: You can start to drive.
21 CR-V HYBRID HMIN-31TPG6100.book 32 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

33
Quick Reference Guide

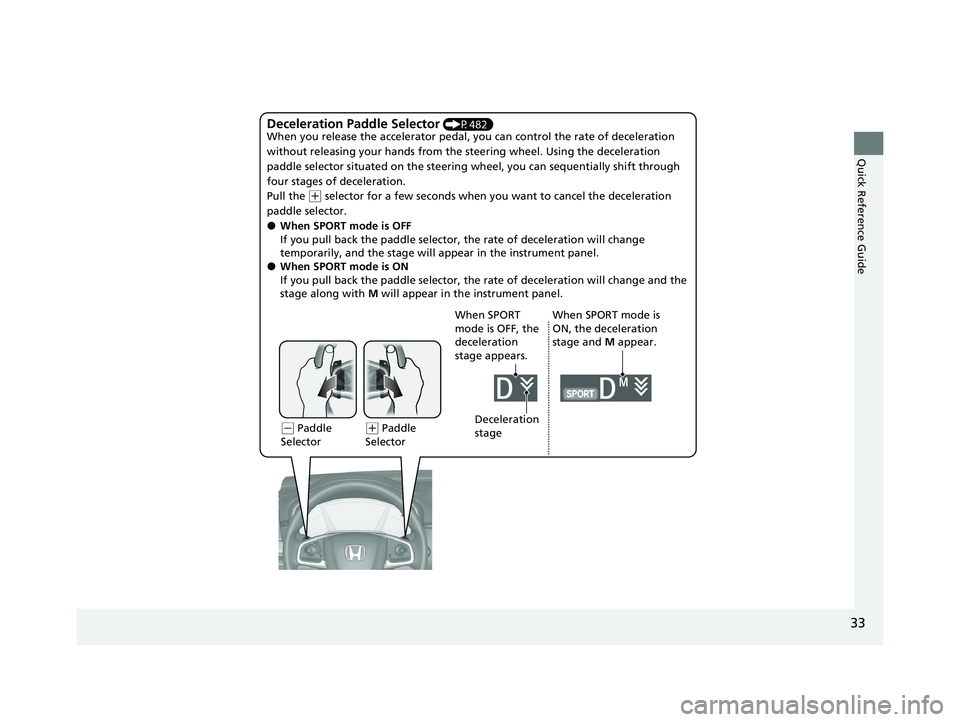

Deceleration Paddle Selector (P482)
When you release the accelerator pedal, yo u can control the rate of deceleration
without releasing your hands from the steering wheel. Using the deceleration
paddle selector situated on the steering wheel, you can sequentially shift through
four stages of deceleration.
Pull the
( + selector for a few seconds when yo u want to cancel the deceleration
paddle selector.
●When SPORT mode is OFF
If you pull back the paddle selector, the rate of deceleration will change
temporarily, and the stage will appear in the instrument panel.
●When SPORT mode is ON
If you pull back the paddle selector, the rate of deceleration will change and the
stage along with M will appear in the instrument panel.
(- Paddle
Selector( + Paddle
Selector Deceleration
stage
When SPORT
mode is OFF, the
deceleration
stage appears.When SPORT mode is
ON, the deceleration
stage and
M appear.
21 CR-V HYBRID HMIN-31TPG6100.book 33 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

34
Quick Reference Guide
VSA® On and Off (P488)
●The Vehicle Stability AssistTM (VSA ®)
system helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you turn on the power system.
●To partially disable VSA® functionality/
features, press and hold it until you hear
a beep.
Tire Pressure Monitoring
System (TPMS)
(P491)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically
every time you turn on the power system.
●A calibration procedure must be
performed when certain conditions arise.
CMBSTM On and Off
(P508)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle sp eed and the severity
of the collision.
●The CMBSTM is turned on every time you
turn on the power system.
●To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Refueling (P570)
Fuel recommendation: Unleaded gasoline , pump octane number 87 or higher
Fuel tank capacity:14 US gal (53 L)
aPull the fuel fill door
release handle.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
21 CR-V HYBRID HMIN-31TPG6100.book 34 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

35
Quick Reference Guide
Honda Sensing® (P501)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rear view mirror.
The camera is located
behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is
in
side the front grille.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P504)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when the
potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P515)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P532)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P541)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
21 CR-V HYBRID HMIN-31TPG6100.book 35 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

36
Quick Reference Guide
Maintenance (P575)
Under the Hood (P584)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P596)
●Inspect all lights regularly.
Wiper Blades (P599)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P604)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
21 CR-V HYBRID HMIN-31TPG6100.book 36 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Quick Reference Guide
37
Handling the Unexpected (P625)
Flat Tire (P627)
●Park in a safe location and repair the flat
tire using the tire repair kit in the cargo
area.
Indicators Come On
(P650)
●Identify the indicator and consult the
owner's manual.
Power System Won't
Start
(P642)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P657)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P647)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing (P661)
●Call a professional towing service if you
need to tow your vehicle.
21 CR-V HYBRID HMIN-31TPG6100.book 37 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

38
Quick Reference Guide

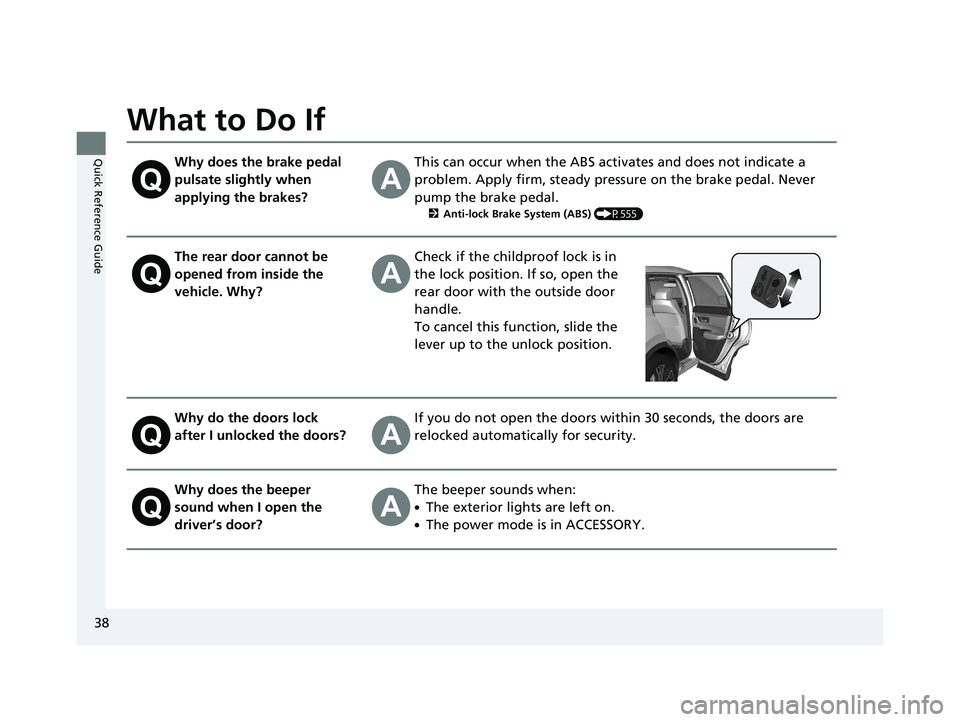

What to Do If
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P555)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The exterior lights are left on.
●The power mode is in ACCESSORY.
21 CR-V HYBRID HMIN-31TPG6100.book 38 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

39
Quick Reference Guide

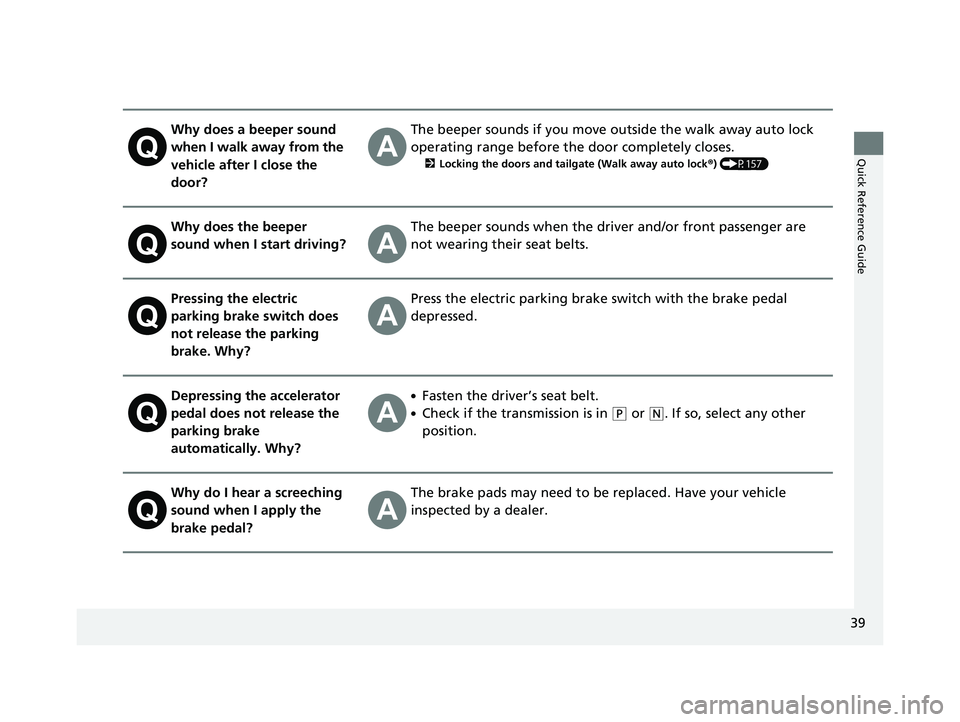

Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and tailgate (Walk away auto lock ®) (P157)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 39 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
