HONDA CR-V 2021 Owner's Manual (in English)

640
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and proper ly stow the kit.
Pressure Relief Button
21 CR-V HYBRID HMIN-31TPG6100.book 640 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

641
Handling the Unexpected
Handling of the Jack
Your vehicle has jacking points as shown.
When replacing your tires, consult a dealer.
Jacking Points
21 CR-V HYBRID HMIN-31TPG6100.book 641 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

642
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver information interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Driver Information Interface Warning and
Information Messages P. 109
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the smart entry remote is in its operating range.
2 POWER Button Operating Range P. 185
2If the Smart Entry Remote Battery is Weak
P. 643
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission system indicator blinks and Transmission
Problem. Apply Parking Brake When Parked message
appears.2 If the Transmission System Indicator Blinks
along with the Warning Message P. 656
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check al l fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 660
Check the shift
position.The transmission is not in (P.Put the transmission into (P.
Check the
immobilizer system
indicator. When the immobilizer system indicator is blinking, the power
system cannot be turned on.
2
Immobilizer System Indicator P. 101
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the 12-Volt Battery Is Dead P. 645
21 CR-V HYBRID HMIN-31TPG6100.book 642 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

643
uuPower System Won’t Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the POWER button flashes, and the
READY indicator does not come on, turn on the power system as follows:
1.Touch the center of the POWER button
with the H logo on the smart entry remote
while the POWER button is flashing. The
buttons on the smart en try remote should
be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
21 CR-V HYBRID HMIN-31TPG6100.book 643 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

644
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the pow er system off due to an emergency
situation even while driving. If you must turn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
21 CR-V HYBRID HMIN-31TPG6100.book 644 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

645Continued
Handling the Unexpected
If the 12-Volt Battery Is Dead
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood. 1.Open the terminal cover on your vehicle’s
12-volt battery positive + terminal.
2. Connect the first jumper cable to your
vehicle's 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u
When using an automotive battery charger
to boost your 12-volt battery, select a
lower charging voltage than 15-volt. Check
the charger manual for the proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1If the 12-Volt Battery Is Dead
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
12-volt battery performa nce degrades in cold
conditions and may prevent the engine from starting.
3WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
+ Terminal
Booster Battery
21 CR-V HYBRID HMIN-31TPG6100.book 645 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuIf the 12-Volt Battery Is Dead u
646
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
1Jump Starting Procedure
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Roa d Departure Mitigation,
Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF, Collision Mitigation
Braking SystemTM (CMBSTM), low tire pressure/TPMS,
and Parking Brake and Br ake System (Amber) may
come on along with a message in the Driver
Information Interface when you set the power mode
to ON after reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/
h). Each indicator should go off. If any do not, have
your vehicle checked by a dealer.
21 CR-V HYBRID HMIN-31TPG6100.book 646 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

647Continued
Handling the Unexpected

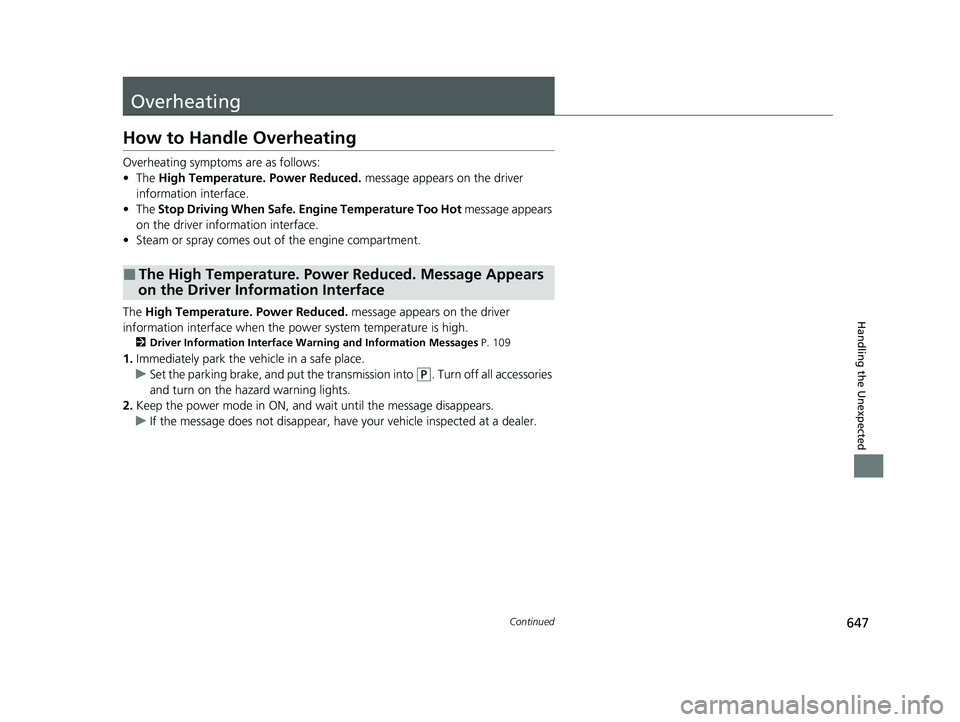

Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The High Temperature. Power Reduced. message appears on the driver
information interface.
• The Stop Driving When Safe. Engine Temperature Too Hot message appears
on the driver information interface.
• Steam or spray comes out of the engine compartment.
The High Temperature. Power Reduced. message appears on the driver
information interface when the pow er system temperature is high.
2Driver Information Interface Wa rning and Information Messages P. 109
1.Immediately park the vehicle in a safe place.
u Set the parking brake, and put the transmission into
(P. Turn off all accessories
and turn on the hazard warning lights.
2. Keep the power mode in ON, and wait until the message disappears.
u If the message does not disappear, have your vehicle inspected at a dealer.
■The High Temperature. Power Reduced. Message Appears
on the Driver Information Interface
21 CR-V HYBRID HMIN-31TPG6100.book 647 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

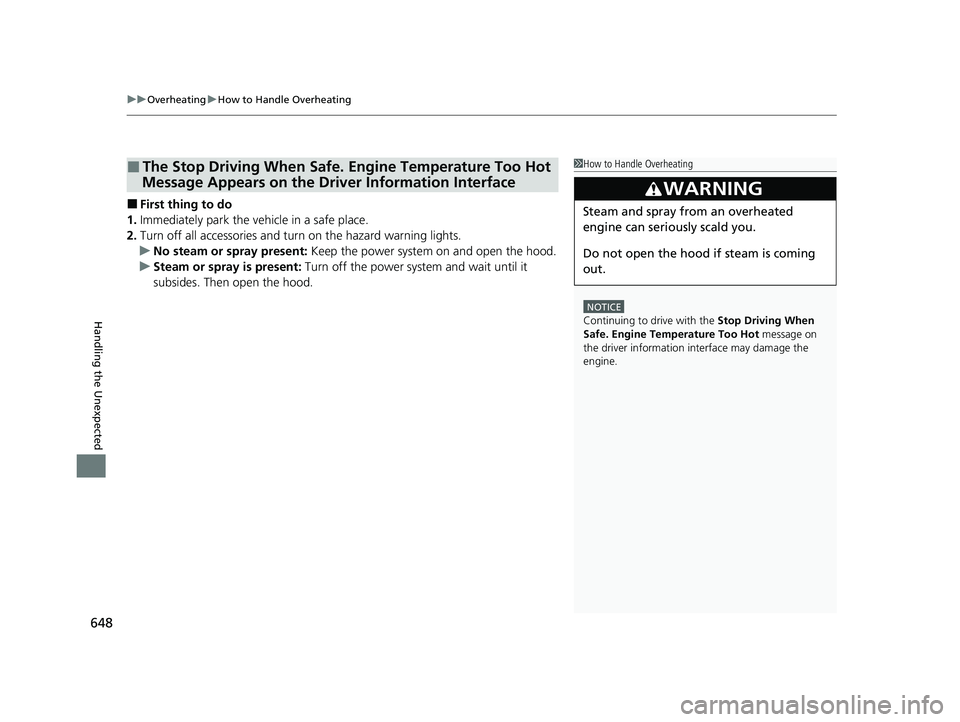

uuOverheating uHow to Handle Overheating
648
Handling the Unexpected
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the power system on and open the hood.
u Steam or spray is present: Turn off the power system and wait until it
subsides. Then open the hood.
■The Stop Driving When Safe. Engine Temperature Too Hot
Message Appears on the Driver Information Interface1 How to Handle Overheating
NOTICE
Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the driver information interface may damage the
engine.
3WARNING
Steam and spray from an overheated
engine can seri ously scald you.
Do not open the hood if steam is coming
out.
21 CR-V HYBRID HMIN-31TPG6100.book 648 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

649
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the Stop
Driving When Safe. Engine
Temperature Too Hot message on the
driver information interface disappears.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the engine coolant
reserve tank is low, add coolant until it
reaches the MAX mark.
u If there is no coolant in the engine
coolant reserve tank, check that the
radiator is cool. Cover the radiator cap
with a heavy cloth an d open the cap. If
necessary, add coolant up to the base of
the filler neck, and put the cap back on.
■Last thing to do
Once the engine has cooled suffici ently, turn the power system on.
If the Stop Driving When Safe. En gine Temperature Too Hot message does not
appear, resume driving. If it appear s again, contact a dealer for repairs.
1How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Engine Coolant Reserve Tank
MAX
MIN
21 CR-V HYBRID HMIN-31TPG6100.book 649 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
