HONDA CR-V 2021 Owner's Manual (in English)

660
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 657
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller in the engine compartment fuse
box type A.
Combined
Fuse Blown Fuse
Fuse Puller
21 CR-V HYBRID HMIN-31TPG6100.book 660 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

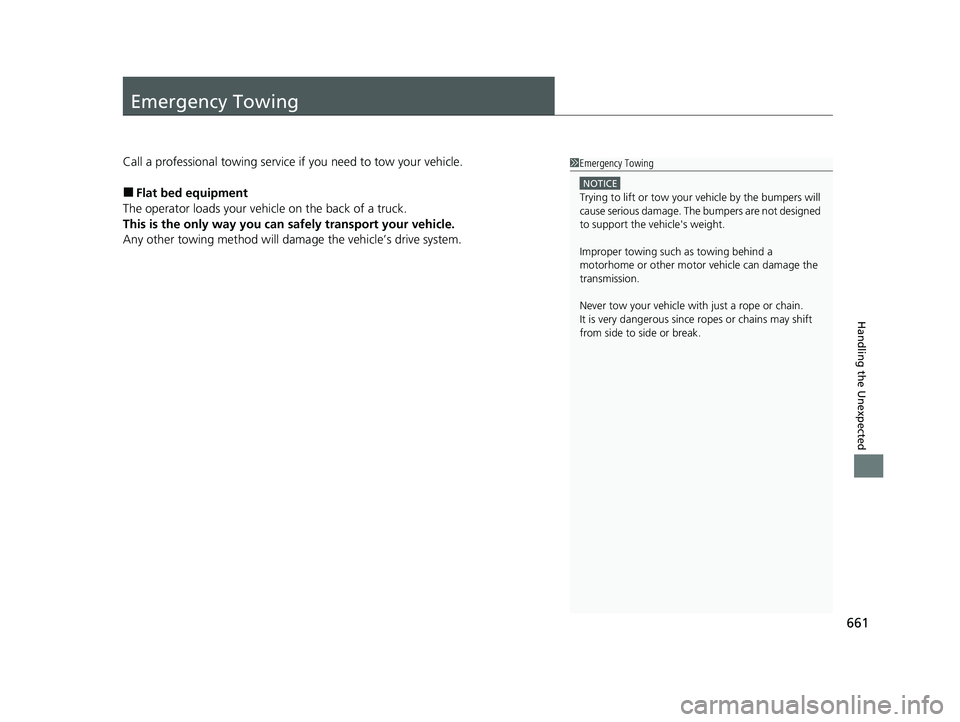

661
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
21 CR-V HYBRID HMIN-31TPG6100.book 661 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

662
Handling the Unexpected
If You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgat e, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
■What to Do If Unable to Open the Tailgate1 What to Do If Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Models without power tailgate
Lever
Screwdriver
21 CR-V HYBRID HMIN-31TPG6100.book 662 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

663
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Pull on the fuel fill door release handle
under the lower left corner of the
dashboard.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
cargo area.
2 Types of Tools P. 626
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power sy stem off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
21 CR-V HYBRID HMIN-31TPG6100.book 663 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

664
21 CR-V HYBRID HMIN-31TPG6100.book 664 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

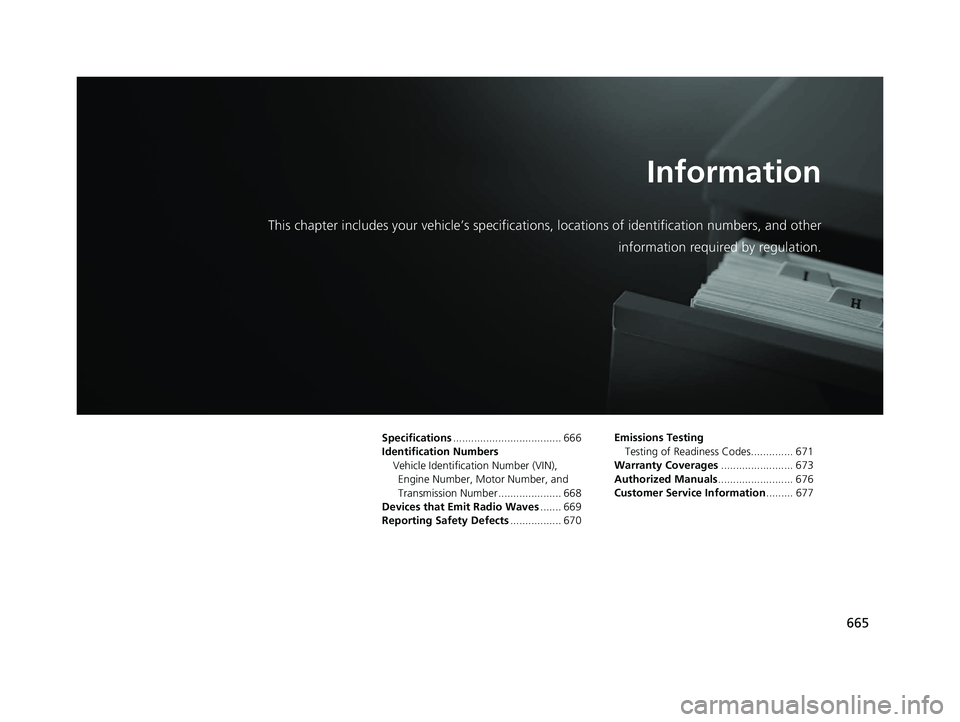

665
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 666
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number ..................... 668
Devices that Emit Radio Waves ....... 669
Reporting Safety Defects ................. 670Emissions Testing
Testing of Readiness Codes.............. 671
Warranty Coverages ........................ 673
Authorized Manuals ......................... 676
Customer Service Information ......... 677
21 CR-V HYBRID HMIN-31TPG6100.book 665 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

666
Information
Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
Displacement121.6 cu-in (1,993 cm3)Spark PlugsNGKDILZKAR7D11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Parking/Daytime Running Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake/Taillights LED
Rear Side Marker LightsLED
Rear Turn Signal Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WCargo Area Lights5 WVanity Mirror Lights*1.4 WFront Door Inner
Handle Lights*LED
Foot Lights*LED
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 666 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

667
uuSpecifications u
Information
■
Brake Fluid
■ Transmissi on Fluid
■ Rear Differential Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
Capacity Change 2.5 US qt (2.4 L)
SpecifiedHonda DPSF-II
Capacity Change 1.32 US qt (1.247 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
CapacityChange3.7 US qt (3.5 L)
Change including
filter 4.0 US qt (3.8 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.46 US gal (5.52 L)(change including the remaining 0.17 US gal
(0.65 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 17 inch wheel
*3: Models with 18 inch wheel
*4: Models with 19 inch wheel
Regular
Size*1235/65R17 104H
235/60R18 103H
235/55R19 101H
Pressure
psi (kPa [kgf/cm2])
Front32 (220 [2.2])*2
35 (240 [2.4])*3
33 (230 [2.3])*4
Rear30 (210 [2.1])*2
32 (220 [2.2])*3
33 (230 [2.3])*4
Wheel SizeRegular17 x 7 1/2J*2
18 x 7 1/2J*3
19 x 7 1/2J*4
21 CR-V HYBRID HMIN-31TPG6100.book 667 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

668
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Continuously Variable
Transmission Number
Motor Number
21 CR-V HYBRID HMIN-31TPG6100.book 668 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

669
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
