uuRefueling uHow to Refuel
Continued
Driving
How to Refuel
Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle. 1.Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the power system.
3. Pull on the fuel fill door release handle
under the lower left corner of the
dashboard.
u The fuel fill door opens.1How to Refuel
The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diamet er tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Pull
21 CR-V HYBRID HMIN-31TPG6100.book 571 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

577
uuBefore Performing Maintenance uSafety When Performing Maintenance
Continued
Maintenance
Safety When Performing Maintenance
Some of the most important safety pr ecautions are given here. However, we
cannot warn you of every conceivable hazard that can arise in performing
maintenance. Only you can decide whether you should perform a given task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the 12-volt battery, all High Volt age system, and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreas er or parts cleaner, not
gasoline.
• Wear eye protection and protective clothing when working with the 12-volt
battery or compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
■Maintenance Safety
1Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner's manual.
3WARNING
Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner's manual.
21 CR-V HYBRID HMIN-31TPG6100.book 577 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

582
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for tire repair kit bottle●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 47,500 miles (75,000 km) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid
7●Replace brake fluid*5
21 CR-V HYBRID HMIN-31TPG6100.book 582 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

613
Maintenance
12-volt Battery
Checking the 12-volt Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 245
•The clock resets*.
2 Clock P. 150
112-volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 613 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

645Continued
Handling the Unexpected
If the 12-Volt Battery Is Dead
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood. 1.Open the terminal cover on your vehicle’s
12-volt battery positive + terminal.
2. Connect the first jumper cable to your
vehicle's 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u
When using an automotive battery charger
to boost your 12-volt battery, select a
lower charging voltage than 15-volt. Check
the charger manual for the proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1If the 12-Volt Battery Is Dead
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
12-volt battery performa nce degrades in cold
conditions and may prevent the engine from starting.
3WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
+ Terminal
Booster Battery
21 CR-V HYBRID HMIN-31TPG6100.book 645 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

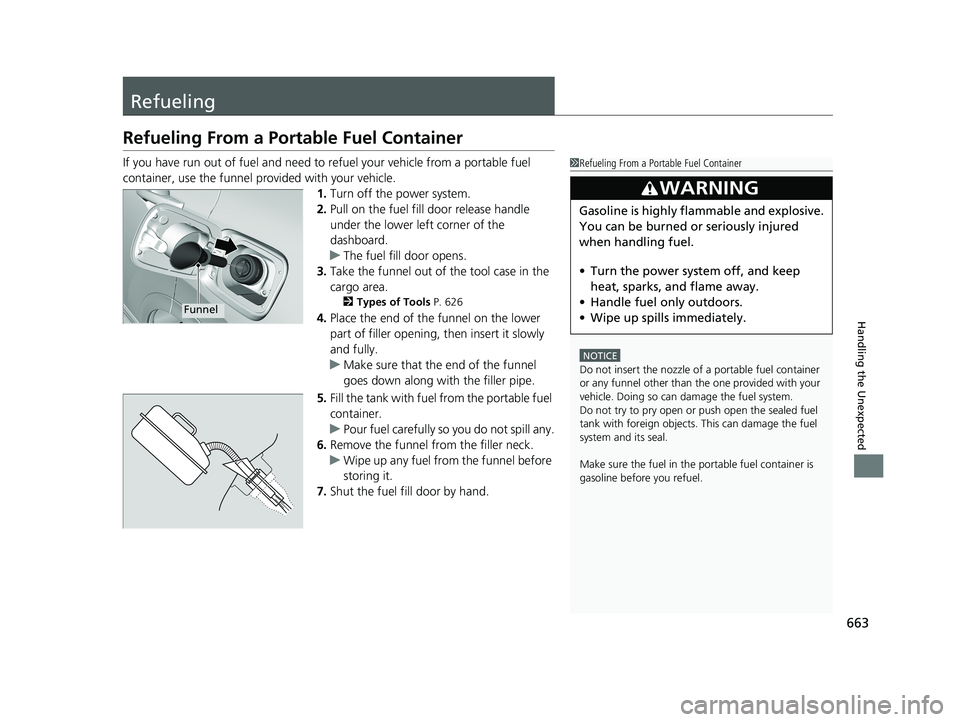

663
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Pull on the fuel fill door release handle
under the lower left corner of the
dashboard.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
cargo area.
2 Types of Tools P. 626
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power sy stem off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
21 CR-V HYBRID HMIN-31TPG6100.book 663 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

666
Information
Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
Displacement121.6 cu-in (1,993 cm3)Spark PlugsNGKDILZKAR7D11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Parking/Daytime Running Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake/Taillights LED
Rear Side Marker LightsLED
Rear Turn Signal Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WCargo Area Lights5 WVanity Mirror Lights*1.4 WFront Door Inner
Handle Lights*LED
Foot Lights*LED
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 666 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

685
Index
Passing Indicators..................................... 189
Playing Bluetooth ® Audio ............... 266, 322
POWER Button ......................................... 185
Power System Won’t Start ............................................. 642
Power System Indicator ............................. 93
Power Tailgate ......................................... 169
Power Windows ....................................... 180
POWER/CHARGE Gauge .......................... 126
Precautions While Driving ....................... 473
Driving Guidelines for Your Utility
Vehicle .................................................. 473
Rain ........................................................ 473
Pregnant Women ....................................... 54
Puncture (Tire) ......................................... 627
R
Radiator.................................................... 592
Radio (FM/AM) ................................. 256, 299
Radio (SiriusXM ®)..................................... 303
Radio Data System (RDS) ................. 257, 302
RDS (Radio Data System) ................. 257, 302
Readiness Codes (Emissions Testing) ...... 671
READY Indicator ........................................ 93
Real Time AWD with Intelligent Control System
TM.................................................. 490
Rear Seats (Folding Down) ...................... 212
Rearview Mirror ....................................... 205
Refueling .................................................. 570
Fuel Gauge ............................................. 126 Gasoline .......................................... 570, 666
Low Fuel Indicator ..................................... 96
Regulations ............................... 495, 607, 669
Remote Transmitter ................................. 159
Replacement
Battery .................................................... 615
Bulbs ....................................................... 596
Front Wiper Blade Rubber ........................ 599
Fuses ....................................... 657, 658, 659
Rear Wiper Blade Rubber ......................... 602
Tires ........................................................ 610
Reporting Safety Defects ......................... 670
Resetting a Trip Meter ............................. 130
Road Departure Mitigation (RDM) .......... 541
On and Off .............................................. 543
S
Safe Driving ................................................ 41
Safety Check ............................................... 46
Safety Labels ............................................... 87
Safety Message ............................................. 2
Seat Belts ..................................................... 47
Adjusting the Shoulder Anchor .................. 52
Automatic Seat Belt Tensioners .................. 50
Checking ................................................... 55
Detachable Anchor .................................... 53
Fastening ................................................... 51
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 80
Pregnant Women ...................................... 54 Reminder .................................................. 49
Warning Indicator ............................... 49, 96
Seat Heaters .............................................. 233
Seats .......................................................... 207
Adjusting ................................................ 207
Driver’s Seat Lumbar Support .................. 207
Front Seats .............................................. 207
Heaters ................................................... 233
Rear Seats ............................................... 211
Seat Heaters ............................................ 233
Security System ......................................... 177
Immobilizer System Indicator ................... 101
Security System Alarm Indicator............... 102
Select Button
Operation.......................................... 32, 477
Selecting a Child Seat ................................. 76
Selector Knob (Audio) .............................. 249
Setting the Clock ...................................... 150
Shift Button ................................................ 32
Shift Button Positions Transmission ..................................... 32, 475
Shift Position Indicator ...................... 95, 477
Shoulder Anchor ........................................ 52
Side Airbags ................................................ 64
Side Curtain Airbags .................................. 66
Siri ® Eyes Free ................................... 269, 331
SiriusXM ® Radio ........................................ 303
Smart Entry System .................................. 155
Snow Tires ................................................. 612
Song By Voice
TM (SBV) .............................. 313
Spark Plugs ............................................... 666
21 CR-V HYBRID HMIN-31TPG6100.book 685 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
