111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the cooling system.●Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
●Appears when you set the power mode to ON without
fastening the driver's seat belt.●Fasten the seat belt properly before you start to drive.
●Appears when you try to change the transmission
without depressing the brake pedal.●Depress the brake pedal, then change the
transmission.
●Appears when you try to change the transmission
without releasing your foot off the accelerator pedal.●Release your foot off the accelerator pedal, then
change the transmission.
●Appears when the (P button is pressed while the
vehicle is moving.
●Appears if you put the transmission into (R while the
vehicle is moving forward, or into
(D while the vehicle
is reversing.
●Make sure that the vehicle comes to a stop before
operating the shift button.
21 CR-V HYBRID HMIN-31TPG6100.book 111 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake, then restart the power system. If the message
disappears, continue driving.
●Continue driving if the me ssage goes off soon after.●If there is a problem with the transmission system,
the transmission indicator system comes on.
2Transmission System Indicator P. 95
●Appears when the automatic brake hold system is
turned off.
2Automatic Brake Hold P. 553
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 553
●Appears when the automa tic brake hold button is
pressed without de pressing the brake pedal while the
automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 553
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 553
2 Parking Brake P. 549
21 CR-V HYBRID HMIN-31TPG6100.book 112 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while the
electric parking brake is in operation.●Press the electric parking brake switch with the brake
pedal depressed.
2Parking Brake P. 549
●Appears when the vehicle is no longer able to run due
to a malfunction.●Immediately stop in a safe place.●Have your vehicle checked by a dealer.
●Appears when there is a risk that the vehicle will move
unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.
2 Parking Brake P. 549●Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the smart
entry system or push button starting system.●Appears constantly - Have your vehicle checked by
a dealer.
●Appears when you close the door with the power
mode in ON without the smart entry remote inside the
vehicle.●Disappears when you bring the smart entry remote
back inside the vehicle and close the door.
2 Smart Entry Remote Reminder P. 187
21 CR-V HYBRID HMIN-31TPG6100.book 113 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you press and hold (N button for more
than two seconds.●Disappears when you set the shift position to a shift
other than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 479
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 477
●Appears when the power system temperature is high.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Park in a safe place, and cool the system down.
2Overheating P. 647
●Appears when the High Volt age battery temperature is
low.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Goes off once you start dr iving as the High Voltage
battery warms up.
●Appears after the 12-volt battery charging system
indicator comes on.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Contact a dealer immediately.
●Appears when the High Volt age battery temperature is
too low to operate (approx. -22°F [-30°C] or below).●You can start the engine and use the climate control
system to warm up the interior, which will also warm
the High Voltage battery en ough for you to drive the
vehicle.
21 CR-V HYBRID HMIN-31TPG6100.book 115 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued171
uuTailgate uOpening/Closing the Power Tailgate*
Controls
Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF (LOCK).
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will stop.
Press the button for mo re than one second,
and the power tailgate will reverse direction.
■Customizing when to open the tailgate
Anytime: The power tailgate unlocks and open s at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.
2Customized Features P. 368
■Using the Remote Transmitter1Opening/Closing the Power Tailgate*
If you replace the 12-volt battery or the power
tailgate fuse while the tailgate is open, the power
tailgate may be di sabled. The power tailgate resumes
once you manually cl ose the tailgate.
Installing aftermarket com ponents other than Honda
genuine accessories on the power tailgate may
prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your cargo in and out.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 171 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuWhen Driving uTurning on the Power
468
Driving
3. Without depressing th e accelerator pedal,
press the POWER button while depressing
the brake pedal.
4. Check the READY indicator.
u Keep depressing the brake pedal until
the READY indicator comes on.
u The READY indicator comes on when
the power system is on and you can start
driving.
u If the outside temperature is extremely
low, you cannot drive until conditions are
improved. In this case, the READY
indicator does not come on and a
warning message appears on the driver
information interface.
2 Driver Information Interface
Warning and Information Messages
P. 109
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the POWER button.
■Stopping the Power System
1Turning on the Power
Bring the smart entry remote close to the POWER
button if the battery in the smart entry remote is
weak.
2 If the Smart Entry Remote Battery is Weak
P. 643
The power system may not activate if the smart entry
remote is subjected to strong radio waves.
Do not hold the POWER button to start the power
system.
If the power system does not start, wait at least 30
seconds before trying again.
The engine may not run when the vehicle is ready for
driving.
You can start driving with the READY indicator on.
If you press the POWER button while depressing the
brake pedal with the READY indicator on, the power
mode is set to VEHICLE OFF and you cannot start
driving.
2 READY Indicator P. 93
21 CR-V HYBRID HMIN-31TPG6100.book 468 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued521
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
Driving
■A vehicle detected ahead is within ACC with Low Speed Follow range and
slows to a stop Your vehicle also stops, automatically. The
Stopped message appears on the driver
information interface.
When the vehicle ahead of you starts again,
the vehicle icon on the driver information
interface blinks. If you press the RES/+ or –/
SET button, or depress the accelerator pedal,
ACC with Low Speed Follow operates again
within the prior set speed.
If no vehicle is ahead of you before you
resume driving, depressing the accelerator
pedal will resume operation of ACC with Low
Speed Follow within the prior set speed.1A vehicle detected ahead is within ACC with Low Speed Follow
range and slows to a stop
3WARNING
Exiting a vehicle that has been stopped
while the ACC with Low Speed Follow
system is operating can result in the
vehicle moving without operator
control.
A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.
Never exit a vehicle when the vehicle is
stopped by ACC with Low Speed Follow.
21 CR-V HYBRID HMIN-31TPG6100.book 521 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

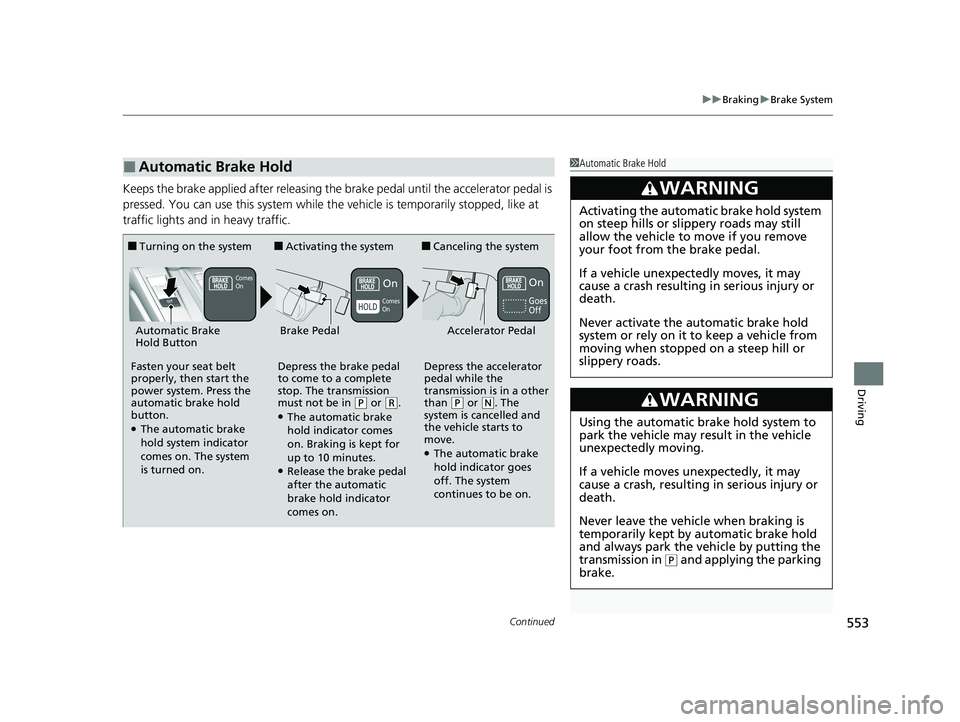

Continued553
uuBraking uBrake System
Driving
Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must not be in
( P or (R.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake pedal
after the automatic
brake hold indicator
comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission is in a other
than
( P or (N. The
system is cancelled and
the vehicle starts to
move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On OnComes
On
Comes
On
21 CR-V HYBRID HMIN-31TPG6100.book 553 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

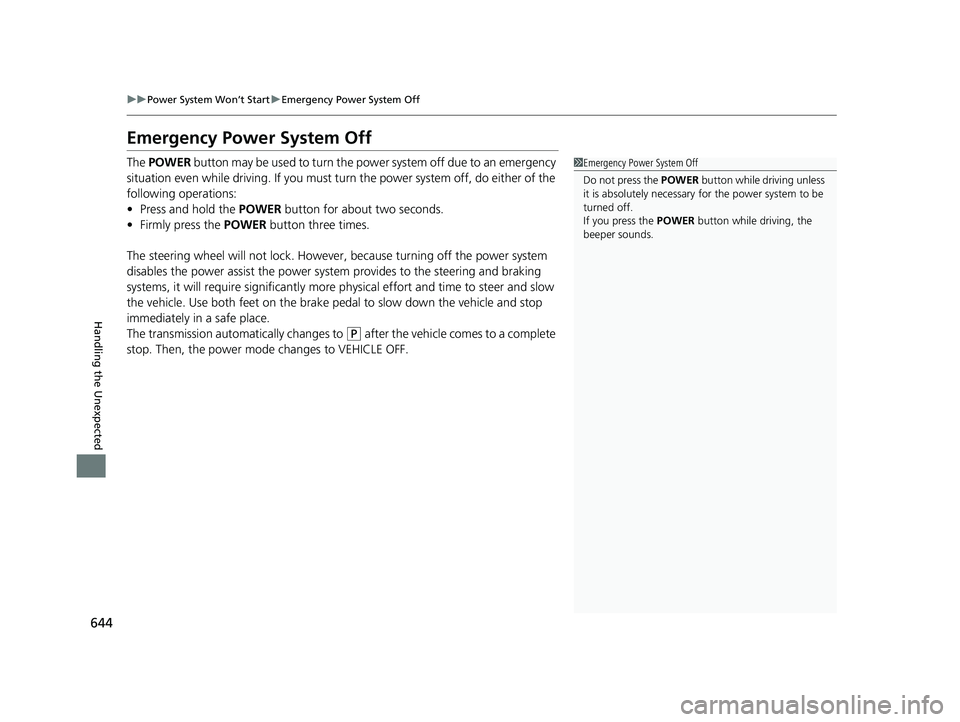

644
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the pow er system off due to an emergency
situation even while driving. If you must turn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
21 CR-V HYBRID HMIN-31TPG6100.book 644 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

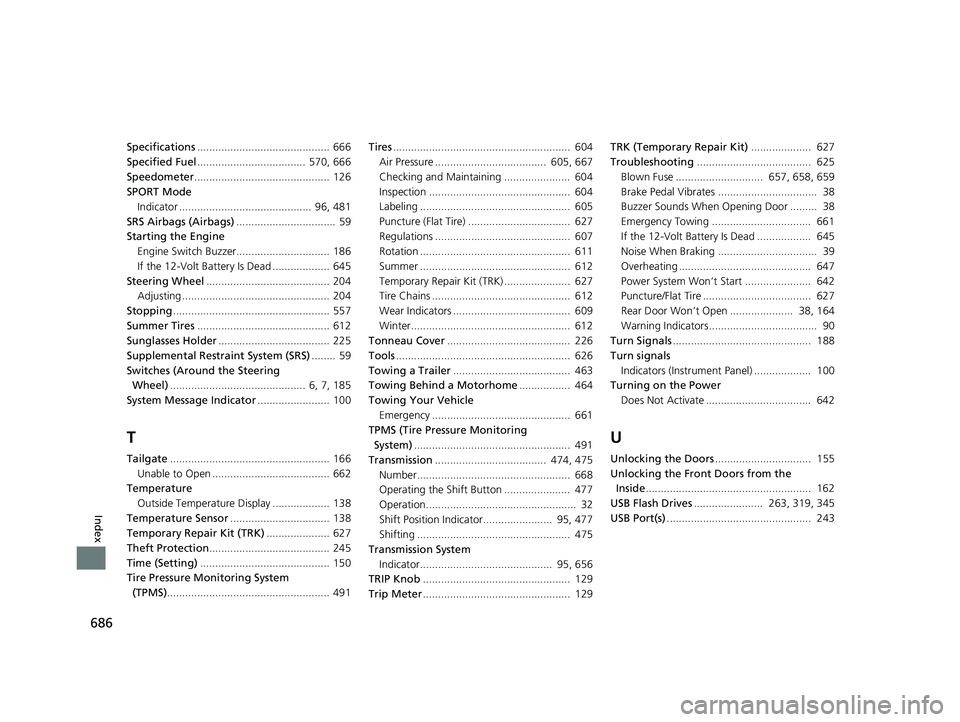

686
Index
Specifications............................................ 666
Specified Fuel .................................... 570, 666
Speedometer ............................................. 126
SPORT Mode Indicator ............................................ 96, 481
SRS Airbags (Airbags) ................................. 59
Starting the Engine Engine Switch Buzzer............................... 186
If the 12-Volt Battery Is Dead ................... 645
Steering Wheel ......................................... 204
Adjusting ................................................. 204
Stopping .................................................... 557
Summer Tires ............................................ 612
Sunglasses Holder ..................................... 225
Supplemental Restraint System (SRS) ........ 59
Switches (Around the Steering Wheel) ............................................. 6, 7, 185
System Message Indicator ........................ 100
T
Tailgate..................................................... 166
Unable to Open ....................................... 662
Temperature
Outside Temperature Display ................... 138
Temperature Sensor ................................. 138
Temporary Repair Kit (TRK) ..................... 627
Theft Protection ........................................ 245
Time (Setting) ........................................... 150
Tire Pressure Monitoring System
(TPMS) ...................................................... 491 Tires
........................................................... 604
Air Pressure ..................................... 605, 667
Checking and Maintaining ...................... 604
Inspection ............................................... 604
Labeling .................................................. 605
Puncture (Flat Tire) .................................. 627
Regulations ............................................. 607
Rotation .................................................. 611
Summer .................................................. 612
Temporary Repair Kit (TRK) ...................... 627
Tire Chains .............................................. 612
Wear Indicators ....................................... 609
Winter..................................................... 612
Tonneau Cover ......................................... 226
Tools .......................................................... 626
Towing a Trailer ....................................... 463
Towing Behind a Motorhome ................. 464
Towing Your Vehicle Emergency .............................................. 661
TPMS (Tire Pressure Monitoring System) .................................................... 491
Transmission ..................................... 474, 475
Number................................................... 668
Operating the Shift Button ...................... 477
Operation.................................................. 32
Shift Position Indicator....................... 95, 477
Shifting ................................................... 475
Transmission System
Indicator............................................ 95, 656
TRIP Knob ................................................. 129
Trip Meter ................................................. 129 TRK (Temporary Repair Kit)
.................... 627
Troubleshooting ...................................... 625
Blown Fuse ............................. 657, 658, 659
Brake Pedal Vibrates ................................. 38
Buzzer Sounds When Opening Door ......... 38
Emergency Towing ................................. 661
If the 12-Volt Battery Is Dead .................. 645
Noise When Braking ................................. 39
Overheating ............................................ 647
Power System Won’t Start ...................... 642
Puncture/Flat Tire .................................... 627
Rear Door Won’t Open ..................... 38, 164
Warning Indicators.................................... 90
Turn Signals .............................................. 188
Turn signals Indicators (Instru ment Panel) ................... 100
Turning on the Power
Does Not Activate ................................... 642
U
Unlocking the Doors ................................ 155
Unlocking the Fron t Doors from the
Inside ....................................................... 162
USB Flash Drives ....................... 263, 319, 345
USB Port(s) ................................................ 243
21 CR-V HYBRID HMIN-31TPG6100.book 686 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
