TPMS HONDA CR-V HYBRID 2020 (in English) Owner's Guide

609
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 489
Front
Direction MarkFront
Front
20 CR-V HYBRID HMIN-31TPG6000.book 609 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

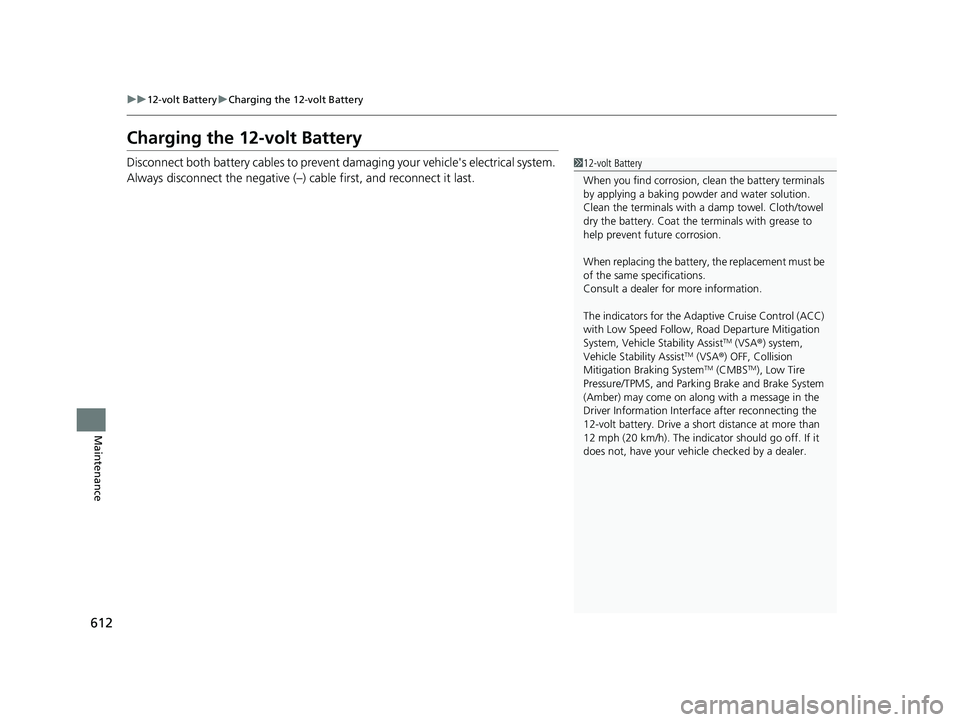

612
uu12-volt Battery uCharging the 12-volt Battery
Maintenance
Charging the 12-volt Battery
Disconnect both battery cables to prevent da maging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.1 12-volt Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Road Departure Mitigation
System, Vehicle Stability Assist
TM (VSA ®) system,
Vehicle Stability AssistTM (VSA ®) OFF, Collision
Mitigation Braking SystemTM (CMBSTM), Low Tire
Pressure/TPMS, and Parking Brake and Brake System
(Amber) may come on along with a message in the
Driver Information Interf ace after reconnecting the
12-volt battery. Drive a shor t distance at more than
12 mph (20 km/h). The indicator should go off. If it
does not, have your vehicl e checked by a dealer.
20 CR-V HYBRID HMIN-31TPG6000.book 612 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

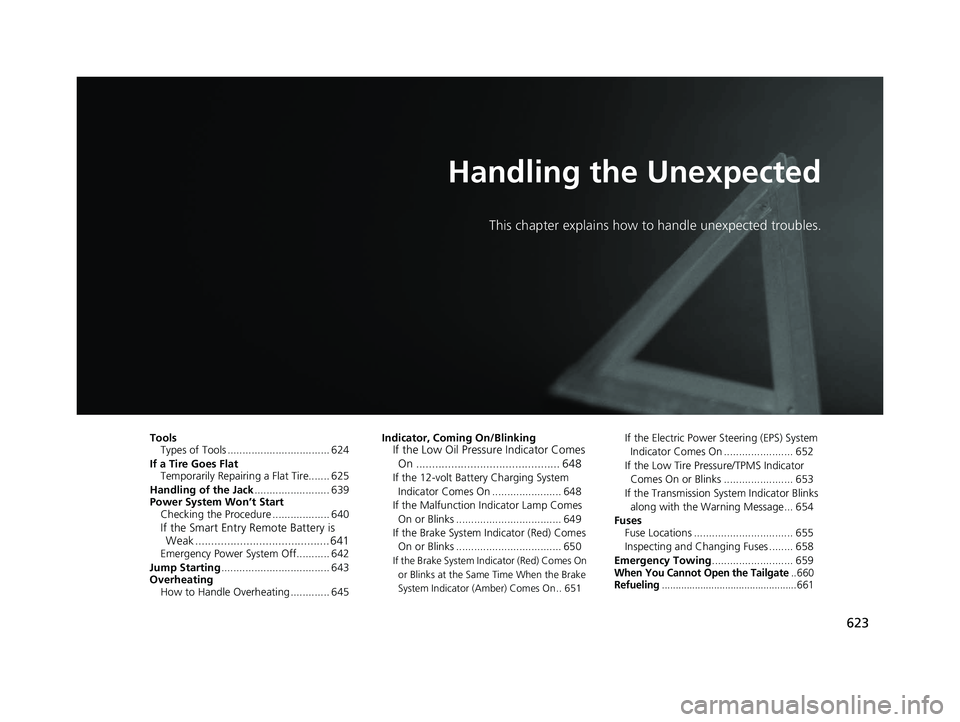

623
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 624
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 625
Handling of the Jack ......................... 639
Power System Won’t Start Checking the Procedure ................... 640
If the Smart Entry Remote Battery is Weak .......................................... 641
Emergency Power System Off........... 642
Jump Starting .................................... 643
Overheating How to Handle Overheating ............. 645 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 648
If the 12-volt Batt ery Charging System
Indicator Comes On ....................... 648
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 649
If the Brake System Indicator (Red) Comes On or Blinks ................................... 650
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 651
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 652
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 653
If the Transmission System Indicator Blinks along with the Warning Message... 654
Fuses Fuse Locations ................................. 655
Inspecting and Changing Fuses ........ 658
Emergency Towing ........................... 659
When You Cannot Open the Tailgate.. 660Refueling................................................. 661
20 CR-V HYBRID HMIN-31TPG6000.book 623 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuJump Starting u
644
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assi sting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
1Jump Starting Procedure
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Roa d Departure Mitigation,
Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF, Collision Mitigation
Braking SystemTM (CMBSTM), low tire pressure/TPMS,
and Parking Brake and Br ake System (Amber) may
come on along with a message in the Driver
Information Interface when you set the power mode
to ON after reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/
h). Each indicator should go off. If any do not, have
your vehicle checked by a dealer.
20 CR-V HYBRID HMIN-31TPG6000.book 644 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

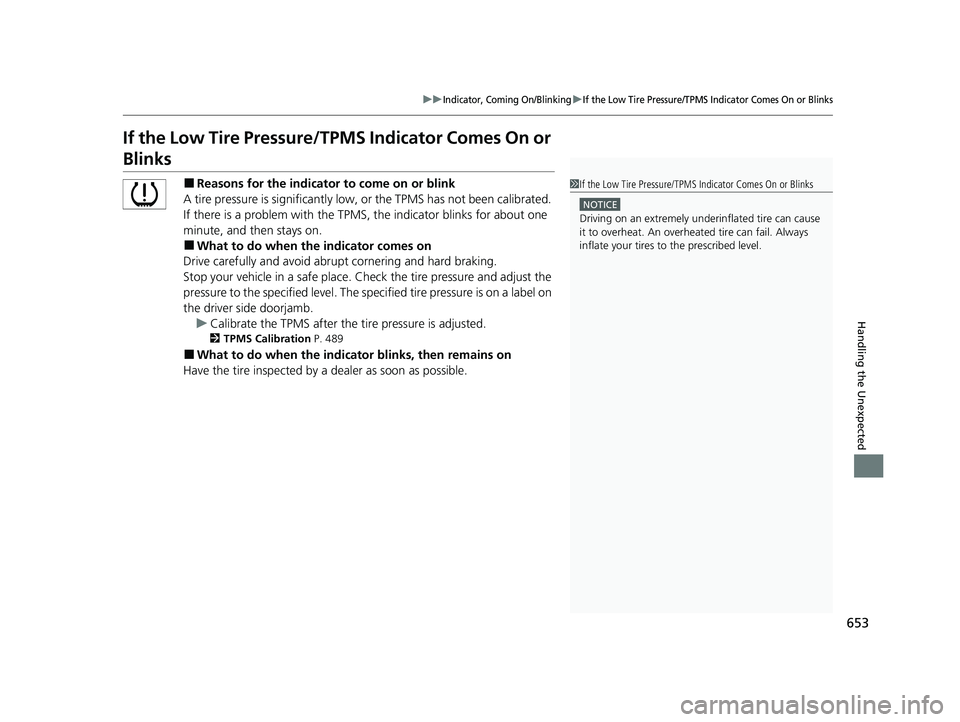

653
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 489
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible.
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
20 CR-V HYBRID HMIN-31TPG6000.book 653 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

680
Index
HondaLink®............................................. 322
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive).................................... 11
I
Identification Numbers ............................ 666
Engine, Motor and Transmission .............. 666
Vehicle Identification ............................... 666
Illumination Control ................................. 199
Knob ....................................................... 199
Immobilizer System .................................. 175
Indicator .................................................... 99
Indicators ..................................................... 88
12-volt Battery Charging System ........ 93, 648
ABS (Anti-lock Brake System) ..................... 95
Adaptive Cruise Control (ACC) with Low
Speed Follow ......................... 103, 104, 514
Auto High-Beam ........................................ 99
Automatic Brake Hold........................ 91, 551
Automatic Brake Hold System .................... 91
Blind spot information System ................. 100
Collision Mitigation Braking System
(CMBS) .......................................... 105, 106
Deceleration Paddle Selector ...................... 93
ECON Mode .................................... 100, 483
Electric Power Steering (EPS) System .. 96, 652
EV ............................................................. 92
EV Mode ................................................... 92
Fog Light ................................................... 99 High Beam ................................................ 98
Immobilizer System ................................... 99
Lane Keeping Assist System (LKAS) .......... 104
Lights On .................................................. 99
Low Fuel ................................................... 94
Low Oil Pressure ................................ 91, 648
Low Tire Pressure/TPMS ............. 97, 493, 653
Malfunction Indicator Lamp............... 92, 649
Parking Brake a
nd Brake System
(Amber) ........................................... 90, 651
Parking Brake a nd Brake System
(Red) ....................................... 89, 650, 651
Power System............................................ 91
READY ...................................................... 92
Road Departure Mitiga tion (RDM) ... 101, 102
Seat Belt Reminder .............................. 49, 94
Security System Alarm ............................. 100
Shift Position ............................................. 93
SPORT Mode ..................................... 94, 479
Supplemental Restraint System ............ 67, 95
System Message ........................................ 98
Transmission System.......................... 93, 654
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 485
VSA ® OFF .......................................... 96, 486
Information .............................................. 663
Instrument Panel ........................................ 87
Brightness Control................................... 199
Interior Lights ........................................... 215
Interior Rearview Mirror .......................... 203iPod
................................................... 256, 308
J
Jump Starting ........................................... 643
K
Key Number Tag ...................................... 151
Keyless Lockout Prevention ..................... 159
Keys ........................................................... 150
Lockout Prevention ................................. 159
Master Keys ............................................ 150
Number Tag............................................ 151
Rear Door Won’t Open ........................... 162
Remote Transmitter ................................ 157
Types and Functions................................ 150
Kickdown (Continuously Variable Transmission) .......................................... 472
L
Lane Keeping Assist System (LKAS) ........ 530
LATCH (Child Seats) ............................. 75, 80
Lights ................................................ 187, 594
Auto High-Beam ..................................... 192
Automatic............................................... 188
Bulb Replacement ................................... 594
Daytime Running Lights .......................... 191
Fog Lights ............................................... 191
High Beam Indicator Light ......................... 98
Interior.................................................... 215
20 CR-V HYBRID HMIN-31TPG6000.book 680 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

681
Index
Light Switches......................................... 187
Lights On Indicator.................................... 99
Turn Signals ............................................ 186
Load Limits ............................................... 459
Locking/Unlocking ................................... 150
Auto Door Locking/Unlocking ................. 163
Childproof Door Locks ............................ 162
From Inside ............................................. 160
From Outside .......................................... 153
Keys........................................................ 150
Using a Key............................................. 158
Lockout Prevention System ..................... 159
Low Battery Charge ................................. 648
Low Fuel Indicator ..................................... 94
Low Oil Pressure Indicator ................. 91, 648
Low Smart Entry Remote Signal Strength .................................................. 152
Low Tire Pressure/TPMS Indicator ............. 97
Lower Anchors ........................................... 75
Luggage (Maximum Load Limit) ............. 459
Lumbar Support ....................................... 206
Lumbar Support Adjustment Switch ...... 206
M
Maintenance............................................ 573
12-volt Battery ........................................ 611
Brake Fluid .............................................. 592
Cleaning ................................................. 615
Coolant .................................................. 589
Maintenance Minder
TM............................ 577 Oil ........................................................... 585
Precautions .............................................. 574
Radiator .................................................. 590
Remote Transmitter ................................. 613
Replacing Light Bulbs ............................... 594
Safety ...................................................... 575
Service Items ........................................... 580
Tires ........................................................ 602
Transmission Fluid ................................... 591
Under the Hood ...................................... 582
Maintenance Minder ........................ 129, 577
Malfunction Indicator Lamp .............. 92, 649
Map Lights ................................................ 216
Maximum Load Limit ............................... 459
Meters, Gauges ......................................... 124
Mirrors ....................................................... 203
Adjusting ................................................. 203
Door ........................................................ 204
Exterior .................................................... 204
Interior Rearview ..................................... 203
Modifications (and Accessories) .............. 620
Moonroof .................................................. 182
MP3 ................................................... 261, 317
Multi-View Rear Camera .......................... 566
N
Navigation................................................ 137
Numbers (Identification) .......................... 666
O
Odometer................................................. 127
Off-Highway Driving Guidelines ............. 463
Oil (Engine) ............................................... 584
Adding .................................................... 586
Checking................................................. 585
Displaying Oil Life .................................... 578
Low Oil Pressure Indicator ................. 91, 648
Recommended Engine Oil ....................... 584
Viscosity .................................................. 584
Open Source Licenses ............................... 358
Opening/Closing Hood....................................................... 583
Moonroof ............................................... 182
Power Windows ...................................... 178
Tailgate ................................................... 164
Outside Temperature Display .................. 136
Overheating .............................................. 645
P
Pandora®......................................... 259, 315
Panic Mode ............................................... 177
Parking ...................................................... 555
Parking Brake ........................................... 547
Parking Brake and Brake System Indicator (Amber) ............................................. 90, 651
Parking Brake and Brake System Indicator (Red) .......................................... 89, 650, 651
Parking Sensor System ............................. 557
Passenger Front Airb ag Off Indicator....... 68
20 CR-V HYBRID HMIN-31TPG6000.book 681 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

683
Index
Specifications........................................... 664
Specified Fuel ................................... 568, 664
Speedometer ............................................ 124
SPORT Mode Indicator ........................................... 94, 479
SRS Airbags (Airbags) ................................ 59
Starting the Engine Engine Switch Buzzer .............................. 184
Jump Starting ......................................... 643
Steering Wheel ........................................ 202
Adjusting ................................................ 202
Stopping ................................................... 555
Summer Tires ............................................ 610
Sunglasses Holder .................................... 223
Supplemental Restraint System (SRS) ....... 59
Switches (Around the Steering Wheel) ............................................ 6, 7, 183
System Message Indicator ......................... 98
T
Tailgate..................................................... 164
Unable to Open ...................................... 660
Temperature
Outside Temperature Display .................. 136
Temperature Sensor ................................ 136
Temporary Repair Kit (TRK) .................... 625
Theft Protection ....................................... 243
Time (Setting) ........................................... 148
Tire Pressure Monitoring System
(TPMS) ..................................................... 489 Tires
........................................................... 602
Air Pressure ..................................... 603, 665
Checking and Maintaining ....................... 602
Inspection ................................................ 602
Labeling .................................................. 603
Puncture (Flat Tire) ................................... 625
Regulations ............................................. 605
Rotation .................................................. 609
Summer .................................................. 610
Temporary Repair Kit (TRK) ...................... 625
Tire Chains .............................................. 610
Wear Indicators ....................................... 607
Winter ..................................................... 610
Tonneau Cover ......................................... 224
Tools .......................................................... 624
Towing a Trailer ....................................... 461
Towing Your Vehicle
Behind a Motorhome .............................. 462
Emergency .............................................. 659
TPMS (Tire Pressure Monitoring System) .................................................... 489
Transmission ..................................... 472, 473
Number ................................................... 666
Operating the Shift Button ...................... 475
Operation .................................................. 32
Shift Position Indicator ....................... 93, 475
Shifting ................................................... 473
Transmission System
Indicator ............................................ 93, 654
TRIP Knob .................................................. 127
Trip Meter ................................................. 127 TRK (Temporary Repair Kit)
..................... 625
Troubleshooting ....................................... 623
Blown Fuse.............................. 655, 656, 657
Brake Pedal Vibrates .................................. 38
Buzzer Sounds When Opening Door.......... 38
Emergency Towing .................................. 659
Noise When Braking .................................. 39
Overheating ............................................ 645
Power System Won’t Start ....................... 640
Puncture/Flat Tire .................................... 625
Rear Door Won’t Open...................... 38, 162
Warning Indicators .................................... 88
Turn Signals .............................................. 186
Turn signals
Indicators (Instrument Panel) ..................... 98
Turning on the Power Does Not Activate ................................... 640
U
Unlocking the Doors ................................ 153
Unlocking the Fron t Doors from the
Inside ....................................................... 160
USB Flash Drives ....................... 261, 317, 343
USB Port(s) ................................................ 241
20 CR-V HYBRID HMIN-31TPG6000.book 683 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
