bluetooth HONDA CR-V HYBRID 2020 (in English) Owner's Guide

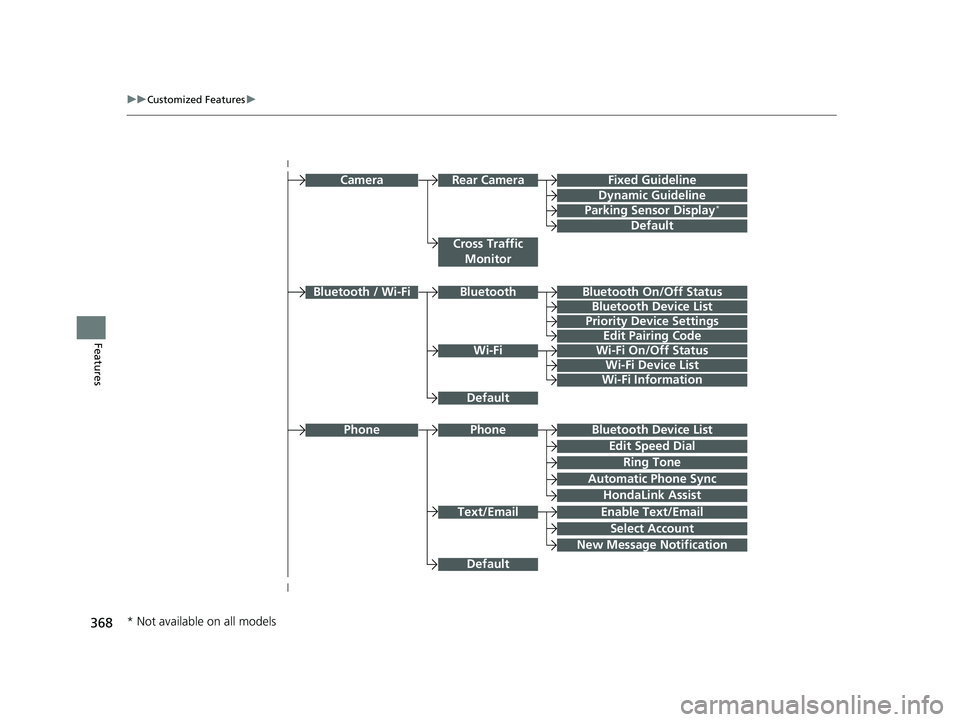

368
uuCustomized Features u
Features
Bluetooth Device List
Priority Device Settings
Edit Pairing Code
Wi-Fi On/Off Status
Wi-Fi Device List
Wi-Fi
BluetoothBluetooth / Wi-Fi
Wi-Fi Information
Text/Email
Bluetooth Device List
Edit Speed Dial
Ring Tone
Phone
Automatic Phone Sync
HondaLink Assist
Enable Text/Email
Select Account
New Message Notification
Phone
Fixed Guideline
Dynamic Guideline
Rear CameraCamera
Parking Sensor Display*
Cross Traffic
Monitor
Default
Default
Default
Bluetooth On/Off Status
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 368 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

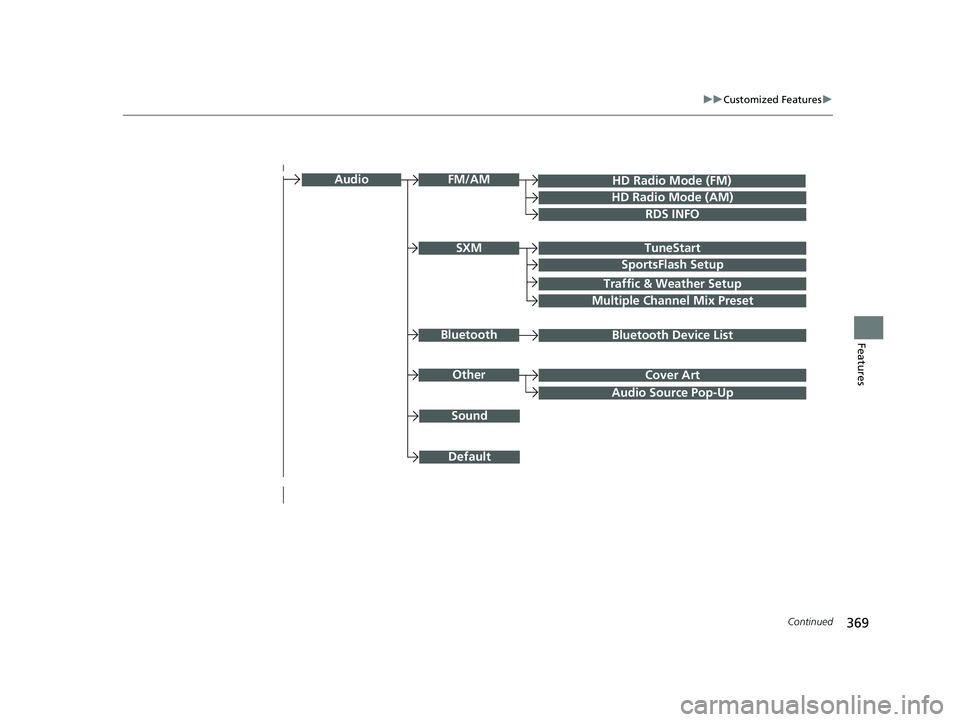

369
uuCustomized Features u
Continued
Features
Audio Source Pop-Up
Cover Art
HD Radio Mode (FM)
RDS INFO
TuneStart
SportsFlash Setup
Traffic & Weather Setup
Audio
Other
FM/AM
SXM
Sound
Bluetooth Device ListBluetooth
Multiple Channel Mix Preset
HD Radio Mode (AM)
Default
20 CR-V HYBRID HMIN-31TPG6000.book 369 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

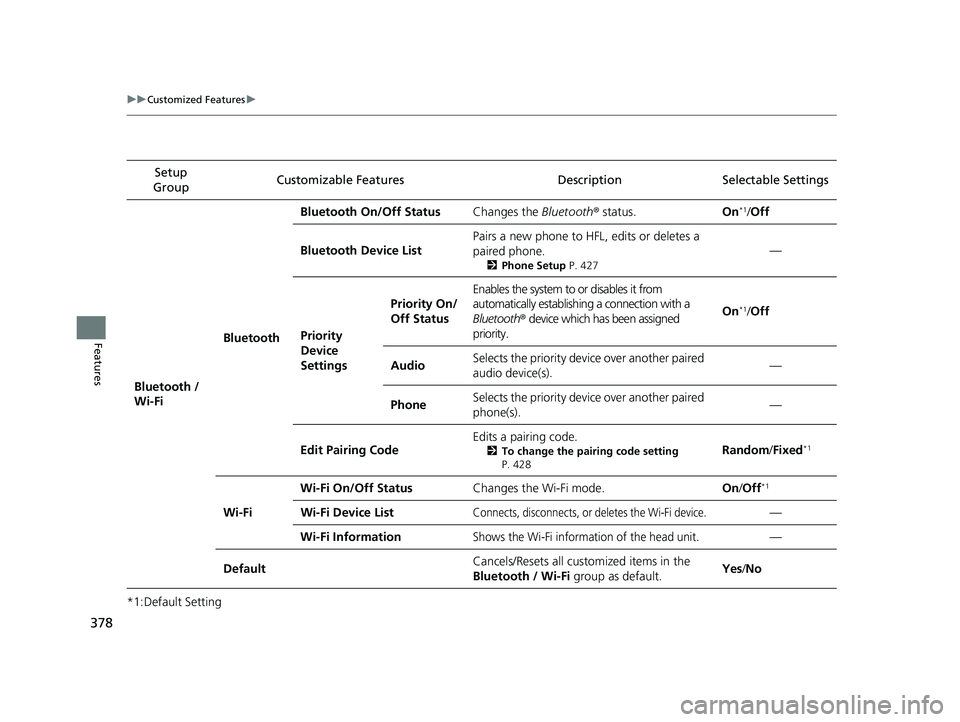

378
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Bluetooth /
Wi-Fi BluetoothBluetooth On/Off Status
Changes the Bluetooth® status. On
*1/Off
Bluetooth Device List Pairs a new phone to HFL, edits or deletes a
paired phone.
2
Phone Setup P. 427
—
Priority
Device
Settings
Priority On/
Off Status
Enables the system to or disables it from
automatically establishing a connection with a
Bluetooth® device which has been assigned
priority.
On*1/ Off
AudioSelects the priority device over another paired
audio device(s).—
PhoneSelects the priority device over another paired
phone(s).—
Edit Pairing Code Edits a pairing code.
2
To change the pairing code setting
P. 428Random /Fixed*1
Wi-Fi Wi-Fi On/Off Status
Changes the Wi-Fi mode. On/Off
*1
Wi-Fi Device ListConnects, disconnects, or deletes the Wi-Fi device.—
Wi-Fi Information
Shows the Wi-Fi information of the head unit.—
Default Cancels/Resets all customized items in the
Bluetooth / Wi-Fi
group as default. Yes
/No
20 CR-V HYBRID HMIN-31TPG6000.book 378 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

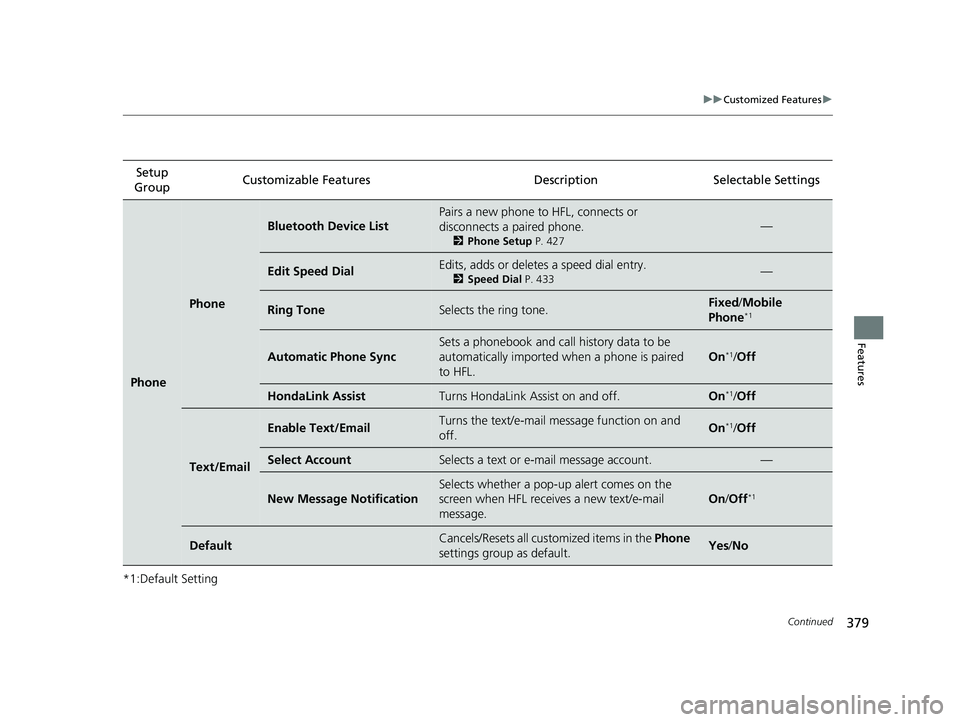

379
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Phone
Phone
Bluetooth Device List
Pairs a new phone to HFL, connects or
disconnects a paired phone.
2Phone Setup P. 427
—
Edit Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 433—
Ring ToneSelects the ring tone.Fixed /Mobile
Phone*1
Automatic Phone Sync
Sets a phonebook and call history data to be
automatically imported when a phone is paired
to HFL.
On*1/ Off
HondaLink AssistTurns HondaLink Assist on and off.On*1/Off
Text/Email
Enable Text/EmailTurns the text/e-mail me ssage function on and
off.On*1/ Off
Select AccountSelects a text or e-mail message account.—
New Message Notification
Selects whether a pop-up alert comes on the
screen when HFL receives a new text/e-mail
message.
On /Off*1
DefaultCancels/Resets all customized items in the Phone
settings group as default.Yes /No
20 CR-V HYBRID HMIN-31TPG6000.book 379 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

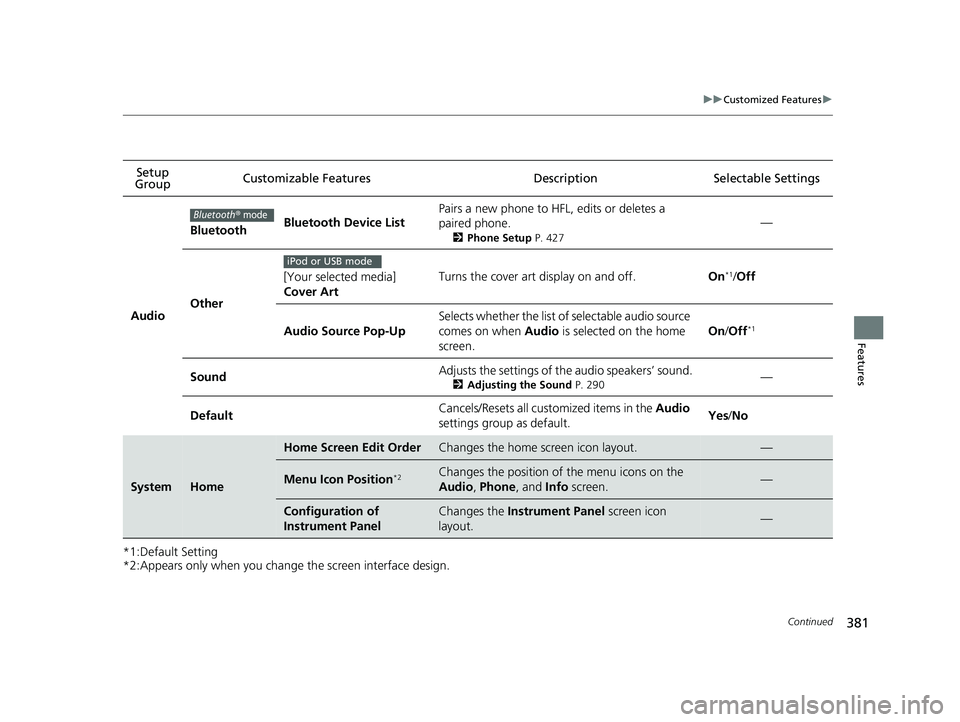

381
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Appears only when you change the screen interface design.
Setup
Group Customizable Features Description Selectable Settings
Audio
BluetoothBluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone.
2
Phone Setup P. 427
—
Other
[Your selected media]
Cover ArtTurns the cover art display on and off.On*1/Off
Audio Source Pop-Up
Selects whether the list of selectable audio source
comes on when Audio is selected on the home
screen.
On /Off*1
SoundAdjusts the settings of the audio speakers’ sound.
2 Adjusting the Sound P. 290—
DefaultCancels/Resets all customized items in the Audio
settings group as default.Yes /No
SystemHome
Home Screen Edit OrderChanges the home screen icon layout.—
Menu Icon Position*2Changes the position of the menu icons on the
Audio , Phone, and Info screen.—
Configuration of
Instrument PanelChanges the Instrument Panel screen icon
layout. —
Bluetooth® mode
iPod or USB mode
20 CR-V HYBRID HMIN-31TPG6000.book 381 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

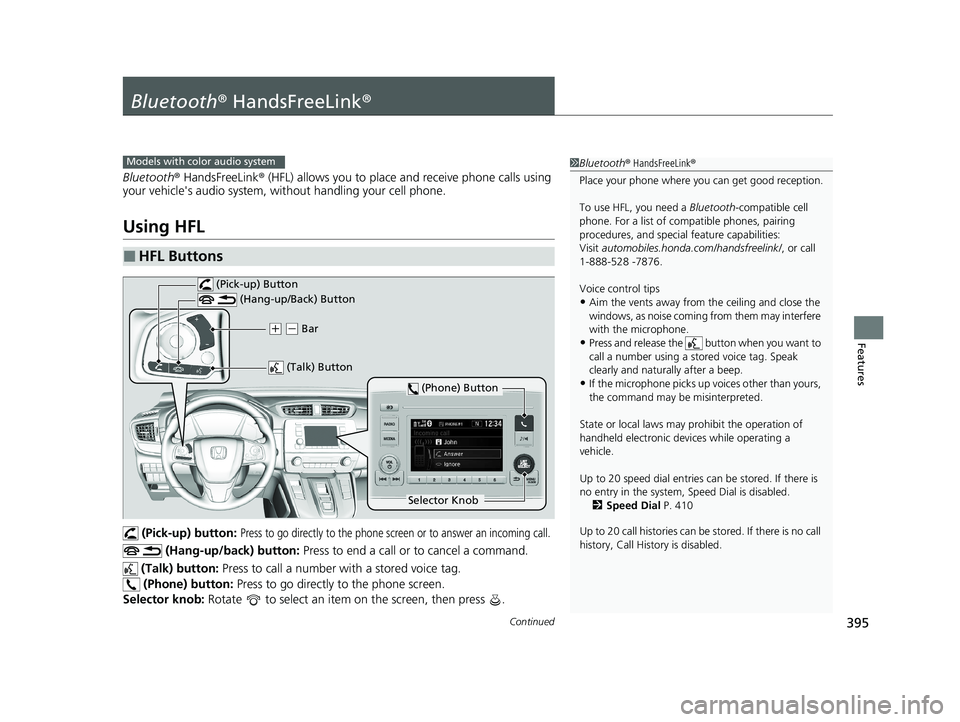

395Continued
Features
Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the phone screen or to answer an incoming call.
(Hang-up/back) button: Press to end a call or to cancel a command.
(Talk) button: Press to call a number with a stored voice tag.
(Phone) button: Press to go directly to the phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■HFL Buttons
1Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
Visit automobiles.honda.com /handsfreelink/, or call
1-888-528 -7876.
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.
•Press and release the button when you want to
call a number using a st ored voice tag. Speak
clearly and naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Up to 20 speed dial entries can be stored. If there is
no entry in the system, Speed Dial is disabled.
2 Speed Dial P. 410
Up to 20 call histories can be stored. If there is no call
history, Call History is disabled.
Models with color audio system
(Talk) Button
( + (- Bar
(Hang-up/Back) Button
(Pick-up) Button
Selector Knob
(Phone) Button
20 CR-V HYBRID HMIN-31TPG6000.book 395 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

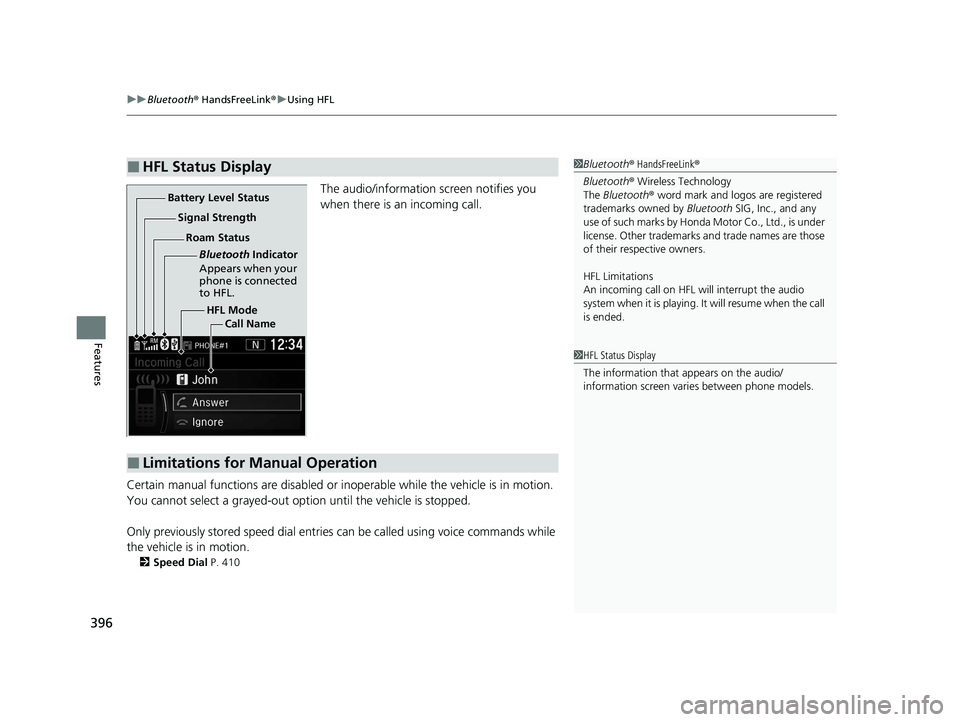

uuBluetooth ® HandsFreeLink ®u Using HFL
396
Features
The audio/information screen notifies you
when there is an incoming call.
Certain manual functions are disabled or in operable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries can be called using voice commands while
the vehicle is in motion.
2 Speed Dial P. 410
■HFL Status Display1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
s y s t e m wh e n it is p la y i n g . It wi ll r e s u m e w h en t h e c a l l
is ended.
HFL Mode
Battery Level Status
Signal Strength
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
Roam Status
Call Name
■Limitations for Manual Operation
1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
20 CR-V HYBRID HMIN-31TPG6000.book 396 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

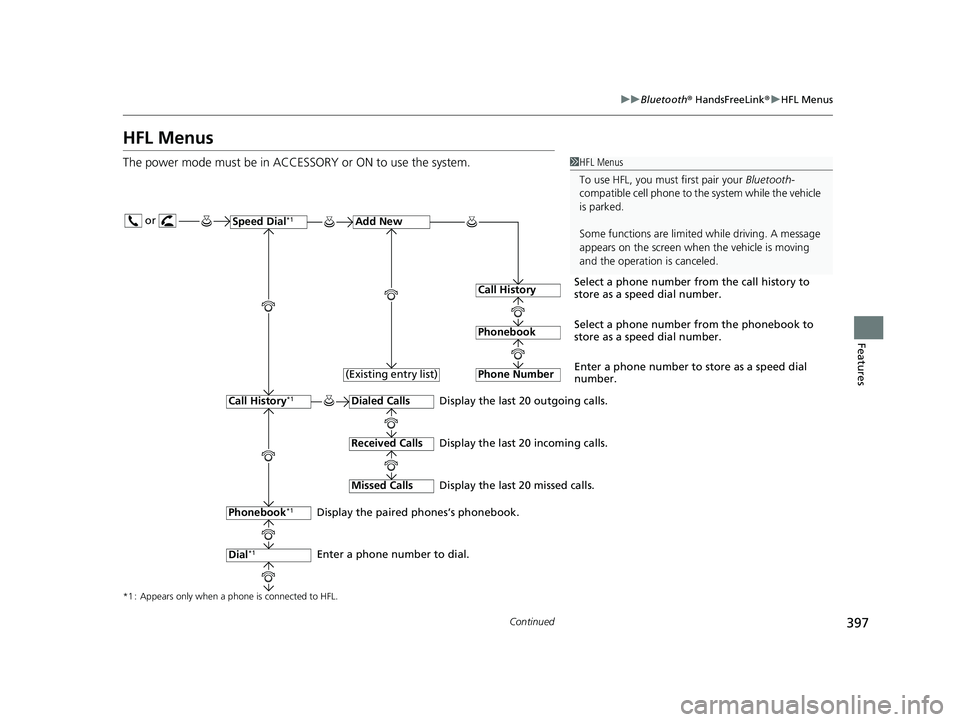

397
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
HFL Menus
The power mode must be in ACCESSO RY or ON to use the system.1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
or
Display the last 20 outgoing calls.
Display the last 20 incoming calls.
Display the last 20 missed calls.
*1 : Appears only when a phone is connected to HFL.
Speed Dial*1Add New
Select a phone number from the call history to
store as a speed dial number.
Call History
PhonebookSelect a phone number from the phonebook to
store as a speed dial number.
Phone Number
Enter a phone number to store as a speed dial
number.
Dialed Calls
Received Calls
Missed Calls
Phonebook*1
Dial*1
Call History*1
Display the paired phones’s phonebook.
Enter a phone number to dial. (Existing entry list)
20 CR-V HYBRID HMIN-31TPG6000.book 397 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

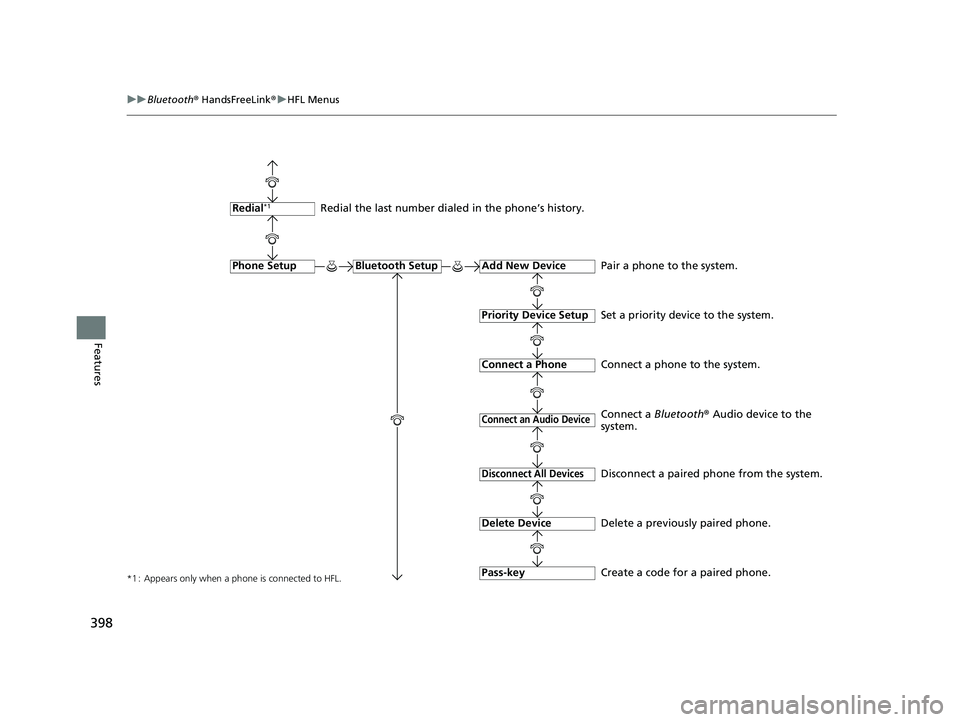

398
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
*1 : Appears only when a phone is connected to HFL.
Redial the last number dialed in the phone’s history.
Add New Device
Connect a Phone
Connect an Audio Device
Bluetooth SetupPhone Setup
Redial*1
Pair a phone to the system.
Connect a phone to the system.
Create a code for a paired phone.
Disconnect All Devices
Delete Device
Pass-key
Disconnect a paired phone from the system.
Delete a previously paired phone. Connect a Bluetooth® Audio device to the
system.
Priority Device Setup
Set a priority device to the system.
20 CR-V HYBRID HMIN-31TPG6000.book 398 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

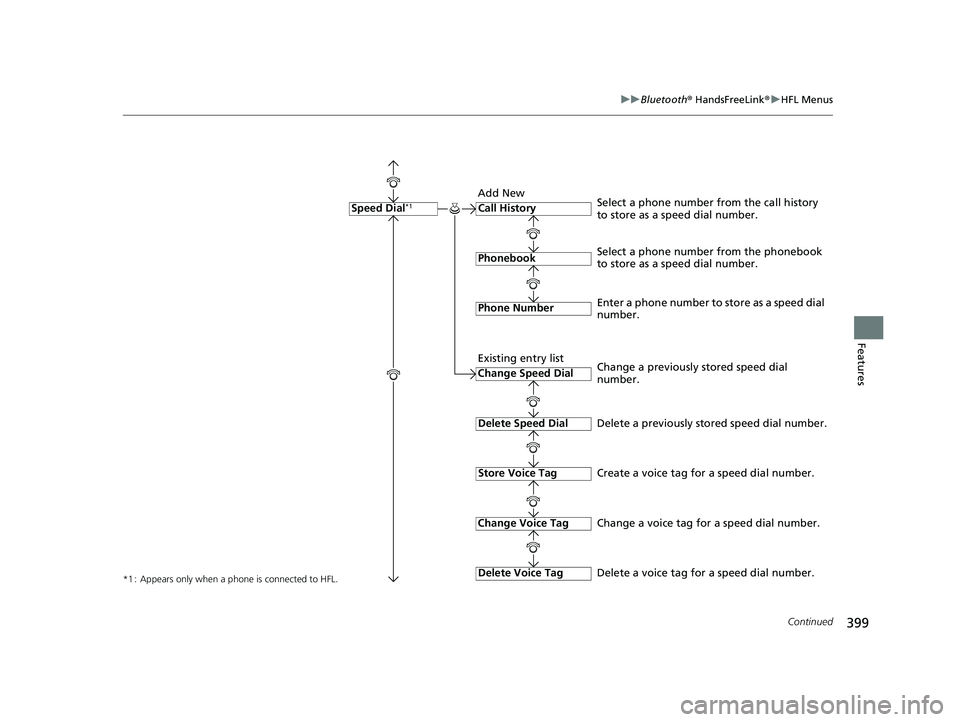

399
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
*1 : Appears only when a phone is connected to HFL.
Call History
Phonebook
Phone Number
Speed Dial*1
Select a phone number from the phonebook
to store as a speed dial number. Select a phone number from the call history
to store as a speed dial number.
Create a voice tag for a speed dial number.
Change Speed Dial
Delete Speed Dial
Store Voice Tag
Enter a phone number to store as a speed dial
number.
Delete a previously stored speed dial number.
Change Voice Tag
Delete Voice Tag
Change a previously stored speed dial
number.
Change a voice tag for a speed dial number.
Delete a voice tag for a speed dial number.
Add New
Existing entry list
20 CR-V HYBRID HMIN-31TPG6000.book 399 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
