uuWhen Driving uTurning on the Power
468
Driving
■To turn the power system off1Remote Engine Start
•You have already used the remote twice to turn the
power system on.
•Another registered smart entry remote is in the
vehicle.
•There is an antenna failure.
•The door is unlocked with the built-in key.
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The security system alarm is not set.
Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the power system off successfully. The exterior lights will not flash when the remote is out of
the smart entry system range.
The power system will not be turned off.
1 To turn the power system off
The power system may be turned off while it is on if:
•You do not start the vehicl e within 10 minutes of
turning the power system on with the button on
the smart entry remote.
•The power system is turned off by using the smart
entry remote.
•The door is unlocked with the built-in key.
•The hood is open.
•The transmission is in a position other than ( P.•The engine coolant temper ature is extremely high.
•The engine oil pressure is low.
•The Malfunction Indicator Lamp comes on if there
is a problem with the emissions control systems.
20 CR-V HYBRID HMIN-31TPG6000.book 468 ページ ２０１９年１１月２８日 木曜日 午後１時５０分
Page 615 of 687
613
Maintenance

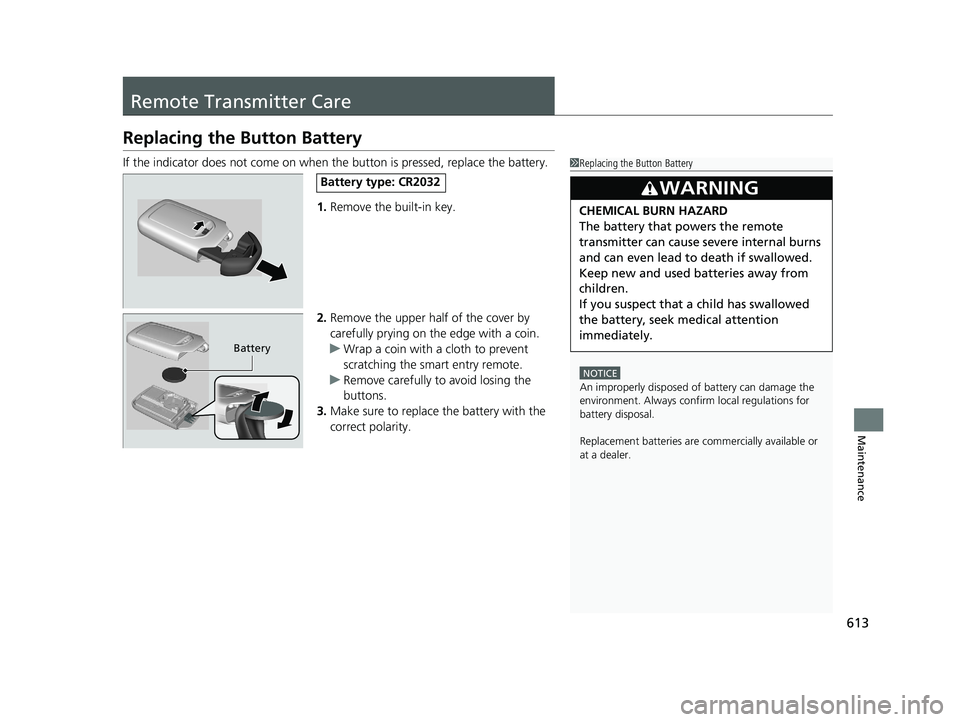

Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
20 CR-V HYBRID HMIN-31TPG6000.book 613 ページ ２０１９年１１月２８日 木曜日 午後１時５０分
Page 659 of 687
657
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACCESSORY10 A
2ACC KEY LOCK5 A
3IG1 P-DRV5 A
4IG1 OPTION 25 A
5IG1 OPTION10 A
6IG1 SRS 210 A
7IG1 METER10 A
8IG1 FUEL PUMP15 A
9IG2 A/C10 A
10CTR ACCESSORY SOCKET(20 A)
11IG1 MONITOR5 A
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14P/W RR L20 A
15P/W AS20 A
16DOOR LOCK20 A
17IG1 TCU(10 A)
18DR POWER LUMBAR*(10 A)
19MOONROOF*(20 A)
20IG1 STARTER10 A
21IG1 ACG10 A
22IG2 DAYTIME LIGHT10 A
23USB CHARGER*(7.5 A)
24+B OPTION5 A
25DR DOOR LOCK(10 A)
26R SIDE DOOR UNLOCK10 A
27P/W RR R20 A
28P/W DR20 A
29FR ACCESSORY SOCKET*20 A
30SMART10 A
31DR P/SEAT RECLINE*(20 A)
32FR HEATED SEAT*(20 A)
33DR P/SEAT SLIDE*(20 A)
34IG1 ABS/VSA10 A
35IG1 SRS10 A
36HAC OPTION20 A
37+B TRAILER15 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK(10 A)
aPTG*(20 A)
bAS P/SEAT SLIDE*(20 A)
cAS P/SEAT RECLINE*(20 A)
dSUNSHADE*(20 A)
eIMA 110 A
fRR HEATED SEAT*(20 A)
gHEATED STRG*(10 A)
hSBW15 A
Circuit ProtectedAmps
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 657 ページ ２０１９年１１月２８日 木曜日 午後１時５０分
Page 680 of 687
678
Index
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 502
Coat Hook ................................................. 221
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 502
Compass .................................................... 453
Continuously Variable Transmission Creeping ................................................. 472
Kickdown ................................................ 472
Controls ..................................................... 147
Coolant (Engine) ....................................... 589
Adding to the Radiator ............................ 590
Adding to the Reserve Tank ..................... 589
Overheating............................................. 645
Creeping (Continuously Variable Transmission) ........................................... 472
Cross Traffic Monitor ................................ 562
Cup Holders ............................................... 219
Customer Service Information ................. 674
Customized Features ................ 138, 359, 366
D
Daytime Running Lights ........................... 191
Dead Battery ............................................. 643
Deceleration Paddle Selector ................... 480
Indicator .................................................... 93
Defaulting All the Settings ...................... 391
Deflation Warning System Indicator .................................................... 97 Defrosting the Windshield and
Windows ................................................. 235
Detachable Anchor .................................... 53
Devices that Emit Radio Waves ............... 667
Dimming
Headlights ............................................... 187
Rearview Mirror....................................... 203
Dipstick (Engine Oil) ................................. 585
Directional Signals (Turn Signal) ............. 186
Display Setup .................................... 253, 291
Display/Information Button ..................... 126
Door Mirrors ............................................. 204
Doors ......................................................... 150
Auto Door Locking .................................. 163
Auto Door Unlocking .............................. 163
Keys ........................................................ 150
Locking/Unlocking the Doors from the
Inside .................................................... 160
Locking/Unlocking the Doors from the
Outside ................................................. 153
Lockout Prevention System ...................... 159
DOT Tire Quality Grading ........................ 605
Driver Information Interface ................... 126
Driver’s Seat Lumbar Support .................. 205
Driving ...................................................... 455
Braking ................................................... 547
Off-Highway Driving Guidelines............... 463
Shifting ................................................... 473
Transmission ........................................... 472
Driving Position Memory System ............ 200
Dust and Pollen Filter ............................... 614
E
Eco Assist® System ...................................... 18
Eco Drive Display ................................ 19, 130
ECON Mode .............................................. 483
Elapsed Time ............................................ 128
Electric Power Steering (EPS) System Indicator ........................................... 96, 652
Electronic Stability Control (ESC) ............ 485
Emergency ................................................ 659
Emissions Testing (Readiness Codes) ...... 669
Engine
Coolant .................................................. 589
Jump Starting ......................................... 643
Number .................................................. 666
Oil .......................................................... 584
Switch Buzzer ......................................... 184
Engine Coolant ........................................ 589
Adding to the Radiator ........................... 590
Adding to the Reserve Tank .................... 589
Overheating ............................................ 645
Engine Oil ................................................. 584
Adding ................................................... 586
Checking ................................................ 585
Displaying Oil Life ................................... 578
Low Oil Pressure Indicator ................. 91, 648
Recommended Engine Oil ....................... 584
EPS (Electric Power Steering) System ............................................... 96, 652
EV Button ................................................... 14
EV Indicator ................................................ 92
EV Mode Indicator ..................................... 92
20 CR-V HYBRID HMIN-31TPG6000.book 678 ページ ２０１９年１１月２８日 木曜日 午後１時５０分
Page 682 of 687
680
Index
HondaLink®............................................. 322
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive).................................... 11
I
Identification Numbers ............................ 666
Engine, Motor and Transmission .............. 666
Vehicle Identification ............................... 666
Illumination Control ................................. 199
Knob ....................................................... 199
Immobilizer System .................................. 175
Indicator .................................................... 99
Indicators ..................................................... 88
12-volt Battery Charging System ........ 93, 648
ABS (Anti-lock Brake System) ..................... 95
Adaptive Cruise Control (ACC) with Low
Speed Follow ......................... 103, 104, 514
Auto High-Beam ........................................ 99
Automatic Brake Hold........................ 91, 551
Automatic Brake Hold System .................... 91
Blind spot information System ................. 100
Collision Mitigation Braking System
(CMBS) .......................................... 105, 106
Deceleration Paddle Selector ...................... 93
ECON Mode .................................... 100, 483
Electric Power Steering (EPS) System .. 96, 652
EV ............................................................. 92
EV Mode ................................................... 92
Fog Light ................................................... 99 High Beam ................................................ 98
Immobilizer System ................................... 99
Lane Keeping Assist System (LKAS) .......... 104
Lights On .................................................. 99
Low Fuel ................................................... 94
Low Oil Pressure ................................ 91, 648
Low Tire Pressure/TPMS ............. 97, 493, 653
Malfunction Indicator Lamp............... 92, 649
Parking Brake a
nd Brake System
(Amber) ........................................... 90, 651
Parking Brake a nd Brake System
(Red) ....................................... 89, 650, 651
Power System............................................ 91
READY ...................................................... 92
Road Departure Mitiga tion (RDM) ... 101, 102
Seat Belt Reminder .............................. 49, 94
Security System Alarm ............................. 100
Shift Position ............................................. 93
SPORT Mode ..................................... 94, 479
Supplemental Restraint System ............ 67, 95
System Message ........................................ 98
Transmission System.......................... 93, 654
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 485
VSA ® OFF .......................................... 96, 486
Information .............................................. 663
Instrument Panel ........................................ 87
Brightness Control................................... 199
Interior Lights ........................................... 215
Interior Rearview Mirror .......................... 203iPod
................................................... 256, 308
J
Jump Starting ........................................... 643
K
Key Number Tag ...................................... 151
Keyless Lockout Prevention ..................... 159
Keys ........................................................... 150
Lockout Prevention ................................. 159
Master Keys ............................................ 150
Number Tag............................................ 151
Rear Door Won’t Open ........................... 162
Remote Transmitter ................................ 157
Types and Functions................................ 150
Kickdown (Continuously Variable Transmission) .......................................... 472
L
Lane Keeping Assist System (LKAS) ........ 530
LATCH (Child Seats) ............................. 75, 80
Lights ................................................ 187, 594
Auto High-Beam ..................................... 192
Automatic............................................... 188
Bulb Replacement ................................... 594
Daytime Running Lights .......................... 191
Fog Lights ............................................... 191
High Beam Indicator Light ......................... 98
Interior.................................................... 215
20 CR-V HYBRID HMIN-31TPG6000.book 680 ページ ２０１９年１１月２８日 木曜日 午後１時５０分
Page 683 of 687
681
Index
Light Switches......................................... 187
Lights On Indicator.................................... 99
Turn Signals ............................................ 186
Load Limits ............................................... 459
Locking/Unlocking ................................... 150
Auto Door Locking/Unlocking ................. 163
Childproof Door Locks ............................ 162
From Inside ............................................. 160
From Outside .......................................... 153
Keys........................................................ 150
Using a Key............................................. 158
Lockout Prevention System ..................... 159
Low Battery Charge ................................. 648
Low Fuel Indicator ..................................... 94
Low Oil Pressure Indicator ................. 91, 648
Low Smart Entry Remote Signal Strength .................................................. 152
Low Tire Pressure/TPMS Indicator ............. 97
Lower Anchors ........................................... 75
Luggage (Maximum Load Limit) ............. 459
Lumbar Support ....................................... 206
Lumbar Support Adjustment Switch ...... 206
M
Maintenance............................................ 573
12-volt Battery ........................................ 611
Brake Fluid .............................................. 592
Cleaning ................................................. 615
Coolant .................................................. 589
Maintenance Minder
TM............................ 577 Oil ........................................................... 585
Precautions .............................................. 574
Radiator .................................................. 590
Remote Transmitter ................................. 613
Replacing Light Bulbs ............................... 594
Safety ...................................................... 575
Service Items ........................................... 580
Tires ........................................................ 602
Transmission Fluid ................................... 591
Under the Hood ...................................... 582
Maintenance Minder ........................ 129, 577
Malfunction Indicator Lamp .............. 92, 649
Map Lights ................................................ 216
Maximum Load Limit ............................... 459
Meters, Gauges ......................................... 124
Mirrors ....................................................... 203
Adjusting ................................................. 203
Door ........................................................ 204
Exterior .................................................... 204
Interior Rearview ..................................... 203
Modifications (and Accessories) .............. 620
Moonroof .................................................. 182
MP3 ................................................... 261, 317
Multi-View Rear Camera .......................... 566
N
Navigation................................................ 137
Numbers (Identification) .......................... 666
O
Odometer................................................. 127
Off-Highway Driving Guidelines ............. 463
Oil (Engine) ............................................... 584
Adding .................................................... 586
Checking................................................. 585
Displaying Oil Life .................................... 578
Low Oil Pressure Indicator ................. 91, 648
Recommended Engine Oil ....................... 584
Viscosity .................................................. 584
Open Source Licenses ............................... 358
Opening/Closing Hood....................................................... 583
Moonroof ............................................... 182
Power Windows ...................................... 178
Tailgate ................................................... 164
Outside Temperature Display .................. 136
Overheating .............................................. 645
P
Pandora®......................................... 259, 315
Panic Mode ............................................... 177
Parking ...................................................... 555
Parking Brake ........................................... 547
Parking Brake and Brake System Indicator (Amber) ............................................. 90, 651
Parking Brake and Brake System Indicator (Red) .......................................... 89, 650, 651
Parking Sensor System ............................. 557
Passenger Front Airb ag Off Indicator....... 68
20 CR-V HYBRID HMIN-31TPG6000.book 681 ページ ２０１９年１１月２８日 木曜日 午後１時５０分
