HONDA CR-V HYBRID 2020 Owner's Manual (in English)
Manufacturer: HONDA, Model Year: 2020, Model line: CR-V HYBRID, Model: HONDA CR-V HYBRID 2020Pages: 687, PDF Size: 41.59 MB
Page 451 of 687

Continued449
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 447
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 447
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receive and send messages when
paired and connected. For a list of compatible
phones, visit automobiles.honda.com/handsfreelink/ ,
or call 1-888-528-7876.
20 CR-V HYBRID HMIN-31TPG6000.book 449 ページ 2019年11月28日 木曜日 午後1時50分
Page 452 of 687

450
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
20 CR-V HYBRID HMIN-31TPG6000.book 450 ページ 2019年11月28日 木曜日 午後1時50分
Page 453 of 687

Continued451
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■Automatic collis ion notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information ab out your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with Ho ndaLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at
www.hondalink.com/TermsAndConditions . In a crash, HondaLink Assist will
attempt to notify emergency services but NEITHER Honda-PRO NOR ITS SERVICE
PROVIDERS GUARANTEE THAT SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellul ar coverage, your vehicle's location may not
be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the H ondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
20 CR-V HYBRID HMIN-31TPG6000.book 451 ページ 2019年11月28日 木曜日 午後1時50分
Page 454 of 687

uuBluetooth ® HandsFreeLink ®u HFL Menus
452
Features
■To enable notification
1.Go to the Phone Settings screen.
2Phone Settings screen P. 422
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
20 CR-V HYBRID HMIN-31TPG6000.book 452 ページ 2019年11月28日 木曜日 午後1時50分
Page 455 of 687

453
Features

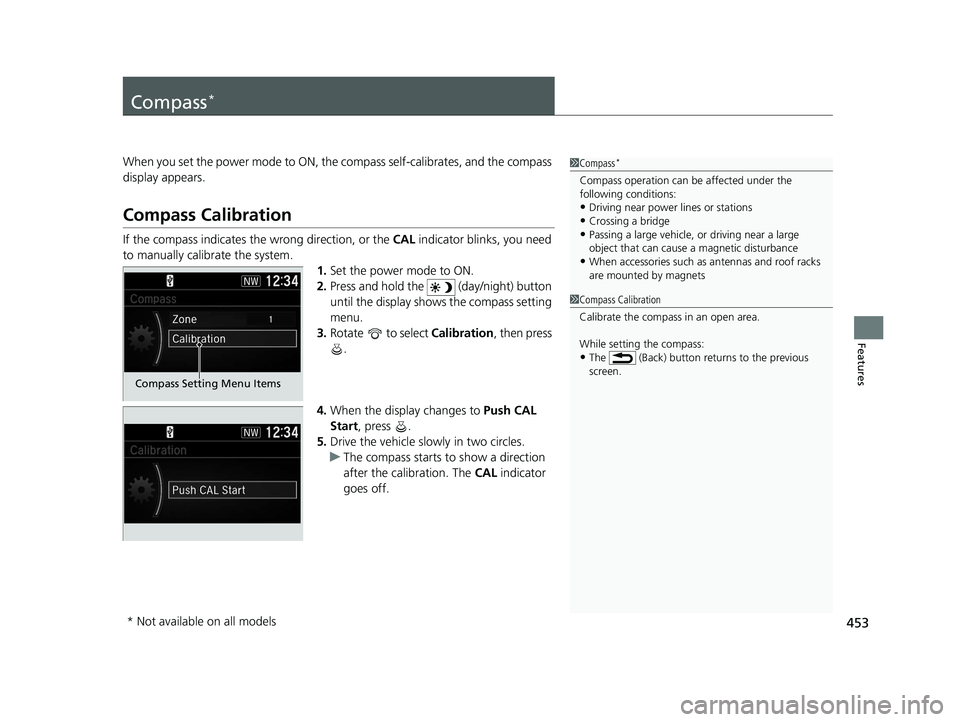

Compass*
When you set the power mode to ON, the compass self-calibrates, and the compass
display appears.
Compass Calibration
If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system.
1.Set the power mode to ON.
2. Press and hold the (day/night) button
until the display shows the compass setting
menu.
3. Rotate to select Calibration, then press
.
4. When the display changes to Push CAL
Start, press .
5. Drive the vehicle slow ly in two circles.
u The compass starts to show a direction
after the calibration. The CAL indicator
goes off.
1 Compass*
Compass operation can be affected under the
following conditions:
•Driving near power lines or stations
•Crossing a bridge•Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance
•When accessories such as antennas and roof racks
are mounted by magnets
1 Compass Calibration
Calibrate the compass in an open area.
While setting the compass:
•The (Back) button returns to the previous
screen.
Compass Setting Menu Items
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 453 ページ 2019年11月28日 木曜日 午後1時50分
Page 456 of 687

454
uuCompass*uCompass Zone Selection
Features

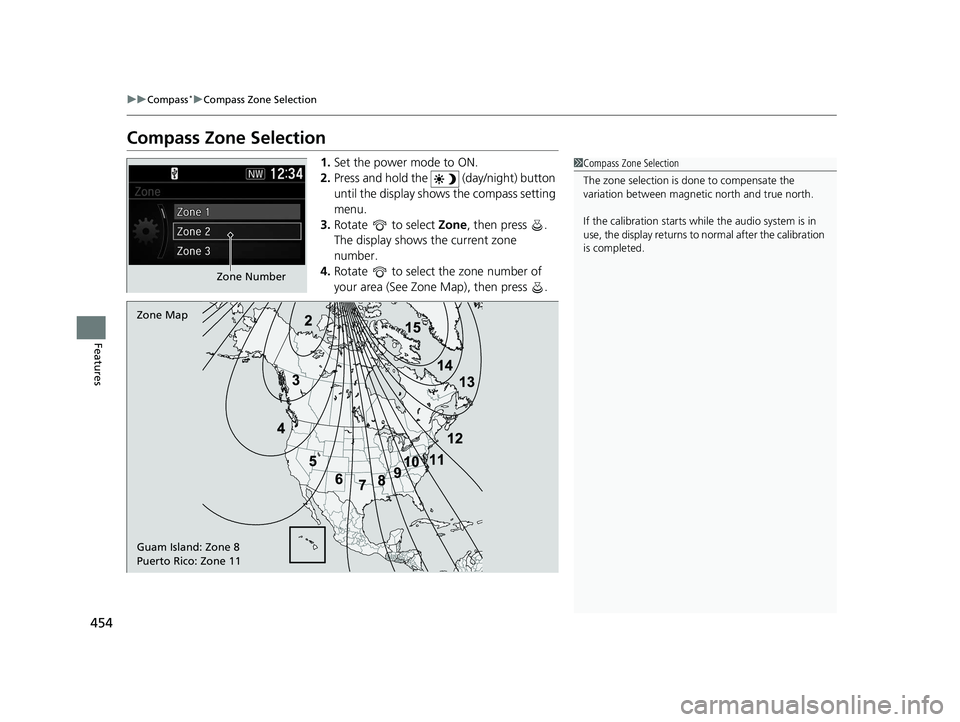

Compass Zone Selection
1. Set the power mode to ON.
2. Press and hold the (day/night) button
until the display shows the compass setting
menu.
3. Rotate to select Zone, then press .
The display shows the current zone
number.
4. Rotate to select the zone number of
your area (See Zone Map), then press .1Compass Zone Selection
The zone selection is done to compensate the
variation between magneti c north and true north.
If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.
Zone Number
Zone Map
Guam Island: Zone 8
Puerto Rico: Zone 11
20 CR-V HYBRID HMIN-31TPG6000.book 454 ページ 2019年11月28日 木曜日 午後1時50分
Page 457 of 687

455
Driving
This chapter discusses driving and refueling.
Before Driving................................... 456
Towing a Trailer ................................ 461
Towing Your Vehicle ........................ 462
Off-Highway Driving Guidelines General Information ......................... 463
Important Safety Precautions............ 463
Avoiding Trouble ............................. 464
When Driving Turning on the Power ...................... 465
Precautions While Driving................. 471
Transmission .................................... 472
Shifting ............................................ 473
SPORT Mode.................................... 479 Deceleration Paddl
e Selector ............ 480
ECON Mode .................................... 483
Acoustic Vehicle Alerting System...... 484
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 485
Agile Handling Assist ....................... 487
Real Time AWD with Intelligent Control System
TM........................................ 488Tire Pressure Monitoring System (TPMS) .. 489Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 493
Blind spot information System*........... 495High Voltage Battery ........................ 498 Honda Sensing
®................................ 499
Collision Mitigation Braking SystemTM (CMBSTM) .... 502Adaptive Cruise Control (ACC) with Low Speed Follow ....... 513Lane Keeping Assist System (LKAS) .. 530Road Departure Mitigation (RDM) System.... 539Front Sensor Camera ....................... 544
Radar Sensor ................................... 546
Braking Brake System ................................... 547
Anti-lock Brake System (ABS) ........... 553
Brake Assist System ......................... 554
Parking Your Vehicle ........................ 555
Multi-View Rear Camera .................. 566
Refueling ........................................... 568
Fuel Economy and CO
2 Emissions .... 571
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 455 ページ 2019年11月28日 木曜日 午後1時50分
Page 458 of 687

456
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 602
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
20 CR-V HYBRID HMIN-31TPG6000.book 456 ページ 2019年11月28日 木曜日 午後1時50分

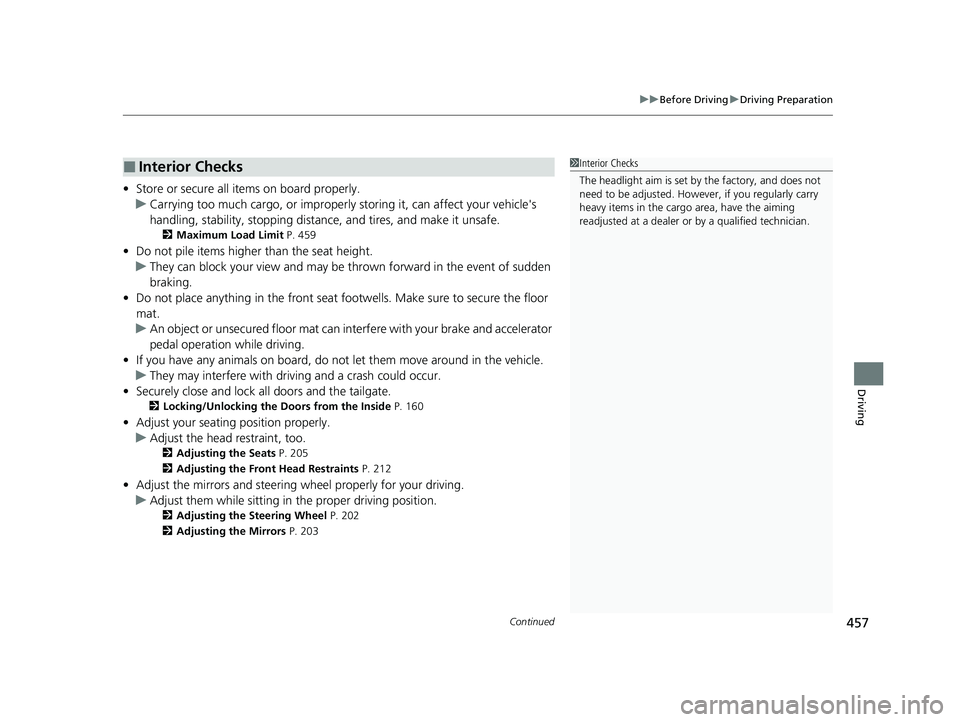

Page 459 of 687

Continued457
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 459
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 160
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 205
2 Adjusting the Front Head Restraints P. 212
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 202
2 Adjusting the Mirrors P. 203
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
20 CR-V HYBRID HMIN-31TPG6000.book 457 ページ 2019年11月28日 木曜日 午後1時50分

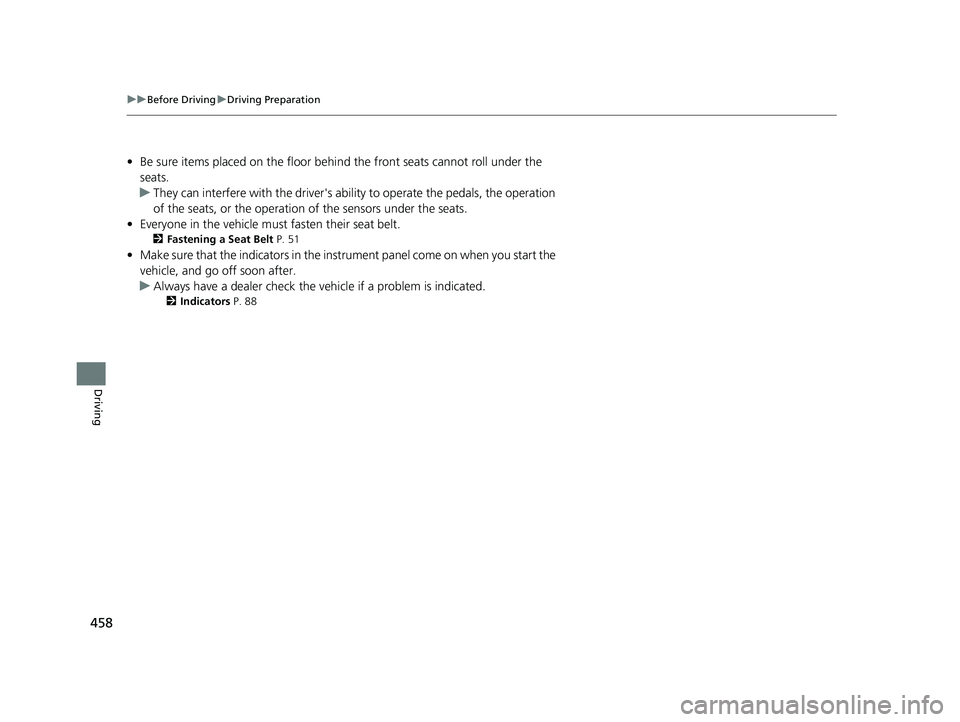

Page 460 of 687

458
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 51
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 88
20 CR-V HYBRID HMIN-31TPG6000.book 458 ページ 2019年11月28日 木曜日 午後1時50分
