uuCleaning uExterior Care
Maintenance

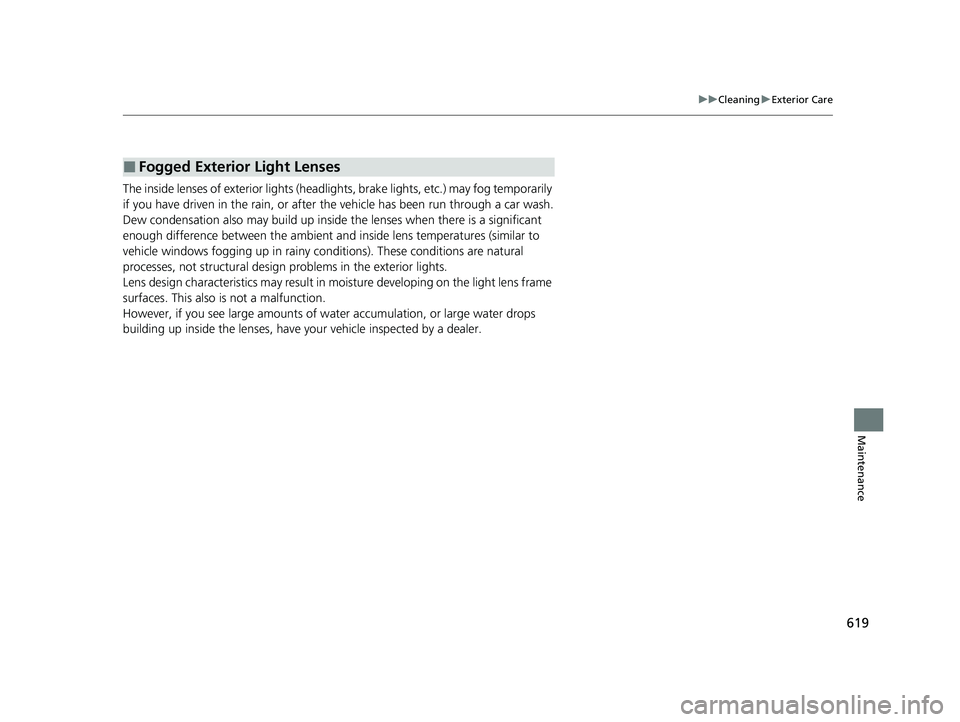

The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
20 CR-V HYBRID HMIN-31TPG6000.book 619 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

620
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshie ld. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 655
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a d ealer inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner's
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Honda high-voltage
battery assembly, or it s equivalent, in your
vehicle.
20 CR-V HYBRID HMIN-31TPG6000.book 620 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

621
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle system s can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, pr ovince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1 962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical syst ems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle’s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Honda high-
voltage battery assembly. Genuine Honda high-voltage battery assemblies are
designed to work with your vehicle’s hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have b een similarly designed, engineered and
manufactured, and installation of such assemblies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.
20 CR-V HYBRID HMIN-31TPG6000.book 621 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

622
20 CR-V HYBRID HMIN-31TPG6000.book 622 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

623
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 624
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 625
Handling of the Jack ......................... 639
Power System Won’t Start Checking the Procedure ................... 640
If the Smart Entry Remote Battery is Weak .......................................... 641
Emergency Power System Off........... 642
Jump Starting .................................... 643
Overheating How to Handle Overheating ............. 645 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 648
If the 12-volt Batt ery Charging System
Indicator Comes On ....................... 648
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 649
If the Brake System Indicator (Red) Comes On or Blinks ................................... 650
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 651
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 652
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 653
If the Transmission System Indicator Blinks along with the Warning Message... 654
Fuses Fuse Locations ................................. 655
Inspecting and Changing Fuses ........ 658
Emergency Towing ........................... 659
When You Cannot Open the Tailgate.. 660Refueling................................................. 661
20 CR-V HYBRID HMIN-31TPG6000.book 623 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

624
Handling the Unexpected

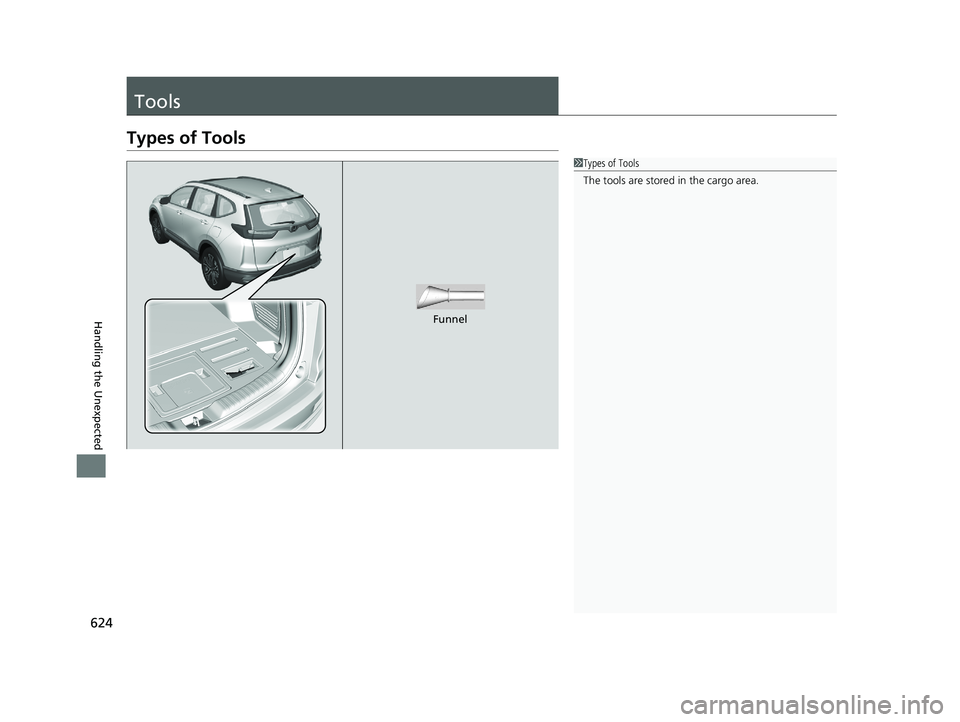

Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Funnel
20 CR-V HYBRID HMIN-31TPG6000.book 624 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

625Continued
Handling the Unexpected

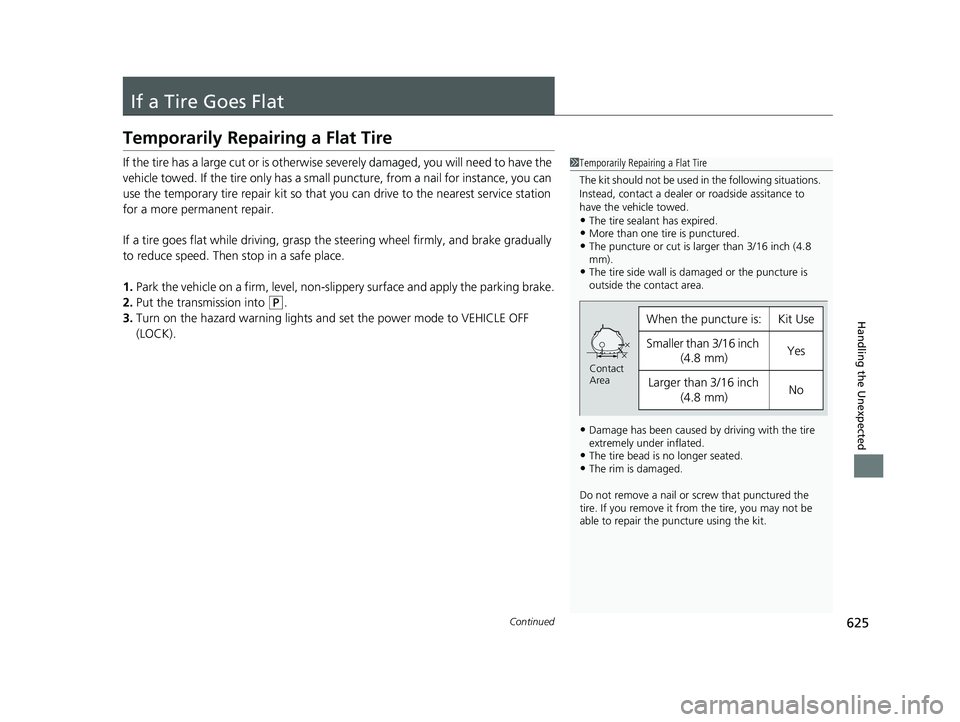

If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assitance to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4.8
mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4.8 mm)Yes
Larger than 3/16 inch
(4.8 mm)No
Contact
Area
20 CR-V HYBRID HMIN-31TPG6000.book 625 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
626
Handling the Unexpected

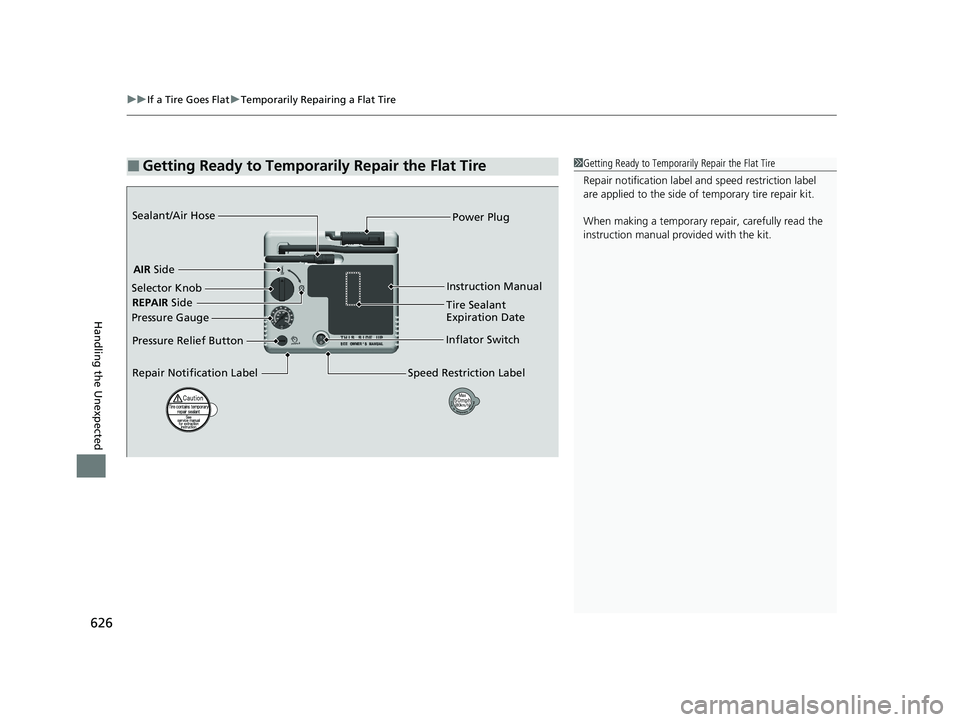

■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Selector Knob
Speed Restriction Label
Repair Notification Label Pressure Relief Button Inflator SwitchInstruction Manual
REPAIR Side
Sealant/Air Hose
AIR Side Power Plug
Pressure Gauge Tire Sealant
Expiration Date
20 CR-V HYBRID HMIN-31TPG6000.book 626 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

627
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

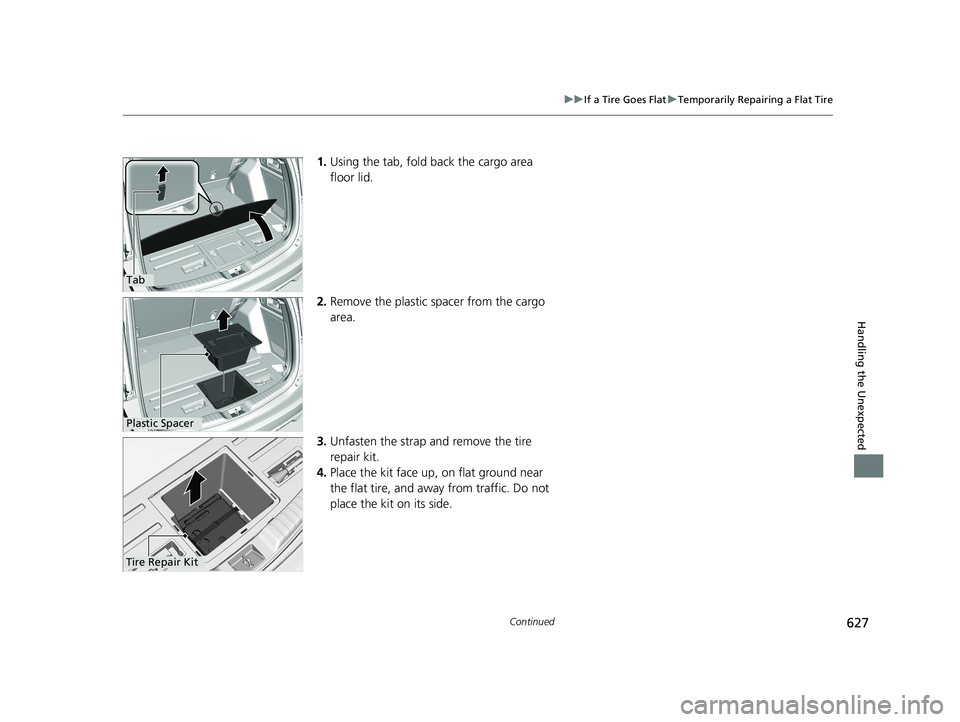

1. Using the tab, fold back the cargo area
floor lid.
2. Remove the plastic spacer from the cargo
area.
3. Unfasten the strap and remove the tire
repair kit.
4. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Tab
Plastic Spacer
Tire Repair Kit
20 CR-V HYBRID HMIN-31TPG6000.book 627 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
628
Handling the Unexpected

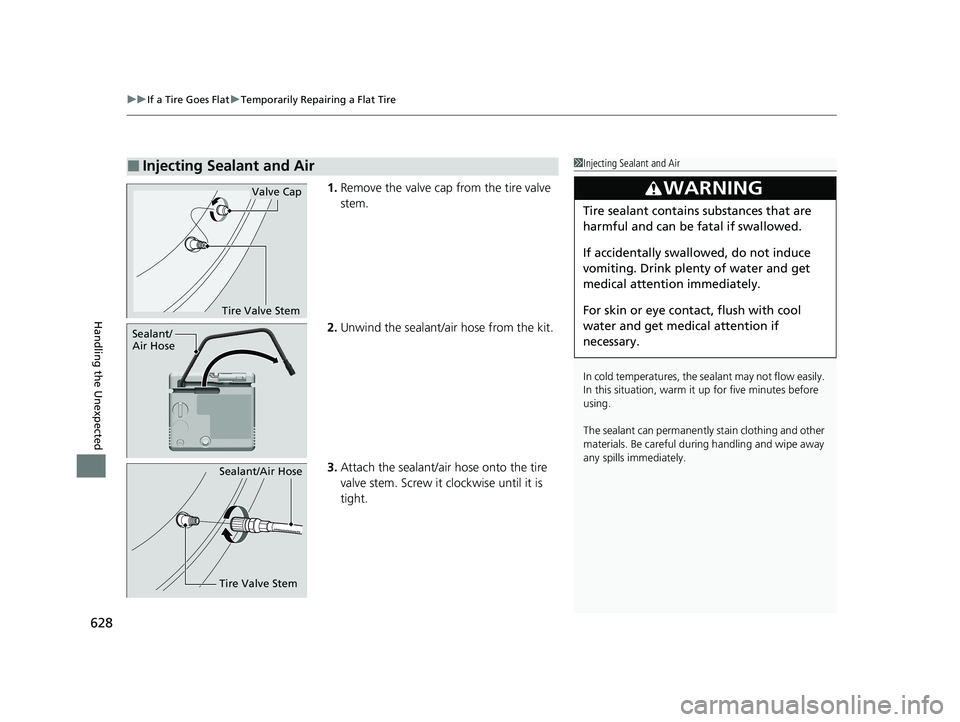

1. Remove the valve cap from the tire valve
stem.
2. Unwind the sealant/air hose from the kit.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it clockwise until it is
tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Tire Valve Stem
Valve Cap
Sealant/
Air Hose
Tire Valve Stem
Sealant/Air Hose
