fog light bulb HONDA CR-V HYBRID 2020 Owner's Manual (in English)

594
Maintenance

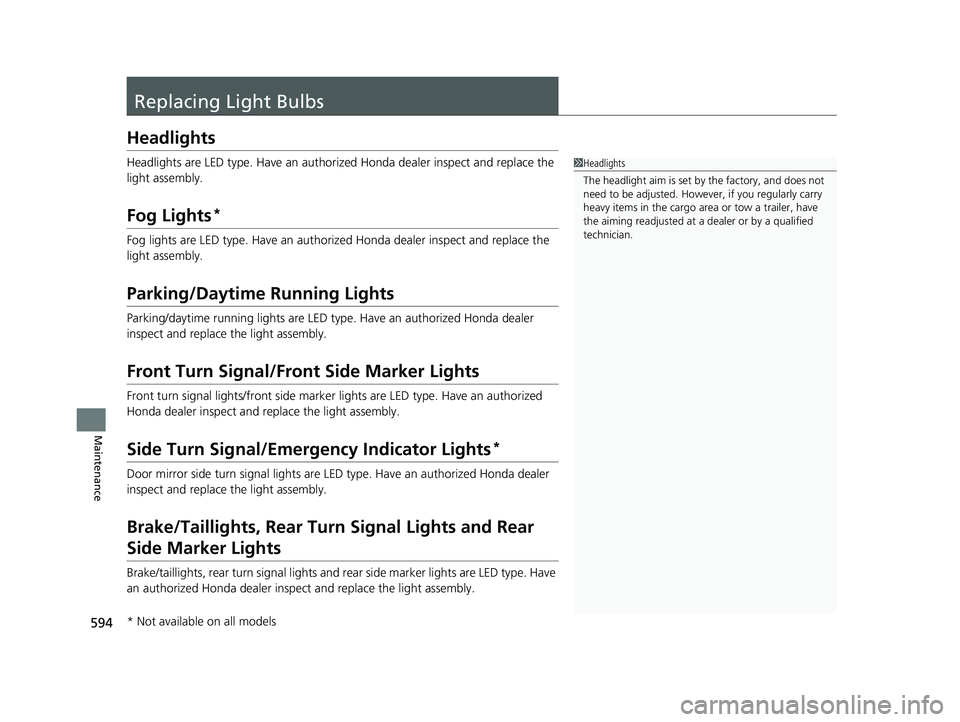

Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal/Front Side Marker Lights
Front turn signal lights/front side marker lights are LED type. Have an authorized
Honda dealer inspect and re place the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn signal lights are LE D type. Have an authorized Honda dealer
inspect and replace the light assembly.
Brake/Taillights, Rear Turn Signal Lights and Rear
Side Marker Lights
Brake/taillights, rear turn sign al lights and rear side marker lights are LED type. Have
an authorized Honda dealer inspec t and replace the light assembly.
1Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 594 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

664
Information

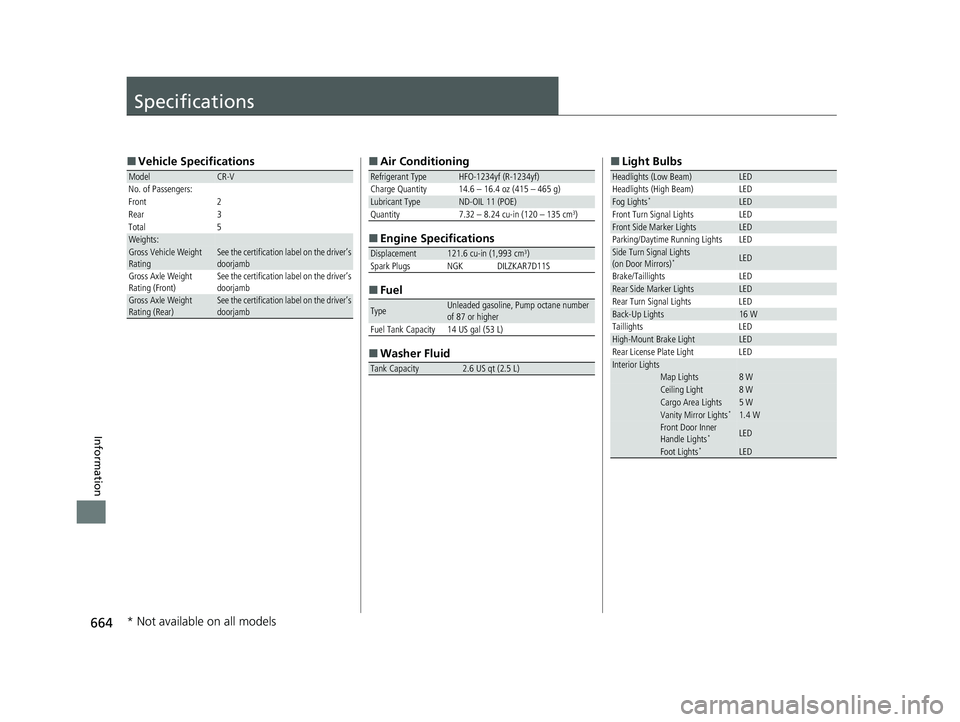

Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
Displacement121.6 cu-in (1,993 cm3)Spark PlugsNGKDILZKAR7D11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Parking/Daytime Running Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake/Taillights LED
Rear Side Marker LightsLED
Rear Turn Signal Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WCargo Area Lights5 WVanity Mirror Lights*1.4 WFront Door Inner
Handle Lights*LED
Foot Lights*LED
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 664 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

680
Index
HondaLink®............................................. 322
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive).................................... 11
I
Identification Numbers ............................ 666
Engine, Motor and Transmission .............. 666
Vehicle Identification ............................... 666
Illumination Control ................................. 199
Knob ....................................................... 199
Immobilizer System .................................. 175
Indicator .................................................... 99
Indicators ..................................................... 88
12-volt Battery Charging System ........ 93, 648
ABS (Anti-lock Brake System) ..................... 95
Adaptive Cruise Control (ACC) with Low
Speed Follow ......................... 103, 104, 514
Auto High-Beam ........................................ 99
Automatic Brake Hold........................ 91, 551
Automatic Brake Hold System .................... 91
Blind spot information System ................. 100
Collision Mitigation Braking System
(CMBS) .......................................... 105, 106
Deceleration Paddle Selector ...................... 93
ECON Mode .................................... 100, 483
Electric Power Steering (EPS) System .. 96, 652
EV ............................................................. 92
EV Mode ................................................... 92
Fog Light ................................................... 99 High Beam ................................................ 98
Immobilizer System ................................... 99
Lane Keeping Assist System (LKAS) .......... 104
Lights On .................................................. 99
Low Fuel ................................................... 94
Low Oil Pressure ................................ 91, 648
Low Tire Pressure/TPMS ............. 97, 493, 653
Malfunction Indicator Lamp............... 92, 649
Parking Brake a
nd Brake System
(Amber) ........................................... 90, 651
Parking Brake a nd Brake System
(Red) ....................................... 89, 650, 651
Power System............................................ 91
READY ...................................................... 92
Road Departure Mitiga tion (RDM) ... 101, 102
Seat Belt Reminder .............................. 49, 94
Security System Alarm ............................. 100
Shift Position ............................................. 93
SPORT Mode ..................................... 94, 479
Supplemental Restraint System ............ 67, 95
System Message ........................................ 98
Transmission System.......................... 93, 654
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 485
VSA ® OFF .......................................... 96, 486
Information .............................................. 663
Instrument Panel ........................................ 87
Brightness Control................................... 199
Interior Lights ........................................... 215
Interior Rearview Mirror .......................... 203iPod
................................................... 256, 308
J
Jump Starting ........................................... 643
K
Key Number Tag ...................................... 151
Keyless Lockout Prevention ..................... 159
Keys ........................................................... 150
Lockout Prevention ................................. 159
Master Keys ............................................ 150
Number Tag............................................ 151
Rear Door Won’t Open ........................... 162
Remote Transmitter ................................ 157
Types and Functions................................ 150
Kickdown (Continuously Variable Transmission) .......................................... 472
L
Lane Keeping Assist System (LKAS) ........ 530
LATCH (Child Seats) ............................. 75, 80
Lights ................................................ 187, 594
Auto High-Beam ..................................... 192
Automatic............................................... 188
Bulb Replacement ................................... 594
Daytime Running Lights .......................... 191
Fog Lights ............................................... 191
High Beam Indicator Light ......................... 98
Interior.................................................... 215
20 CR-V HYBRID HMIN-31TPG6000.book 680 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
