uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
20 CR-V HYBRID HMIN-31TPG6000.book 649 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

650
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected

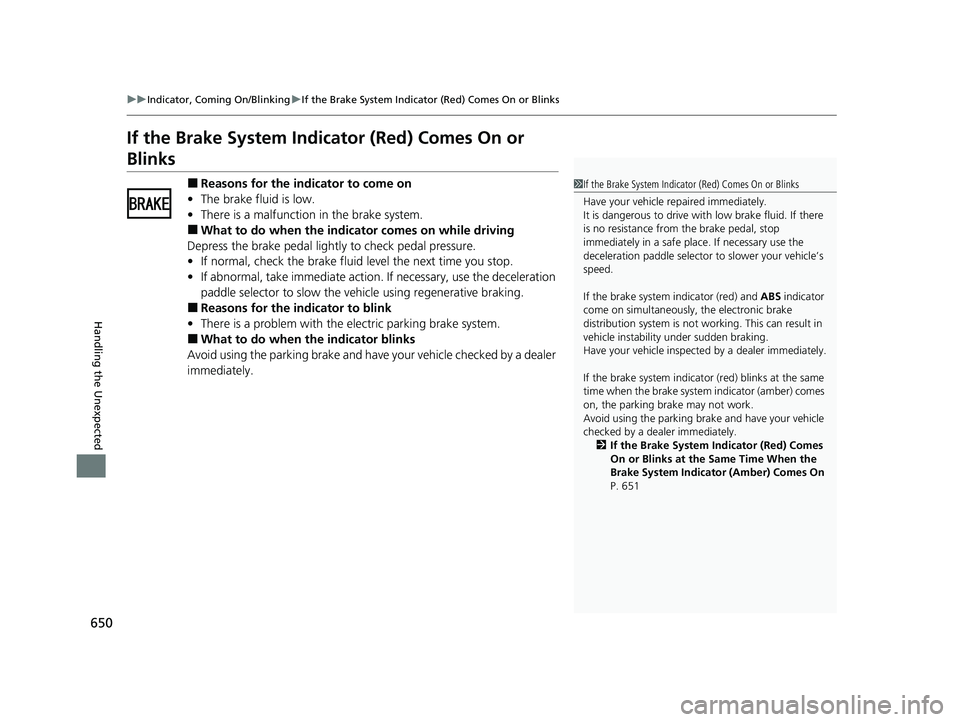

If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, use the deceleration
paddle selector to slow the vehicle using regenerative braking.
■Reasons for the in dicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary use the
deceleration paddle se lector to slower your vehicle’s
speed.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not wo rking. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 651
20 CR-V HYBRID HMIN-31TPG6000.book 650 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

651
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected

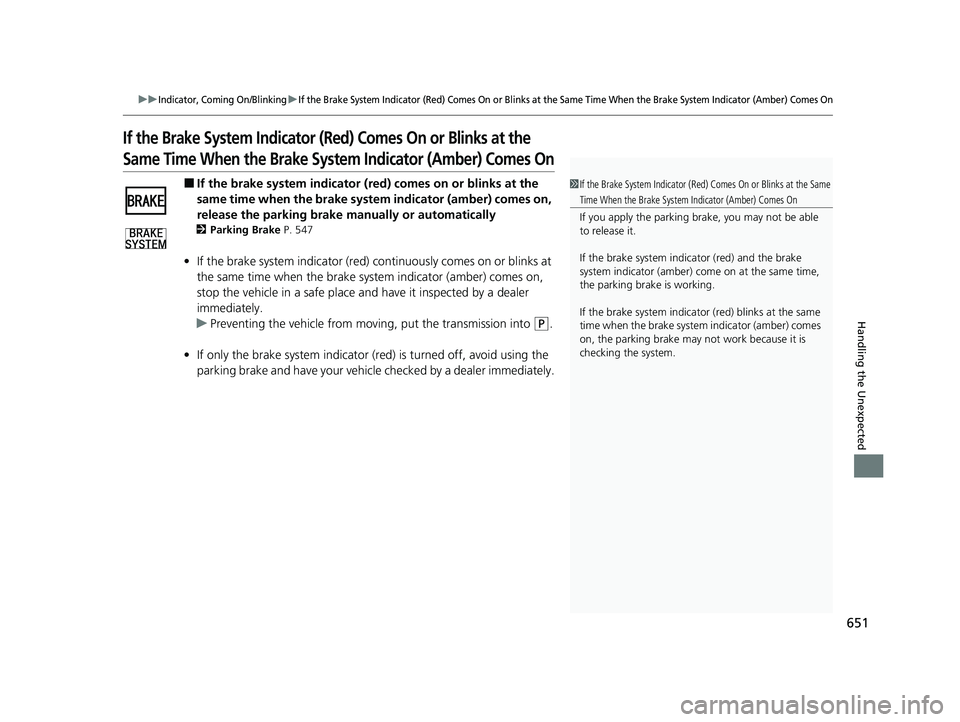

If the Brake System Indicator (Red) Comes On or Blinks at the
Same Time When the Brake System Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (amber) comes on,
release the parking brake ma nually or automatically
2Parking Brake P. 547
•If the brake system indicator (red) co ntinuously comes on or blinks at
the same time when the brake sy stem indicator (amber) comes on,
stop the vehicle in a safe place an d have it inspected by a dealer
immediately.
u Preventing the vehicle from mo ving, put the transmission into
(P.
• If only the brake system indicator (red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
20 CR-V HYBRID HMIN-31TPG6000.book 651 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

652
uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected

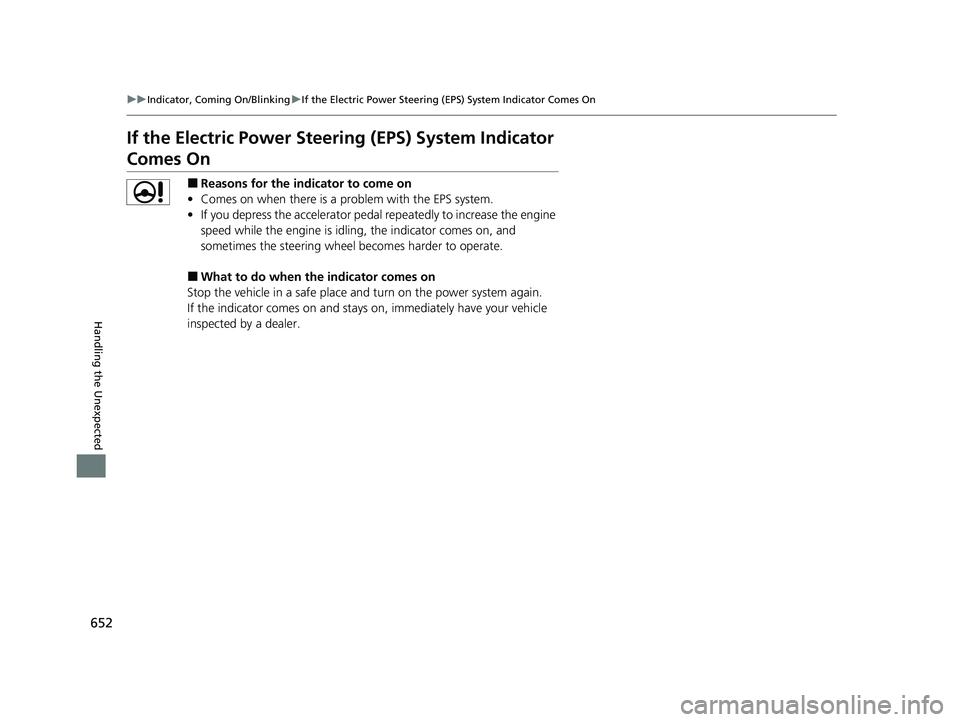

If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place an d turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
20 CR-V HYBRID HMIN-31TPG6000.book 652 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

653
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 489
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible.
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
20 CR-V HYBRID HMIN-31TPG6000.book 653 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

654
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 659
20 CR-V HYBRID HMIN-31TPG6000.book 654 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

655Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
OP BLOCK 240 A
ESB(40 A)
ABS/VSA FSR40 A
R/M 130 A
IG MAIN 230 A
R/M 230 A
MAIN FUSE150 A
2
EPS70 A
IG MAIN 130 A
FUSE BOX OPTION40 A
FUSE BOX 160 A
FRONT WIPER MOTOR30 A
P-ACT30 A
3
REAR DEFROSTER40 A
−(30 A)
FUSE BOX 240 A
ABS/VSA MOTOR40 A
−(40 A)
BLOWER MOTOR40 A
4
POWER TAILGATE*(40 A)
OP BLOCK 1*(40 A)
AWD(20 A)
IG HOLD 2(20 A)
5−−
6WASHER15 A
7IGP15 A
8FI SUB15 A
9STOP LIGHTS10 A
10IG HOLD 110 A
11IGPS7.5 A
12FI ECU10 A
13PCU EWP10 A
14HAZARD10 A
15IG COIL15 A
16RFC COIL5 A
17FRONT DEICER*(15 A)
18BACK UP10 A
19AUDIO15 A
20AUDIO AMP*(20 A)
21−−
22SHUTTER GRILLE10 A
23A/C WATER PUMP10 A
24HORN10 A
25−−
26−−
27−−
Circuit ProtectedAmps
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 655 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

656
uuFuses uFuse Locations
Handling the Unexpected
Located inside the driver side of the front
bumper.
1. Turn the steering wheel to the right.
2. Remove the holding clips and screw, and
pull the inner fender back.
3. Pull the tab to remove the fuse box.
■Engine Compartment Fuse
Box Type B
Holding Clips
Screw
Holding Clip
Tab
4. Pull out the fuse box inside the inner
fender, then push the tabs to open the
box.
Fuse locations are sh own on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
PTC2(40 A)
−(20 A)
PTC4(40 A)
EVTC(20 A)
MAIN FAN(40 A)
E/W PUMP(30 A)
20 CR-V HYBRID HMIN-31TPG6000.book 656 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

657
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACCESSORY10 A
2ACC KEY LOCK5 A
3IG1 P-DRV5 A
4IG1 OPTION 25 A
5IG1 OPTION10 A
6IG1 SRS 210 A
7IG1 METER10 A
8IG1 FUEL PUMP15 A
9IG2 A/C10 A
10CTR ACCESSORY SOCKET(20 A)
11IG1 MONITOR5 A
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14P/W RR L20 A
15P/W AS20 A
16DOOR LOCK20 A
17IG1 TCU(10 A)
18DR POWER LUMBAR*(10 A)
19MOONROOF*(20 A)
20IG1 STARTER10 A
21IG1 ACG10 A
22IG2 DAYTIME LIGHT10 A
23USB CHARGER*(7.5 A)
24+B OPTION5 A
25DR DOOR LOCK(10 A)
26R SIDE DOOR UNLOCK10 A
27P/W RR R20 A
28P/W DR20 A
29FR ACCESSORY SOCKET*20 A
30SMART10 A
31DR P/SEAT RECLINE*(20 A)
32FR HEATED SEAT*(20 A)
33DR P/SEAT SLIDE*(20 A)
34IG1 ABS/VSA10 A
35IG1 SRS10 A
36HAC OPTION20 A
37+B TRAILER15 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK(10 A)
aPTG*(20 A)
bAS P/SEAT SLIDE*(20 A)
cAS P/SEAT RECLINE*(20 A)
dSUNSHADE*(20 A)
eIMA 110 A
fRR HEATED SEAT*(20 A)
gHEATED STRG*(10 A)
hSBW15 A
Circuit ProtectedAmps
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 657 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

658
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 655
There is a fuse puller in the engine compartment fuse
box type A.
Combined
Fuse Blown Fuse
Fuse Puller
20 CR-V HYBRID HMIN-31TPG6000.book 658 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
