uuIndicator, Coming On/Blinking uIf the IMA Indicator Comes On
Handling the Unexpected
If the IMA Indicator Comes On
■Reasons for the indicator to come on
Comes on when there is a pr oblem with the IMA system.
■What to do when the indicator come on
Avoid high speeds and immediately get your vehicle inspected by a
dealer.
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indica tor blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
U.S. models
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
15 CR-Z-31SZT6400.book 300 ページ ２０１４年８月１日　金曜日　午後１時５９分

301Continued
Handling the Unexpected
Fuses

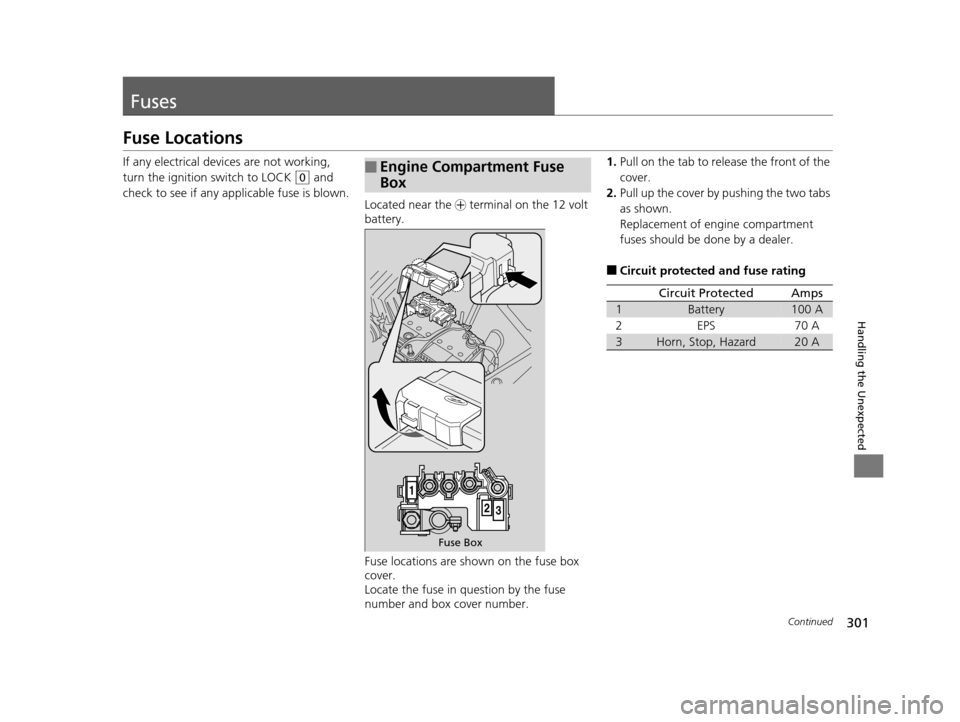

Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0 and
check to see if any appl icable fuse is blown.
Located near the + terminal on the 12 volt
battery.
Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.■Engine Compartment Fuse
Box
Fuse Box
1. Pull on the tab to release the front of the
cover.
2. Pull up the cover by pushing the two tabs
as shown.
Replacement of engine compartment
fuses should be done by a dealer.
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Battery100 A
2EPS70 A
3Horn, Stop, Hazard20 A
15 CR-Z-31SZT6400.book 301 ページ ２０１４年８月１日　金曜日　午後１時５９分

302
uuFuses uFuse Locations
Handling the Unexpected

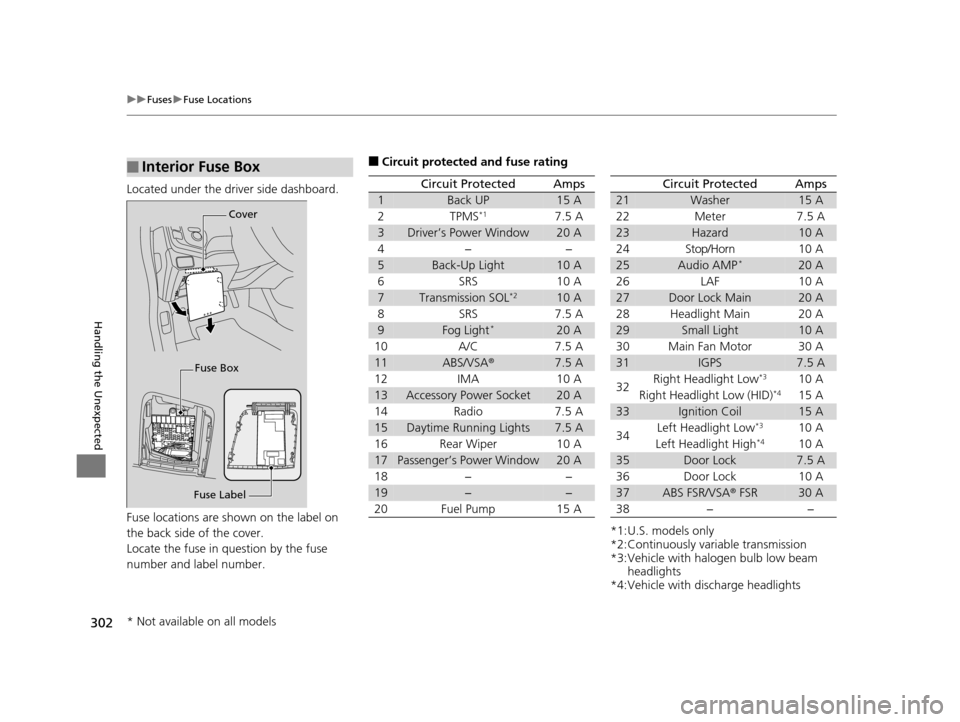

Located under the driver side dashboard.
Fuse locations are shown on the label on
the back side of the cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label Cover
Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Back UP15 A
2TPMS*17.5 A
3Driver’s Power Window20 A
4−−
5Back-Up Light10 A
6SRS10 A
7Transmission SOL*210 A
8SRS7.5 A
9Fog Light*20 A
10 A/C 7.5 A
11ABS/VSA ®7.5 A
12 IMA 10 A
13Accessory Power Socket20 A
14 Radio 7.5 A
15Daytime Running Lights7.5 A
16 Rear Wiper 10 A
17Passenger’s Power Window20 A
18 − −
19−−
20 Fuel Pump 15 A
*1:U.S. models only
*2:Continuously variable transmission
*3:Vehicle with halogen bulb low beam headlights
*4:Vehicle with discharge headlights
Circuit ProtectedAmps
21Washer15 A
22 Meter 7.5 A
23Hazard10 A
24 Stop/Horn 10 A
25Audio AMP*20 A
26 LAF 10 A
27Door Lock Main20 A
28 Headlight Main 20 A
29Small Light10 A
30 Main Fan Motor 30 A
31IGPS7.5 A
32 Right Headlight Low*310 A
Right Headlight Low (HID)*415 A
33Ignition Coil15 A
34 Left Headlight Low*310 A
Left Headlight High*410 A
35Door Lock7.5 A
36 Door Lock 10 A
37ABS FSR/VSA® FSR30 A
38 − −
* Not available on all models
15 CR-Z-31SZT6400.book 302 ページ ２０１４年８月１日　金曜日　午後１時５９分

303
uuFuses uFuse Locations
Handling the Unexpected

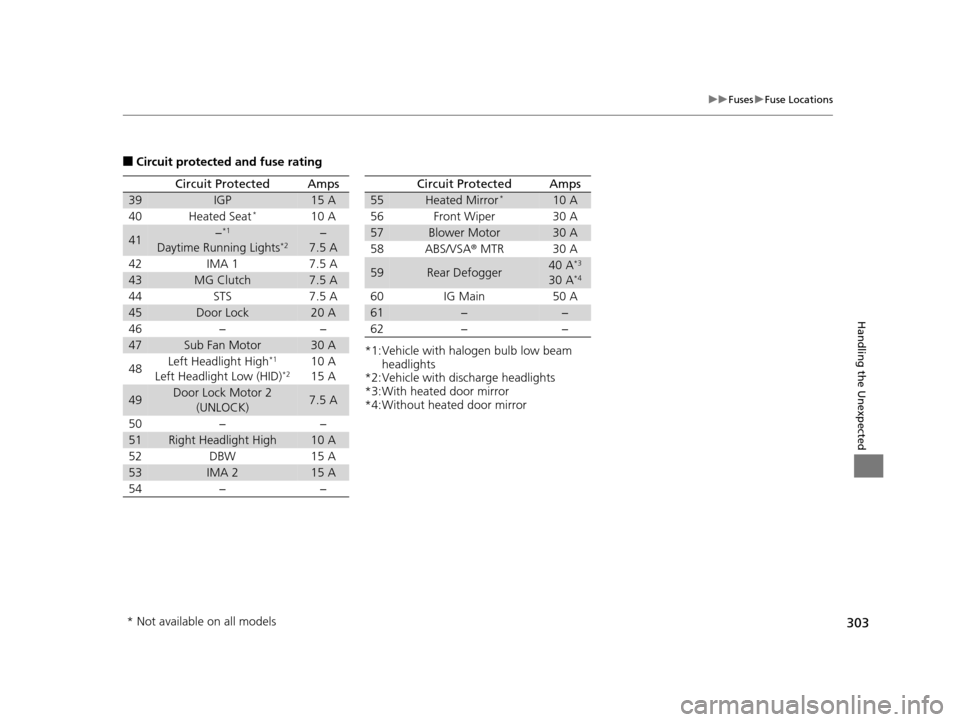

■Circuit protected and fuse rating
Circuit ProtectedAmps
39IGP15 A
40 Heated Seat*10 A
41−*1
Daytime Running Lights*2−
7.5 A
42 IMA 1 7.5 A
43MG Clutch7.5 A
44 STS 7.5 A
45Door Lock20 A
46 − −
47Sub Fan Motor30 A
48 Left Headlight High*1
Left Headlight Low (HID)*210 A
15 A
49Door Lock Motor 2
(UNLOCK)7.5 A
50 − −
51Right Headlight High10 A
52 DBW 15 A
53IMA 215 A
54 − −
*1:Vehicle with halogen bulb low beam headlights
*2:Vehicle with discharge headlights
*3:With heated door mirror
*4:Without heated door mirror
Circuit ProtectedAmps
55Heated Mirror*10 A
56 Front Wiper 30 A
57Blower Motor30 A
58 ABS/VSA ® MTR 30 A
59Rear Defogger40 A*3
30 A*4
60 IG Main 50 A
61−−
62 − −
* Not available on all models
15 CR-Z-31SZT6400.book 303 ページ ２０１４年８月１日　金曜日　午後１時５９分

304
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

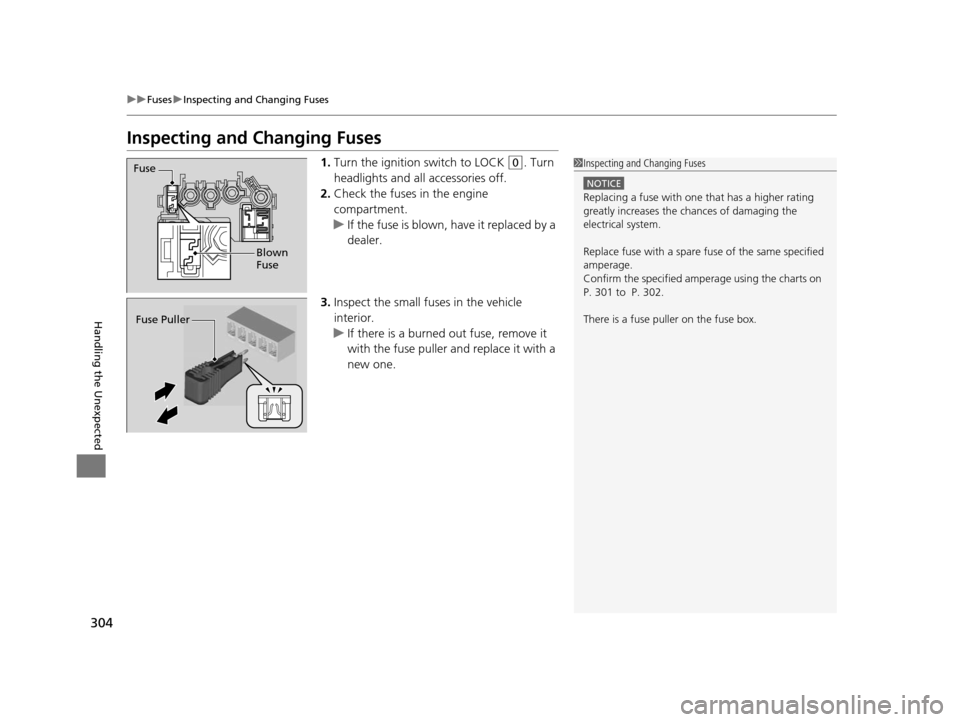

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0. Turn
headlights and all accessories off.
2. Check the fuses in the engine
compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 301 to P. 302.
There is a fuse puller on the fuse box.
Fuse
Blown
Fuse
Fuse Puller
15 CR-Z-31SZT6400.book 304 ページ ２０１４年８月１日　金曜日　午後１時５９分

305Continued
Handling the Unexpected
Emergency Towing

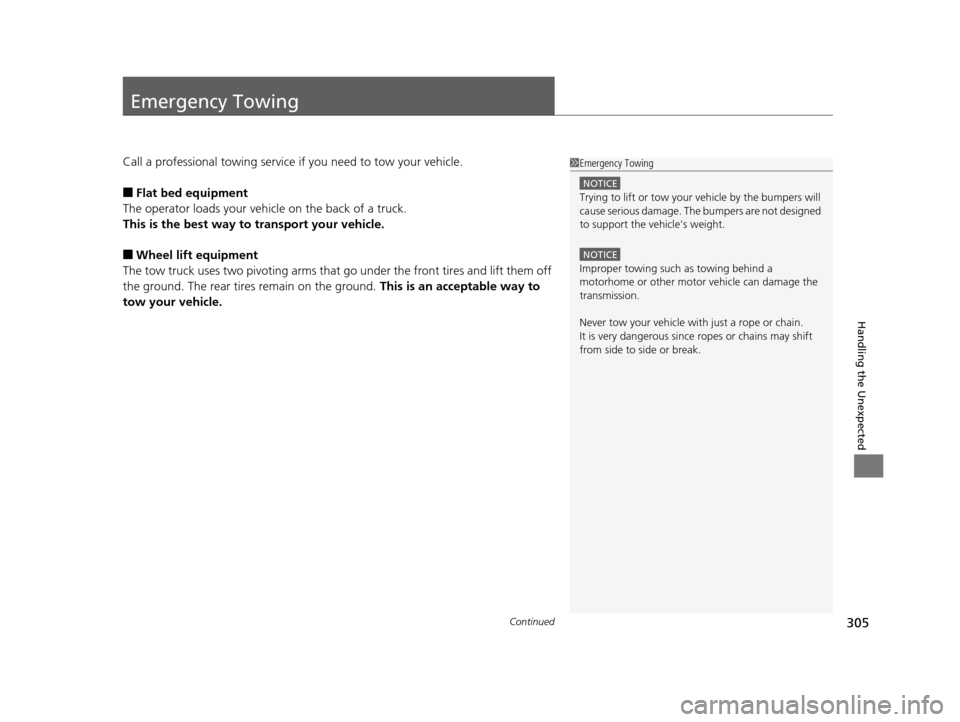

Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
15 CR-Z-31SZT6400.book 305 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuEmergency Towing u
306
Handling the Unexpected

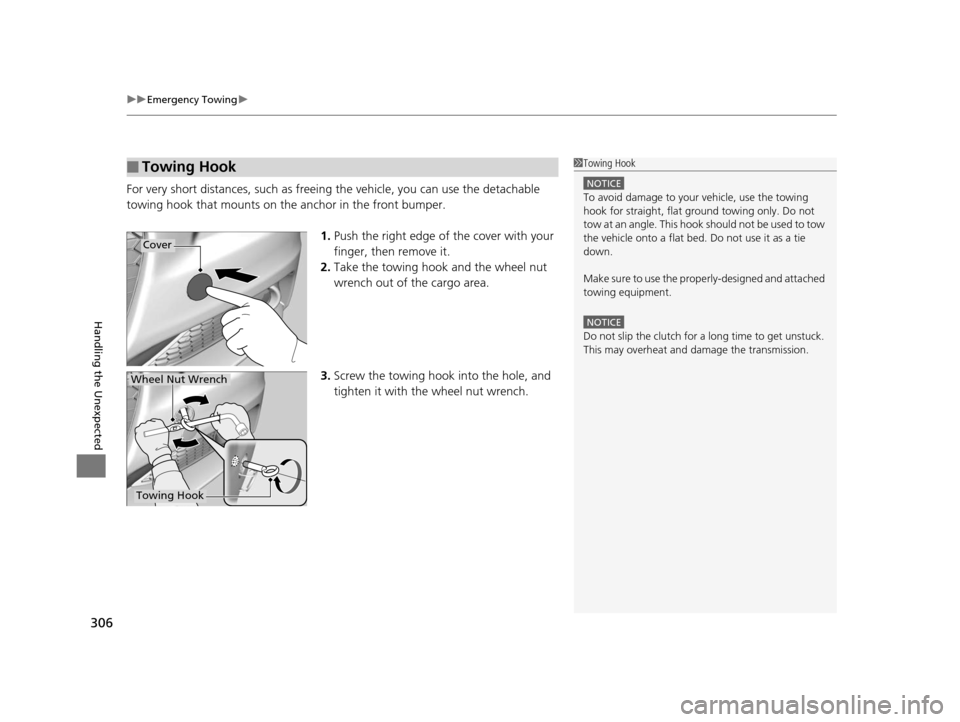

For very short distances, su ch as freeing the vehicle, you can use the detachable
towing hook that mounts on the anchor in the front bumper.
1.Push the right edge of the cover with your
finger, then remove it.
2. Take the towing hook and the wheel nut
wrench out of the cargo area.
3. Screw the towing hook into the hole, and
tighten it with the wheel nut wrench.
■Towing Hook1Towing Hook
NOTICE
To avoid damage to your vehicle, use the towing
hook for straight, flat ground towing only. Do not
tow at an angle. This hook should not be used to tow
the vehicle onto a flat bed. Do not use it as a tie
down.
Make sure to use the prope rly-designed and attached
towing equipment.
NOTICE
Do not slip the clutch for a long time to get unstuck.
This may overheat and damage the transmission.
Cover
Wheel Nut Wrench
Towing Hook
15 CR-Z-31SZT6400.book 306 ページ ２０１４年８月１日　金曜日　午後１時５９分

307
Handling the Unexpected

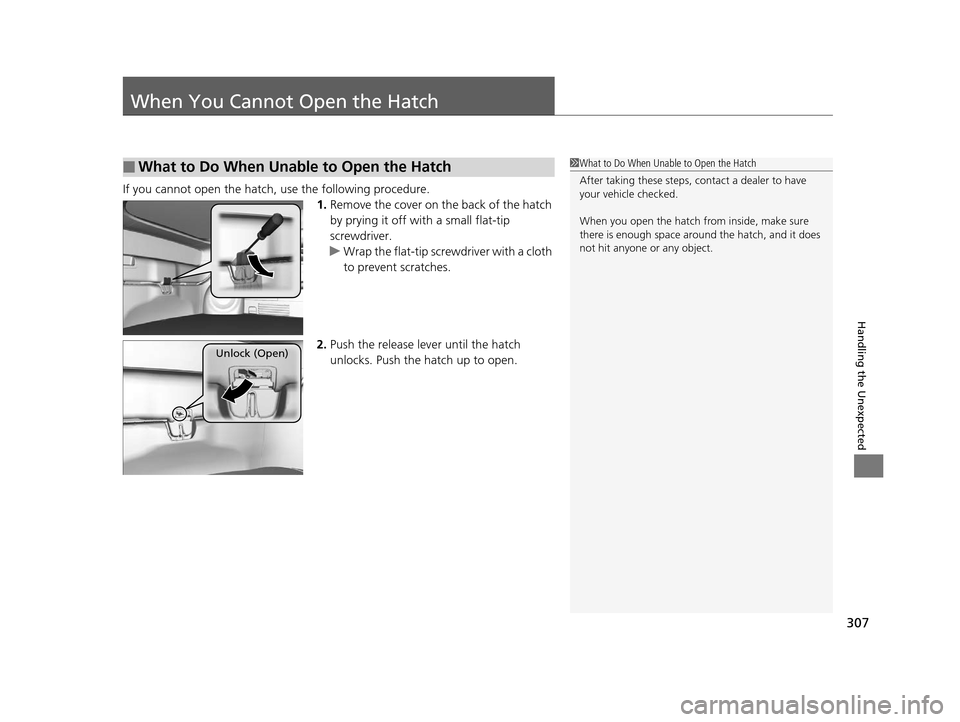

When You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.
1.Remove the cover on the back of the hatch
by prying it off with a small flat-tip
screwdriver.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. Push the release lever until the hatch
unlocks. Push the hatch up to open.
■What to Do When Unable to Open the Hatch1What to Do When Unab le to Open the Hatch
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the hatch fr om inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.
Unlock (Open)
15 CR-Z-31SZT6400.book 307 ページ ２０１４年８月１日　金曜日　午後１時５９分

308
