49
uuGuidance uGuidance Mode
Continued
System Setup
Guidance Mode
H HOME uSettings uNavigation uGuidance tabuGuidance Mode
Select the display mode for the map and guidance screens. 1.Select an option.
2. Select OK.
The following items are available:
• 1 (Map) (factory default): Displays only the map screen. When you approach a
guidance point, the next guidance point appears.1 Guidance Mode
The guidance mode can also be selected from the
map menu, or selecti ng the orientation icon.
2 Map Menu P. 107
You can also change the ma p orientation (north-up,
heading-up, or 3D). 2 View (Map Orientation) P. 56
12 3
Near the next
guidance point
Map screen Next Maneuver screen
Next guidance point
16 CR-Z NAVI-31SZT8500.book 49 ページ ２０１５年７月３０日　木曜日　午前９時１８分

51Continued
System Setup

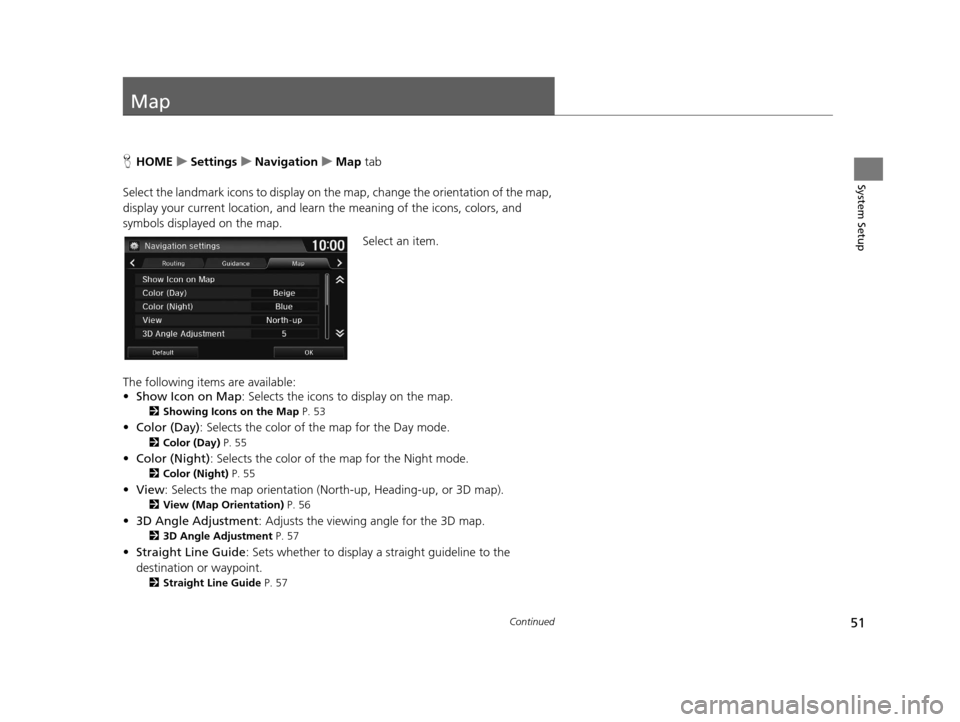

Map
HHOME uSettings uNavigation uMap tab
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Select an item.
The following items are available:
• Show Icon on Map : Selects the icons to display on the map.
2Showing Icons on the Map P. 53
•Color (Day) : Selects the color of the map for the Day mode.
2Color (Day) P. 55
•Color (Night) : Selects the color of th e map for the Night mode.
2Color (Night) P. 55
•View : Selects the map orientation (No rth-up, Heading-up, or 3D map).
2View (Map Orientation) P. 56
•3D Angle Adjustment : Adjusts the viewing angle for the 3D map.
23D Angle Adjustment P. 57
•Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 57
16 CR-Z NAVI-31SZT8500.book 51 ページ ２０１５年７月３０日　木曜日　午前９時１８分

53
uuMap uShowing Icons on the Map
Continued
System Setup

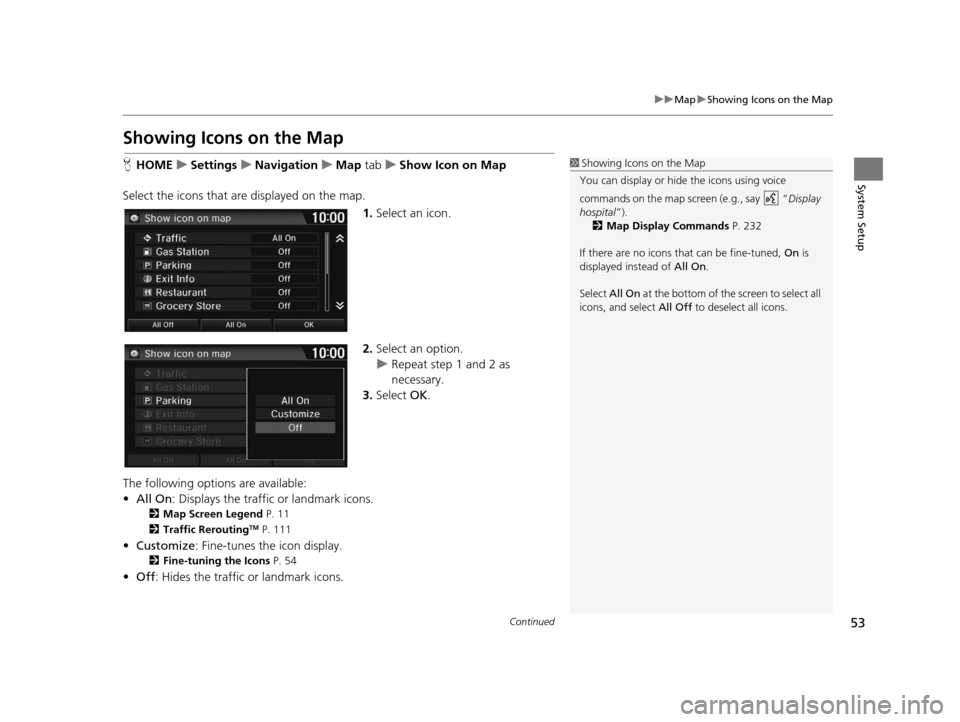

Showing Icons on the Map
H HOME uSettings uNavigation uMap tab uShow Icon on Map
Select the icons that ar e displayed on the map.
1.Select an icon.
2. Select an option.
u Repeat step 1 and 2 as
necessary.
3. Select OK.
The following options are available:
• All On : Displays the traffic or landmark icons.
2Map Screen Legend P. 11
2 Traffic ReroutingTM P. 111
•Customize : Fine-tunes the icon display.
2Fine-tuning the Icons P. 54
•Off : Hides the traffic or landmark icons.
1Showing Icons on the Map
You can display or hide the icons using voice
commands on the map screen (e.g., say “ Display
hospital ”).
2 Map Display Commands P. 232
If there are no icons that can be fine-tuned, On is
displayed instead of All On.
Select All On at the bottom of the screen to select all
icons, and select All Off to deselect all icons.
16 CR-Z NAVI-31SZT8500.book 53 ページ ２０１５年７月３０日　木曜日　午前９時１８分

uuMap uShowing Icons on the Map
54
System SetupH HOME uSettings uNavigation uMap tabuShow Icon on Map
Icons in some categories can be fine-tuned to display or hide.
1.Select an icon, and then select
Customize .
2. Select the icons to display on the
map.
u Selecting toggles the icon
display on or off.
u Repeat the procedure as
necessary.
3. Select OK.

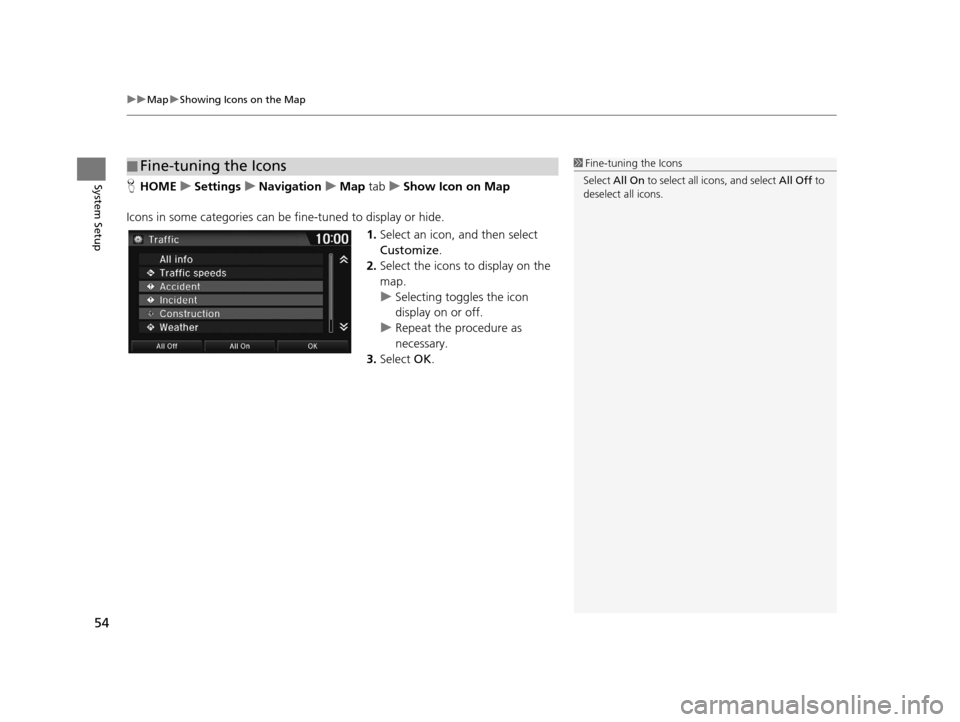

■Fine-tuning the Icons1
Fine-tuning the Icons
Select All On to select all icons, and select All Off to
deselect all icons.
16 CR-Z NAVI-31SZT8500.book 54 ページ ２０１５年７月３０日　木曜日　午前９時１８分

55
uuMap uColor
System Setup

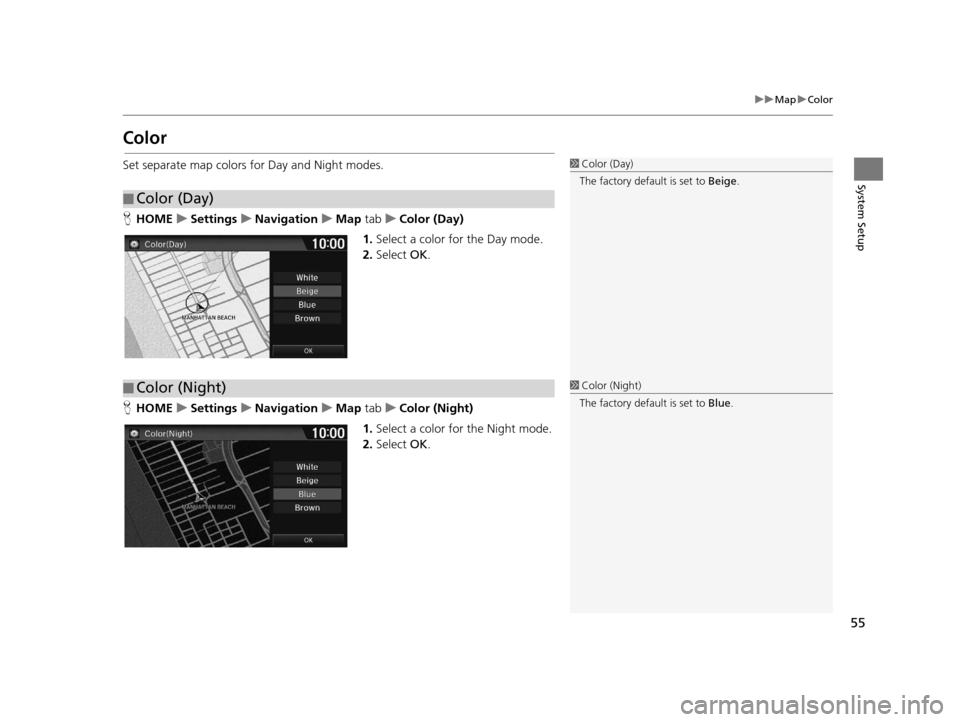

Color
Set separate map colors for Day and Night modes.
H HOME uSettings uNavigation uMap tab uColor (Day)
1. Select a color for the Day mode.
2. Select OK.
H HOME uSettings uNavigation uMap tab uColor (Night)
1. Select a color for the Night mode.
2. Select OK.
■Color (Day)
1
Color (Day)
The factory default is set to Beige.
■Color (Night)1
Color (Night)
The factory default is set to Blue.
16 CR-Z NAVI-31SZT8500.book 55 ページ ２０１５年７月３０日　木曜日　午前９時１８分

56
uuMap uView (Map Orientation)
System Setup

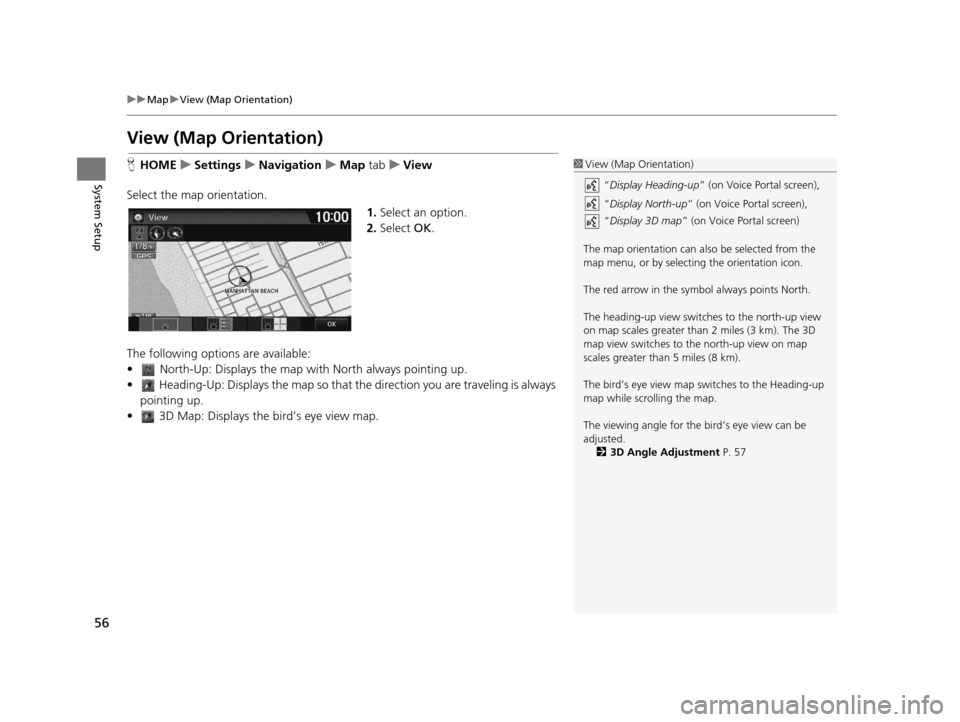

View (Map Orientation)
H HOME uSettings uNavigation uMap tabuView
Select the map orientation. 1.Select an option.
2. Select OK.
The following options are available:
• North-Up: Displays the map wi th North always pointing up.
• Heading-Up: Displays the map so that th e direction you are traveling is always
pointing up.
• 3D Map: Displays th e bird’s eye view map.1View (Map Orientation)
“Display Heading-up ” (on Voice Portal screen),
“ Display North-up ” (on Voice Portal screen),
“ Display 3D map ” (on Voice Portal screen)
The map orientation can also be selected from the
map menu, or by selecting the orientation icon.
The red arrow in the symbol always points North.
The heading-up view switch es to the north-up view
on map scales greater than 2 miles (3 km). The 3D
map view switches to th e north-up view on map
scales greater than 5 miles (8 km).
The bird’s eye view map switches to the Heading-up
map while scrolling the map.
The viewing angle for the bird’s eye view can be
adjusted. 2 3D Angle Adjustment P. 57
16 CR-Z NAVI-31SZT8500.book 56 ページ ２０１５年７月３０日　木曜日　午前９時１８分

57
uuMap u3D Angle Adjustment
System Setup

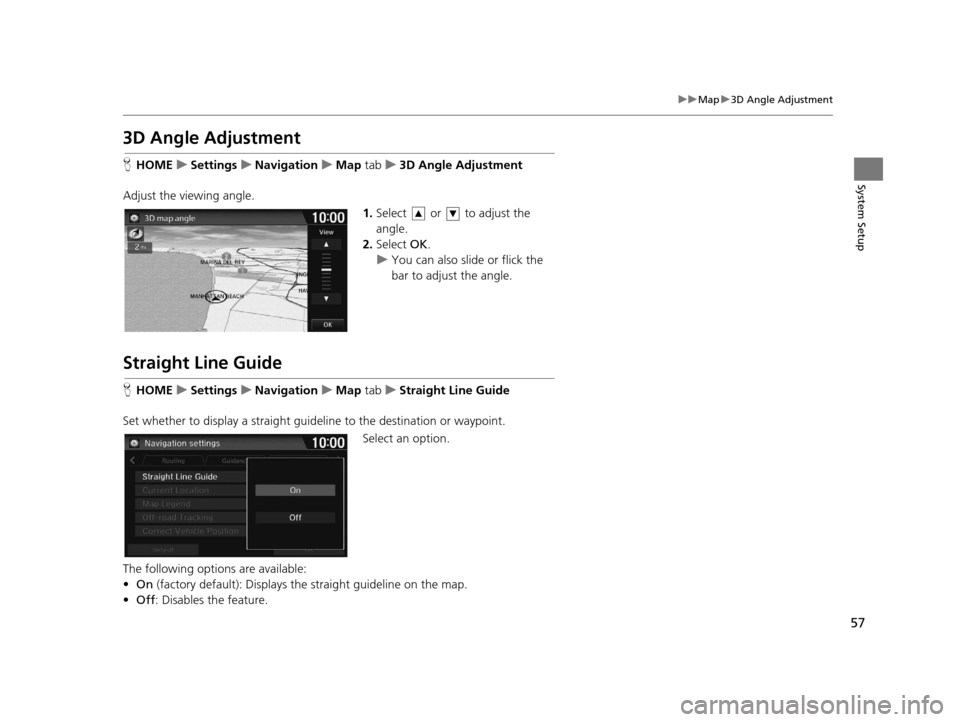

3D Angle Adjustment
H HOME uSettings uNavigation uMap tab u3D Angle Adjustment
Adjust the viewing angle. 1.Select or to adjust the
angle.
2. Select OK.
u You can also slid e or flick the
bar to adjust the angle.
Straight Line Guide
H HOME uSettings uNavigation uMap tab uStraight Line Guide
Set whether to display a straight guid eline to the destination or waypoint.
Select an option.
The following options are available:
• On (factory default): Displays the straight guideline on the map.
• Off : Disables the feature.
16 CR-Z NAVI-31SZT8500.book 57 ページ ２０１５年７月３０日　木曜日　午前９時１８分

58
uuMap uCurrent Location
System Setup
Current Location
H HOME uSettings uNavigation uMap tabuCurrent Location
Display and save your current location for future use as a destination. The address,
latitude, longitude, and elevation of your current location are displayed.
1.Select Address Book .
2. Select the user to save the
location.
3. Edit the name, phone number,
and category.
2 Address Book P. 30
4.Select OK.
1Current Location
“Display Current Location ” (on Voice Portal
screen)
You can also save the curre nt location by saying
“Register the Current Location ”, or selecting the
vehicle icon on the map.
If you have PIN-protecte d your address book, enter
your PIN when prompted. Select OK. PINs are
optional. 2 PIN Number P. 36
Saving your current loca tion does not change or
cancel your current route.
16 CR-Z NAVI-31SZT8500.book 58 ページ ２０１５年７月３０日　木曜日　午前９時１８分

59
uuMap uMap Legend
Continued
System Setup

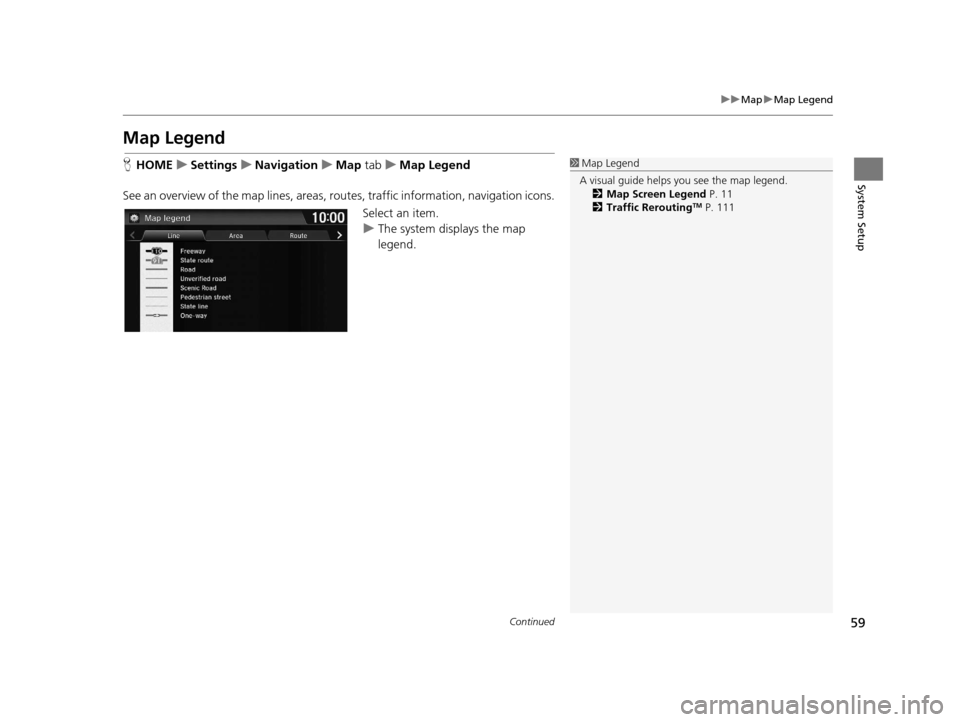

Map Legend
H HOME uSettings uNavigation uMap tab uMap Legend
See an overview of the map lines, areas, routes, traffic informatio n, navigation icons.
Select an item.
u The system displays the map
legend.1Map Legend
A visual guide helps you see the map legend. 2 Map Screen Legend P. 11
2 Traffic Rerouting
TM P. 111
16 CR-Z NAVI-31SZT8500.book 59 ページ ２０１５年７月３０日　木曜日　午前９時１８分

63
uuMap uOff-road Tracking
System Setup

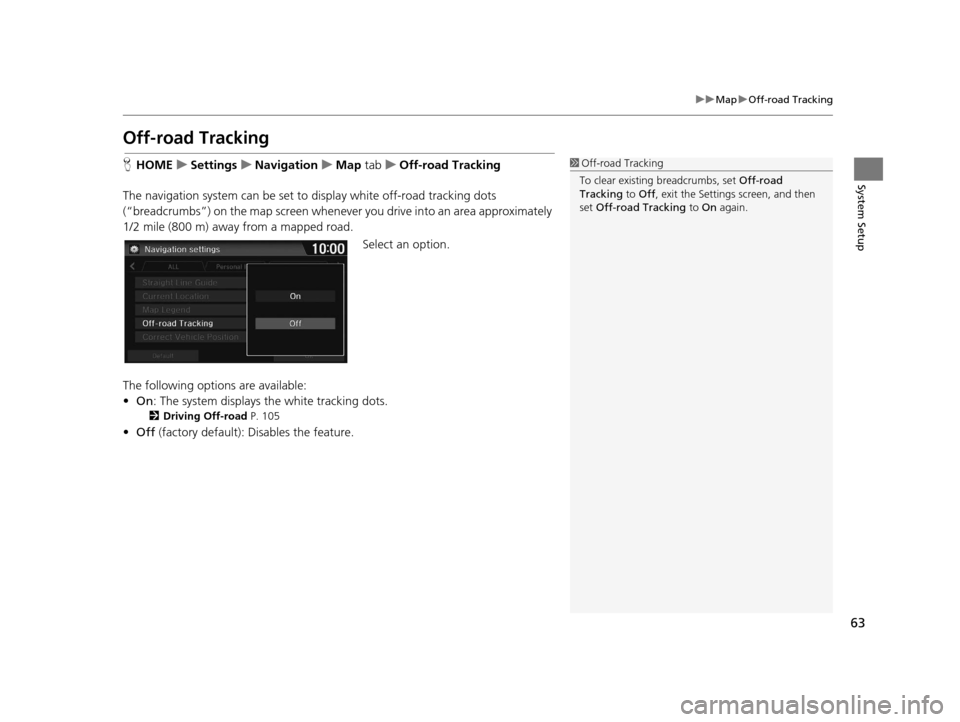

Off-road Tracking
H HOME uSettings uNavigation uMap tab uOff-road Tracking
The navigation system can be set to display white off-road tracking dots
(“breadcrumbs”) on the map screen whenever you drive into an area approximately
1/2 mile (800 m) away from a mapped road.
Select an option.
The following options are available:
• On : The system displays the white tracking dots.
2Driving Off-road P. 105
•Off (factory default): Disables the feature.
1Off-road Tracking
To clear existing breadcrumbs, set Off-road
Tracking to Off , exit the Settings screen, and then
set Off-road Tracking to On again.
