display HONDA CR-Z 2016 1.G Navigation Manual

uuMap uMap Legend
62
System Setup

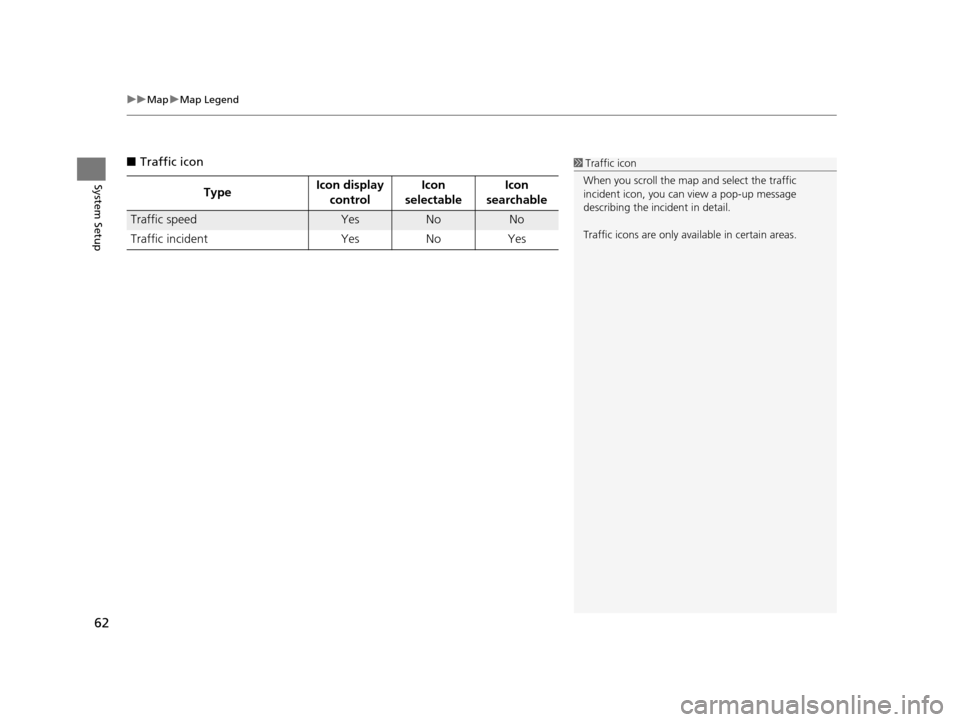

■ Traffic icon
Type Icon display
control Icon
selectable Icon
searchable
Traffic speedYesNoNo
Traffic incident Yes No Yes
1 Traffic icon
When you scroll the map and select the traffic
incident icon, you can view a pop-up message
describing the incident in detail.
Traffic icons are only available in certain areas.
16 CR-Z NAVI-31SZT8500.book 62 ページ ２０１５年７月３０日　木曜日　午前９時１８分

63
uuMap uOff-road Tracking
System Setup
Off-road Tracking
H HOME uSettings uNavigation uMap tab uOff-road Tracking
The navigation system can be set to display white off-road tracking dots
(“breadcrumbs”) on the map screen whenever you drive into an area approximately
1/2 mile (800 m) away from a mapped road.
Select an option.
The following options are available:
• On : The system displays the white tracking dots.
2Driving Off-road P. 105
•Off (factory default): Disables the feature.
1Off-road Tracking
To clear existing breadcrumbs, set Off-road
Tracking to Off , exit the Settings screen, and then
set Off-road Tracking to On again.
16 CR-Z NAVI-31SZT8500.book 63 ページ ２０１５年７月３０日　木曜日　午前９時１８分

64
uuMap uCorrect Vehicle Position
System Setup
Correct Vehicle Position
H HOME uSettings uNavigation uMap tabuCorrect Vehicle Position
Manually adjust the current position of the vehicle as displayed on the map screen if
the position appears to be incorrect. Make sure the vehicle is in Park.
1.Scroll the map to position the
arrowhead at your correct
position. Select OK.
2. Select or to position
the arrowhead in the correct
direction the vehicle is facing.
3. Select OK.1Correct Vehicle Position
An apparent position error can occur where
buildings, tunnels, and other objects block or reflect
the GPS signals, forcing the system to use “dead
reckoning” to determine your location and direction.
Using this function to adju st vehicle position is not
recommended. When the system reacquires a GPS
signal, it will automaticall y place the vehicle in the
correct location.
If you continually have to adjust the vehicle position,
you may have problems with GPS reception or there
may be database errors. 2 System Limitations P. 222
16 CR-Z NAVI-31SZT8500.book 64 ページ ２０１５年７月３０日　木曜日　午前９時１８分

65
System Setup
System Settings
HHOME uSettings uSystem
Select an item.
The following items are available:
• Home tab: Changes the setting for the HOME screen.
Home Screen Edit Order : Changes the position of icons on the HOME screen.
2Home Screen Edit Order P. 66
•Display tab: Adjusts the screen ’s preferences and chan ges the background color
of the menu screen.
2 Display Settings P. 67
•Sound/Beep tab: Changes the system sound and beep settings.
2Sound and Beep Settings P. 69
•Voice Recog tab: Changes the setting for the vo ice control system and modifies
Song By Voice and phonebook voice commands.
2 Voice Recognition Settings P. 71
•Clock tab: Sets the automatic adjustment of the system clock for daylight saving
and international time zones.
2 Clock Adjustment P. 72
•Others tab: Sets other basic settings for the system.
2 Other Settings P. 78
1System Settings
Select All tab to see all items in a list.
16 CR-Z NAVI-31SZT8500.book 65 ページ ２０１５年７月３０日　木曜日　午前９時１８分

67
System Setup

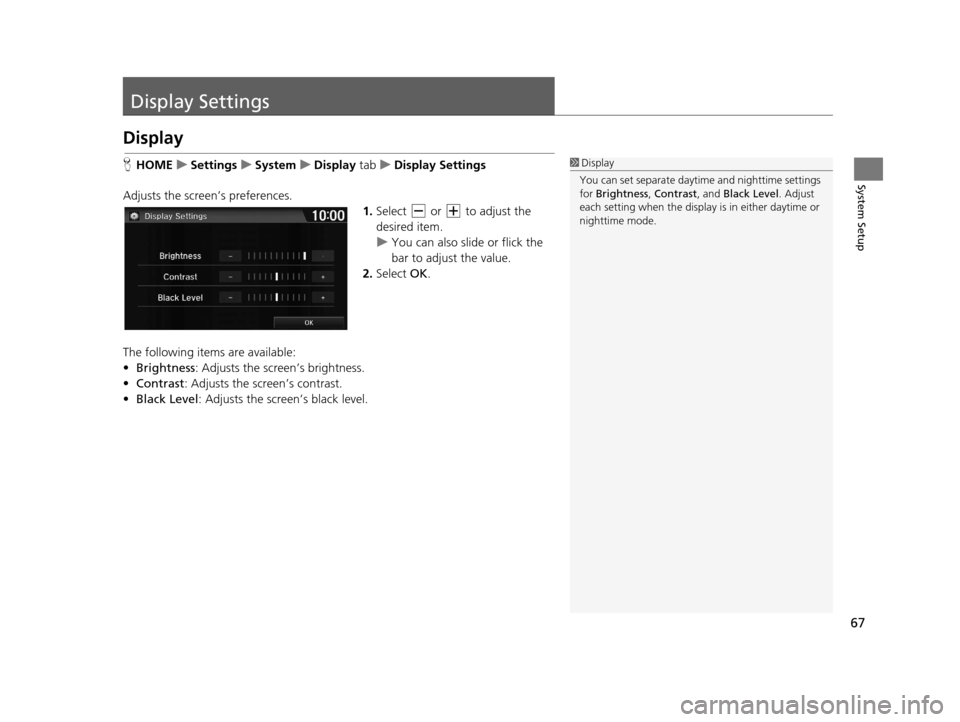

Display Settings
Display
HHOME uSettings uSystem uDisplay tabuDisplay Settings
Adjusts the screen’s preferences. 1.Select or to adjust the
desired item.
u You can also slid e or flick the
bar to adjust the value.
2. Select OK.
The following items are available:
• Brightness : Adjusts the screen’s brightness.
• Contrast : Adjusts the screen’s contrast.
• Black Level : Adjusts the screen’s black level.1Display
You can set separate daytim e and nighttime settings
for Brightness, Contrast, and Black Level. Adjust
each setting when the displa y is in either daytime or
nighttime mode.
16 CR-Z NAVI-31SZT8500.book 67 ページ ２０１５年７月３０日　木曜日　午前９時１８分

68
uuDisplay Settings uBackground Color
System Setup

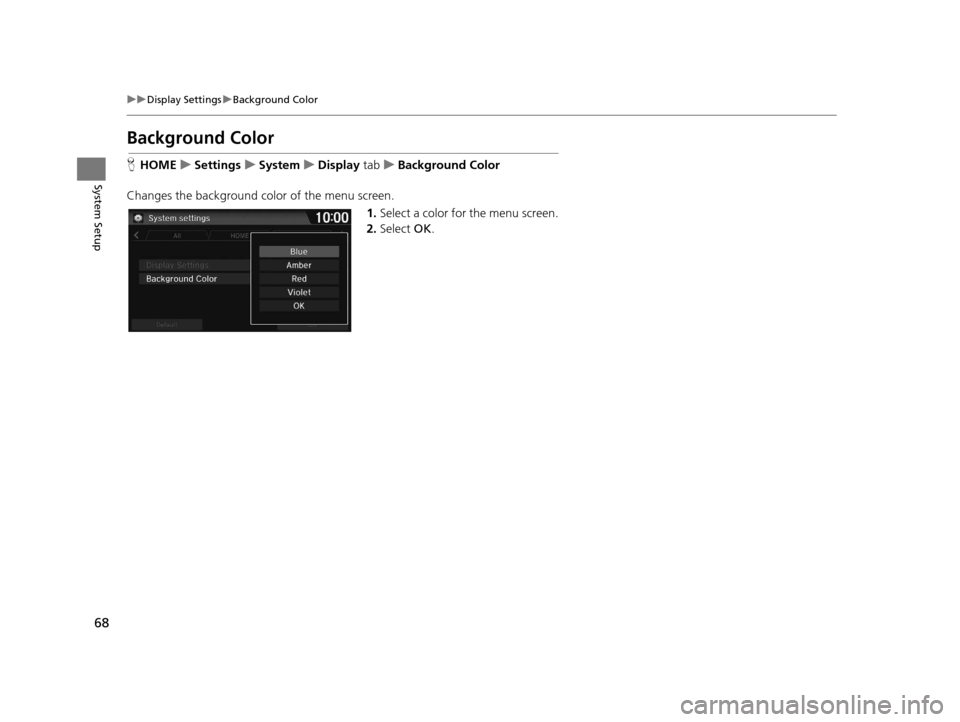

Background Color
H HOME uSettings uSystem uDisplay tabuBackground Color
Changes the background color of the menu screen. 1.Select a color for the menu screen.
2. Select OK.
16 CR-Z NAVI-31SZT8500.book 68 ページ ２０１５年７月３０日　木曜日　午前９時１８分

72
System Setup
Clock Adjustment
HHOME uSettings uClock/Info uClock tab
Set the automatic adjustment of the sy stem clock for daylight saving and
international time zones.
Select an item.
The following items are available:
• Clock/Wallpaper Type : Changes the clock display type and the wallpaper type.
2Clock Type P. 73
•Clock Adjustment : Adjust the current time manually.
2Adjust Time P. 77
•Clock Format : Sets the time notation to either 12-hour clock (12H, factory
default) or 24-hour clock ( 24H).
• Auto Time Zone : The navigation system automa tically adjusts the clock when
driving through different time zones.
On (factory default): Adjust s the clock automatically.
Off : Disables the feature.
• Auto Daylight : The navigation system automati cally adjusts the clock (“spring
ahead” or “fall back” by one hour) when a daylight saving time change occurs.
On (factory default): Adjust s the clock automatically.
Off : Disables the feature.
• Clock Display : Sets whether to display the clock at the header of the screen.
1Clock Adjustment
You can check the time a nd date from any screen
using voice commands.
2 Global Commands P. 232
Auto Time Zone
If you live and work in tw o different time zones, you
may want to turn Auto Time Zone to Off. When
driving near a time zone boundary, the displayed
time zone may fluctuat e between the two zone
times.
Auto Daylight
This function is not activated in areas that have not
adopted daylight saving time , even if you have set
Auto Daylight to On.
16 CR-Z NAVI-31SZT8500.book 72 ページ ２０１５年７月３０日　木曜日　午前９時１８分

74
uuClock Adjustment uWallpaper Settings
System Setup
Wallpaper Settings
Select, delete, and import wallpaper pictures for display on the screen.
H HOME uSettings uClock/Info uClock tabuClock/Wallpaper Type
u Wallpaper tab
1.Select Add New .
2. Select a desired picture.
u The preview is displayed on the
left side on the screen.
u You can select multiple pictures
at a time.
3. Select Start Import .
u After the picture is imported,
the display will return to the
wallpaper list.
■Import Wallpaper
1
Import Wallpaper
Recommended files
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory.
Images in a folder cannot be imported.
•The file name must be fewer than 256 characters.•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 5 MB.•The maximum image size is 4,096 × 4,096 pixels. If
the image size is less than 420 × 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•Up to 5 files can be saved.
•If the USB flash drive doe s not have any pictures,
the No files detected message appears.
Shortly after setting th e wallpaper or importing
pictures, do not set the power mode to OFF, or
disconnect the USB device. It may cause the setting
error or the destruction of data.
16 CR-Z NAVI-31SZT8500.book 74 ページ ２０１５年７月３０日　木曜日　午前９時１８分

Continued75
uuClock Adjustment uWallpaper Settings
System SetupH HOME uSettings uClock/Info uClock tabuClock/Wallpaper Type
u Wallpaper tab
1.Select a desired wallpaper.
u The preview is displayed on the
left side on the screen.
2. Select Set.
u Select Preview to see a preview
at full-size screen.
3. Select OK.
■Select Wallpaper1
Select Wallpaper
When the file size is large, it takes a while to be
previewed.
To view wallpaper once set: press the HOME button,
select Info, press the MENU button, and select
Clock/Wallpaper .
16 CR-Z NAVI-31SZT8500.book 75 ページ ２０１５年７月３０日　木曜日　午前９時１８分

uuClock Adjustment uWallpaper Settings
76
System SetupH HOME uSettings uClock/Info uClock tabuClock/Wallpaper Type
u Wallpaper tab
1.Select a wallpaper that you want
to delete.
u The preview is displayed on the
left side on the screen.
2. Select Delete.
u The confirmation message will
appear.
3. Select Yes.
u The display will return to the
wallpaper list.
■Delete Wallpaper1
Delete Wallpaper
Select Delete All to delete all im ported wallpapers.
“Blank ”, “Galaxy ”, “Metallic ” and “Time Zone ”
cannot be deleted.
