HONDA CR-Z 2016 1.G Quick Guide

74 || 75
DRIVING
DRIVING
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Ecological Drive Display
Monitors the fuel efficiency of your driving style in real time. Pres\
s the Info (p/q)
button on the steering wheel to scroll to the screen.
Ecological drive display
Real-time score
Your driving “score” is shown as leaves, which
accumulate or diminish based on your driving style
and its impact on fuel economy.
When you turn the vehicle off, your drive cycle and
lifetime score are displayed.
Eco drive bar
The bar extends based on your driving style. The
more aggressive your acceleration or deceleration
is, the farther the bar extends from the center. Keep
the bar near the center line for more fuel efficient
driving.
Drive cycle scor e
Lifetime points
Leaf
icon 1st stag
e
2nd stage
3rd stage
Eco drive bar
Auto Idle Stop Shuts the engine off at a stop in order to maximize fuel efficiency.
When the shift lever is in Drive (D) and the brake
pedal is pressed (or the clutch pedal is pressed
and the shift lever is in Neutral (N) for manual
transmission), the engine shuts off. The Auto Stop
indicator blinks.
The engine restarts when the brake pedal is
released (or the clutch pedal is pressed and the
shift lever is moved out of Neutral (N) for manual
transmission).
Idle stop occurrence and duration vary depending on certain conditions, \
including
sudden braking, climate control operation, IMA battery level, and outsid\
e
temperature.
Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC) System
Helps to stabilize the vehicle during cornering if the vehicle turns mor\
e or less
than what was intended. It assists in maintaining traction on slippery s\
urfaces by
regulating engine output and selectively applying the brakes.
Turning VSA On or Off
VSA is turned on every time you start the engine,
even if you previously turned it off. If you turn VSA
off, your vehicle has normal braking and cornering
ability, but not VSA traction and stability.
Press and hold the VSA OFF button until you hear a
beep to turn VSA on or off. The VSA OFF indicator
appears when the system is off.
When VSA is turned off, traction control stops functioning, which may ma\
ke it
easier when trying to free your vehicle if it is stuck in mud or snow.
AUTO STOP
indicator
VSA OFF
button

76 || 77
DRIVING
DRIVING
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION

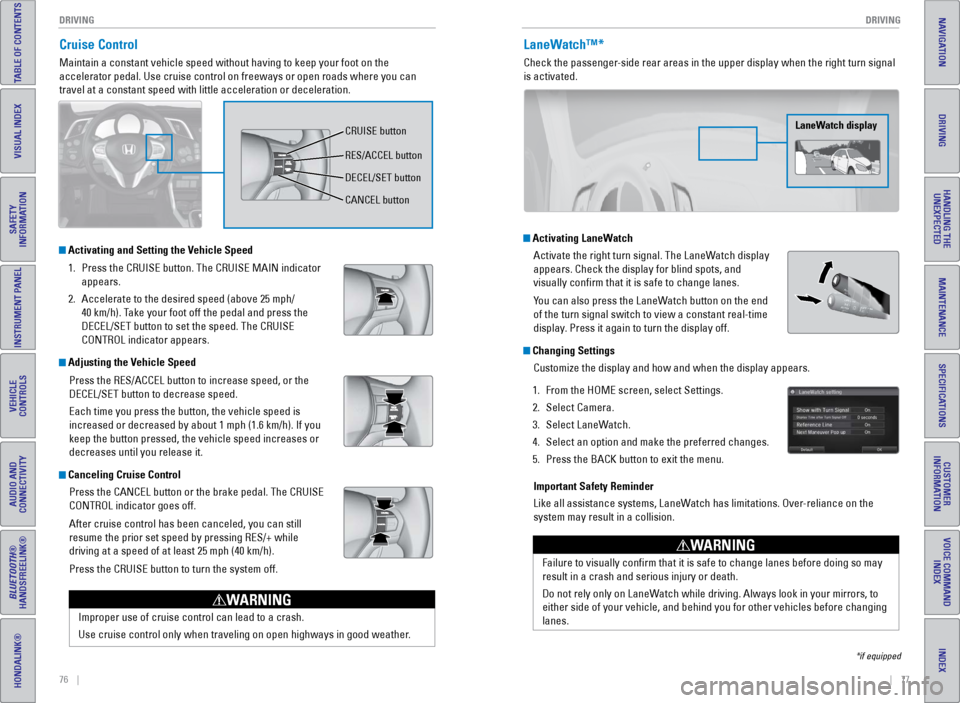

Cruise Control
Maintain a constant vehicle speed without having to keep your foot on th\
e
accelerator pedal. Use cruise control on freeways or open roads where yo\
u can
travel at a constant speed with little acceleration or deceleration.
Improper use of cruise control can lead to a crash.
Use cruise control only when traveling on open highways in good weather.
WARNING
CRUISE button
RES/ACCEL button
CANCEL button DECEL/SET button
Activating and Setting the Vehicle Speed1.
Press the CRUISE button. The CRUISE MAIN indicator
appears.
2.


Accelerate to the desired speed (above 25 mph/

40 km/h). Take your foot off the pedal and press the
DECEL/SET button to set the speed. The CRUISE
CONTROL indicator appears.
Adjusting the Vehicle Speed
Press the RES/ACCEL button to increase speed, or the
DECEL/SET button to decrease speed.
Each time you press the button, the vehicle speed is
increased or decreased by about 1 mph (1.6 km/h). If you
keep the button pressed, the vehicle speed increases or
decreases until you release it.
Canceling Cruise ControlPress the CANCEL button or the brake pedal. The CRUISE
CONTROL indicator goes off.
After cruise control has been canceled, you can still
resume the prior set speed by pressing RES/+ while
driving at a speed of at least 25 mph (40 km/h).
Press the CRUISE button to turn the system off.
LaneWatch™*
Check the passenger-side rear areas in the upper display when the right turn signal
is activated.
LaneWatch display
Activating LaneWatchActivate the right turn signal. The LaneWatch display
appears. Check the display for blind spots, and
visually confirm that it is safe to change lanes.
You can also press the LaneWatch button on the end
of the turn signal switch to view a constant real-time
display. Press it again to turn the display off.
Changing SettingsCustomize the display and how and when the display appears.
1.

From the HOME screen, select Settings.
2.


Select Camera.
3.


Select LaneW
atch.
4.

Select an option and make the preferred changes.
5.


Press the BACK button to exit the menu.
Important Safety Reminder
Like all assistance systems, LaneW

atch has limitations. Over-reliance on the
system may result in a collision.
*if equipped
Failure to visually confirm that it is safe to change lanes before doi\
ng so may
result in a crash and serious injury or death.
Do not rely only on LaneWatch while driving. Always look in your mirrors, to
either side of your vehicle, and behind you for other vehicles before ch\
anging
lanes.
WARNING

78 || 79
DRIVING
DRIVING
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Multi-View Rear Camera
When you shift into Reverse (R), a real-time image of the area behind \
your vehicle is
shown in the display, along with helpful parking guidelines.
The rear camera view is restricted. You cannot see the corner ends of the bumper or what is
underneath the bumper. Its unique lens also makes objects appear closer or farther than they \
actually are.
Visually confirm that it is safe to drive before backing up. Certain c\
onditions (such as weather,
lighting, and high temperatures) may also restrict the rear view. Do not rely on the rearview display,
which does not give you all information about conditions at the rear of \
your vehicle.
Changing Camera Settings
Turn the guidelines on or off.
1.

From the HOME screen, select Settings.
2.


Select Camera.
3.


Select Rear Camera.
4.


Select one of the options.

Fixed Guideline: Guidelines appear when you
shift into Reverse. Select On or Off.
Dynamic Guideline: Guidelines move as you turn
the steering wheel. Select On or Off.
5.

Press the BACK button to exit the menu.
Press the icons on the touchscreen to change views.
Wide view Normal view Top down view
Refueling
Use the proper fuel and refueling procedure to ensure the best performan\
ce and
safety of your vehicle.
Fuel Information
Use of unleaded gasoline of 87 octane or higher is recommended.
•

Honda recommends TOP TIER Detergent Gasoline where available.
•


Do NOT use gasoline containing more than 15% ethanol.
•


Do NOT use gasoline containing methanol.
•


Do NOT use gasoline containing MMT
.
How to Refuel1.
The fuel fill door is located at the left rear of the
vehicle. Park next to the service pump that is
most accessible.
2.


T
urn off the engine.
3.

Press the area indicated by the arrow to release
the fuel fill door

. You will hear a click.
4.

T
urn the fuel fill cap slowly to open. Place the fuel
fill cap in the holder.
5.

Insert the filler nozzle fully
. When the tank is full,
the fuel nozzle clicks off automatically.
6.

Replace the fuel fill cap. T
ighten it until you hear
at least one click. Close the fuel fill door.
Cap
Holde r
Gasoline is highly ammable and explosive. You can be burned or seriously
injured when handling fuel.
•

Stop the engine, and keep heat, sparks, and ame away
.
•

Handle fuel only outdoors.
•


Wipe up spills immediately
.
WARNING
We recommend quality gasoline containing detergent additives that help
prevent fuel system and engine deposits. In addition, in order to mainta\
in good
performance, fuel economy, and emissions control, we strongly recommend the
use of gasoline that does NOT contain harmful manganese-based fuel addit\
ives
such as MMT, if such gasoline is available.
NOTICE

80 || 81
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Learn about what to do in critical or emergency situations.
Smart Entry Remote Battery Strength
If the battery life in your remote transmitter is weak, follow the below\
steps to start
the engine.
1.

T
ouch the back of the remote transmitter to the
ENGINE START/STOP button while the indicator is
flashing.
2.

With the brake pedal pressed (and the clutch
pedal for manual transmission), press the ENGINE
ST

ART/STOP button within 10 seconds.
HANDLING THE UNEXPECTED
*if equipped
Shift Lever Does Not Move*
Follow the procedure below if you cannot move the shift lever out of Par\
k (P).
1.
Set the parking brake.
2.


Remove the built-in key from the remote
transmitter

.
3.

W
rap a cloth around the tip of a small flat-tip
screwdriver. Put it into the shift lock release slot as
shown in the image, and remove the cover.
4.

Insert the key into the shift release lock.
5.


While pushing the key down, press the shift lever
release button and place the shift lever into Neutral
(N). The lock is now released. Have the shift lever
checked by a dealer as soon as possible.
Slot Cover
Release
button
Shift
lock
release
slot
A battery can explode if you do not follow the correct procedure, seriou\
sly
injuring anyone nearby.
Keep all sparks, open ames, and smoking materials away from the batt\
ery.
WARNING
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.
1.

Open the fuse box cover on your vehicle’
s 12-volt
battery positive (+) terminal.
2.

Connect the first jumper cable to your vehicle’
s
battery (+) terminal.
3.

Connect the other end of the first jumper cable
to the booster battery (+) terminal. Use a 12-volt
booster battery only

.
4.

Connect the second jumper cable to the booster
battery (-) terminal.
5.


Connect the other end of the second jumper cable
to the grounding strap as shown. Do not connect
this jumper cable to any other part.
6.


If your vehicle is connected to another vehicle,
start the assisting vehicle’

s engine and increase its
rpm slightly.
7.

Attempt to start your vehicle’
s engine. If it turns over slowly, make sure that the
jumper cables have good metal-to-metal contact.
WARNING: Battery posts, terminals, and related accessories contain lead and lead\

compounds. Wash your hands after handling.
Booster
batter y

82 || 83
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
After the Engine Starts
Once your vehicle’s engine has started, remove the jumper cables in the following
order:
1.

Disconnect the jumper cable from your vehicle’
s ground.
2.

Disconnect the other end of the jumper cable from the booster battery (\
-)
terminal.
3.


Disconnect the jumper cable from your vehicle’
s battery (+) terminal.
4.

Disconnect the other end of the jumper cable from the booster battery (\
+)
terminal. Close the fuse box cover on your vehicle’

s battery (+) terminal.
5.

Have your vehicle inspected by a nearby service station or a dealer
.Overheating
If the high temperature indicator comes on, the engine suddenly loses po\
wer, or
steam or spray comes out from under the hood, your engine is overheating\
.
1.
Immediately park the vehicle in a safe place. T
urn
off all accessories and turn on the hazard warning
lights.
2.

If steam or spray is not present:
Keep the engine
running and open the hood.
If steam or spray is present:

Turn off the engine and
wait until it subsides. Then, open the hood.
3.

Check that the cooling fan is operating and stop the engine once the hig\
h
temperature indicator goes off. If the cooling fan is not operating, imm\
ediately
stop the engine.
4.


Once the engine has cooled down, inspect the coolant level and check the\

cooling system components for leaks. If the coolant level in the reserve\
t

ank
is low, add coolant until it reaches the MAX mark. If there is no coolant in t\
he
reserve tank, make sure the radiator is cool, then cover the radiator ca\
p with a
heavy cloth and open the cap. If necessary, add coolant up to the base of the
filler neck, and put the cap back on.
Once the engine has cooled sufficiently, restart it and check the high temperature
indicator. If the indicator is off, resume driving. If it stays on, contact a dealer for
repairs.
Reserve
tank
MAX
MIN
Steam and spray from an overheated engine can seriously scald you.
Do not open the hood if steam is coming out.
WARNING
Removing the radiator cap while the engine is hot can cause the coolant \
to
spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiato\
r cap.
WARNING
Continuing to drive with the temperature gauge needle at the H mark may \
damage
the engine.
NOTICE

84 || 85
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, cho\
ose one of
the following operations:
•

Press and hold the ENGINE ST
ART/STOP button for
two seconds, or
•

Firmly press the ENGINE ST
ART/STOP button two
times.
The steering wheel will not lock. Because turning off the engine also di\
sables the
power assist the engine provides to the steering and braking systems, it\
will require
significantly more physical effort and time to steer and slow the vehi\
cle. Downshift
gears and use both feet on the brake pedal, if necessary, to slow the vehicle and
stop immediately in a safe place.
Do not press the button while driving unless it is absolutely necessary \
for the engine
to be switched off.
Trying to lift or tow your vehicle by the bumpers will cause serious dama\
ge. The
bumpers are not designed to support the vehicle’s weight.
Improper towing such as towing behind a motorhome or other motor vehicle\
can
damage the transmission.
NOTICE
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
Flat bed equipment: The operator loads your vehicle on the back of a tru\
ck. This is
the best way to transport your vehicle.
Wheel lift equipment: The tow truck uses two pivoting arms that go under\
the front
tires and lift them off the ground. The rear tires remain on the ground.\
This is an
acceptable way to tow your vehicle.
Tire Pressure Monitoring System (TPMS)
Monitors the tire pressure while you are driving. Available on U.S. models only.
If your vehicle’s tire pressure becomes significantly
low, the low tire pressure indicator comes on and a
message appears in the multi-information display.
Stop your vehicle in a safe place. Check the tire
pressure and adjust the pressure to the specified
level. The specified tire pressure is on a label on the
driver’s doorjamb.
TPMS Calibration Any time you inflate, change, or rotate one of more of the tires, you \
need to
recalibrate the system.
Use the Info (p/q) and SEL/RESET buttons on the steering wheel to control the
multi-information display (see page 24).
1.

Scroll to CUSTOMIZE SETTINGS, and select it.
2.


Select TPMS CALIBRA
TION.
3.

Scroll to CALIBRA
TE, and select it. Calibration
begins.
The calibration process requires approximately 30 minutes of cumulative driving
at speeds between 30–60 mph (48–97 km/h). The process finishes\
automatically.
Driving on an extremely underinflated tire can cause it to overheat. A\
n overheated
tire can fail. Always inflate your tires to the specified pressure.
NOTICE
READY

86 || 87
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Tire Pressure Monitoring System (TPMS)—Required Federal Explanation
Each tire, including the spare (if provided), should be checked monthl\
y
when cold and inflated to the inflation pressure recommended by the \
vehicle manufacturer on the vehicle placard or tire inflation pressure\

label.
(If your vehicle has tires of a different size than the size indicated \
on the
vehicle placard or tire inflation pressure label, you should determine\
the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible, and inflate them to the\

proper pressure.
Driving on a significantly under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping
ability.
Please note that the TPMS is not a substitute for proper tire maintenanc\
e,
and it is the driver’s responsibility to maintain correct tire pressure, even
if under-inflation has not reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator
to indicate when the system is not operating properly. The TPMS
malfunction indicator is combined with the low tire pressure telltale.
When the system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously illuminated. This \
sequence will continue upon subsequent vehicle start-ups as long as the \
malfunction exists.
When the malfunction indicator is illuminated, the system may not be abl\
e
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle \
that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the replacement
or alternate tires and wheels allow the TPMS to continue to function
properly.Tire Repair Kit
If a tire has a small puncture, you can use the tire repair kit to tempo\
rarily repair it.
The puncture must be smaller than 3/16-inch (4 mm) and not in the tire\
sidewall. Go
to a dealer to have the full-size tire permanently repaired or replaced.\
This vehicle is
not equipped with a spare tire.
Before Repairing the Tire
1.
Park the vehicle on a firm, level, non-slippery surface.
2.


Move the shift lever to Park (P) for CVT models or Reverse (R) for m\
anual
transmission models. Apply the parking brake.
3.


T
urn on the hazard warning lights, and turn off the vehicle.
Getting Ready to Repair the Tire1.
Pull the strap and take the kit out of the case.
2.


Place the kit upright on flat ground near the
punctured tire and away from traffic. Do not place
the kit on its side.
3.


Follow the instructions in the kit to repair the tire.
Do not use a puncture-repairing agent other than the one provided in the\
kit that
came with your vehicle. If a different agent is used, you may permanent

ly damage
the tire pressure sensor.
Do not operate the temporary tire repair kit compressor for more than 15\
minutes.
The accessory power socket and compressor can overheat and become
permanently damaged.
NOTICE
Running the engine with the vehicle in an enclosed or even partly enclos\
ed
area can cause a rapid build-up of toxic carbon monoxide.
Breathing this colorless, odorless gas can cause unconsciousness and even
death. Only run the engine to power the air compressor with the vehicle \
outdoors.
WARNING
Tire repair kit

88 || 89
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION

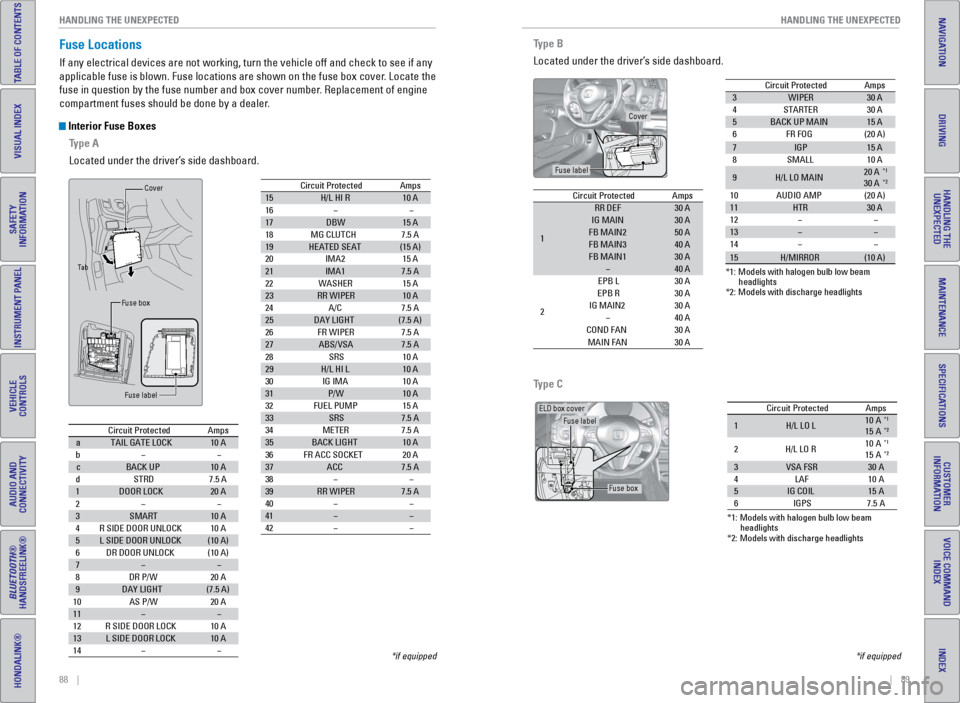

Fuse Locations
If any electrical devices are not working, turn the vehicle off and chec\
k to see if any
applicable fuse is blown. Fuse locations are shown on the fuse box cover\
. Locate the
fuse in question by the fuse number and box cover number. Replacement of engine
compartment fuses should be done by a dealer.
Interior Fuse Boxes
Type A
Located under the driver’s side dashboard.
*if equipped
Circuit Protecte dAmpsaTAIL GATE LOCK10 AbcBACK UP10 AdSTRD7.5 A1DOOR LOCK20 A23SMART10 A4R SIDE DOOR UNLOCK10 A5L SIDE DOOR UNLOCK(10 A)6DR DOOR UNLOCK(10 A)78DR P/W20 A9DAY LIGHT(7.5 A)10AS P/W20 A1112R SIDE DOOR LOCK10 A13L SIDE DOOR LOC K10 A14
15 H/L HI R 10 A
16
17 DBW 15 A
18 MG CLUTCH 7.5 A
19 HEATED SEAT (15 A)
20IMA2 15 A
21 IMA1 7.5 A
22 WASHER 15 A
23 RR WIPER 10 A
24 A/C 7.5 A
25 DAY LIGHT (7.5 A)
26 FR WIPER 7.5 A
27 ABS/VSA 7.5 A
28 SRS 10 A
29 H/L HI L1 0 A
30 IG IMA 10 A
31 P/W1 0 A
32 FUEL PUMP 15 A
33 SRS 7.5 A
34 METER 7.5 A
35 BACK LIGHT 10 A
36 FR ACC SOCKET 20 A
37 ACC 7.5 A
38
39 RR WIPER 7.5 A
40
41
42
Circuit Protected
Amps
Fuse labelCove
r
Fuse bo x
Ta b
Circuit Protecte d Amps
a TAIL GATE LOCK 10 A
b
c BACK UP 10 A
d STRD 7.5 A
1 DOOR LOCK 20 A
2
3 SMART 10 A
4 R SIDE DOOR UNLOCK 10 A
5 L SIDE DOOR UNLOCK (10 A)
6 DR DOOR UNLOCK (10 A)
7
8 DR P/W 20 A
9 DAY LIGHT (7.5 A)
10 AS P/W 20 A
11
12 R SIDE DOOR LOCK 10 A
13 L SIDE DOOR LOC K10 A
14
15H/L HI R10 A1617DBW15 A18MG CLUTCH7.5 A19HEATED SEAT(15 A)20IMA215 A
21 IMA1 7.5 A
22WASHER15 A
23 RR WIPER 10 A
24A/C7.5 A
25 DAY LIGHT (7.5 A)
26FR WIPER7.5 A
27 ABS/VSA 7.5 A
28SRS10 A
29 H/L HI L10 A30IG IMA10 A
31 P/W10 A32FUEL PUMP15 A
33 SRS 7.5 A
34METER7.5 A
35 BACK LIGHT 10 A
36FR ACC SOCKET20 A
37 ACC 7.5 A
38
39 RR WIPER 7.5 A
40
4142
Circuit Protected
Amps
Type B
Located under the driver’s side dashboard.
*if equipped
Circuit ProtectedAmps
1
RR DEF30 AIG MA IN30 AFB MAIN250 AFB MAIN340 AFB MAIN130 A40 A
2
EPB L30 AEPB R30 AIG MAIN230 A40 ACOND FA N30 AMAIN FA N30 A
3 WIPER 30 A
4 STARTER 30 A
5 BACK UP MAIN 15 A
6 FR FOG (20 A)
7 IGP 15 A
8 SMALL 10 A
9 H/L LO MAIN 20
A
*1
30 A*2
10 AUDIO AMP (20 A)
11 HTR 30 A
12
13
14
*1: Models with halogen bulb low beam
headlight s
*2 : Models with discharge headlights
15
H/MIRROR (10 A)
Circuit Protecte
dAmps
Cover
Fuse label
Circuit Protecte d Amps
1 RR DEF
30 A
IG MA IN 30 A
FB MAIN2 50 A
FB MAIN3 40 A
FB MAIN1 30 A
40 A
2 EPB L
30 A
EPB R 30 A
IG MAIN2 30 A
40 A
COND FA N 30 A
MAIN FA N 30 A3WIPER30 A4STARTER30 A5BACK UP MAIN15 A6FR FOG(20 A)
7IGP15 A8SMALL10 A
9H/L LO MAIN20 A*1
30 A*2
10AUDIO AMP(20 A)11HTR30 A121314
*1 : Models with halogen bulb low beam
headlight s
*2 : Models with discharge headlights
15H/MIRROR(10 A)
Circuit Protecte dAmps
Type C
*1: Models with halogen bulb low beam
headlights
*2: Models with discharge headlights
Circuit Protecte dAmps
1H/L LO L10A*1
15A*2
2H/L LO R10A*1
15A*2
3VSA FS R30A4LAF10A5IG COIL15A6IGPS7.5A
ELD box cove r
Fuse box
Fuse label

90 || 91
MAINTENANCE
HANDLING THE UNEXPECTED
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Inspecting and Changing Fuses
1.
T
urn the vehicle off, including all lights and
accessories.
2.

Check the fuses on the battery in the engine
compartment. If the fuse is blown, have it
replaced by a dealer

.
3.

Inspect the small fuses in the engine
compartment and the vehicle interior

.
If there is a burned-out fuse, remove it with the
fuse puller and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the\
chances
of damaging the electrical system.
NOTICE
Fuse
Blown
fuse
Fuse puller
Learn about basic maintenance that you can perform on the vehicle yourse\
lf, as well
as information about how to best maintain the vehicle.
Safety Precautions
Some of the most important safety precautions are listed below; however, we cannot
warn you of every conceivable hazard that can arise in performing mainte\
nance.
Only you can decide whether or not you should perform a given task.
Maintenance Safety•
T
o reduce the possibility of fire or explosion, keep cigarettes, sparks\
, and flames
away from the battery and all fuel-related parts.
•

Never leave rags, towels, or other flammable objects under the hood.
•


T
o clean parts, use a commercially available degreaser or parts cleaner, not
gasoline.
•

W
ear eye protection and protective clothing when working with the battery\
or
compressed air.
•

Do not run the engine in confined spaces where carbon monoxide gas can\

accumulate.
Vehicle Safety
•
The vehicle must be stationary
, and parked on level ground with the parking
brake set and the engine off.
•

Be aware that hot parts can burn you.
•


Be aware that moving parts can injure you.
•


Do not touch the IMA battery and wiring (orange).
MAINTENANCE
Failure to properly follow maintenance instructions and precautions can \
cause you to be seriously hurt or killed.
Always follow the procedures and precautions in this guide.
WARNING
Improperly maintaining this vehicle or failing to correct a problem befo\
re
driving can cause a crash in which you can be seriously hurt or killed. \
Always follow the inspection and maintenance recommendations according
to the schedules in this guide.
WARNING

92 || 93
MAINTENANCE
MAINTENANCE
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION

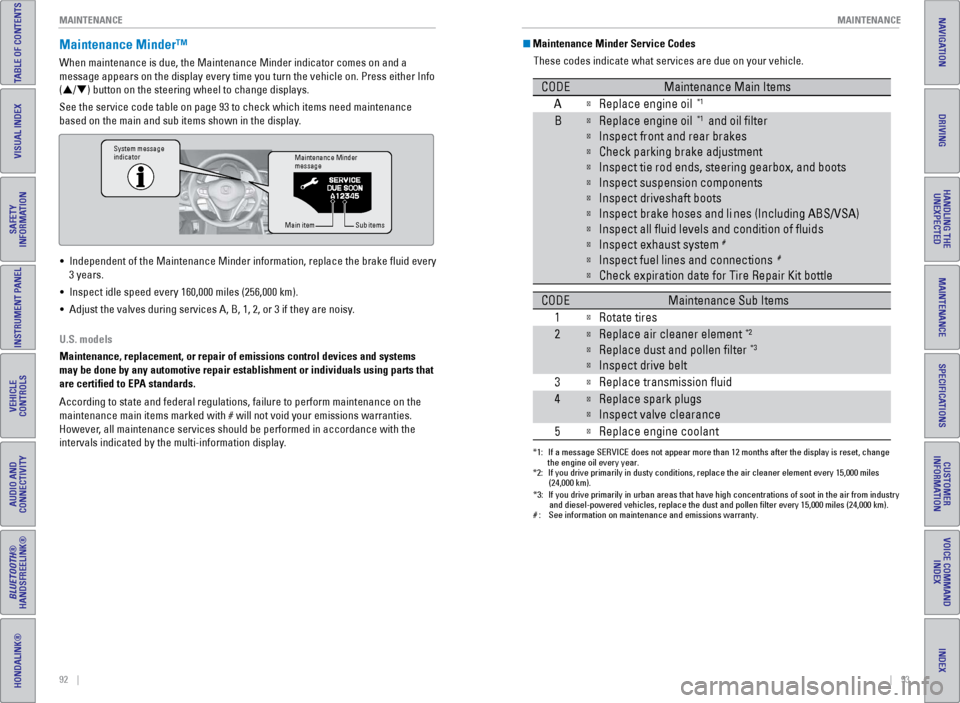

Maintenance Minder™
When maintenance is due, the Maintenance Minder indicator comes on and a\

message appears on the display every time you turn the vehicle on. Press\
either Info
(p/q) button on the steering wheel to change displays.
See the service code table on page 93 to check which items need maintena\
nce
based on the main and sub items shown in the display.
Maintenance Minder
message
System message
indicator
Sub items
Main item
• Independent of the Maintenance Minder information, replace the brake \
uid every
3 years.
•

Inspect idle speed every 160,000 miles (256,000 km).
•


Adjust the valves during services A, B, 1, 2, or 3 if they are noisy
.
U.S. models
Maintenance, replacement, or repair of emissions control devices and sys\
tems
may be done by any automotive repair establishment or individuals using \
parts that
are certified to EPA standards.
According to state and federal regulations, failure to perform maintenan\
ce on the
maintenance main items marked with # will not void your emissions warranties.
However, all maintenance services should be performed in accordance with the
intervals indicated by the multi-information display.
Maintenance Minder Service Codes These codes indicate what services are due on your vehicle.
*1:If a message SERVICE does not appear more than 12 months after the display is reset, change \
the engine oil every year.
*2:If you drive primarily in dusty conditions, replace the air cleaner elem\
ent every 15,000 miles (24,000 km).
CODEMaintenance Main Items
AReplace engine oi l*1
BReplace engine oil*1 and oil lter
Inspect front and rear brakes
Check parking brake adjustment
Inspect tie rod ends, steering gearbox, and boots
Inspect suspension components
Inspect driveshaft boots
Inspect brake hoses and li nes (Including ABS/VSA)
Inspect all uid levels and condition of uid s
Inspect exhaust system#
Inspect fuel lines and connections#
Check expiration date for Tire Repair Kit bottle
*3: If you drive primarily in urban areas that have high concentrations of s\
oot in the air from industryand diesel-powered vehicles, replace the dust and pollen lter every \
15,000 miles (24,000 km).#:See information on maintenance and emissions warranty.
CODEMaintenance Sub Items
1
Rotate tires
2Replace air cleaner element*2
Replace dust and pollen lter*3
Inspect drive belt
3
Replace transmission uid
4Replace spark plugs
Inspect valve clearance
5
Replace engine coolant
