Navigation System141
2NX_Accord Crosstour 31TP6800
Voice Command Index

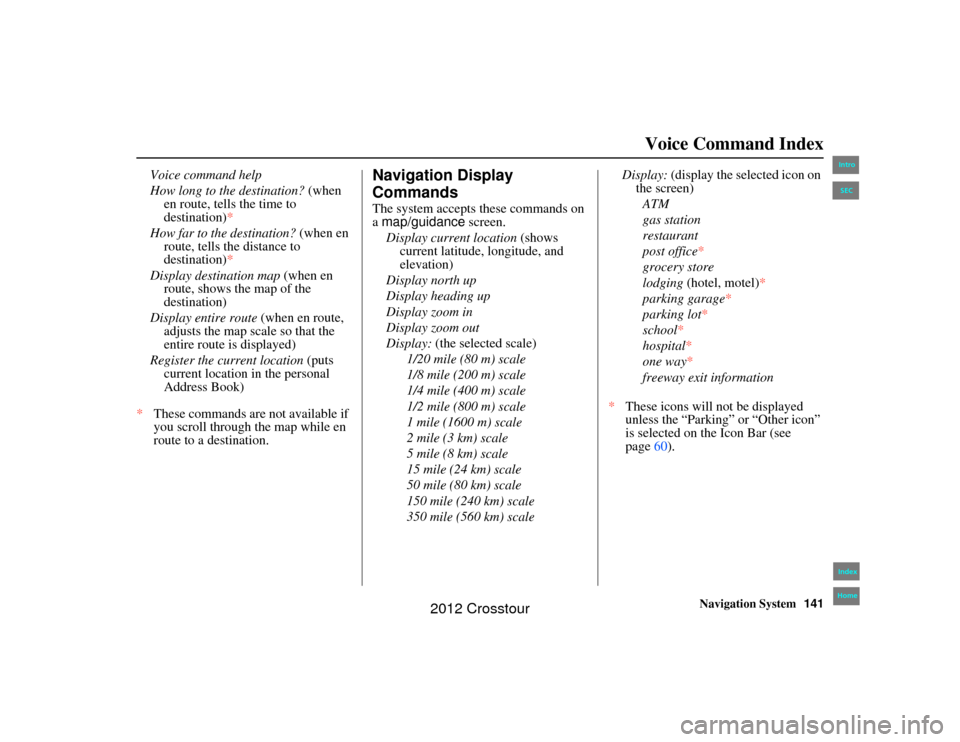

Voice command help
How long to the destination? (when
en route, tells the time to
destination)*
How far to the destination? (when en
route, tells the distance to
destination)*
Display destination map (when en
route, shows the map of the
destination)
Display entire route (when en route, adjusts the map scale so that the
entire route is displayed)
Register the current location (puts
current location in the personal
Address Book)
* These commands are not available if
you scroll through the map while en
route to a destination.
Navigation Display
CommandsThe system accepts these commands on
a map/guidance screen.
Display current location (shows
current latitude, longitude, and
elevation)
Display north up
Display heading up
Display zoom in
Display zoom out
Display: (the selected scale)
1/20 mile (80 m) scale
1/8 mile (200 m) scale
1/4 mile (400 m) scale
1/2 mile (800 m) scale
1 mile (1600 m) scale
2 mile (3 km) scale
5 mile (8 km) scale
15 mile (24 km) scale
50 mile (80 km) scale
150 mile (240 km) scale
350 mile (560 km) scale Display:
(display the selected icon on
the screen)
ATM
gas station
restaurant
post office *
grocery store
lodging (hotel, motel)*
parking garage *
parking lot *
school *
hospital*
one way *
freeway exit information
* These icons will not be displayed
unless the “Parking” or “Other icon”
is selected on the Icon Bar (see
page 60).
00 2NX_Accord Crosstour_ KA.book 141 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

142
Navigation System
2NX_Accord Crosstour 31TP6800
Voice Command Index

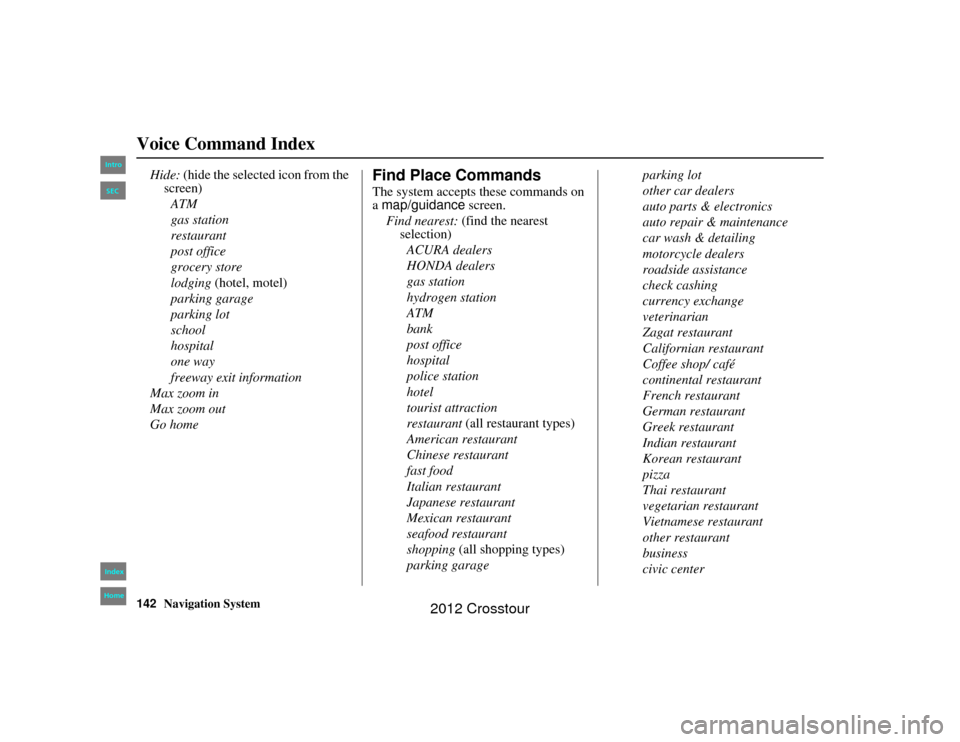

Hide: (hide the selected icon from the
screen)
ATM
gas station
restaurant
post office
grocery store
lodging (hotel, motel)
parking garage
parking lot
school
hospital
one way
freeway exit information
Max zoom in
Max zoom out
Go home
Find Place CommandsThe system accepts these commands on
a map/guidance screen.
Find nearest: (find the nearest
selection)
ACURA dealers
HONDA dealers
gas station
hydrogen station
ATM
bank
post office
hospital
police station
hotel
tourist attraction
restaurant (all restaurant types)
American restaurant
Chinese restaurant
fast food
Italian restaurant
Japanese restaurant
Mexican restaurant
seafood restaurant
shopping (all shopping types)
parking garage parking lot
other car dealers
auto parts & electronics
auto repair & maintenance
car wash & detailing
motorcycle dealers
roadside assistance
check cashing
currency exchange
veterinarian
Zagat restaurant
Californian restaurant
Coffee shop/ café
continental restaurant
French restaurant
German restaurant
Greek restaurant
Indian restaurant
Korean restaurant
pizza
Thai restaurant
vegetarian restaurant
Vietnamese restaurant
other restaurant
business
civic center
00 2NX_Accord Crosstour_
KA.book 142 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

Navigation System143
2NX_Accord Crosstour 31TP6800
Voice Command Index
convention center
library
school
city hall
court house
higher education
amusement park
golf course
historical monument
marina
movie theater
museum
park
performing arts
sports complex
bed & breakfast
accessory store
book store
clothing store
grocery store
home improvement store
mall
office supply store
pharmacy
pet food store
sewing store shoe store
sporting goods store
toy store
airport
automobile club
bus station
camping
commuter rail station
ferry terminal
named place
park & ride
rental car agency
resort
rest area
ski area
tourist information
train station
travel agency
truck stop
Climate Control CommandsThe system accepts these commands on
most screens.
Climate control full automatic (controls temperature to 72
degrees F)
Climate control automatic (controls
temperature to your selection)
Climate control on*
Climate control off *
Air conditioner on*
Air conditioner off*
Climate control defrost on*
Climate control defrost off*
Rear defrost on *
Rear defrost off*
Climate control fresh air
Climate control recirculate
Climate control vent
00 2NX_Accord Crosstour_ KA.book 143 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
* Repeating these commands switches (toggles) the function between On and Off, so the action that occurs
may not match the command you
speak.
2012 Crosstour

144
Navigation System
2NX_Accord Crosstour 31TP6800
Voice Command Index

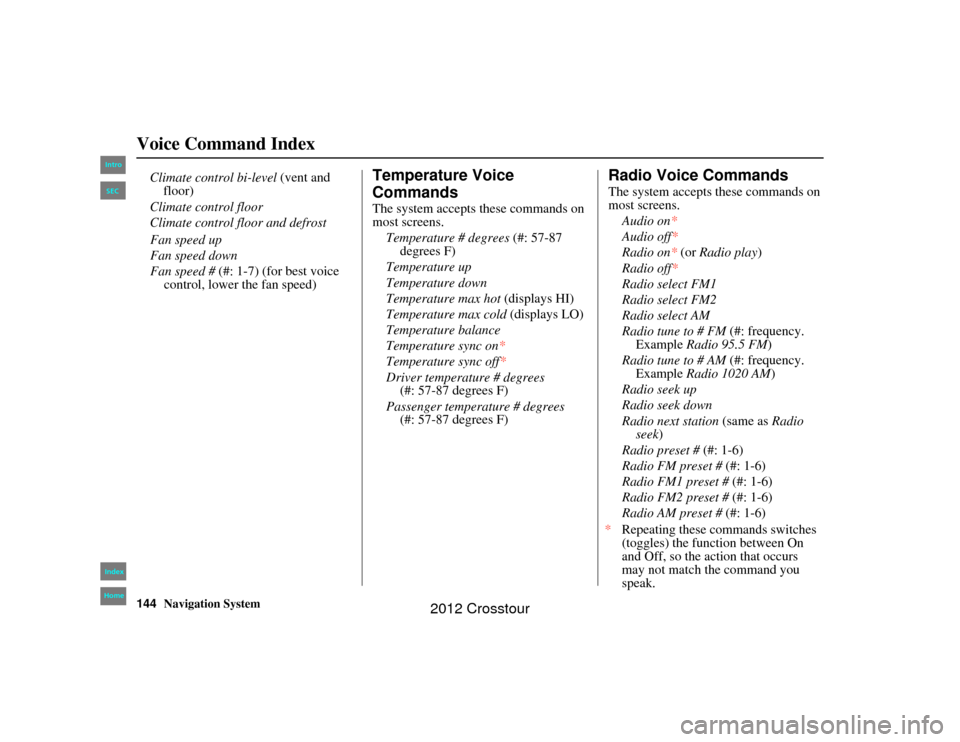

Fan speed up
Fan speed down
Fan speed # (#: 1-7) (for best voice
control, lower the fan speed)
Temperature Voice
CommandsThe system accepts these commands on
most screens.
Temperature # degrees (#: 57-87
degrees F)
Temperature up
Temperature down
Temperature max hot (displays HI)
Temperature max cold (displays LO)
Temperature balance
Temperature sync on *
Temperature sync off*
Driver temperature # degrees (#: 57-87 degrees F)
Passenger temperature # degrees (#: 57-87 degrees F)
* Repeating these commands switches

(toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
Radio Voice CommandsThe system accepts these commands on
most screens.Audio on *
Audio off*
Radio on* (or Radio play)
Radio off*
Radio select FM1
Radio select FM2
Radio select AM
Radio tune to # FM (#: frequency.
Example Radio 95.5 FM )
Radio tune to # AM (#: frequency.
Example Radio 1020 AM )
Radio seek up
Radio seek down
Radio next station (same as Radio
seek )
Radio preset # (#: 1-6)
Radio FM preset # (#: 1-6)
Radio FM1 preset # (#: 1-6)
Radio FM2 preset # (#: 1-6)
Radio AM preset # (#: 1-6)
00 2NX_Accord Crosstour_ KA.book 144 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
Climate control bi-level (vent and
floor)
Climate control floor
Climate control flo or and defrost
2012 Crosstour

Navigation System145
2NX_Accord Crosstour 31TP6800
Voice Command Index
XM channel # (#: 1-255)
XM channel up
XM channel down
XM category up
XM category down
XM preset # (#: 1-6)
XM1 preset # (#: 1-6)
XM2 preset # (#: 1-6)
XM scan*
XM category scan*
XM channel scan*
XM category mode
XM channel mode
NOTE:
Radio volume levels cannot be
controlled using voice control. Use the
buttons on your steering wheel. See your
Owner’s Manual for more information.
CD Voice CommandsThe system accepts these commands on
most screens. CD play
CD play disc # (#: 1-6)
CD play track # (#: 1-30)
CD play disc #1 track #2 (#1: 1-6,
#2: 1-30)
CD skip forward
CD skip back
CD play next disc
CD play previous disc
CD track random*
CD track repeat *
CD disc repeat*
CD track scan *
CD disc scan *
CD normal play
CD track list CD folder random*
CD folder repeat*
CD folder scan*
CD folder list
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
00 2NX_Accord Crosstour_ KA.book 145 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
Radio auto select*
Radio scan*
Radio select XM1
Radio select XM2
2012 Crosstour

146
Navigation System
2NX_Accord Crosstour 31TP6800
Voice Command IndexAUX Voice CommandsThe system accepts these commands on
most screens.AUX play (or Auxiliary play)
NOTE:
For more information on USB features,
see your Owner’s Manual.
Information Screen Voice
CommandsThese are additional commands not
found on the Voice Command Help
screen available when viewing the
Information screen. Follow the voice
prompts.
Cellular phone
Trip computer
Calendar
Calculator
Voice command help (the system
reads and lists all of the
commands, starting with
Navigation General Commands)
Map legend
Key to Zagat ratings
SETUP Screen (Main Setup)
CommandsThe system accepts these commands on
the SETUP screen ( Main Setup ). (For
the SETUP screen ( Other), simply say
what is written on the screen, and follow
the voice prompts.)
Brightness up
Brightness down
Brightness minimum/min.
Brightness maximum/max.
Contrast up
Contrast down
Contrast minimum/min.
Contrast maximum/max.
Black level up
Black level down
Black level minimum/min.
Black level maximum/max.
Volume up
Volume down
Volume minimum/min.
Volume maximum/max.
Volume off
00 2NX_Accord Crosstour_ KA.book 146 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

Navigation System147
2NX_Accord Crosstour 31TP6800
Voice Command Index
Interface dial feedback off
Interface dial feedback auto
Interface dial feedback on
Guidance prompts minimum/min.
Guidance prompts normal
Guidance prompts maximum/max.
On-Screen CommandsThe system accepts these commands on
any screen. There are over 100 on-
screen commands. Just say what is
written on the screen (this excludes
listed items).
Next (or “Down”)
Previous (or “Up”)
Return
OK (except at Disclaimer screen)
Delete
Done
etc.On-Screen Spelling AssistWhen speaking the letters or using
“spell mode,” you can substitute the
name that represents each letter or
symbol. This improv es recognition. For
example:
 To select the letter “A”:
Say “ A,” “ Alpha ,” or “Apple.”
 To select the letter “M”: Say “ M,” “ Mary ,” or “ Mike.”
The system will respond to the names
shown in the following tables. NOTE:
 The system will only respond to the
names shown in the following tables.
 To select the letter “A,” you can also select the “A” by using the Interface
Dial.
 To select the number “1,” say “One” or “Number One,” or select the “1”
by using the Interface Dial.
 To select the symbol “- (hyphen),” say “Hyphen” or “Symbol Hyphen,”
or select the “-” by using the
Interface Dial .
 When selecting letters using the voice control system, a confirmation box
may pop up to confirm the letter.
00 2NX_Accord Crosstour_ KA.book 147 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

148
Navigation System
2NX_Accord Crosstour 31TP6800
Voice Command IndexLetters Assist Definitions:
Say Or say “...” Say Or say “...” Say Or say “...” Say Or say “...”A Alpha/Apple
H
Hotel/Henry OOscar VVictor
B Bravo/Boy IIndia/Igloo PPapa/Paul WWhiskey/William
C Charlie JJuliet/John QQuebec/Queen XX-ray
D Delta/Dog KKilo/King RRomeo/Robert YYankee/Yellow
E Echo/Edward LLima/Larry SSierra/Sam ZZulu/Zebra
F Foxtrot/Frank MMike/Mary TTango/Tom
G Golf/George NNovember/Nancy UUniform/Uncle
00 2NX_Accord Crosstour_ KA.book 148 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

Navigation System149
2NX_Accord Crosstour 31TP6800
Voice Command Index

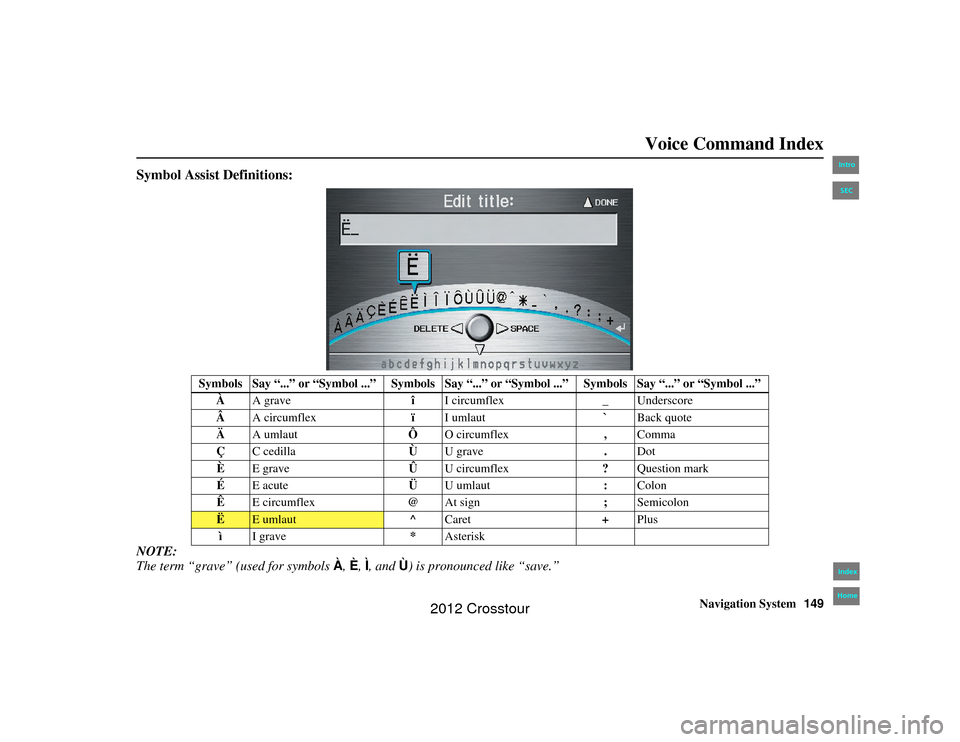

Symbol Assist Definitions:NOTE:
The term “grave” (used for symbols À, È, Ì, and Ù) is pronounced like “save.”
Symbols Say “...” or “Symbol ...” S ymbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
À A grave îI circumflex _Underscore
 A circumflex ïI umlaut `Back quote
Ä A umlaut ÔO circumflex ,Comma
Ç C cedilla ÙU grave .Dot
È E grave ÛU circumflex ?Question mark
É E acute ÜU umlaut :Colon
Ê E circumflex @At sign ;Semicolon
Ë
E umlaut ^Caret +Plus
ì I grave *Asterisk
00 2NX_Accord Crosstour_ KA.book 149 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

150
Navigation System
2NX_Accord Crosstour 31TP6800

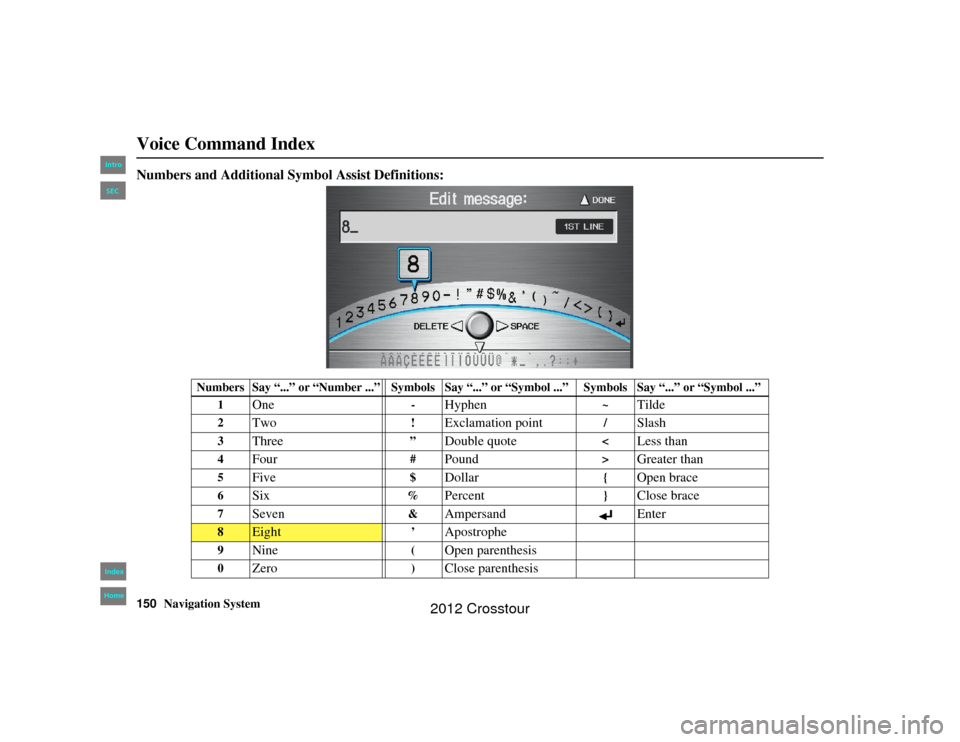

Voice Command IndexNumbers and Additional Symbol Assist Definitions:
Numbers Say “...” or “Number ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
1
One
-
Hyphen
~
Tilde
2
Two
!
Exclamation point
/
Slash
3
Three
”
Double quote
<
Less than
4
Four
#
Pound
>
Greater than
5
Five
$
Dollar
{
Open brace
6
Six
%
Percent
}
Close brace
7
Seven
&
Ampersand Enter
8
Eight
’
Apostrophe
9
Nine
(
Open parenthesis
0
Zero
)
Close parenthesis
00 2NX_Accord Crosstour_KA.book 150 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour
