Navigation System3
Table of Contents
2NX_Accord Crosstour 31TP6800
Rearview Camera ....................... 101Visible Range of the Rearview
Image .......................................... 101
Rearview Camera Brightness Adjustment .................................. 102
System Initialization .................103
System Initialization .................... 103
Entering the Security Code.......... 103
GPS Initialization ........................ 104
Map Matching ............................. 104
System Limitations ...................105
Database Limitations ............... 107
Customer Assistance ................ 109
Reporting Errors .......................... 109
Honda Automobile Customer Service ...................................... 109
Visiting Your Dealer ................... 110
Obtaining a Navigation Update DVD ......................................... 110
Changing the DVD ...................... 111
PC Card ....................................... 111
Coverage Areas .........................112
Map Coverage ............................. 112U.S. Detailed Coverage Areas....... 112Canada Detailed Coverage
Areas........................................... 117
Operation in Alaska and
Hawaii....................................... 126Alaska ............................................ 126
Hawaii............................................ 126
Shipping a Vehicle To or From Hawaii ........................................ 127
Frequently Asked Questions...128
Troubleshooting ....................... 135
Glossary .................................... 137
Glossary ....................................... 137
Voice Command Index ............140
Global Commands ....................... 140
Navigation General
Commands ................................ 140
Navigation Display Commands ................................ 141
Find Place Commands ................. 142
Climate Control Commands ........ 143
Temperature Voice Commands ... 144
Radio Voice Commands .............. 144
CD Voice Commands .................. 145
AUX Voice Commands ............... 146Information Screen Voice
Commands ................................ 146
SETUP Screen (Main Setup) Commands ................................ 146
On-Screen Commands ................. 147
On-Screen Spelling Assist .............. 147
Index .........................................151
00 2NX_Accord Crosstour_KA.book 3 ページ ２０１１年６月２３日　木曜日　午後５時２分
IntroIndex
Home
In dex
Ta ble of ContentsNa vigation
Ke y
Introduction
Section - 1st page
IntroIndex
HomeSEC
2012 Crosstour

Navigation System103
2NX_Accord Crosstour 31TP6800

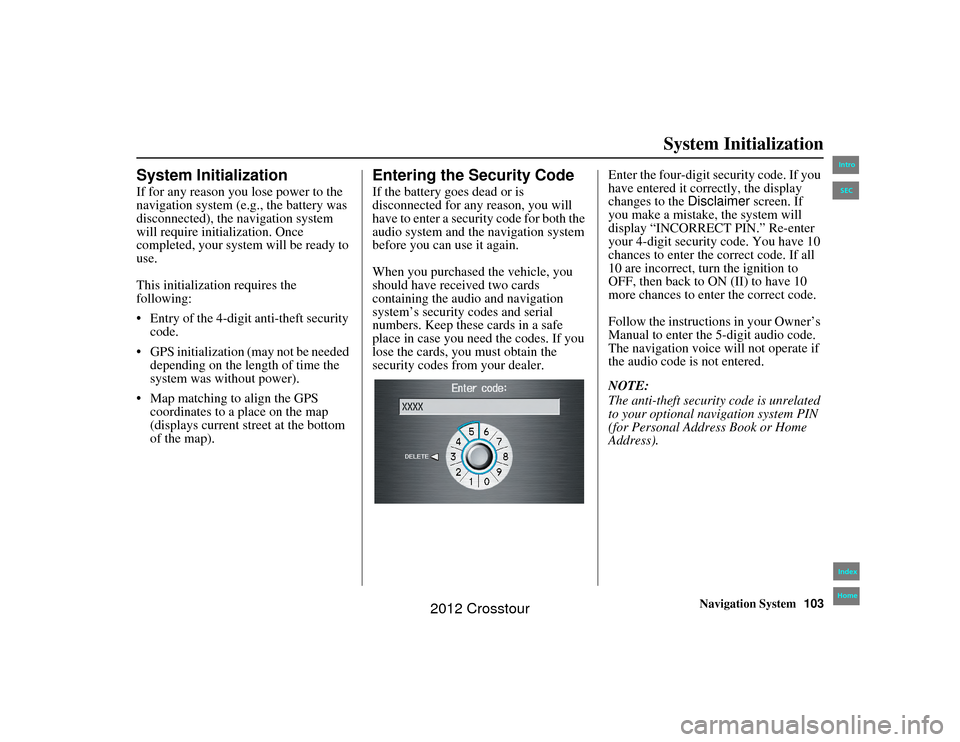

System Initialization
System InitializationIf for any reason you lose power to the
navigation system (e.g., the battery was
disconnected), the navigation system
will require initialization. Once
completed, your system will be ready to
use.
This initialization requires the
following:
 Entry of the 4-digit anti-theft security
code.
 GPS initialization (may not be needed depending on the length of time the
system was without power).
 Map matching to align the GPS coordinates to a place on the map
(displays current street at the bottom
of the map).
Entering the Security CodeIf the battery goes dead or is
disconnected for any reason, you will
have to enter a security code for both the
audio system and the navigation system
before you can use it again.
When you purchased the vehicle, you
should have rece ived two cards
containing the audio and navigation
system’s security codes and serial
numbers. Keep these cards in a safe
place in case you need the codes. If you
lose the cards, you must obtain the
security codes from your dealer. Enter the four-digit se
curity code. If you
have entered it correctly, the display
changes to the Disclaimer screen. If
you make a mistake, the system will
display “INCORRECT PIN.” Re-enter
your 4-digit security code. You have 10
chances to enter the correct code. If all
10 are incorrect, turn the ignition to
OFF, then back to ON (II) to have 10
more chances to enter the correct code.
Follow the instructions in your Owner’s
Manual to enter the 5-digit audio code.
The navigation voice will not operate if
the audio code is not entered.
NOTE:
The anti-theft security code is unrelated
to your optional navigation system PIN
(for Personal Address Book or Home
Address).
00 2NX_Accord Crosstour_ KA.book 103 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

Navigation System105
2NX_Accord Crosstour 31TP6800
System Limitations
Although your navigation system is one
of the most highly sophisticated pieces
of equipment you will find in a modern
automobile, you may find during its use
that it has certain limitations.
The system uses GPS signals to aid in
determining its current location. The
GPS is operated by the U.S.
Department of Defense. For security
reasons, there are certain inaccuracies
built into the GPS that the navigation
system must constantly compensate for.
This can cause occasional positioning
errors of up to several hundred feet.
For example, in urban areas where
streets are close together, this could
cause the system to show that you are
traveling on a street that parallels the
street you are actually on. The system
will, under most circumstances, correct
itself while you drive. Depending on your current view of the
sky and the position of
the satellites, the
elevation may be shown incorrectly.
You may also notice some delay of the
vehicle position icon at intersections;
this is normal.
GPS Reception IssuesThe signals received from the GPS
satellites are extremely weak (less than
a millionth of the strength of a local FM
station) and require an unobstructed
view of sky. The signal can easily be
interrupted or interfered with by the
following:
 Aftermarket metallic window tint
above or to the sides of the GPS
antenna (located under the
dashboard)
 Cell phones, PDAs, or other electronic devices docked in a cradle
or lying loose near the dashboard
 Radar detectors mounted near the dashboard
 Remote starters, or “hidden” vehicle tracking systems mounted near the
navigation unit  Other aftermarket audio electronic
devices mounted near the navigation
unit
 Trees, tall buildings, freeway overpasses, tunnels, or overhead
electrical power wires
Although the system will direct you to
your desired destination, it may not
always generate what you consider to be
the most direct route. Try changing the
method of routing. See Changing
Routing Method on page 47. You may
also have Unverified Area Routing set
to OFF. See Unverified Area Routing on
page 87.
Additionally, the mapping database
contains verified and unverified maps.
See Map Overview on page6.
A Disclaimer screen will warn you if
your route includes unverified streets.
Unverified streets may be missing from
the map, in the wrong location, or have
an incorrect name or address range.
Exercise additional caution when
driving in these unverified areas.
00 2NX_Accord Crosstour_ KA.book 105 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

134
Navigation System
2NX_Accord Crosstour 31TP6800
Frequently Asked QuestionsDaylight saving time occurred, but the navigation system did
not change time even though SETUP shows Auto Daylight
is ON . Go to the
Clock adjustment screen in SETUP and select DST Selection.
Ensure that the correct DST schedule is selected. For more information, see
Clock Adjustment on page94.
The navigation system automatic daylight time feature is not
switching the navigation system clock on the correct dates.
Why is this? 1) Go to the Clock adjustment
screen in SETUP and ensure that Auto
Daylight is ON .
2) The navigation system is designed to switch to daylight saving time according to the months selected in the DST schedule selection screen.
Ensure that the appropriate schedule is selected. For more information,
see Clock Adjustment on page94.
The navigation system clock switched by one hour for no
apparent reason. What can cause this? 1) You may be driving near a time zone boundary (see
Auto Daylight on
page 95).
2) The navigation system does not switch between standard and daylight saving time. Set Auto Daylight to ON on the Clock adjustment screen
in SETUP, and ensure that the correct month switching schedule is
chosen on the DST schedule selection screen. See page95 for more
information.
My battery was disconnected or went dead, and the
navigation system is asking for a code. Where do I find this
code? There should be a card in the glove
box with the anti-theft code for the
navigation/audio system. This card contains the 4-digit security code and
serial number. If you cannot find it, your dealer can help you out.
I speak a language other than English. When will other
languages be available for the navigation system? This is being considered as a future enhancement.
Problem
Solution00 2NX_Accord Crosstour_KA.book 134 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

138
Navigation System
2NX_Accord Crosstour 31TP6800

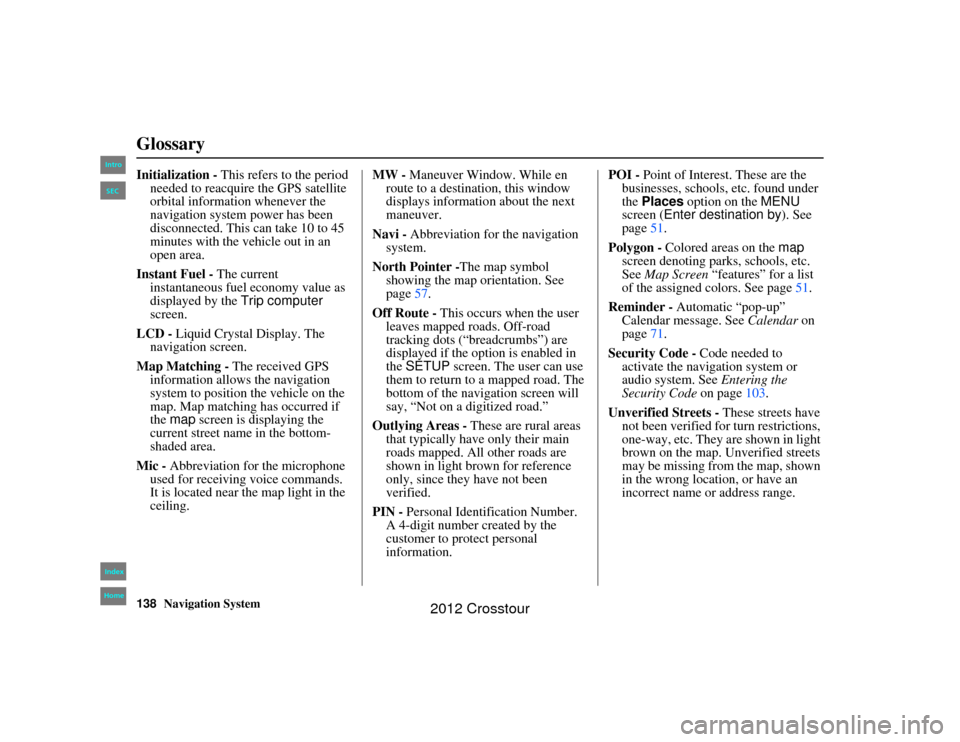

GlossaryInitialization - This refers to the period
needed to reacquire the GPS satellite
orbital information whenever the
navigation system power has been
disconnected. This can take 10 to 45
minutes with the vehicle out in an
open area.
Instant Fuel - The current
instantaneous fuel economy value as
displayed by the Trip computer
screen.
LCD - Liquid Crystal Display. The
navigation screen.
Map Matching - The received GPS
information allows the navigation
system to position the vehicle on the
map. Map matching has occurred if
the map screen is displaying the
current street name in the bottom-
shaded area.
Mic - Abbreviation for the microphone
used for receivin g voice commands.
It is located near the map light in the
ceiling. MW -
Maneuver Window. While en
route to a destination, this window
displays informatio n about the next
maneuver.
Navi - Abbreviation for the navigation
system.
North Pointer - The map symbol
showing the map orientation. See
page 57.
Off Route - This occurs when the user
leaves mapped roads. Off-road
tracking dots (“breadcrumbs”) are
displayed if the option is enabled in
the SETUP screen. The user can use
them to return to a mapped road. The
bottom of the navigation screen will
say, “Not on a digitized road.”
Outlying Areas - These are rural areas
that typically have only their main
roads mapped. All other roads are
shown in light brown for reference
only, since they have not been
verified.
PIN - Personal Identification Number.
A 4-digit number created by the
customer to protect personal
information. POI -
Point of Interest. These are the
businesses, schools, etc. found under
the Places option on the MENU
screen ( Enter destination by ). See
page 51.
Polygon - Colored areas on the map
screen denoting parks, schools, etc.
See Map Screen “features” for a list
of the assigned colors. See page 51.
Reminder - Automatic “pop-up”
Calendar message. See Calendar on
page 71.
Security Code - Code needed to
activate the navigation system or
audio system. See Entering the
Security Code on page103.
Unverified Streets - These streets have not been verified for turn restrictions,
one-way, etc. They are shown in light
brown on the map. Unverified streets
may be missing from the map, shown
in the wrong location, or have an
incorrect name or address range.00 2NX_Accord Crosstour_ KA.book 138 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

152
Navigation System
Index
2NX_Accord Crosstour 31TP6800
E
Easy Route
..................................... 47
Edit Avoid Area
..............................91
Edit Waypoint Search Area
..............93
Edit/Delete Address
........................ 82
Editing Today’s De stinations List
....44
Emergency
..................................... 30
Entering a Destination
.....................22
Entering Address
............................. 80
Entering Schedule
...........................72
Entering Security Code
..................103
Entering the Street Number
..............27
Entering Your Schedule
................... 72
Error Message
............................... 135
Exit Info
......................................... 54
F
Find Place Commands
................... 142
Frequently Asked Questions
..........128
G
Getting Started
................................ 10
Global Commands
........................140
Glossary
....................................... 137
Go Home
..................................22, 45
Go Home PIN
.................................84
Going Off the Route
.......................62
GPS Initialization
......................... 104
Guidance Mode
........................55, 94
Guidance Prompts
....................50, 78
Guidance Screen
............................ 52
H
Hawaii (Operation)
....................... 126
Home Address
............................... 83
Honda Automobile Customer
Service
..................................... 109
Hotel/Motel (Lodging)
...................30
I
Icon Bar
........................................ 60
INFO button
............................10, 70
Information Screen
.........................70
Information Screen Voice
Commands
................................ 146
Interface Dial
................................. 11
Interface Dial Feedback
..................78
Interface Dial knob
......................... 11
Intersection
.............................. 22, 35
K
Key to Zagat Ratings
...................... 75
L
Landmark Icons
............................. 58
Leisure
.......................................... 30
Lodging (Hotel/Motel)
....................30
Lower Display
............................... 12
M
Map Color
..................................... 98
Map Coverage
..............................112
Map Input
................................ 22, 40
Map Legend
.......................19, 51, 75
Map Matching
.............................. 104
Map Menu
..................................... 53
Map Orientation
.............................57
Map Scale
...................................... 56
Map Screen
..............................19, 51
MAP/GUIDE button
.................10, 52
Maximize Freeways
....................... 47
MENU button
................................ 10
Menu Color
................................... 99
Message
........................................ 72
Microphone
...................................13
Minimize Freeways
........................47
Minimize Toll Roads
......................47
00 2NX_Accord Crosstour_ KA.book 152 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroHomeSEC
2012 Crosstour

Navigation System153
Index
2NX_Accord Crosstour 31TP6800
N
Name
....................................... 28, 33
NAVI BACK button
........................13
NAVI TALK button
........................13
Navigation Display Commands
......141
Navigation General Commands
......140
O
Off-road Tracking
..................... 62, 96
One-Way Traffic Icon
...19, 51, 56, 58
On-Screen Commands
................... 147
On-Screen Spelling Assist
.............147
P
PC Card
........................................ 111
Personal Information
.......................79
Phone Number
.......................... 28, 33
PIN Number
................................... 83
Place Name
..............................29, 33
Place Name by Keyword
.................32
Places
................................. 22, 28, 81
Previous Destinations
..........22, 39, 81
R
Radio Voice Commands
............... 144
Read List
................................. 31, 74
Rearview Camera
.........................101
Recalculation
........................... 62, 86
Reporting Errors
..........................109
Reroute
.......................................... 65
Rerouting
......................................86
Restaurant
...............................30, 31
Route
..........................46, 49, 62, 65
Routing & Guidance
.......................86
Routing Method
............................. 47
S
Save Current Location
.................... 63
Schedule
........................................ 72
Screen
........................................... 12
Search Waypoint
............................66
Security Code
.............................. 103
Selecting the City
.....................23, 35
Selecting the State
....................23, 35
Selecting the Street
...................25, 37
SETUP button
................................ 10
SETUP Screen (Main Setup)
Commands
................................ 146
Shopping
....................................... 30
Show Icon on Map
.........................58
Sort by Distance to Travel
...............32
State
.................................. 23, 35, 42
Street
....................................... 25, 37
Switching Display Mode
.................99
System Controls
............................. 10
System Function Diagram
...............21
System Information
...................... 101
System Initialization
.....................103
System Limitations
....................... 105
System Setup
................................. 77
System Start-up
..............................17
T
Temperature Voice Commands
..... 144
Time Adjustment
........................... 96
Today’s Destinations
................22, 43
Today’s Destinations List
...............44
Travel
............................................ 30
Trip Computer
...............................70
Troubleshooting
...........................135
00 2NX_Accord Crosstour_ KA.book 153 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroHomeSEC
2012 Crosstour
