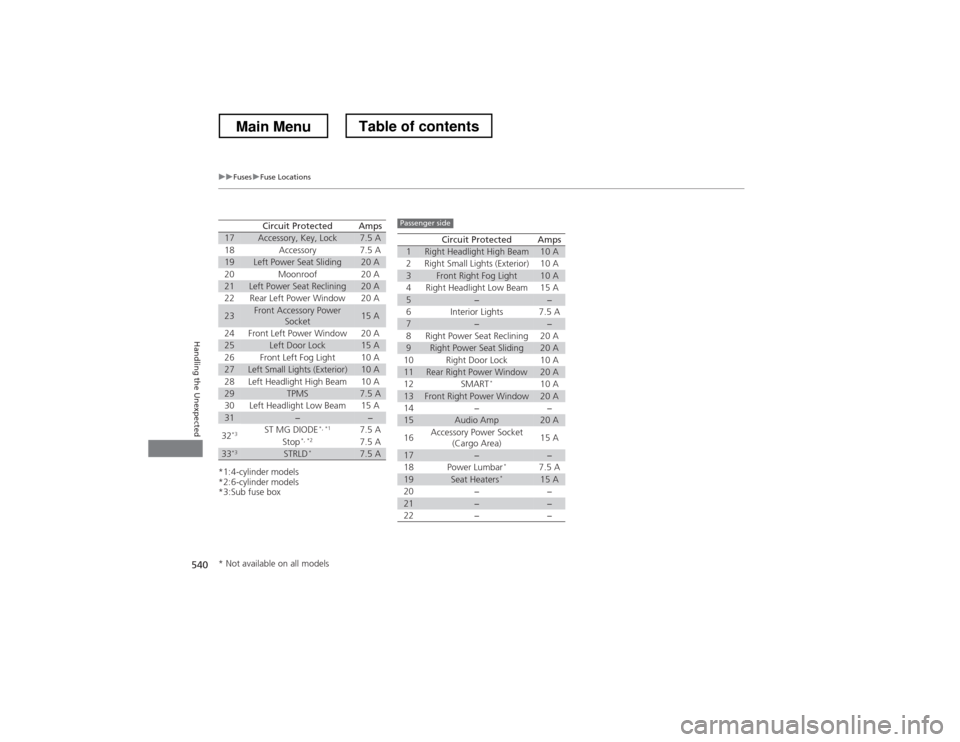

uuFusesuFuse Locations
Handling the Unexpected
*1:4-cylinder models
*2:6-cylinder models
*3:Sub fuse box
17Accessory, Key, Lock7.5 A18Accessory7.5 A19Left Power Seat Sliding20 A20Moonroof20 A21Left Power Seat Reclining20 A22Rear Left Power Window20 A
23Front Accessory Power Socket15 A
24Front Left Power Window20 A25Left Door Lock15 A26Front Left Fog Light10 A27Left Small Lights (Exterior)10 A28Left Headlight High Beam10 A29TPMS7.5 A30Left Headlight Low Beam15 A31−−
32*3 ST MG DIODE
*, *1
7.5 A
Stop *, *2
7.5 A
33*3STRLD *7.5 A
Circuit ProtectedAmps
Circuit ProtectedAmps1Right Headlight High Beam10 A2Right Small Lights (Exterior)10 A3Front Right Fog Light10 A4Right Headlight Low Beam15 A5−−6Interior Lights7.5 A7−−8Right Power Seat Reclining20 A9Right Power Seat Sliding20 A10Right Door Lock10 A11Rear Right Power Window20 A12SMART *10 A13Front Right Power Window20 A14−−15Audio Amp20 A
16Accessory Power Socket
(Cargo Area)15 A
17−−18Power Lumbar *7.5 A19Seat Heaters
*15 A20−−21−−22−−
Passenger side
* Not available on all models
Main MenuTable of contents

541
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

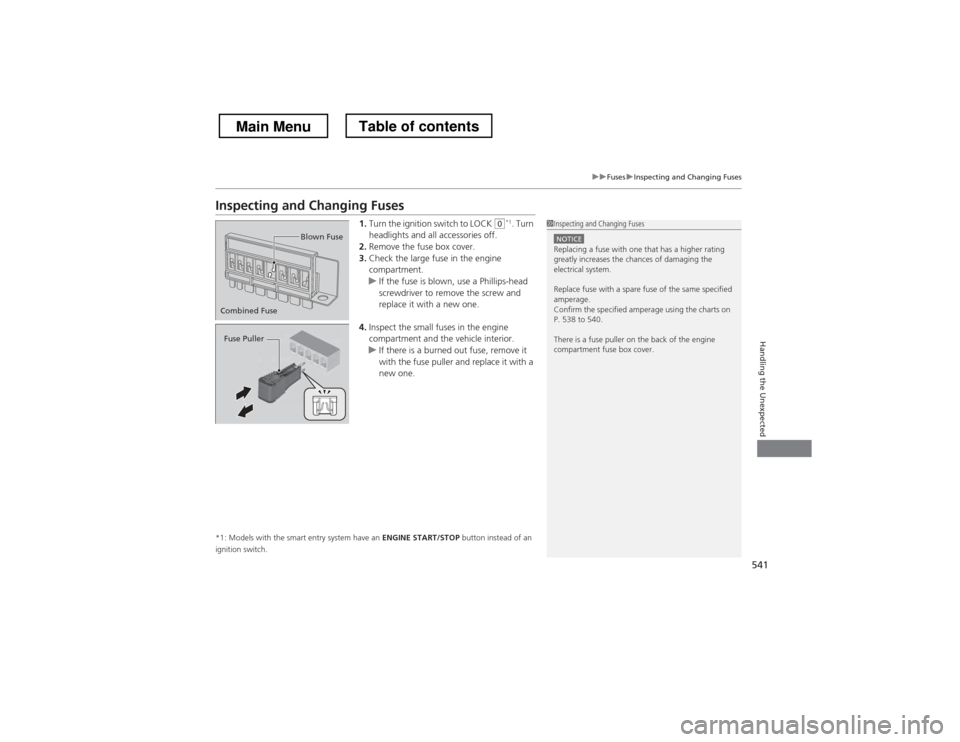

Inspecting and Changing Fuses1.Turn the ignition switch to LOCK
(0 *1
. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 538 to 540.
There is a fuse puller on the back of the engine compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
Main MenuTable of contents

542
Handling the Unexpected

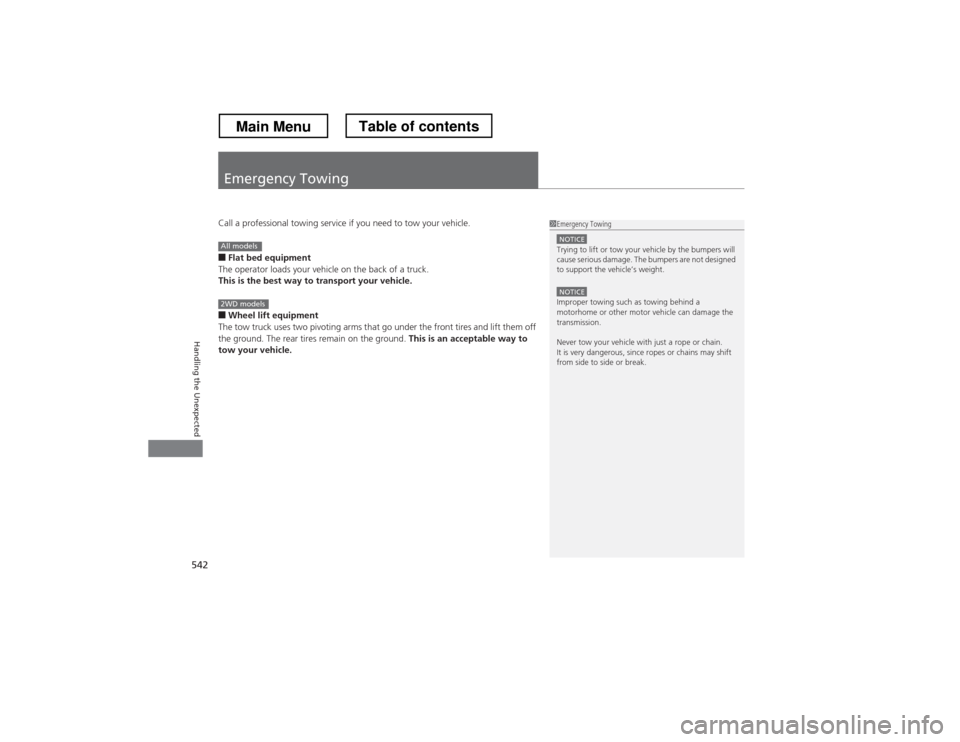

Emergency Towing
Call a professional towing service if you need to tow your vehicle. ■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■ Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.1Emergency Towing
NOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
All models
2WD models
Main MenuTable of contents

543
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Pry on the front edge of the cover using a
flat-tip screwdriver to remove the cover.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Pull the release lever towards you.
uThe release lever unlocks and opens the
fuel fill door when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
Cover
Release Lever
Main MenuTable of contents

544
Handling the Unexpected

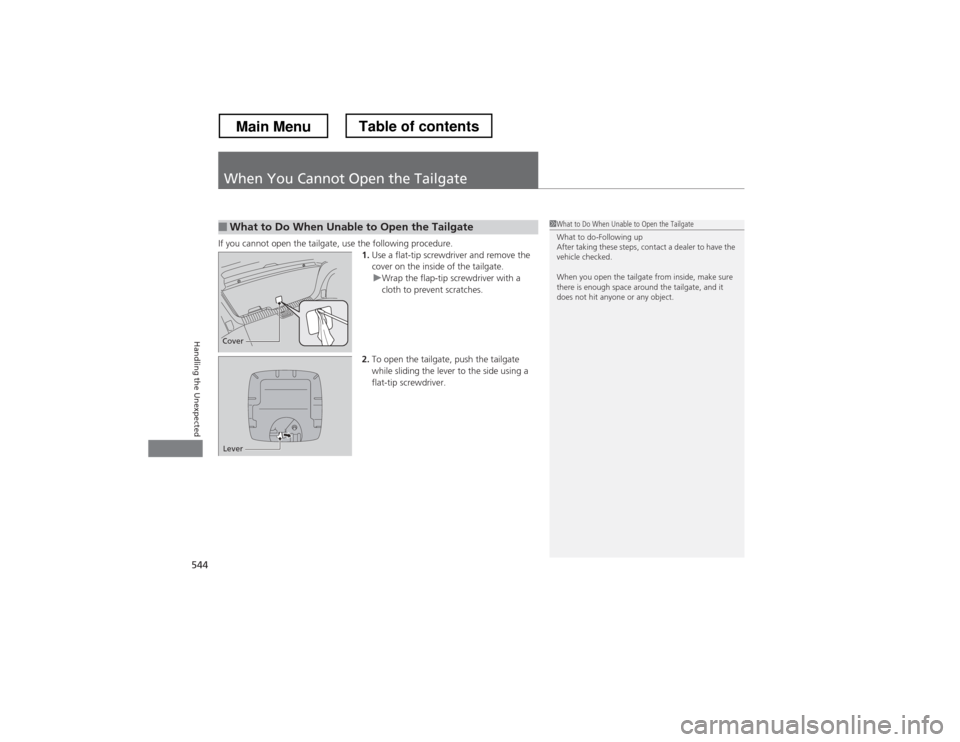

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
uWrap the flap-tip screwdriver with a
cloth to prevent scratches.
2. To open the tailgate, push the tailgate
while sliding the lever to the side using a
flat-tip screwdriver.
■What to Do When Unab le to Open the Tailgate1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Main MenuTable of contents

545
Information

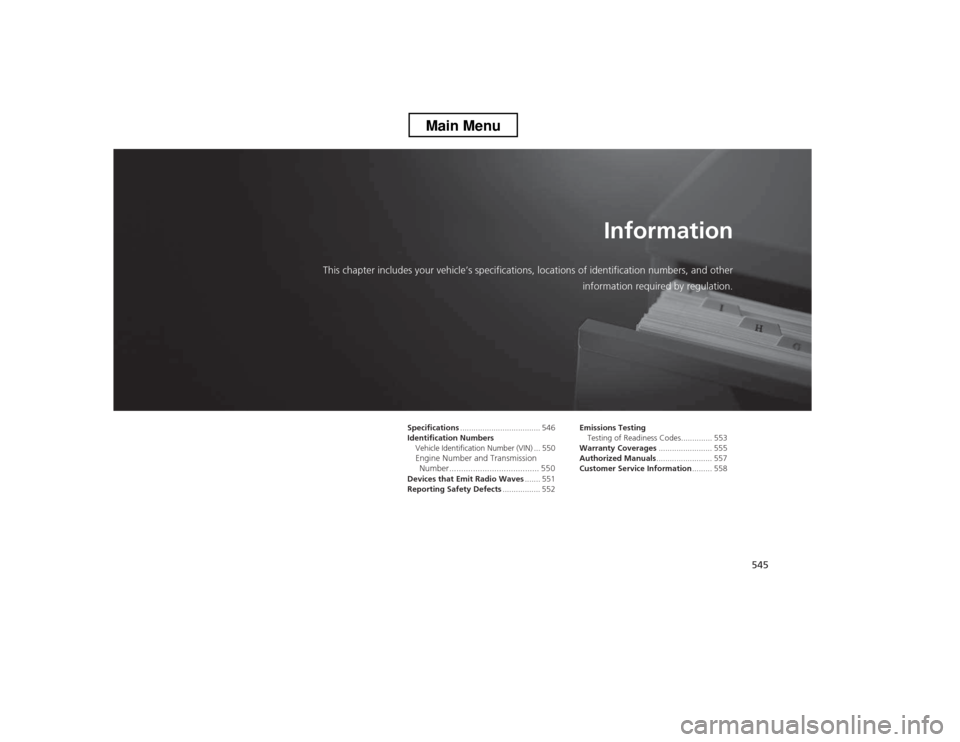

This chapter includes your vehicle’s specifications, locations of identification numbers, and other information required by regulation.
Specifications.................................... 546
Identification Numbers
Vehicle Identification Number (VIN) ... 550
Engine Number and Transmission
Number...................................... 550
Devices that Emit Radio Waves ....... 551
Reporting Safety Defects ................. 552Emissions Testing
Testing of Readiness Codes.............. 553
Warranty Coverages ........................ 555
Authorized Manuals ......................... 557
Customer Service Information ......... 558
Main Menu

546
Information
Specifications

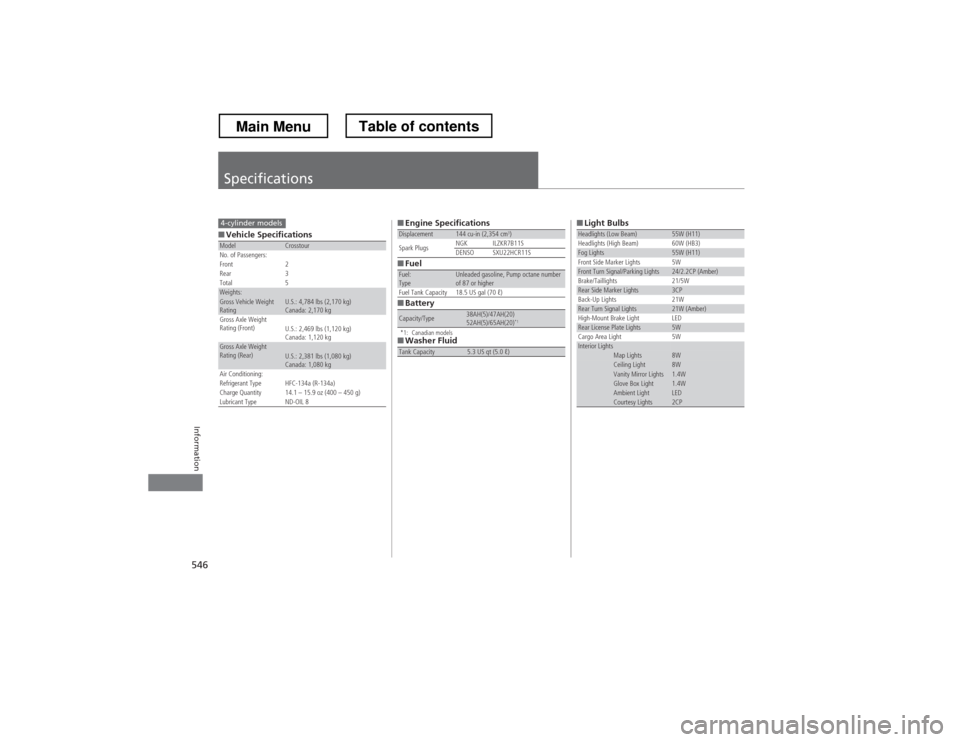

■Vehicle SpecificationsModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,784 lbs (2,170 kg)
Canada: 2,170 kg
Gross Axle Weight
Rating (Front)U.S.: 2,469 lbs (1,120 kg)
Canada: 1,120 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg)
Canada: 1,080 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
4-cylinder models■Engine Specifications
■Fuel
■Battery
*1: Canadian models
■Washer Fluid
Displacement144 cu-in (2,354 cm 3
)
Spark Plugs NGK ILZKR7B11S
DENSO SXU22HCR11S
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Capacity/Type38AH(5)/47AH(20)
52AH(5)/65AH(20) *1
Tank Capacity5.3 US qt (5.0 ℓ)
■Light BulbsHeadlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
Main MenuTable of contents

547
uuSpecificationsu
Continued
Information

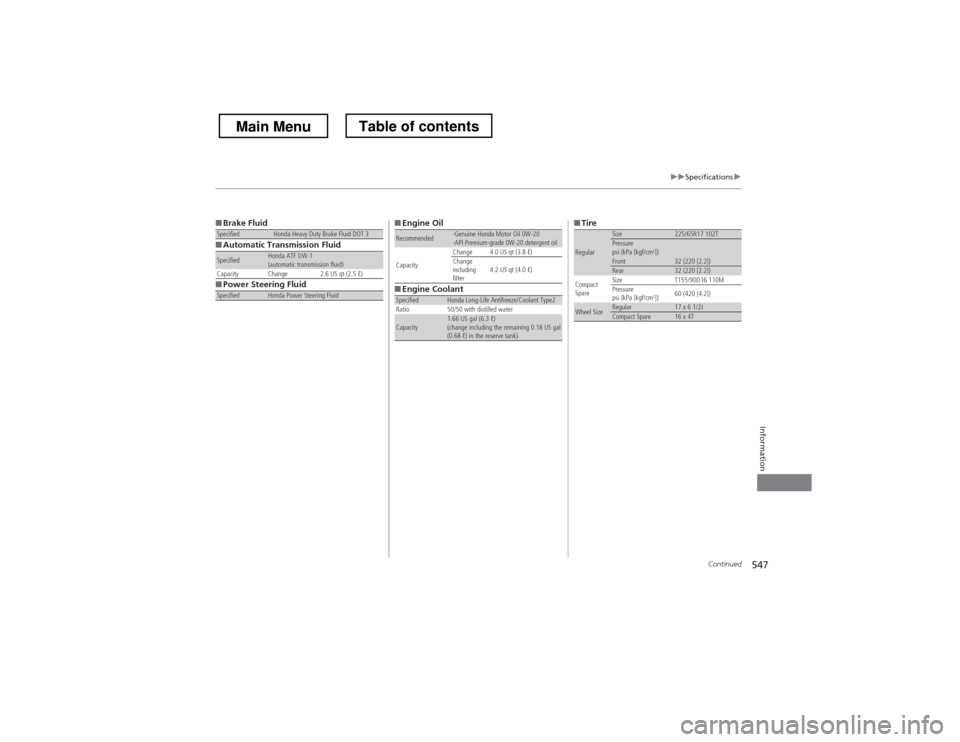

■Brake Fluid
■Automatic Transmission Fluid
■Power Steering Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.6 US qt (2.5 ℓ)
SpecifiedHonda Power Steering Fluid
■Engine Oil
■Engine Coolant
Recommended

548
uuSpecificationsu
Information

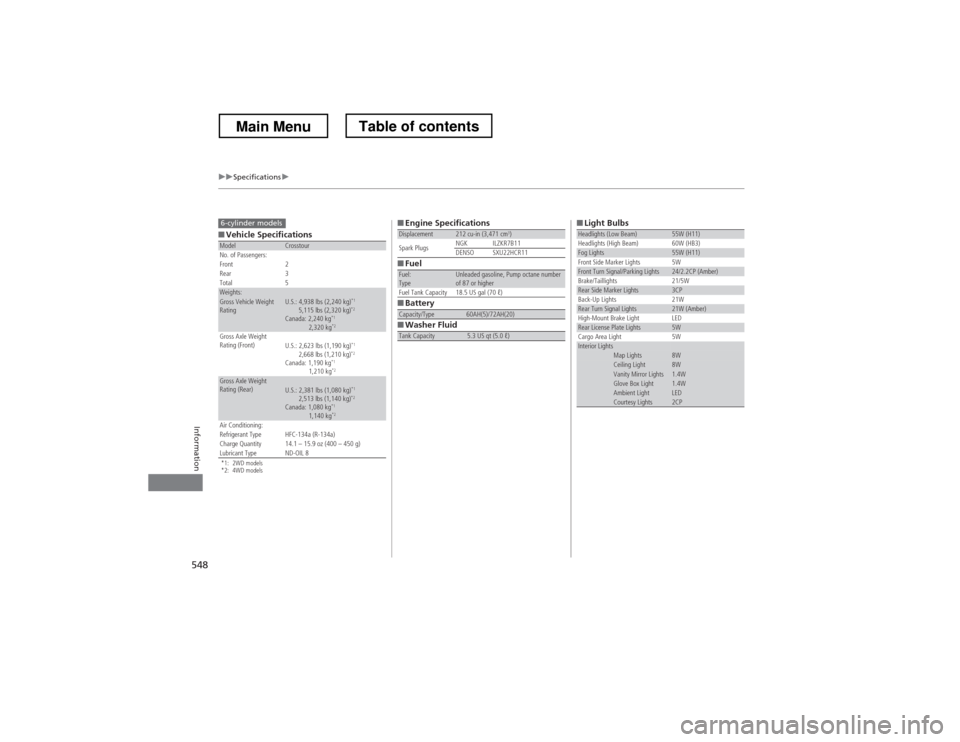

■Vehicle Specifications
*1: 2WD models
*2: 4WD modelsModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,938 lbs (2,240 kg) *1
5,115 lbs (2,320 kg) *2
Canada: 2,240 kg *1
2,320 kg *2
Gross Axle Weight
Rating (Front)U.S.: 2,623 lbs (1,190 kg)
*1
2,668 lbs (1,210 kg) *2
Canada: 1,190 kg *1
1,210 kg *2
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg) *1
2,513 lbs (1,140 kg) *2
Canada: 1,080 kg *1
1,140 kg *2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
6-cylinder models■Engine Specifications
■Fuel
■Battery
■Washer Fluid
Displacement212 cu-in (3,471 cm 3
)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Capacity/Type60AH(5)/72AH(20)
Tank Capacity5.3 US qt (5.0 ℓ)
■Light BulbsHeadlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
Main MenuTable of contents

549

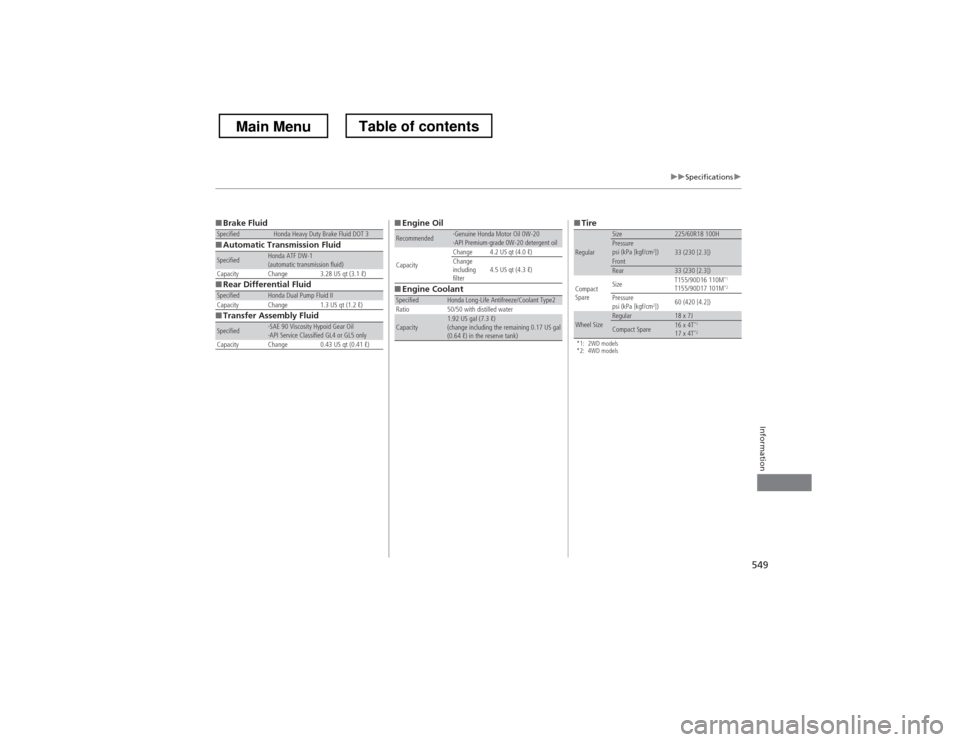

uuSpecificationsu
Information
■Brake Fluid
■Automatic Transmission Fluid
■Rear Differential Fluid
■Transfer Assembly Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.28 US qt (3.1 ℓ)
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.3 US qt (1.2 ℓ)
