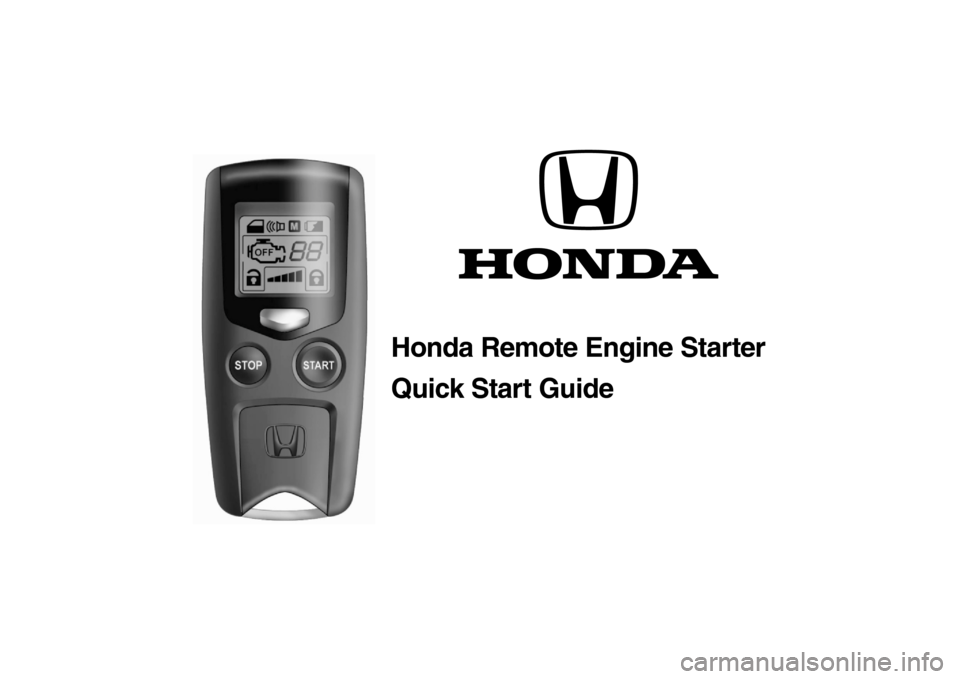

HONDA CROSSTOUR 2013 1.G Remote Engine Starter Guide

Honda Remote Engine Starter
Quick Start Guide

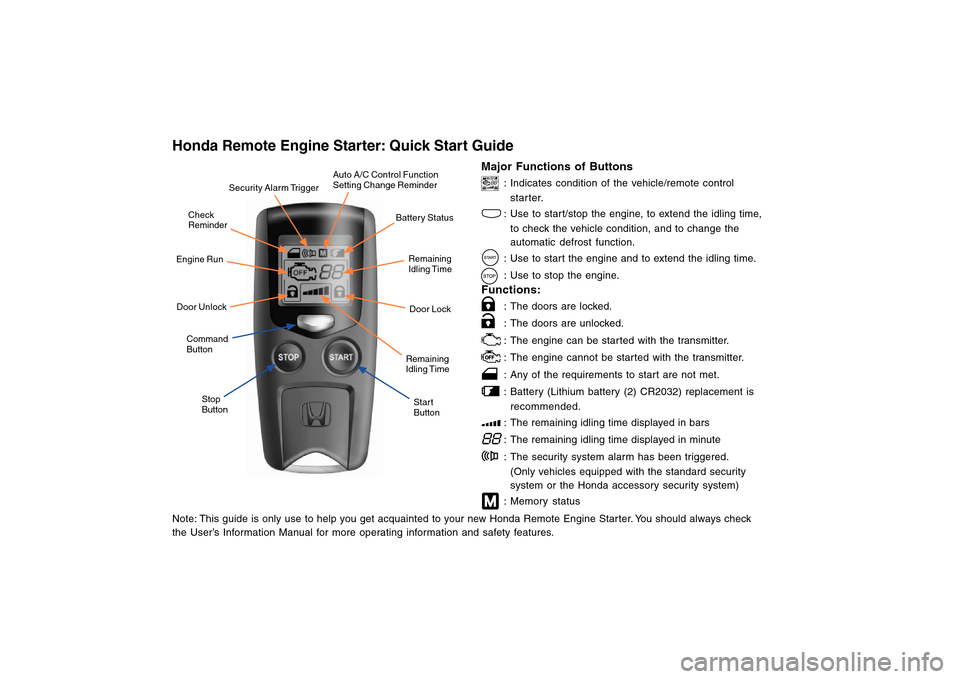

Honda Remote Engine Starter: Quick Start GuideNote: This guide is only use to help you get acquainted to your new Honda Remote Engine Starter. You should always check
the User’s Information Manual for more operating information and safety features.
Check
ReminderSecurity Alarm TriggerAuto A/C Control Function
Setting Change Reminder
Battery Status
Remaining
Idling Time
Door Lock
Remaining
Idling Time
Start
Button Stop
Button Command
Button Door Unlock Engine Run
Major Functions of Buttons
: Indicates condition of the vehicle/remote control
starter.: Use to start/stop the engine, to extend the idling time,
to check the vehicle condition, and to change the
automatic defrost function.: Use to start the engine and to extend the idling time.: Use to stop the engine.
Functions:
: The doors are locked.: The doors are unlocked.: The engine can be started with the transmitter.: The engine cannot be started with the transmitter.: Any of the requirements to start are not met.: Battery (Lithium battery (2) CR2032) replacement is
recommended.: The remaining idling time displayed in bars: The remaining idling time displayed in minute: The security system alarm has been triggered.
(Only vehicles equipped with the standard security
system or the Honda accessory security system): Memory status

Using the Remote Engine StarterNote: Remote Control Range (200 ft) depending on where you are, you may experience reduced range reception. See the
User’s Information Manual for more details.

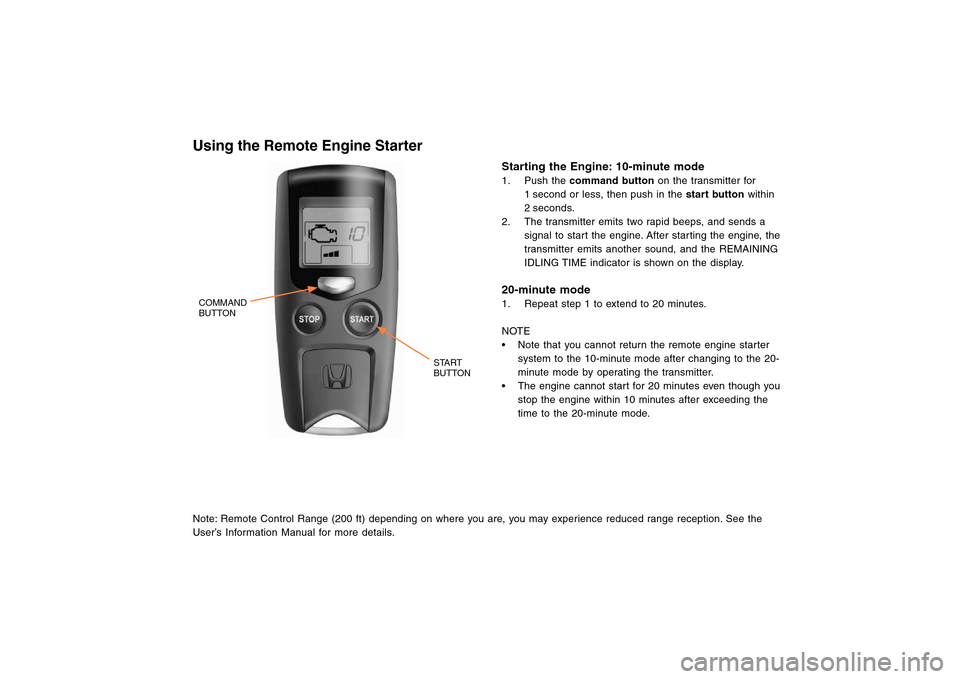

Starting the Engine: 10-minute mode1. Push the command button on the transmitter for
1 second or less, then push in the start button within
2 seconds.
2. The transmitter emits two rapid beeps, and sends a
signal to start the engine. After starting the engine, the
transmitter emits another sound, and the REMAINING
IDLING TIME indicator is shown on the display.20-minute mode1. Repeat step 1 to extend to 20 minutes.
NOTE
Note that you cannot return the remote engine starter
system to the 10-minute mode after changing to the 20-
minute mode by operating the transmitter.
The engine cannot start for 20 minutes even though you
stop the engine within 10 minutes after exceeding the
time to the 20-minute mode.
START
BUTTON COMMAND
BUTTON

Using the Remote Engine Starter
STOP
BUTTON COMMAND
BUTTON
Note: Remote Control Range (200 ft) depending on where you are, you may experience reduced range reception. See the
User’s Information Manual for more details.

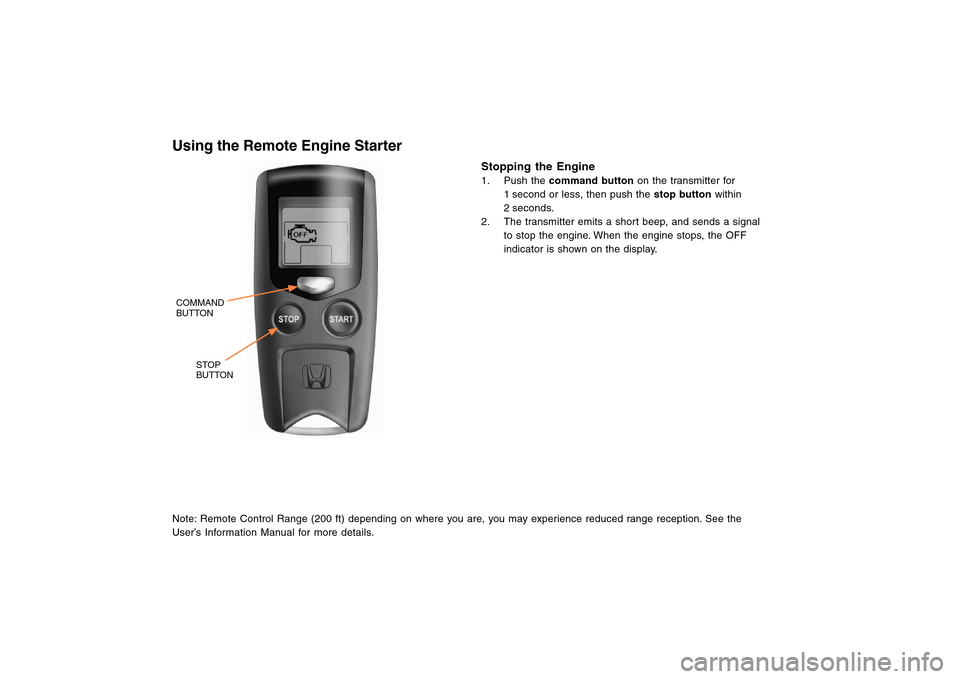

Stopping the Engine1. Push the command button on the transmitter for
1 second or less, then push the stop button within
2 seconds.
2. The transmitter emits a short beep, and sends a signal
to stop the engine. When the engine stops, the OFF
indicator is shown on the display.

COMMAND
BUTTONUsing the Remote Engine StarterNote: Remote Control Range (200 ft) depending on where you are, you may experience reduced range reception. See the
User’s Information Manual for more details.
Checking Vehicle StatusYou can check the vehicle condition on the transmitter
display by performing the following operation:
Push the command button 2 times on the transmitter for
1 second or less.
NOTE: This function does not work when the ignition switch
is in the ON (II) position.

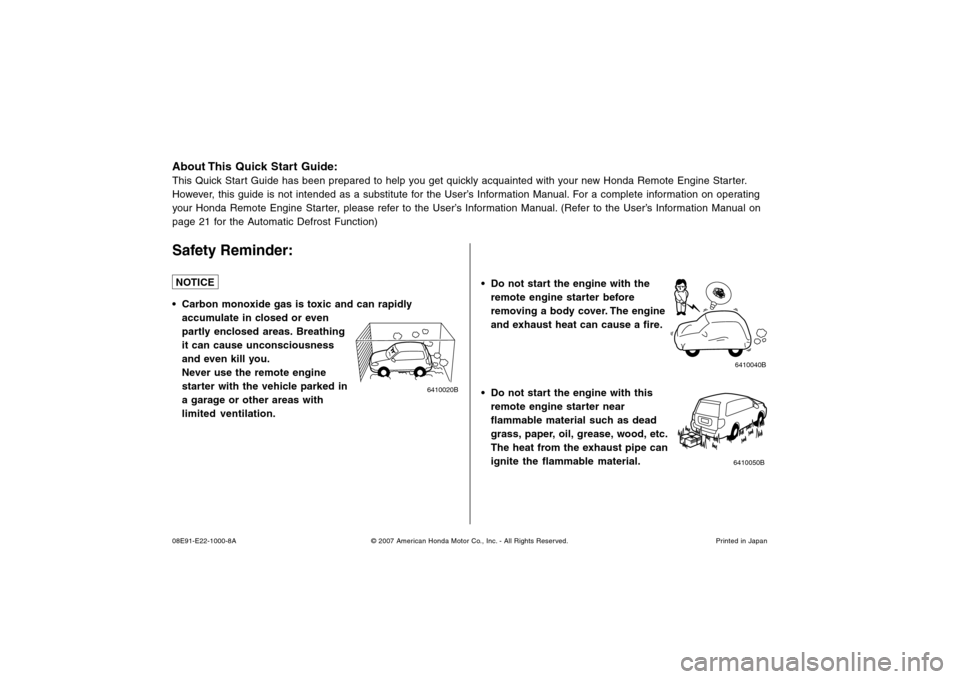

About This Quick Start Guide:This Quick Start Guide has been prepared to help you get quickly acquainted with your new Honda Remote Engine Starter.
However, this guide is not intended as a substitute for the User’s Information Manual. For a complete information on operating
your Honda Remote Engine Starter, please refer to the User’s Information Manual. (Refer to the User’s Information Manual on
page 21 for the Automatic Defrost Function)Safety Reminder:
6410050B6410040B
6410020B
NOTICE
• Carbon monoxide gas is toxic and can rapidly
accumulate in closed or even
partly enclosed areas. Breathing
it can cause unconsciousness
and even kill you.
Never use the remote engine
starter with the vehicle parked in
a garage or other areas with
limited ventilation. Do not start the engine with the
remote engine starter before
removing a body cover. The engine
and exhaust heat can cause a fire.
Do not start the engine with this
remote engine starter near
flammable material such as dead
grass, paper, oil, grease, wood, etc.
The heat from the exhaust pipe can
ignite the flammable material.
Printed in Japan 08E91-E22-1000-8A © 2007 American Honda Motor Co., Inc. - All Rights Reserved.
