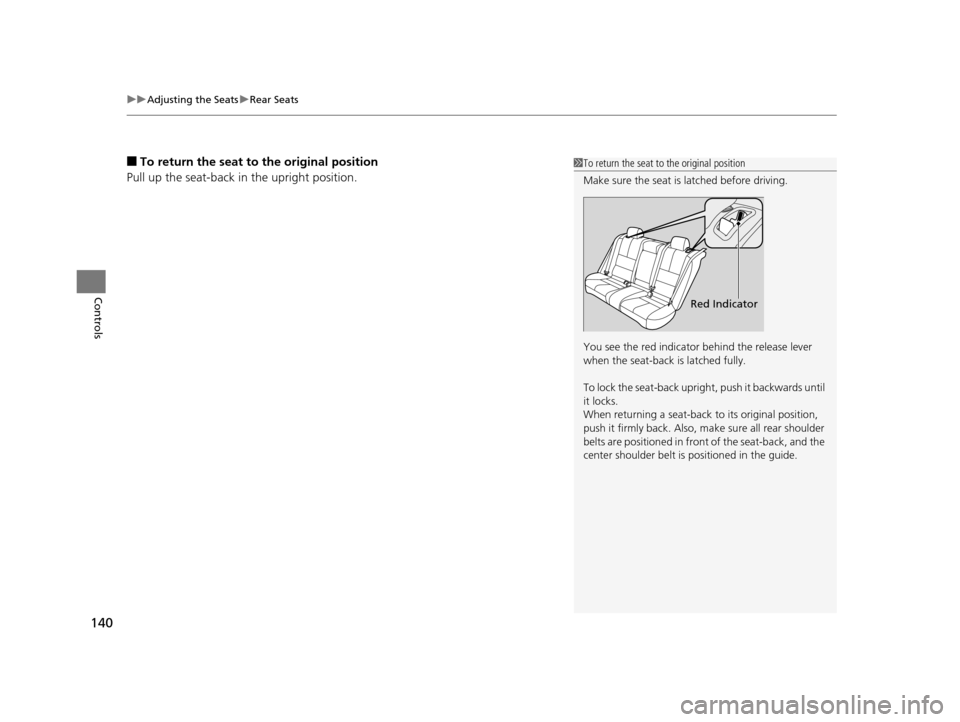

uuAdjusting the Seats uRear Seats
140
Controls
■To return the seat to the original position
Pull up the seat-back in the upright position.1To return the seat to the original position
Make sure the seat is latched before driving.
You see the red indicator behind the release lever
when the seat-back is latched fully.
To lock the seat-back upri ght, push it backwards until
it locks.
When returning a seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder be lt is positioned in the guide.
Red Indicator
15 CROSSTOUR-31TP66500.book 140 ページ ２０１４年７月３１日　木曜日　午後３時２３分

141
uuAdjusting the Seats uArmrest
Controls

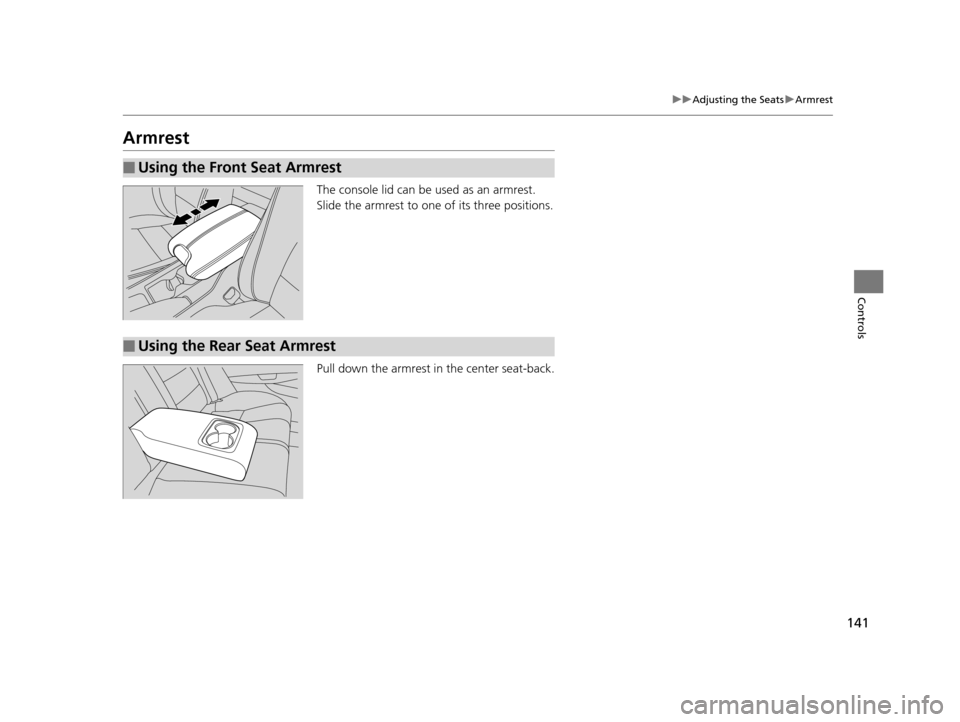

Armrest
The console lid can be used as an armrest.
Slide the armrest to one of its three positions.
Pull down the armrest in the center seat-back.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest
15 CROSSTOUR-31TP66500.book 141 ページ ２０１４年７月３１日　木曜日　午後３時２３分

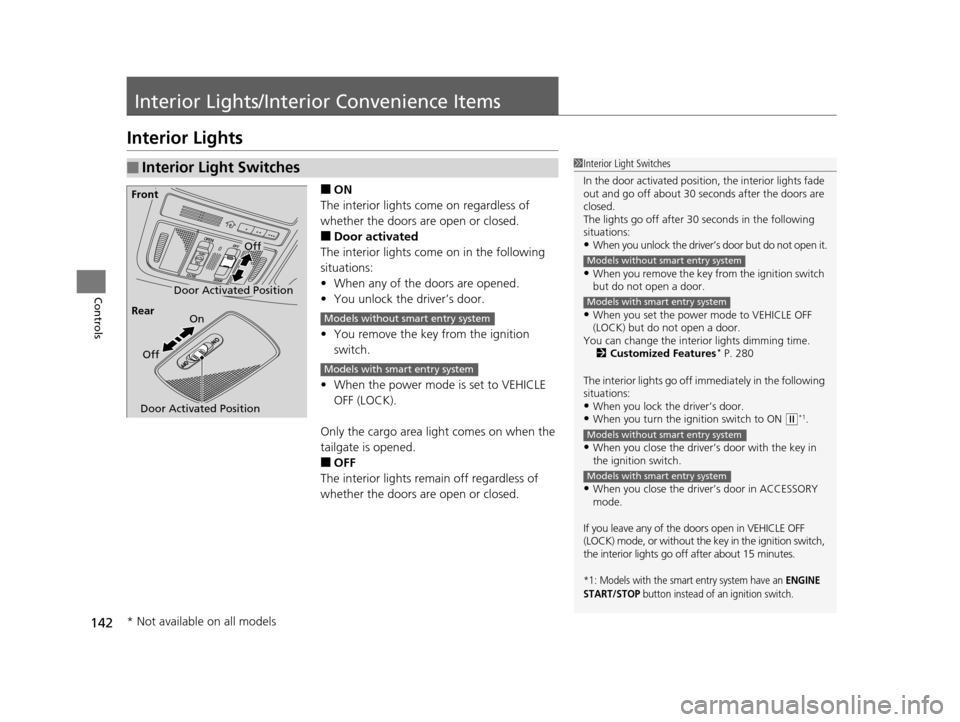

142
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
Only the cargo area light comes on when the
tailgate is opened.
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features
* P. 280
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
If you leave any of the doo rs open in VEHICLE OFF
(LOCK) mode, or without the key in the ignition switch,
the interior lights go off after about 15 minutes.
*1: Models with the smart entry system have an ENGINE
START/STOP button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Front
Door Activated Position On
Off
Rear
Models without smart entry system
Models with smart entry system
* Not available on all models
15 CROSSTOUR-31TP66500.book 142 ページ ２０１４年７月３１日　木曜日　午後３時２３分

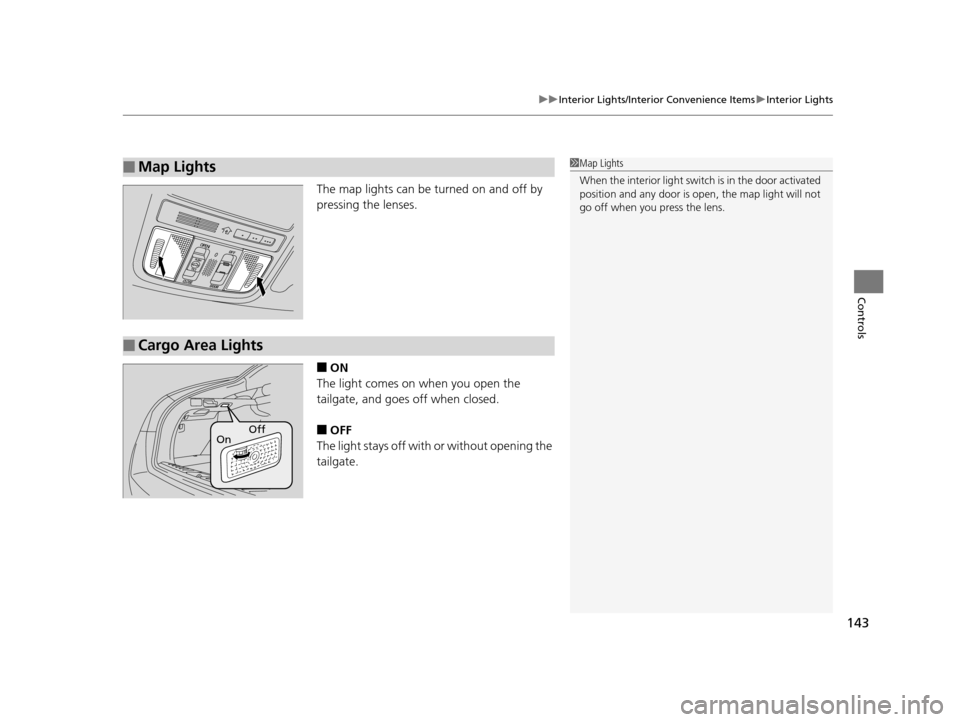

143
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
The map lights can be turned on and off by
pressing the lenses.
■ON
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Map Lights1 Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the map light will not
go off when you press the lens.
■Cargo Area Lights
Off
On
15 CROSSTOUR-31TP66500.book 143 ページ ２０１４年７月３１日　木曜日　午後３時２３分

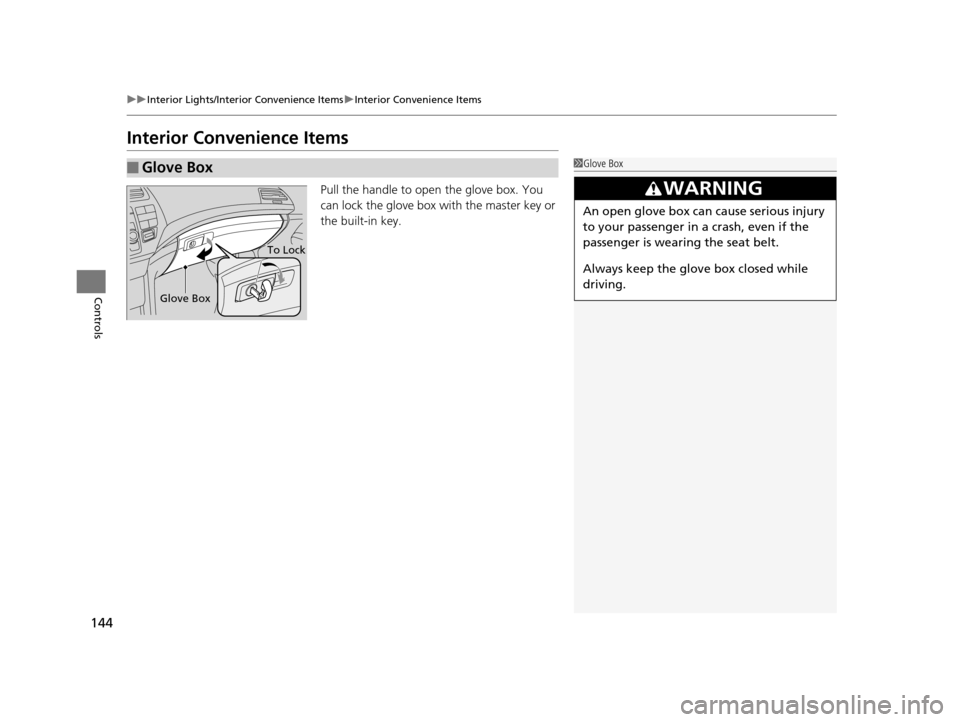

144
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key or
the built-in key.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
15 CROSSTOUR-31TP66500.book 144 ページ ２０１４年７月３１日　木曜日　午後３時２３分

145
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

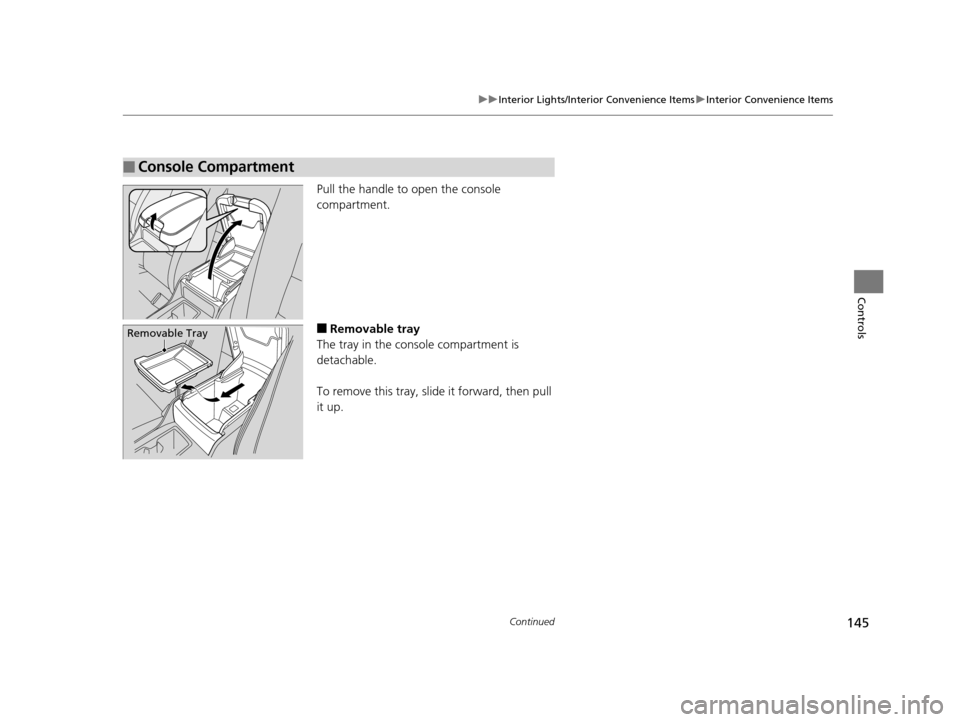

Pull the handle to open the console
compartment.
■Removable tray
The tray in the console compartment is
detachable.
To remove this tray, slid e it forward, then pull
it up.
■Console Compartment
Removable Tray
15 CROSSTOUR-31TP66500.book 145 ページ ２０１４年７月３１日　木曜日　午後３時２３分

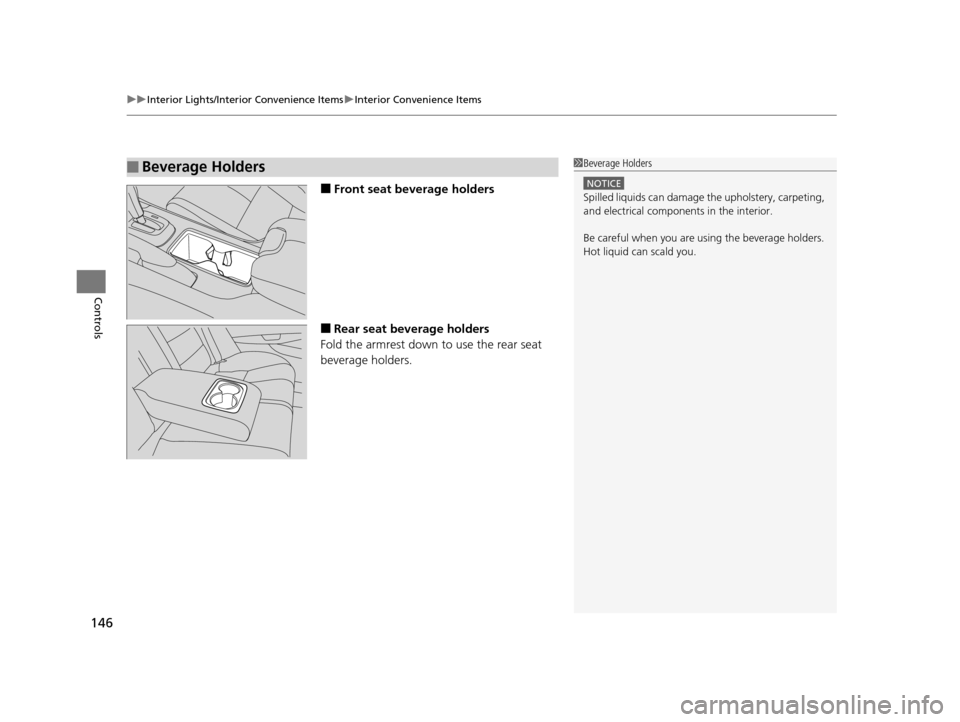

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
146
Controls
■Front seat beverage holders
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
15 CROSSTOUR-31TP66500.book 146 ページ ２０１４年７月３１日　木曜日　午後３時２３分

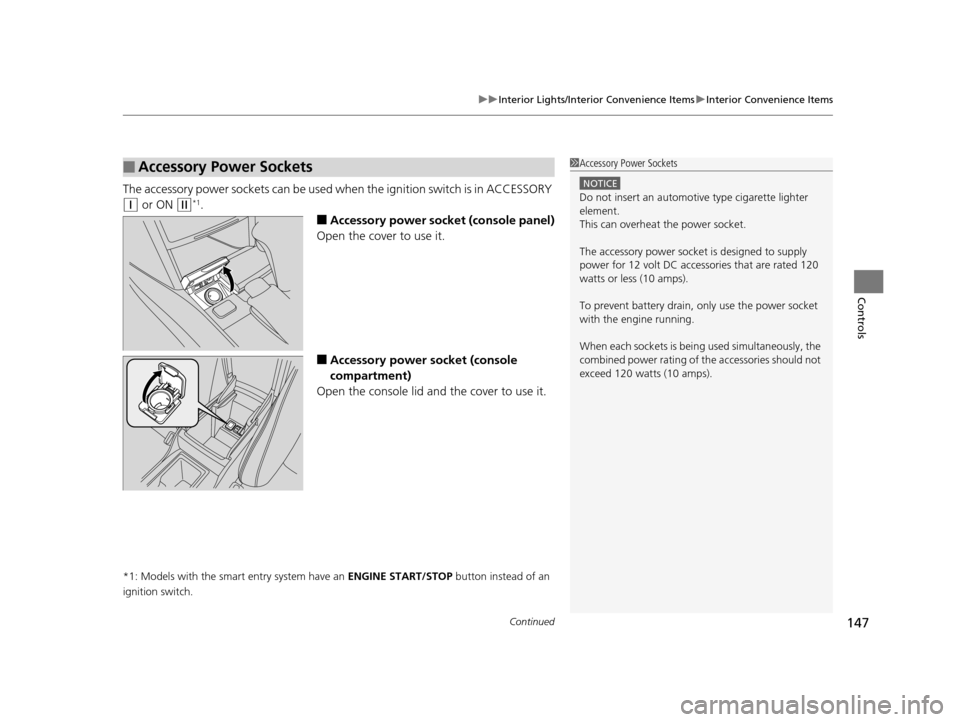

Continued147
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power so ckets can be used when the i gnition switch is in ACCESSORY
(q or ON (w*1.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (console
compartment)
Open the console lid and the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 120
watts or less (10 amps).
To prevent battery drain, only use the power socket
with the engine running.
When each sockets is being used simultaneously, the
combined power rating of the accessories should not
exceed 120 watts (10 amps).
15 CROSSTOUR-31TP66500.book 147 ページ ２０１４年７月３１日　木曜日　午後３時２３分

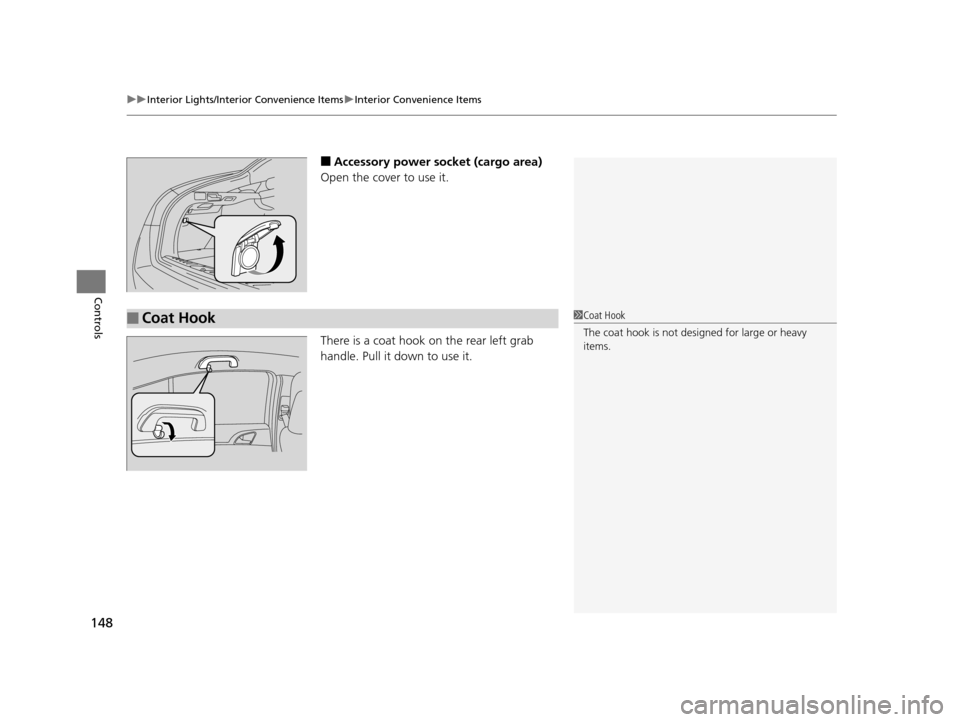

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
148
Controls
■Accessory power socket (cargo area)
Open the cover to use it.
There is a coat hook on the rear left grab
handle. Pull it down to use it.
■Coat Hook1 Coat Hook
The coat hook is not desi gned for large or heavy
items.
15 CROSSTOUR-31TP66500.book 148 ページ ２０１４年７月３１日　木曜日　午後３時２３分

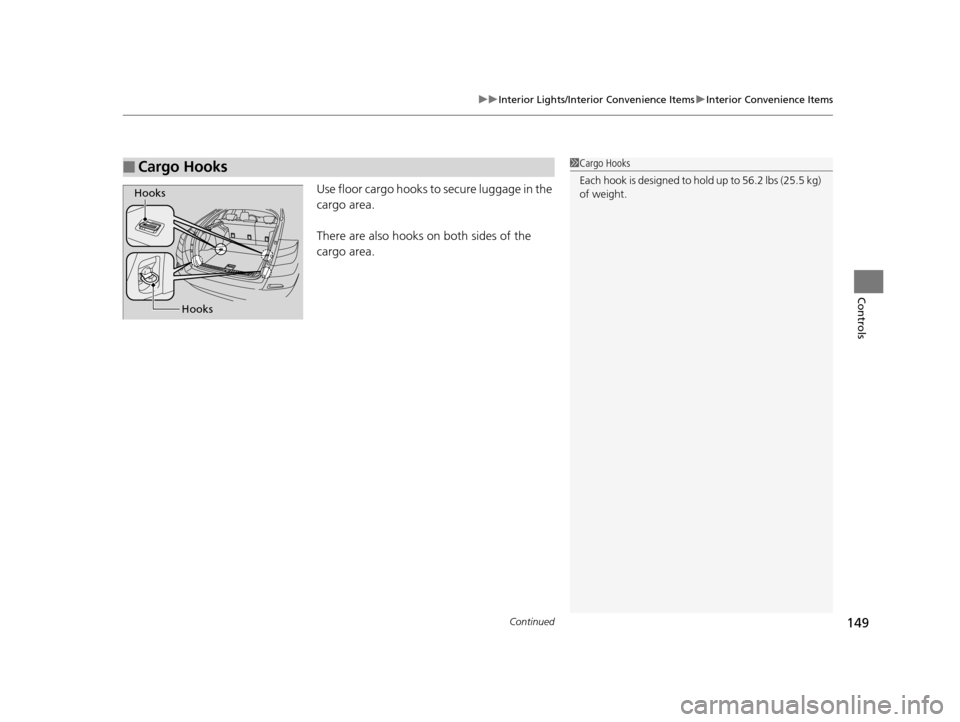

Continued149
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Use floor cargo hooks to secure luggage in the
cargo area.
There are also hooks on both sides of the
cargo area.
■Cargo Hooks1Cargo Hooks
Each hook is designed to hold up to 56.2 lbs (25.5 kg)
of weight.
Hooks
Hooks
