uuInterior Lights/Interior Convenience Items uInterior Convenience Items
150
Controls

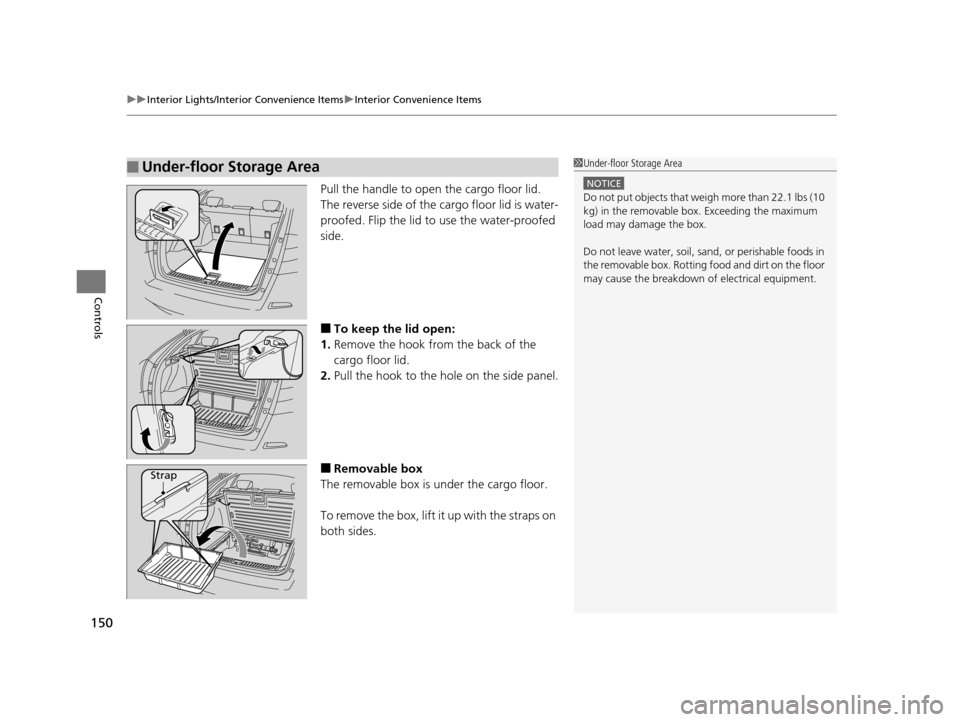

Pull the handle to op en the cargo floor lid.
The reverse side of the cargo floor lid is water-
proofed. Flip the lid to use the water-proofed
side.
■To keep the lid open:
1. Remove the hook from the back of the
cargo floor lid.
2. Pull the hook to the hole on the side panel.
■Removable box
The removable box is under the cargo floor.
To remove the box, lift it up with the straps on
both sides.
■Under-floor Storage Area1 Under-floor Storage Area
NOTICE
Do not put objects that weigh more than 22.1 lbs (10
kg) in the removable box. Exceeding the maximum
load may damage the box.
Do not leave water, soil, sand, or perishable foods in
the removable box. Rotting food and dirt on the floor
may cause the breakdown of electrical equipment.
Strap
15 CROSSTOUR-31TP66500.book 150 ページ ２０１４年７月３１日　木曜日　午後３時２３分

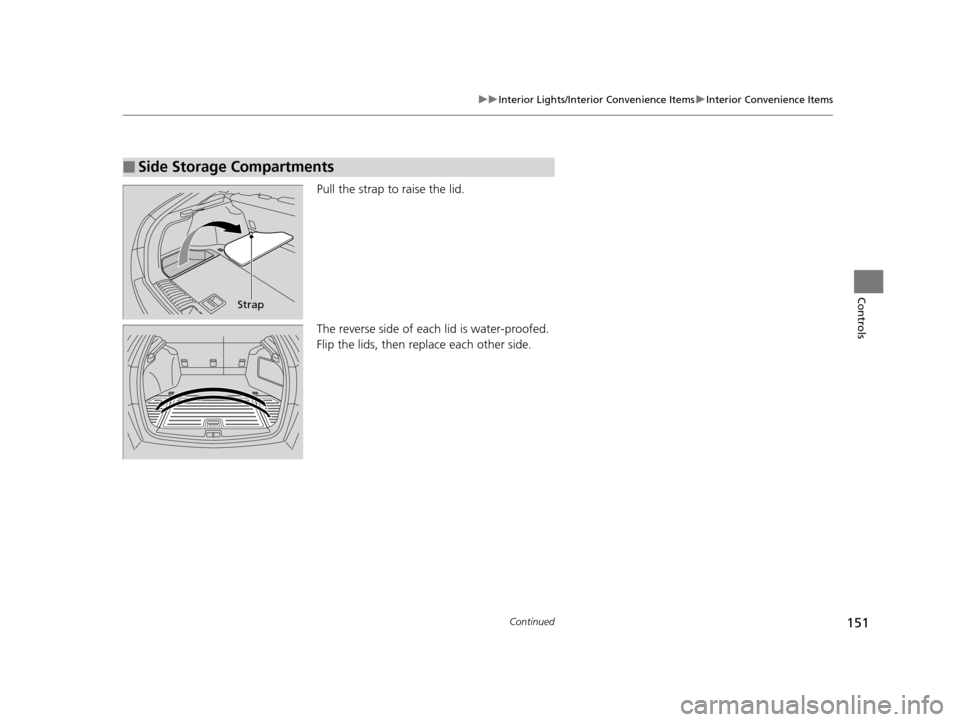

151
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Pull the strap to raise the lid.
The reverse side of each lid is water-proofed.
Flip the lids, then re place each other side.
■Side Storage Compartments
Strap
15 CROSSTOUR-31TP66500.book 151 ページ ２０１４年７月３１日　木曜日　午後３時２３分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
152
Controls

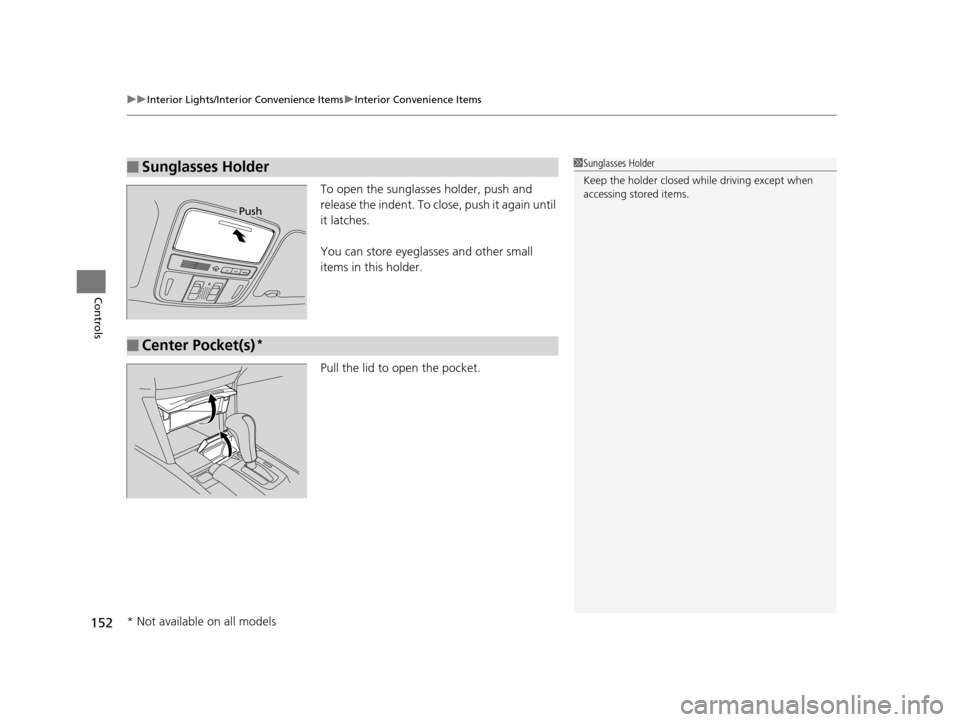

To open the sunglasses holder, push and
release the indent. To clos e, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.
Pull the lid to open the pocket.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Push
■Center Pocket(s)*
* Not available on all models
15 CROSSTOUR-31TP66500.book 152 ページ ２０１４年７月３１日　木曜日　午後３時２３分

153
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

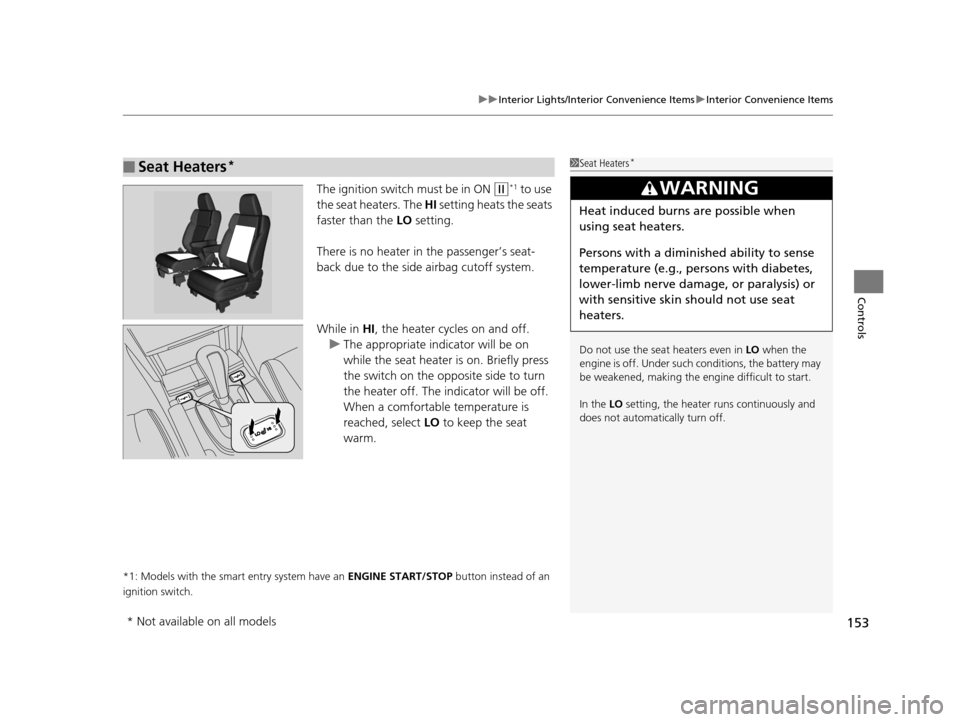

The ignition switch must be in ON (w*1 to use
the seat heaters. The HI setting heats the seats
faster than the LO setting.
There is no heater in the passenger’s seat-
back due to the side airbag cutoff system.
While in HI , the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly press
the switch on the opposite side to turn
the heater off. The indicator will be off.
When a comfortable temperature is
reached, select LO to keep the seat
warm.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Seat Heaters*1 Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
15 CROSSTOUR-31TP66500.book 153 ページ ２０１４年７月３１日　木曜日　午後３時２３分

154
Controls

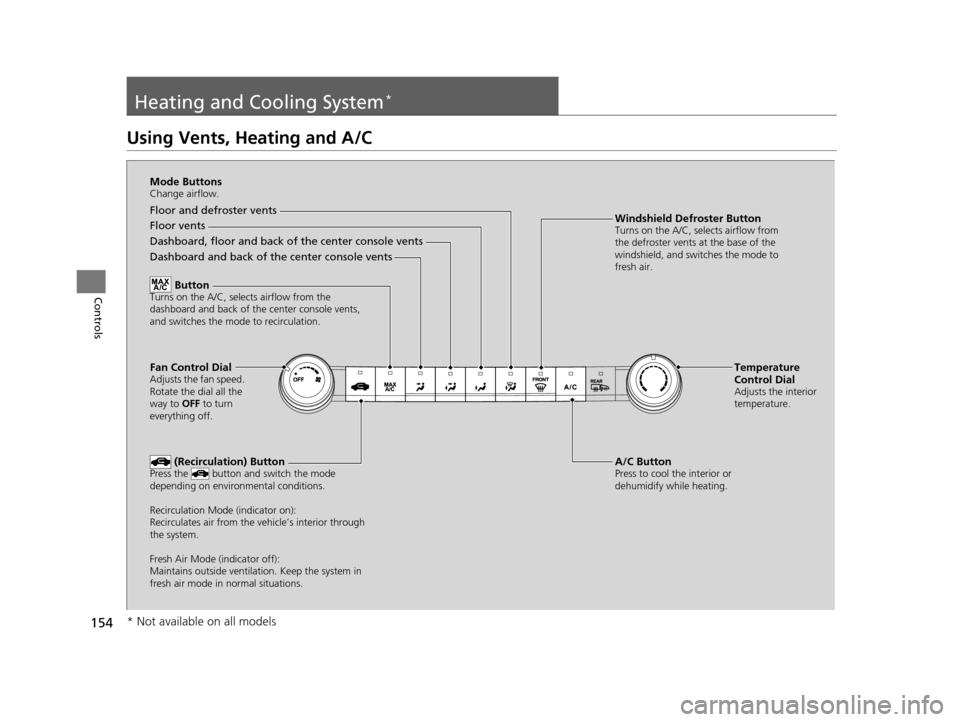

Heating and Cooling System*
Using Vents, Heating and A/C
Mode ButtonsChange airflow.
Floor and defroster vents
Floor vents
Dashboard, floor and back of the center console vents
Dashboard and back of the center console vents
Fan Control Dial
Adjusts the fan speed.
Rotate the dial all the
way to OFF to turn
everything off.
ButtonTurns on the A/C, selects airflow from the
dashboard and back of the center console vents,
and switches the mode to recirculation.
A/C ButtonPress to cool the interior or
dehumidify while heating.
Windshield Defroster ButtonTurns on the A/C, selects airflow from
the defroster vents at the base of the
windshield, and switches the mode to
fresh air.
Temperature
Control Dial
Adjusts the interior
temperature.
(Recirculation) ButtonPress the button and switch the mode
depending on environmental conditions.
Recirculation Mode (indicator on):
Recirculates air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off):
Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
* Not available on all models
15 CROSSTOUR-31TP66500.book 154 ページ ２０１４年７月３１日　木曜日　午後３時２３分

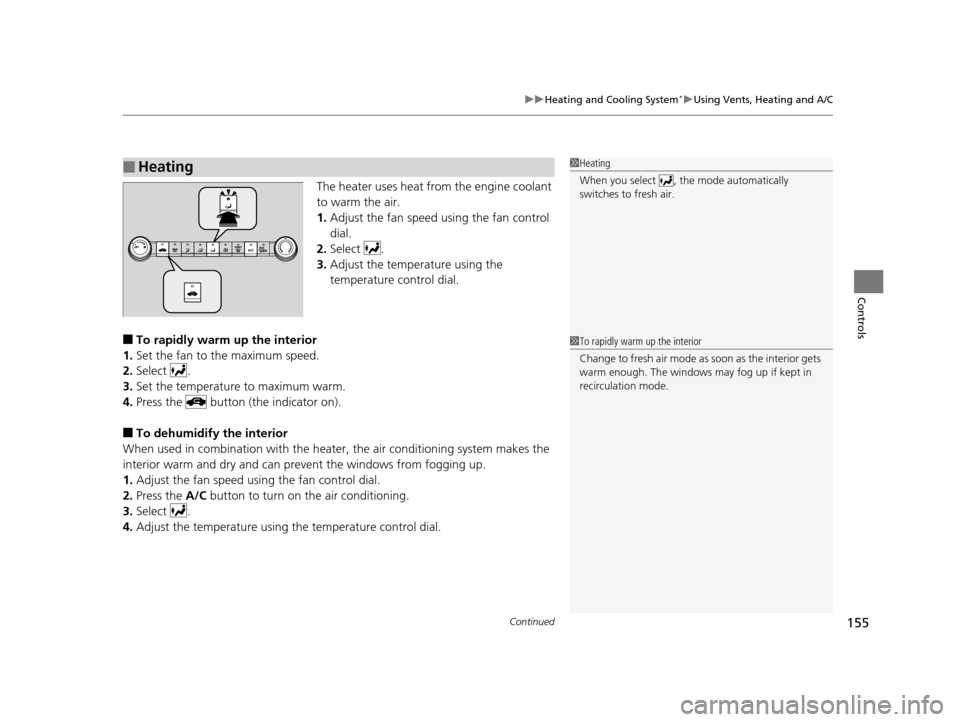

Continued155
uuHeating and Cooling System*uUsing Vents, Heating and A/C
Controls
The heater uses heat from the engine coolant
to warm the air.
1. Adjust the fan speed using the fan control
dial.
2. Select .
3. Adjust the temperature using the
temperature control dial.
■To rapidly warm up the interior
1. Set the fan to the maximum speed.
2. Select .
3. Set the temperature to maximum warm.
4. Press the button (the indicator on).
■To dehumidify the interior
When used in combination with the heat er, the air conditioning system makes the
interior warm and dry and can prev ent the windows from fogging up.
1. Adjust the fan speed using the fan control dial.
2. Press the A/C button to turn on the air conditioning.
3. Select .
4. Adjust the temperature using the temperature control dial.
■Heating1Heating
When you select , th e mode automatically
switches to fresh air.
1 To rapidly warm up the interior
Change to fresh air mode as soon as the interior gets
warm enough. The windows may fog up if kept in
recirculation mode.
15 CROSSTOUR-31TP66500.book 155 ページ ２０１４年７月３１日　木曜日　午後３時２３分

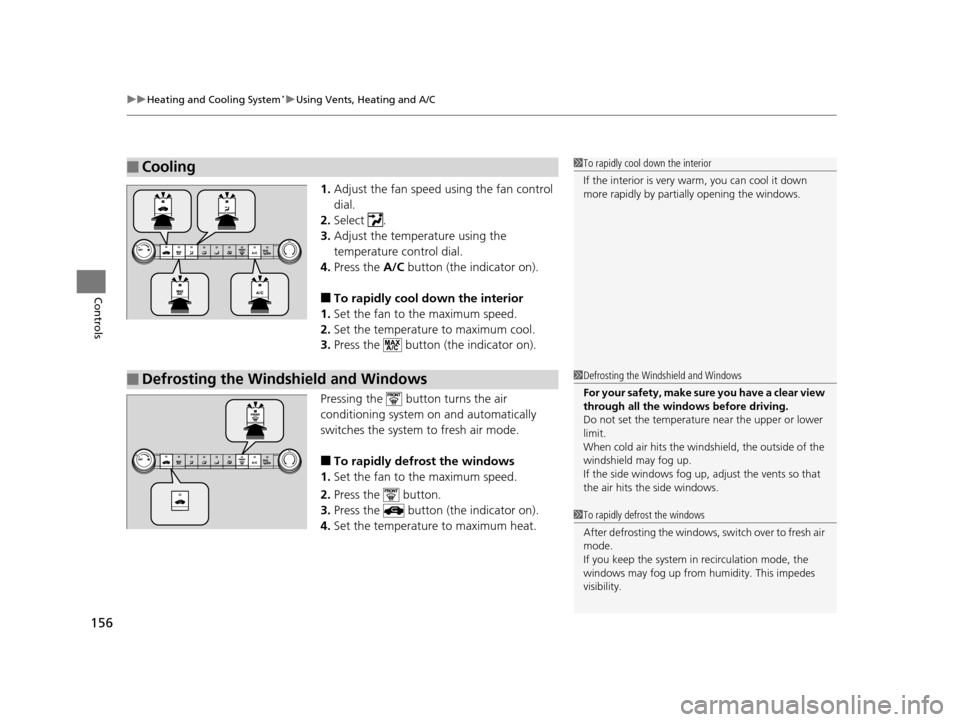

uuHeating and Cooling System*uUsing Vents, Heating and A/C
156
Controls
1. Adjust the fan speed using the fan control
dial.
2. Select .
3. Adjust the temperature using the
temperature control dial.
4. Press the A/C button (the indicator on).
■To rapidly cool down the interior
1. Set the fan to the maximum speed.
2. Set the temperature to maximum cool.
3. Press the button (the indicator on).
Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
■To rapidly defrost the windows
1. Set the fan to the maximum speed.
2. Press the button.
3. Press the button (the indicator on).
4. Set the temperature to maximum heat.
■Cooling1To rapidly cool down the interior
If the interior is very warm, you can cool it down
more rapidly by parti ally opening the windows.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
15 CROSSTOUR-31TP66500.book 156 ページ ２０１４年７月３１日　木曜日　午後３時２３分

157Continued
Controls

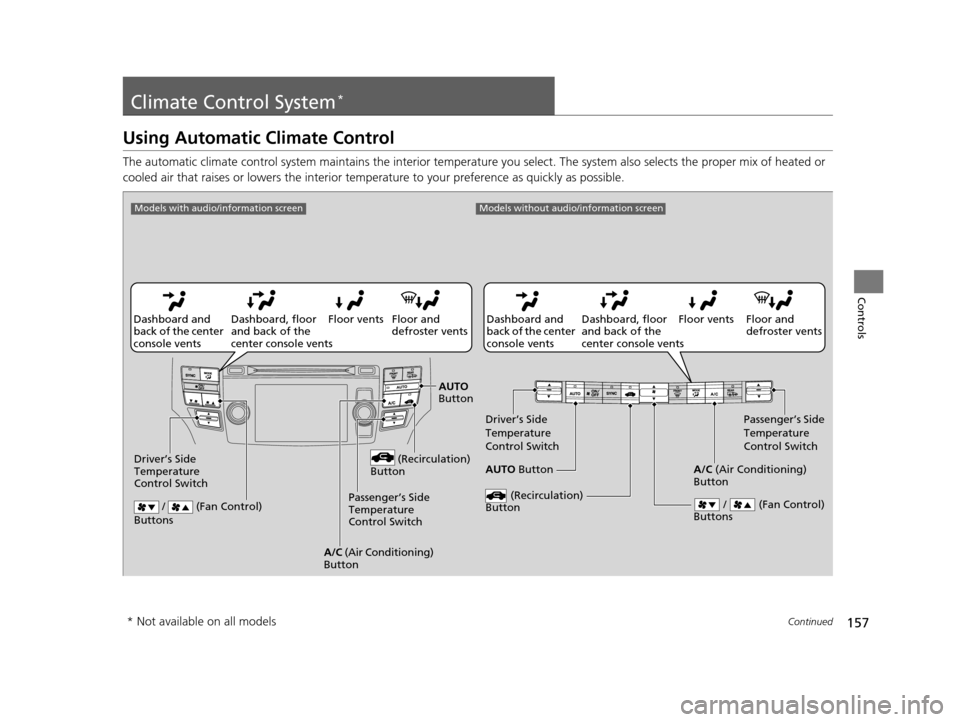

Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior te mperature you select. The system al so selects the proper mix of heated or
cooled air that raises or lowers the interior temp erature to your preference as quickly as possible.
Floor and
defroster vents
Floor vents
Dashboard, floor
and back of the
center console vents
Dashboard and
back of the center
console vents
AUTO Button
Driver’s Side
Temperature
Control Switch
Passenger’s Side
Temperature
Control Switch
/ (Fan Control)
Buttons
(Recirculation)
Button
A/C (Air Conditioning)
Button
Models without audio/information screen
Floor and
defroster vents
Floor vents
Dashboard, floor
and back of the
center console vents
Dashboard and
back of the center
console vents
AUTO
Button
Driver’s Side
Temperature
Control Switch (Recirculation)
Button
/ (Fan Control)
Buttons
A/C (Air Conditioning)
Button Passenger’s Side
Temperature
Control Switch
Models with audio/information screen
* Not available on all models
15 CROSSTOUR-31TP66500.book 157 ページ ２０１４年７月３１日　木曜日　午後３時２３分

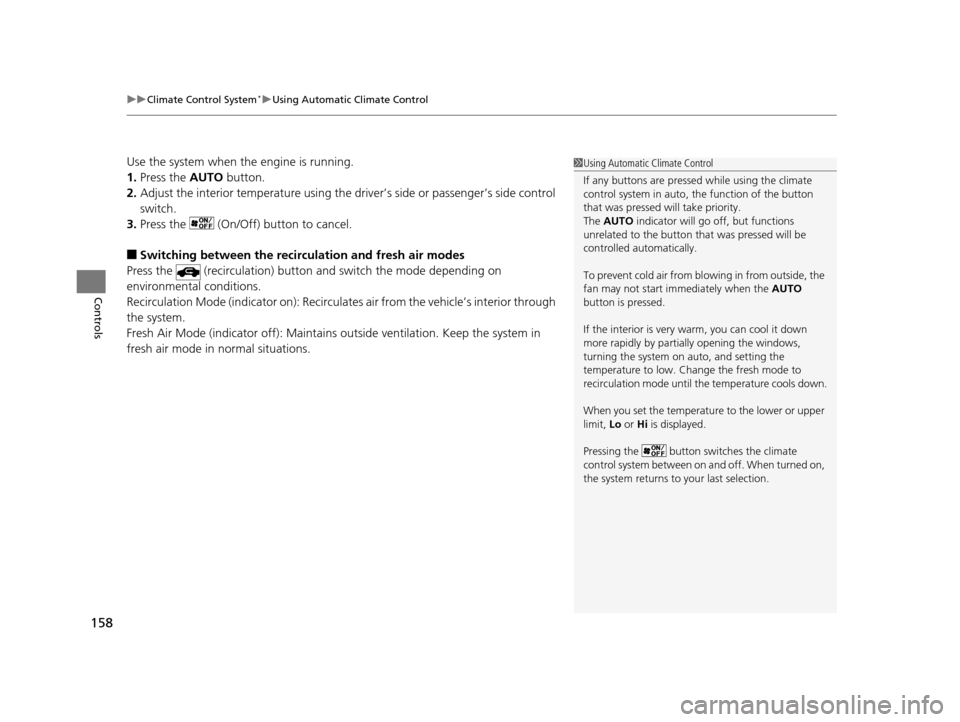

uuClimate Control System*uUsing Automatic Climate Control
158
Controls
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
switch.
3. Press the (On/Off) button to cancel.
■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation Mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
15 CROSSTOUR-31TP66500.book 158 ページ ２０１４年７月３１日　木曜日　午後３時２３分

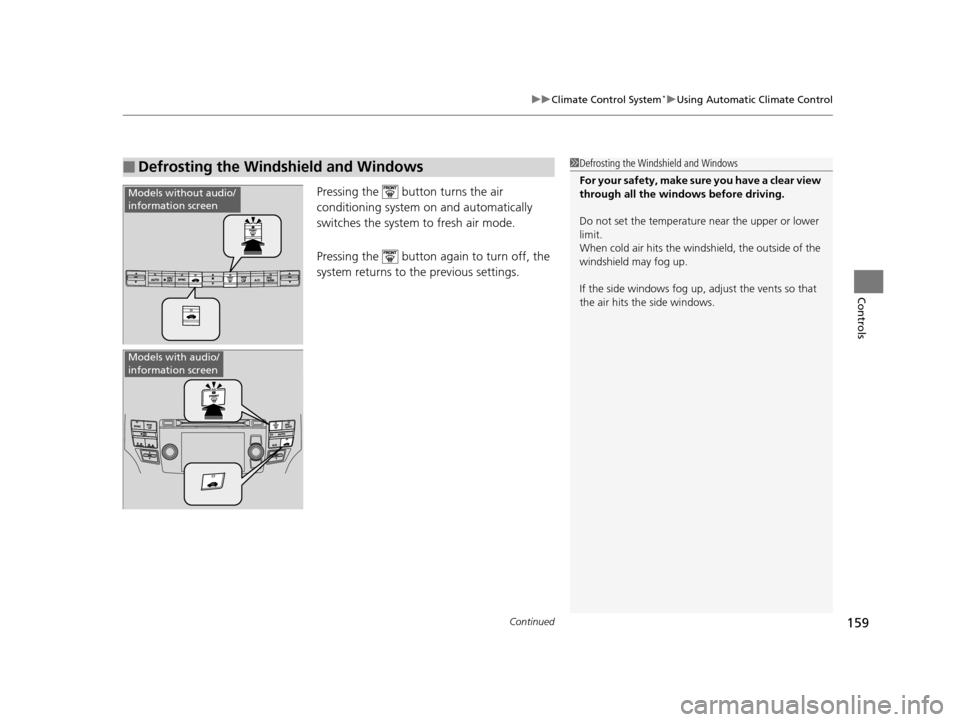

Continued159
uuClimate Control System*uUsing Automatic Climate Control
Controls
Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Pressing the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
Models without audio/
information screen
Models with audio/
information screen
