key HONDA CRV 2022 Owners Manual

24
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P163)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P167)
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
keyless remote on you.
●Press the power tailgate button on the
driver’s side control panel, or press the
remote transmitter to unlock and open
the tailgate when you have the keyless
remote on you.
Models with power tailgate
Outer Handle
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the keyless remote.
Models with hands free access
1 sec.
22 CR-V HEV ELP-31TPG6200.book 24 ページ ２０２１年６月３０日　水曜日　午前１１時６分

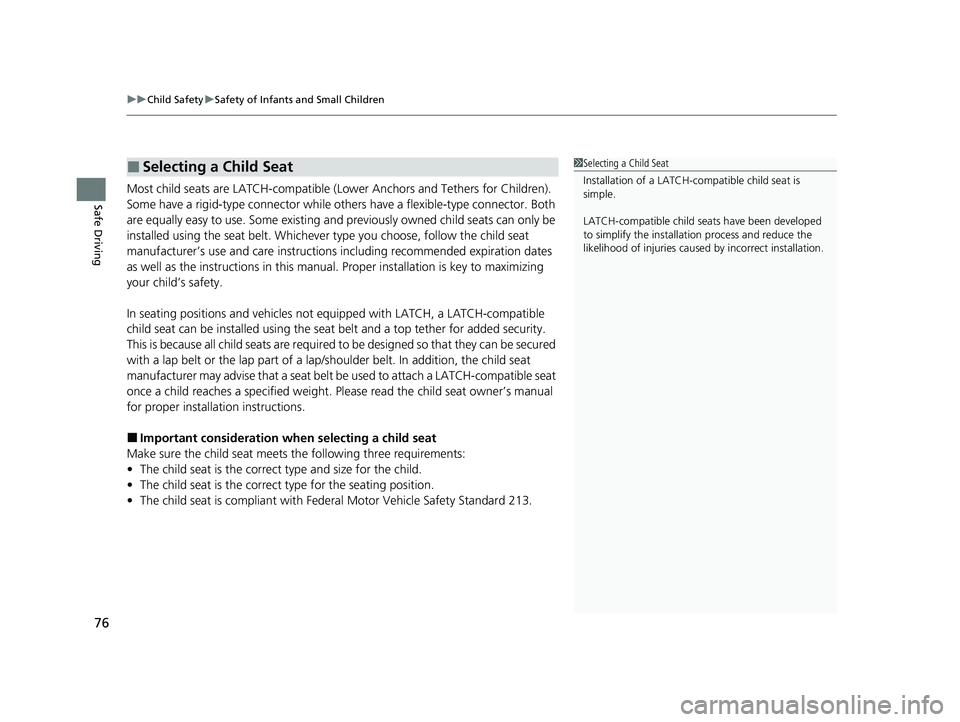

uuChild Safety uSafety of Infants and Small Children
76
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for Children).
Some have a rigid-type conn ector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/sh oulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
■Important consideration wh en selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Fede ral Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-compatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
22 CR-V HEV ELP-31TPG6200.book 76 ページ ２０２１年６月３０日　水曜日　午前１１時６分

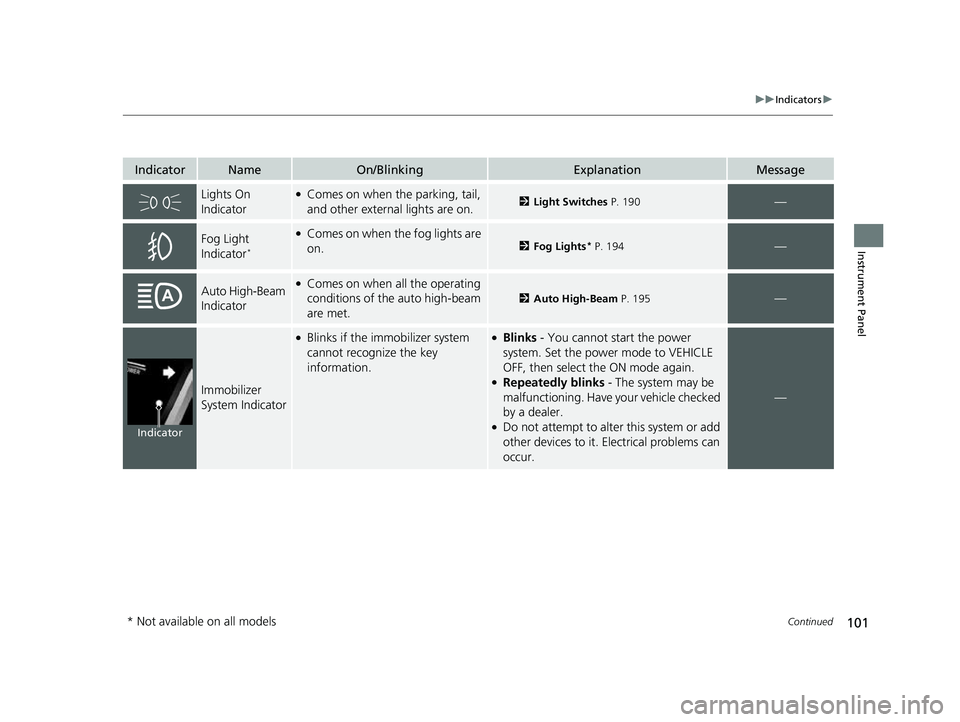

101
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lights On
Indicator●Comes on when the parking, tail,
and other external lights are on.2Light Switches P. 190—
Fog Light
Indicator*
●Comes on when the fog lights are
on.2Fog Lights* P. 194—
Auto High-Beam
Indicator●Comes on when all the operating
conditions of the auto high-beam
are met.
2Auto High-Beam P. 195—
Immobilizer
System Indicator
●Blinks if the immobilizer system
cannot recognize the key
information.●Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF, then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
Indicator
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 101 ページ ２０２１年６月３０日　水曜日　午前１１時６分

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while the
electric parking brake is in operation.●Press the electric parking brake switch with the brake
pedal depressed.
2Parking Brake P. 551
●Appears when the vehicle is no longer able to run due
to a malfunction.●Immediately stop in a safe place.
●Appears when there is a risk that the vehicle will move
unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.
2 Parking Brake P. 551●Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the keyless
access system or push button starting system.●Appears constantly - Have your vehicle checked by
a dealer.
●Appears when you close the door with the power
mode in ON without the keyless remote inside the
vehicle.●Disappears when you bring the keyless remote back
inside the vehicle and close the door.
2 Keyless Remote Reminder P. 188
22 CR-V HEV ELP-31TPG6200.book 113 ページ ２０２１年６月３０日　水曜日　午前１１時６分

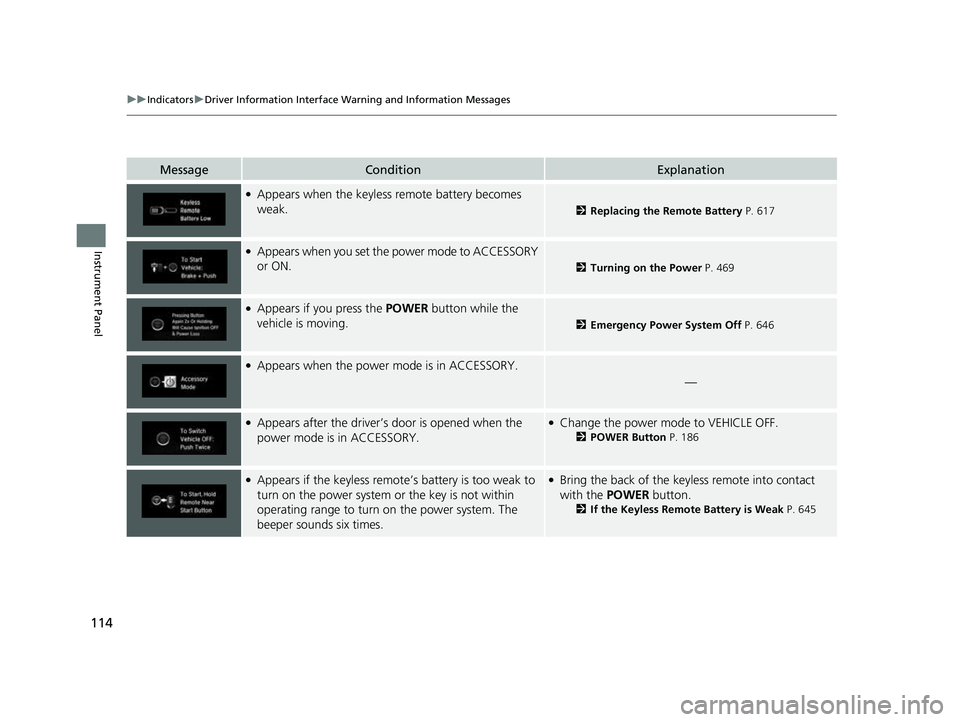

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the keyless remote battery becomes
weak.
2 Replacing the Remote Battery P. 617
●Appears when you set the power mode to ACCESSORY
or ON.
2Turning on the Power P. 469
●Appears if you press the POWER button while the
vehicle is moving.
2 Emergency Power System Off P. 646
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2POWER Button P. 186
●Appears if the keyless remote ’s battery is too weak to
turn on the power system or the key is not within
operating range to turn on the power system. The
beeper sounds six times.●Bring the back of the keyl ess remote into contact
with the POWER button.
2If the Keyless Remote Battery is Weak P. 645
22 CR-V HEV ELP-31TPG6200.book 114 ページ ２０２１年６月３０日　水曜日　午前１１時６分

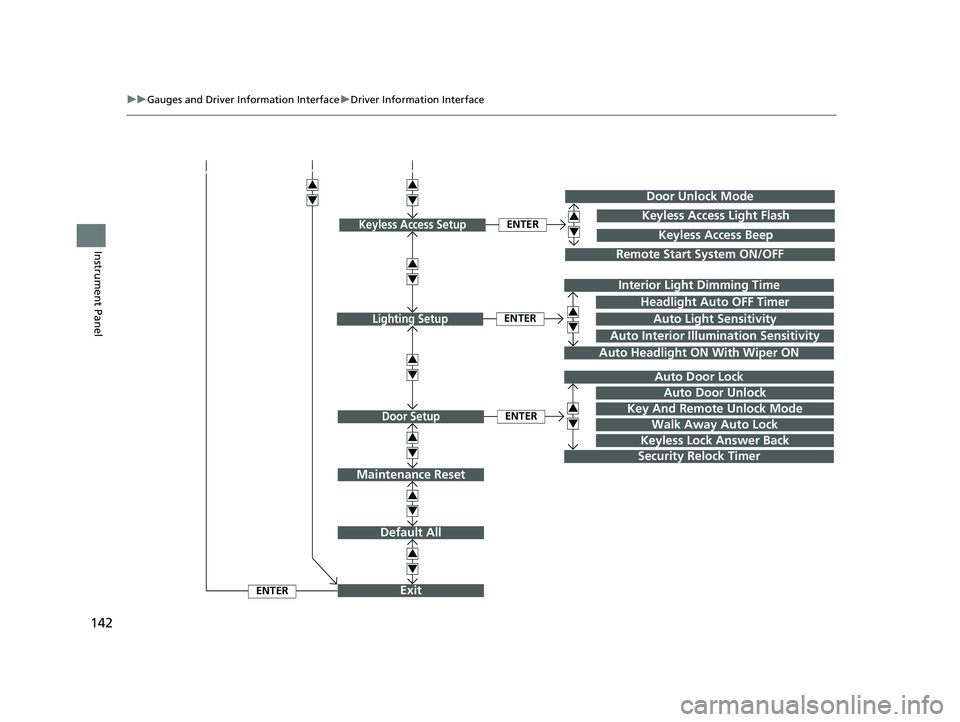

142
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
Default All
Auto Door Lock
Walk Away Auto Lock
Security Relock Timer
Headlight Auto OFF Timer
Auto Headlight ON With Wiper ON
ENTER
ENTER
Lighting Setup
Door Setup
ENTER
Auto Interior Illumination Sensitivity
Door Unlock Mode
Remote Start System ON/OFF
ENTERKeyless Access SetupKeyless Access Light Flash
Keyless Access Beep
3
4
3
4
3
4
3
4
3
4
3
4
3
4Interior Light Dimming Time
Auto Light Sensitivity
Key And Remote Unlock Mode
Keyless Lock Answer Back
Auto Door Unlock
Maintenance Reset
3
4
3
4
3
4
22 CR-V HEV ELP-31TPG6200.book 142 ページ ２０２１年６月３０日　水曜日　午前１１時６分

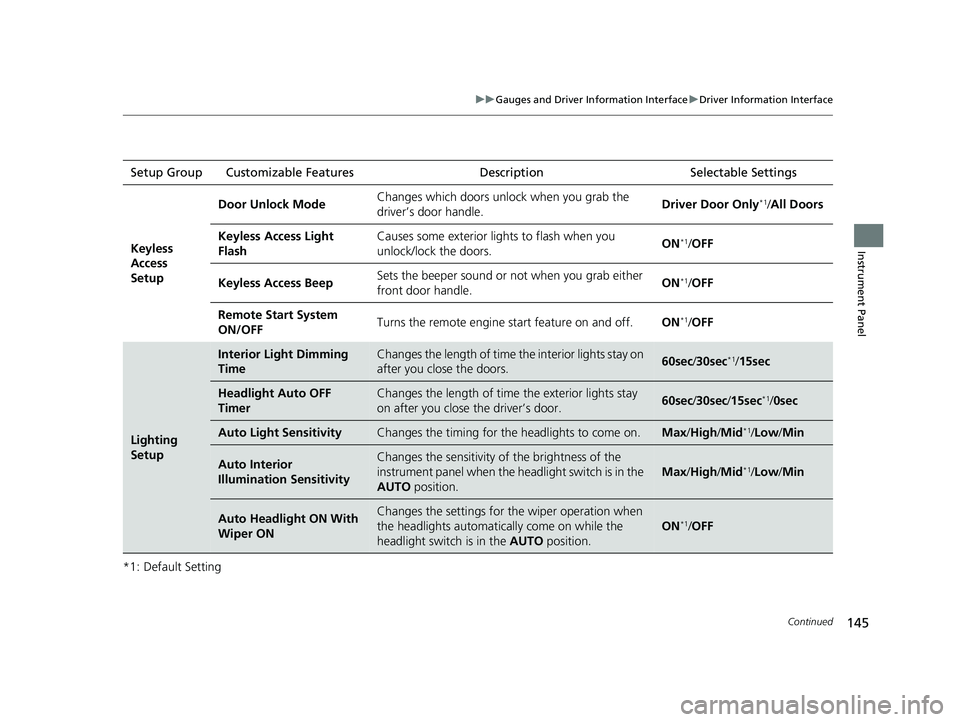

145
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior li ghts to flash when you
unlock/lock the doors.ON*1/ OFF
Keyless Access BeepSets the beeper sound or not when you grab either
front door handle.ON*1/OFF
Remote Start System
ON/OFFTurns the remote engine start feature on and off.ON*1/OFF
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low /Min
Auto Headlight ON With
Wiper ONChanges the settings for th e wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position.
ON*1/OFF
22 CR-V HEV ELP-31TPG6200.book 145 ページ ２０２１年６月３０日　水曜日　午前１１時６分

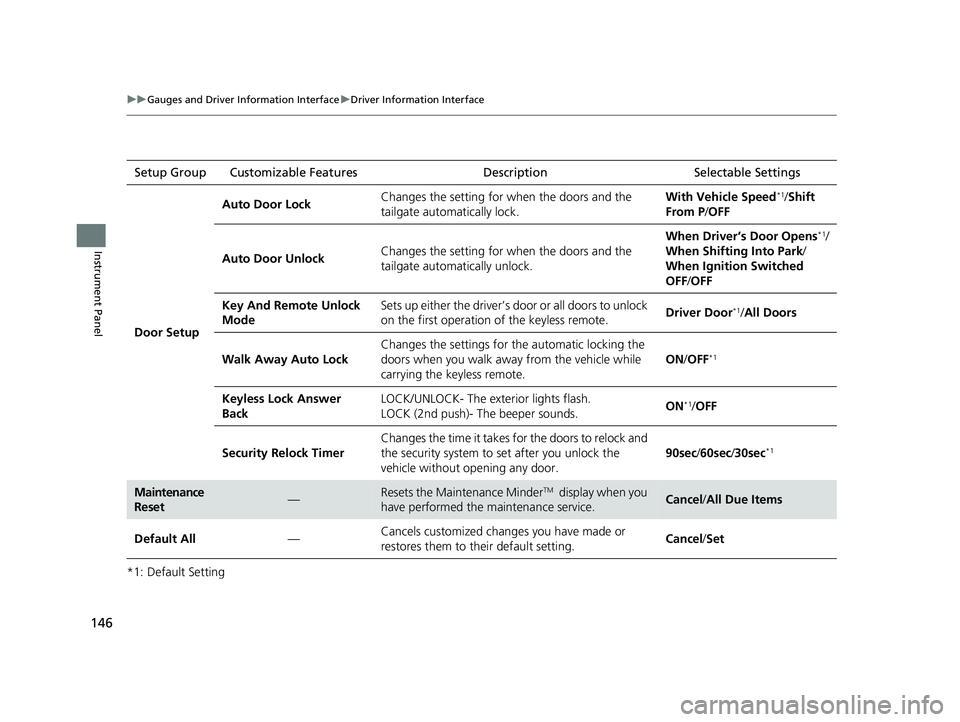

146
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1: Default SettingSetup Group Customizable Features
DescriptionSelectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors and the
tailgate automatically lock.With Vehicle Speed*1/Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors and the
tailgate automatically unlock.
When Driver’s Door Opens*1/
When Shifting Into Park/
When Ignition Switched
OFF /OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the keyless remote.Driver Door*1/ All Doors
Walk Away Auto Lock
Changes the settings for the automatic locking the
doors when you walk away from the vehicle while
carrying the keyless remote.
ON /OFF*1
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Maintenance
Reset—Resets the Maintenance MinderTM display when you
have performed the maintenance service.Cancel /All Due Items
Default All—Cancels customized changes you have made or
restores them to their default setting.Cancel /Set
22 CR-V HEV ELP-31TPG6200.book 146 ページ ２０２１年６月３０日　水曜日　午前１１時６分

149
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 150
Locking and Unlocking the Doors Key .................................................. 152
Low Keyless Remote Signal Strength ... 154
Locking/Unlocking the Doors from the Outside .......................................... 155
Locking/Unlocking the Doors from the Inside ............................................. 163
Childproof Door Locks ..................... 165
Auto Door Locking/Unlocking .......... 166
Tailgate .............................................. 167
Security System Immobilizer System .......................... 178
Security System Alarm
*.................... 178
Windows ............................................... 181Moonroof*........................................ 185
Operating the Switches Around the Steering Wheel
POWER Button................................. 186
Turn Signals ..................................... 189
Light Switches.................................. 190
Fog Lights
*...................................... 194
Daytime Running Lights ................... 194
Auto High-Beam .............................. 195
Wipers and Washers ........................ 198 Rear Defogger/Heated Door Mirror
*
Button ........................................... 201
Brightness Control ........................... 202
Driving Position Memory System
*.... 203
Adjusting the Steering Wheel .......... 205
Mirrors ............................................... 206
Seats .................................................. 208
Interior Convenience Items .............. 218
Climate Control System Using Automatic Climate Control .... 235
Automatic Climate Control Sensors ...... 241
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 149 ページ ２０２１年６月３０日　水曜日　午前１１時６分

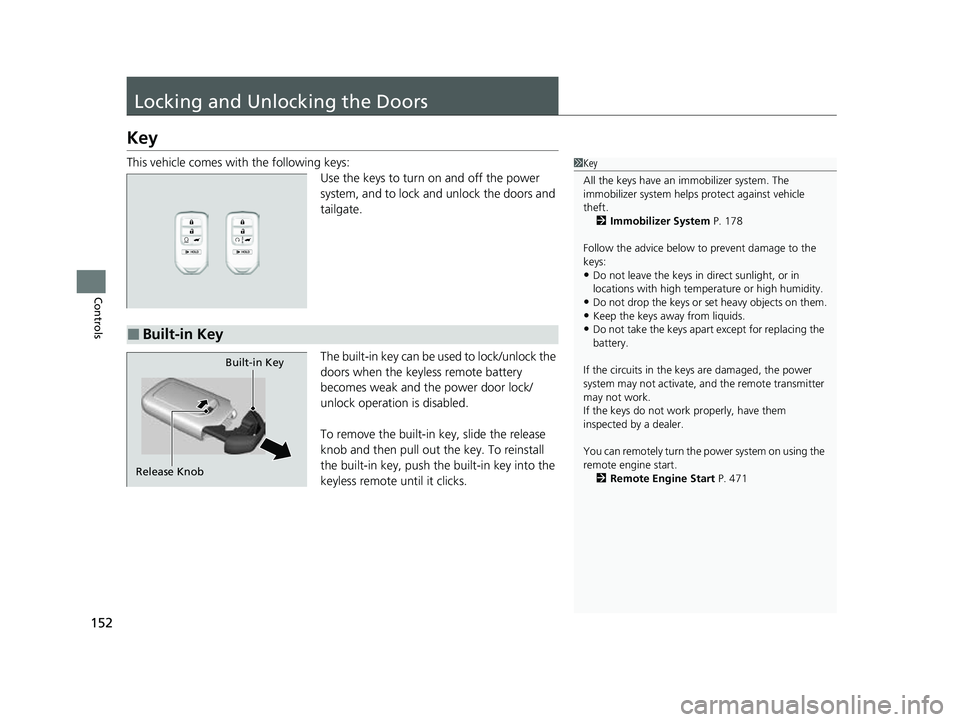

152
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following keys:Use the keys to turn on and off the power
system, and to lock and unlock the doors and
tailgate.
The built-in key can be used to lock/unlock the
doors when the keyless remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.1 Key
All the keys have an immobilizer system. The
immobilizer system helps protect against vehicle
theft.
2 Immobilizer System P. 178
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely turn the power system on using the
remote engine start. 2 Remote Engine Start P. 471■Built-in Key
Built-in Key
Release Knob
22 CR-V HEV ELP-31TPG6200.book 152 ページ ２０２１年６月３０日　水曜日　午前１１時６分
