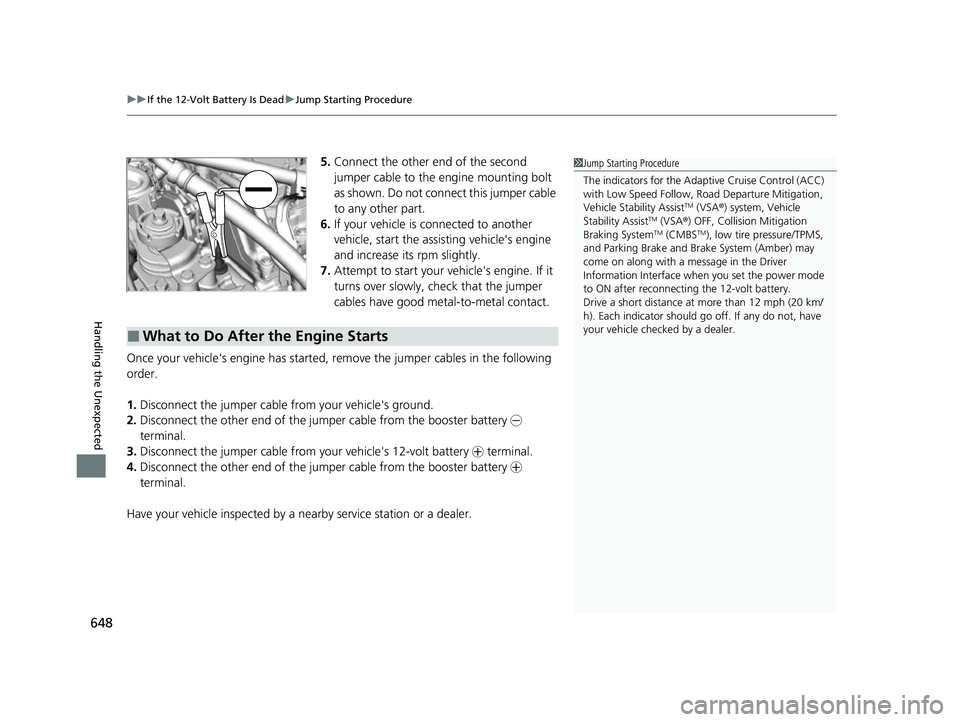

uuIf the 12-Volt Battery Is Dead uJump Starting Procedure
648
Handling the Unexpected
5. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
1Jump Starting Procedure
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Roa d Departure Mitigation,
Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF, Collision Mitigation
Braking SystemTM (CMBSTM), low tire pressure/TPMS,
and Parking Brake and Br ake System (Amber) may
come on along with a message in the Driver
Information Interface when you set the power mode
to ON after reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/
h). Each indicator should go off. If any do not, have
your vehicle checked by a dealer.
22 CR-V HEV ELP-31TPG6200.book 648 ページ ２０２１年６月３０日　水曜日　午前１１時６分

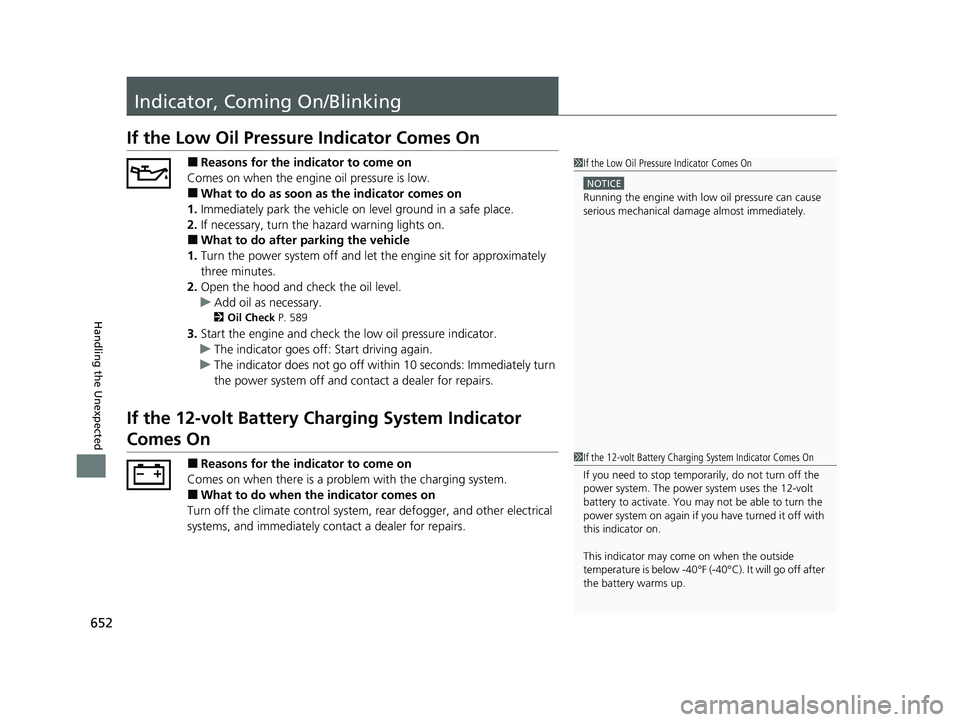

652
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let the engine sit for approximately
three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 589
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Immediately turn
the power system off and contact a dealer for repairs.
If the 12-volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when there is a prob lem with the charging system.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediatelyM
1If the 12-volt Battery Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. The power system uses the 12-volt
battery to activate. You may not be able to turn the
power system on again if you have turned it off with
this indicator on.
This indicator may come on when the outside
temperature is below -40°F (-40°C). It will go off after
the battery warms up.
22 CR-V HEV ELP-31TPG6200.book 652 ページ ２０２１年６月３０日　水曜日　午前１１時６分

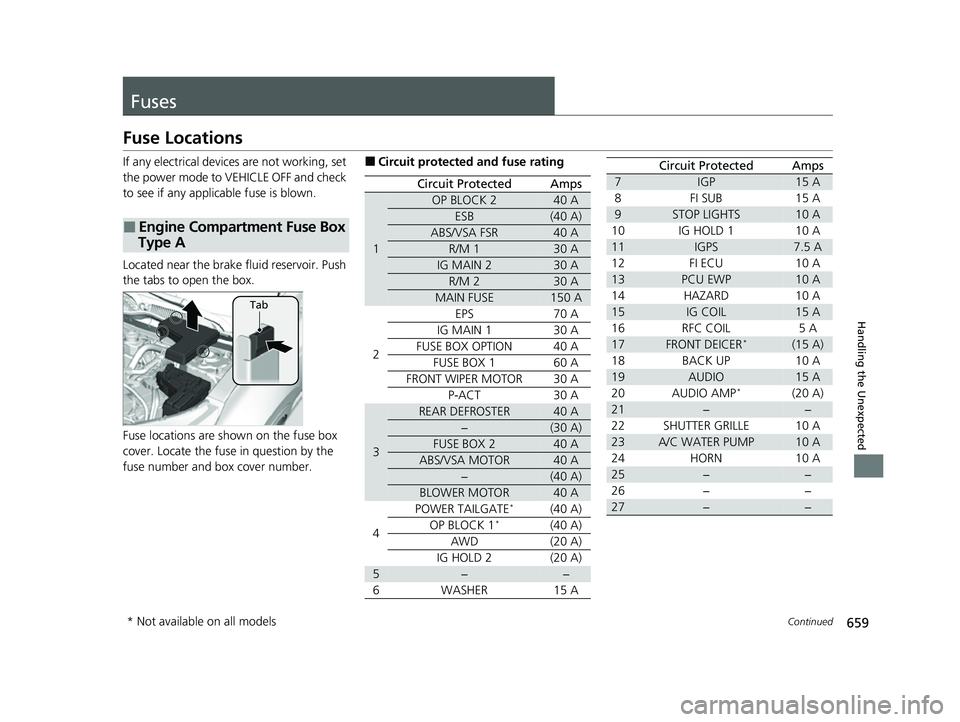

659Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
OP BLOCK 240 A
ESB(40 A)
ABS/VSA FSR40 A
R/M 130 A
IG MAIN 230 A
R/M 230 A
MAIN FUSE150 A
2
EPS70 A
IG MAIN 130 A
FUSE BOX OPTION40 A
FUSE BOX 160 A
FRONT WIPER MOTOR30 A
P-ACT30 A
3
REAR DEFROSTER40 A
−(30 A)
FUSE BOX 240 A
ABS/VSA MOTOR40 A
−(40 A)
BLOWER MOTOR40 A
4
POWER TAILGATE*(40 A)
OP BLOCK 1*(40 A)
AWD(20 A)
IG HOLD 2(20 A)
5−−
6WASHER15 A
7IGP15 A
8FI SUB15 A
9STOP LIGHTS10 A
10IG HOLD 110 A
11IGPS7.5 A
12FI ECU10 A
13PCU EWP10 A
14HAZARD10 A
15IG COIL15 A
16RFC COIL5 A
17FRONT DEICER*(15 A)
18BACK UP10 A
19AUDIO15 A
20AUDIO AMP*(20 A)
21−−
22SHUTTER GRILLE10 A
23A/C WATER PUMP10 A
24HORN10 A
25−−
26−−
27−−
Circuit ProtectedAmps
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 659 ページ ２０２１年６月３０日　水曜日　午前１１時６分

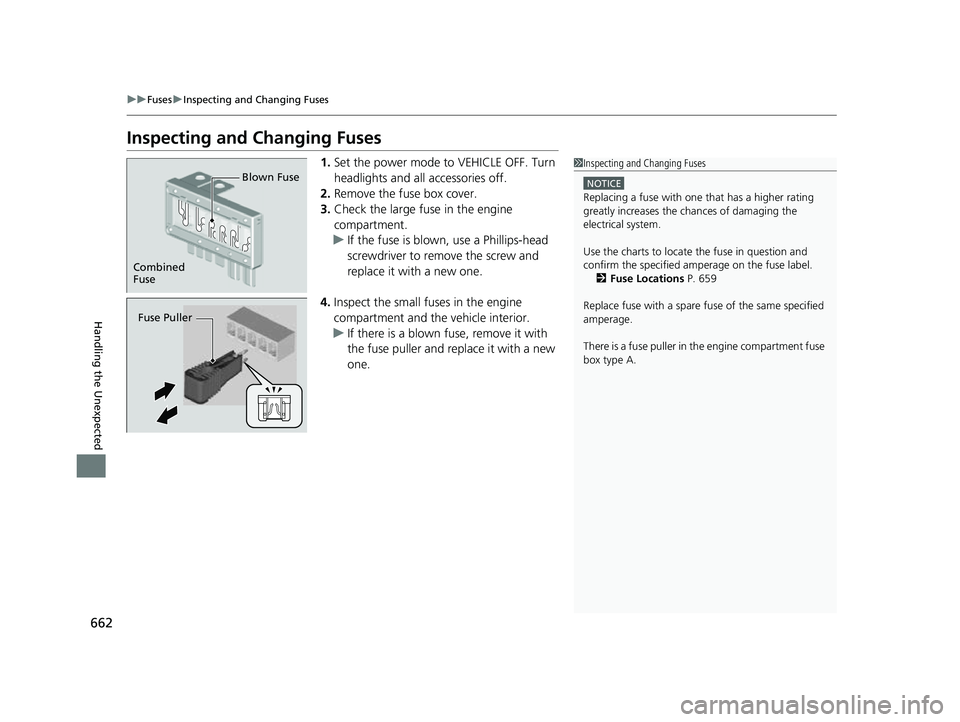

662
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM
2 Fuse Locations P. 659
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller in the engine compartment fuse
box type A.
Combined
Fuse Blown Fuse
Fuse Puller
22 CR-V HEV ELP-31TPG6200.book 662 ページ ２０２１年６月３０日　水曜日　午前１１時６分

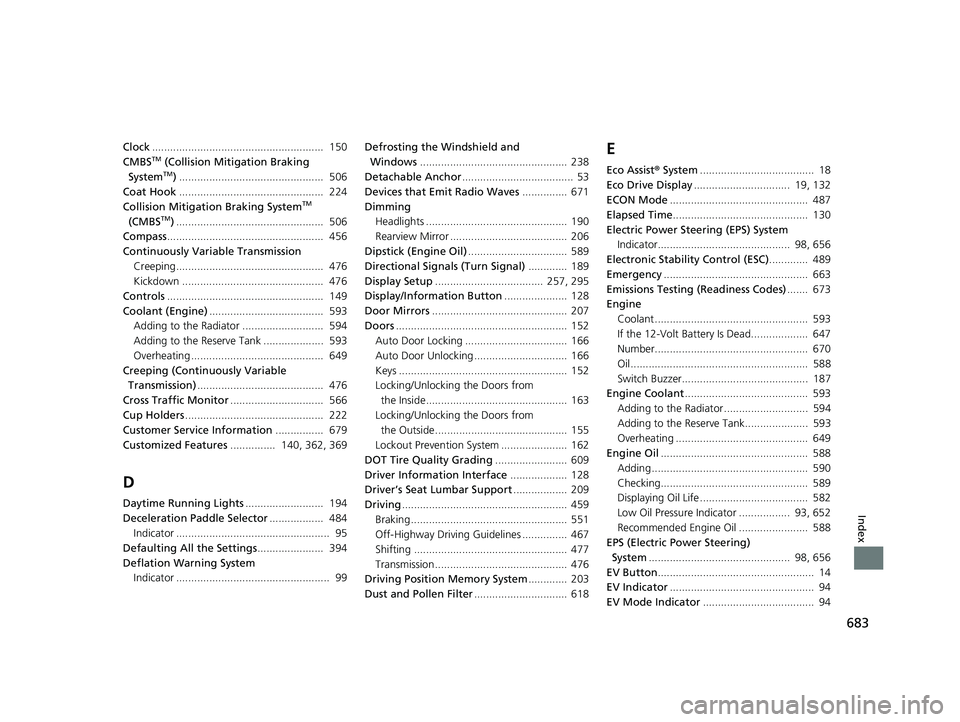

683
Index
Clock......................................................... 150
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 506
Coat Hook ................................................ 224
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 506
Compass .................................................... 456
Continuously Variable Transmission
Creeping................................................. 476
Kickdown ............................................... 476
Controls .................................................... 149
Coolant (Engine) ...................................... 593
Adding to the Radiator ........................... 594
Adding to the Reserve Tank .................... 593
Overheating ............................................ 649
Creeping (Continuously Variable Transmission) .......................................... 476
Cross Traffic Monitor ............................... 566
Cup Holders .............................................. 222
Customer Service Information ................ 679
Customized Features ............... 140, 362, 369
D
Daytime Running Lights .......................... 194
Deceleration Paddle Selector .................. 484
Indicator ................................................... 95
Defaulting All the Settings ...................... 394
Deflation Warning System Indicator ................................................... 99 Defrosting the Windshield and
Windows ................................................. 238
Detachable Anchor ..................................... 53
Devices that Emit Radio Waves ............... 671
Dimming
Headlights ............................................... 190
Rearview Mirror ....................................... 206
Dipstick (Engine Oil) ................................. 589
Directional Signals (Turn Signal) ............. 189
Display Setup .................................... 257, 295
Display/Information Button ..................... 128
Door Mirrors ............................................. 207
Doors ......................................................... 152
Auto Door Locking .................................. 166
Auto Door Unlocking ............................... 166
Keys ........................................................ 152
Locking/Unlocking the Doors from
the Inside............................................... 163
Locking/Unlocking the Doors from
the Outside............................................ 155
Lockout Prevention System ...................... 162
DOT Tire Quality Grading ........................ 609
Driver Information Interface ................... 128
Driver’s Seat Lumbar Support .................. 209
Driving ....................................................... 459
Braking .................................................... 551
Off-Highway Driving Guidelines ............... 467
Shifting ................................................... 477
Transmission ............................................ 476
Driving Position Memory System ............. 203
Dust and Pollen Filter ............................... 618
E
Eco Assist® System ...................................... 18
Eco Drive Display ................................ 19, 132
ECON Mode .............................................. 487
Elapsed Time ............................................. 130
Electric Power Steering (EPS) System Indicator............................................ 98, 656
Electronic Stability Control (ESC) ............. 489
Emergency ................................................ 663
Emissions Testing (Readiness Codes) ....... 673
Engine
Coolant ................................................... 593
If the 12-Volt Battery Is Dead................... 647
Number................................................... 670
Oil ........................................................... 588
Switch Buzzer.......................................... 187
Engine Coolant ......................................... 593
Adding to the Radiator ............................ 594
Adding to the Reserve Tank..................... 593
Overheating ............................................ 649
Engine Oil ................................................. 588
Adding .................................................... 590
Checking................................................. 589
Displaying Oil Life .................................... 582
Low Oil Pressure Indicator ................. 93, 652
Recommended Engine Oil ....................... 588
EPS (Electric Power Steering) System ............................................... 98, 656
EV Button .................................................... 14
EV Indicator ................................................ 94
EV Mode Indicator ..................................... 94
22 CR-V HEV ELP-31TPG6200.book 683 ページ ２０２１年６月３０日　水曜日　午前１１時６分

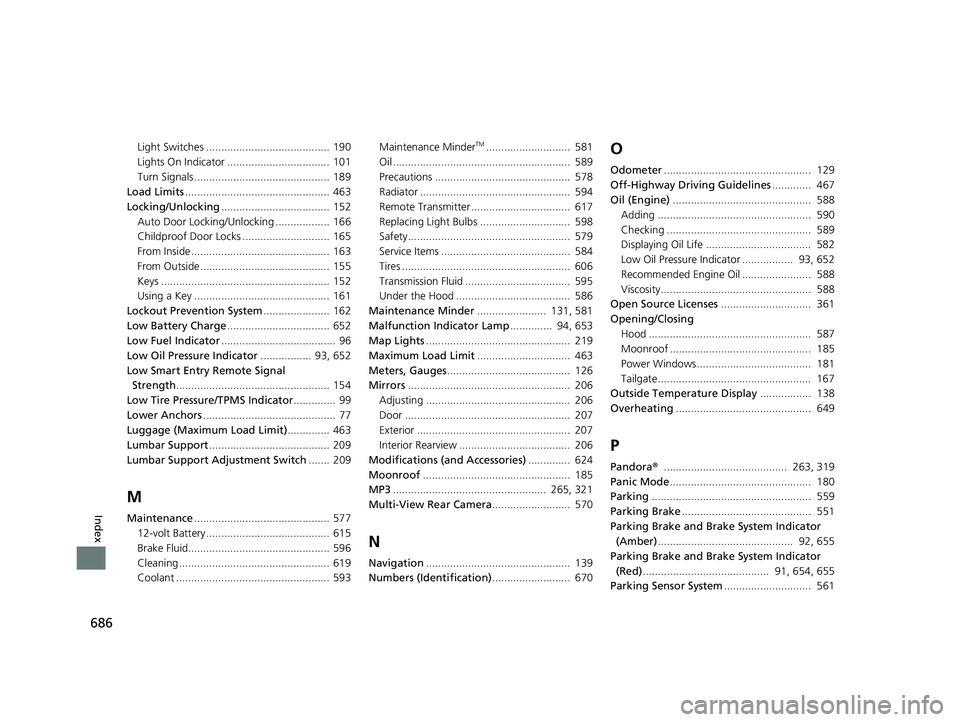

686
Index
Light Switches ......................................... 190
Lights On Indicator .................................. 101
Turn Signals ............................................. 189
Load Limits ................................................ 463
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 166
Childproof Door Locks ............................. 165
From Inside .............................................. 163
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 161
Lockout Prevention System ...................... 162
Low Battery Charge .................................. 652
Low Fuel Indicator ...................................... 96
Low Oil Pressure Indicator ................. 93, 652
Low Smart Entry Remote Signal Strength ................................................... 154
Low Tire Pressure/TPMS Indicator .............. 99
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) .............. 463
Lumbar Support ........................................ 209
Lumbar Support Adjustment Switch ....... 209
M
Maintenance............................................. 577
12-volt Battery ......................................... 615
Brake Fluid............................................... 596
Cleaning .................................................. 619
Coolant ................................................... 593 Maintenance Minder
TM............................ 581
Oil ........................................................... 589
Precautions ............................................. 578
Radiator .................................................. 594
Remote Transmitter ................................. 617
Replacing Light Bulbs .............................. 598
Safety...................................................... 579
Service Items ........................................... 584
Tires ........................................................ 606
Transmission Fluid ................................... 595
Under the Hood ...................................... 586
Maintenance Minder ....................... 131, 581
Malfunction Indicator Lamp .............. 94, 653
Map Lights ................................................ 219
Maximum Load Limit ............................... 463
Meters, Gauges ......................................... 126
Mirrors ...................................................... 206
Adjusting ................................................ 206
Door ....................................................... 207
Exterior ................................................... 207
Interior Rearview ..................................... 206
Modifications (and Accessories) .............. 624
Moonroof ................................................. 185
MP3 ................................................... 265, 321
Multi-View Rear Camera .......................... 570
N
Navigation................................................ 139
Numbers (Identification) .......................... 670
O
Odometer................................................. 129
Off-Highway Driving Guidelines ............. 467
Oil (Engine) .............................................. 588
Adding ................................................... 590
Checking ................................................ 589
Displaying Oil Life ................................... 582
Low Oil Pressure Indicator ................. 93, 652
Recommended Engine Oil ....................... 588
Viscosity.................................................. 588
Open Source Licenses .............................. 361
Opening/Closing Hood ...................................................... 587
Moonroof ............................................... 185
Power Windows...................................... 181
Tailgate................................................... 167
Outside Temperature Display ................. 138
Overheating ............................................. 649
P
Pandora®......................................... 263, 319
Panic Mode ............................................... 180
Parking ..................................................... 559
Parking Brake ........................................... 551
Parking Brake and Brake System Indicator (Amber) ............................................. 92, 655
Parking Brake and Brake System Indicator (Red) .......................................... 91, 654, 655
Parking Sensor System ............................. 561
22 CR-V HEV ELP-31TPG6200.book 686 ページ ２０２１年６月３０日　水曜日　午前１１時６分
