display HONDA CRV 2022 User Guide

128
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

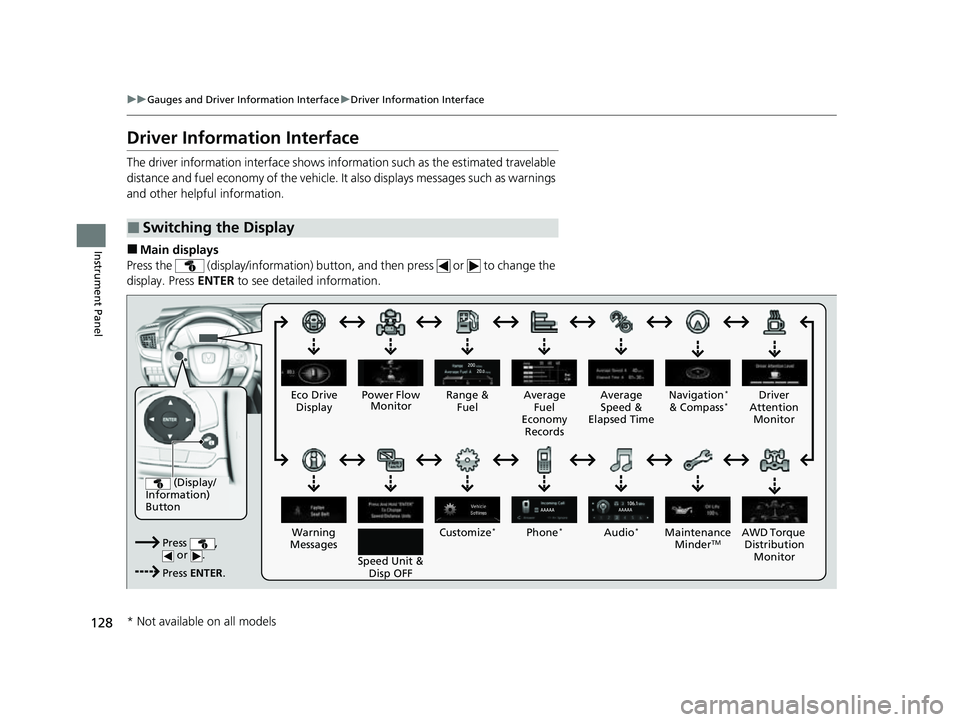

Driver Information Interface
The driver information interface shows in formation such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
■Main displays
Press the (display/information) button, and then press or to change the
display. Press ENTER to see detailed information.
■Switching the Display
(Display/
Information)
Button
Press , or .
Press ENTER . Eco Drive
Display
Audio
*Phone*
Speed Unit & Disp OFF
Warning
Messages Average
Fuel
Economy Records
Driver
Attention Monitor
Range &
Fuel Average
Speed &
Elapsed Time Navigation*
& Compass*
Customize*
Power Flow Monitor
AWD Torque Distribution Monito r
Main
tenance
MinderTM
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 128 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued129
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

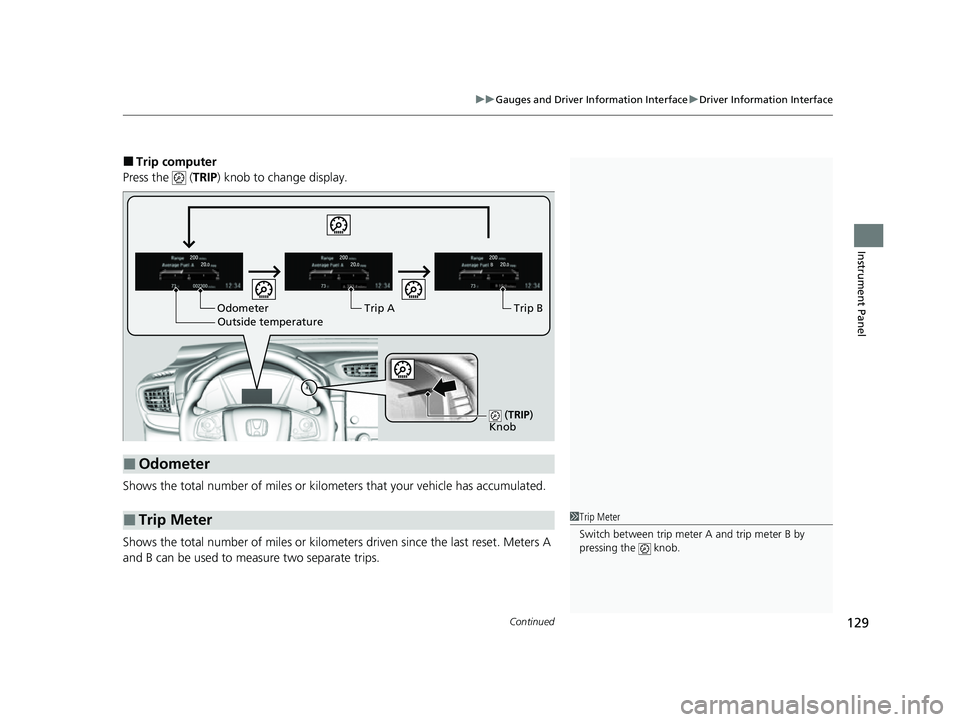

■Trip computer
Press the ( TRIP) knob to change display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Odometer
■Trip Meter
Odometer Outside temperature Trip ATrip B
(
TRIP)
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
22 CR-V HEV ELP-31TPG6200.book 129 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
130
Instrument Panel

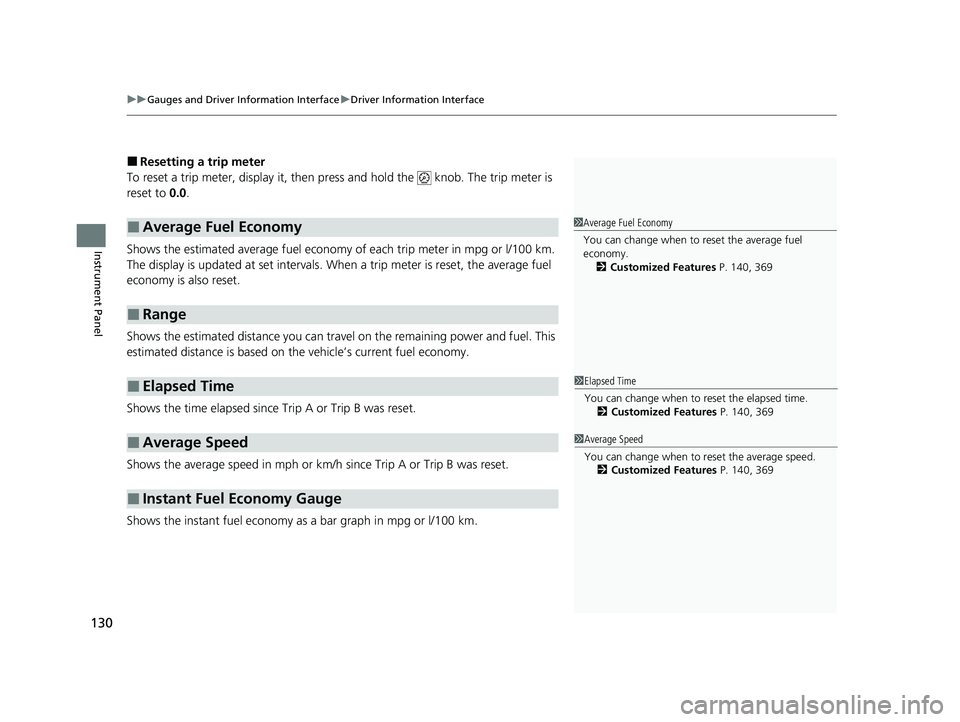

■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can trave l on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Instant Fuel Economy Gauge
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 140, 369
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 140, 369
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 140, 369
22 CR-V HEV ELP-31TPG6200.book 130 ページ ２０２１年６月３０日　水曜日　午前１１時６分

131
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

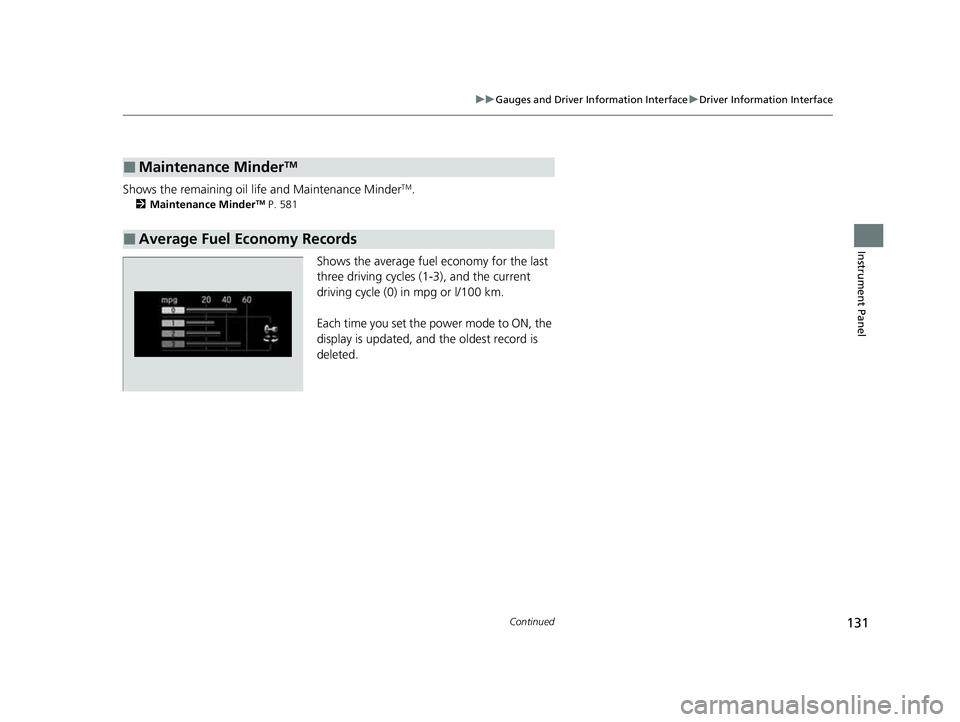

Shows the remaining oil life and Maintenance MinderTM.
2 Maintenance MinderTM P. 581
Shows the average fuel economy for the last
three driving cycles (1-3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Maintenance MinderTM
■Average Fuel Economy Records
22 CR-V HEV ELP-31TPG6200.book 131 ページ ２０２１年６月３０日　水曜日　午前１１時６分

132
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

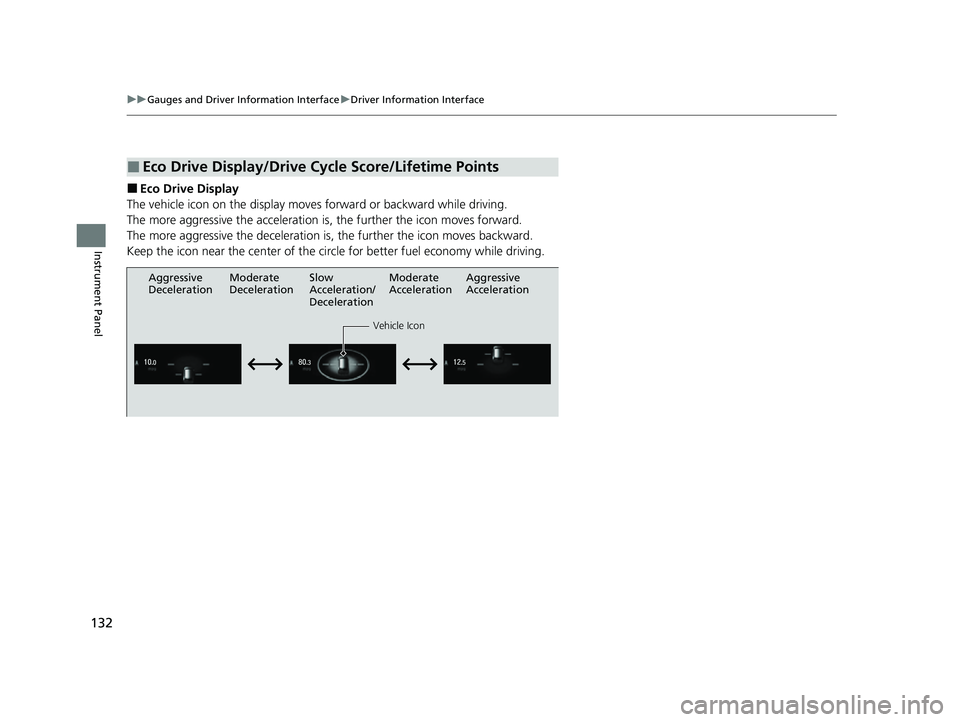

■Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circ le for better fuel economy while driving.
■Eco Drive Display/Drive Cycle Score/Lifetime Points
Aggressive
Deceleration
Vehicle Icon
Aggressive
Acceleration
Moderate
Deceleration Slow
Acceleration/
DecelerationModerate
Acceleration
22 CR-V HEV ELP-31TPG6200.book 132 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
134
Instrument Panel

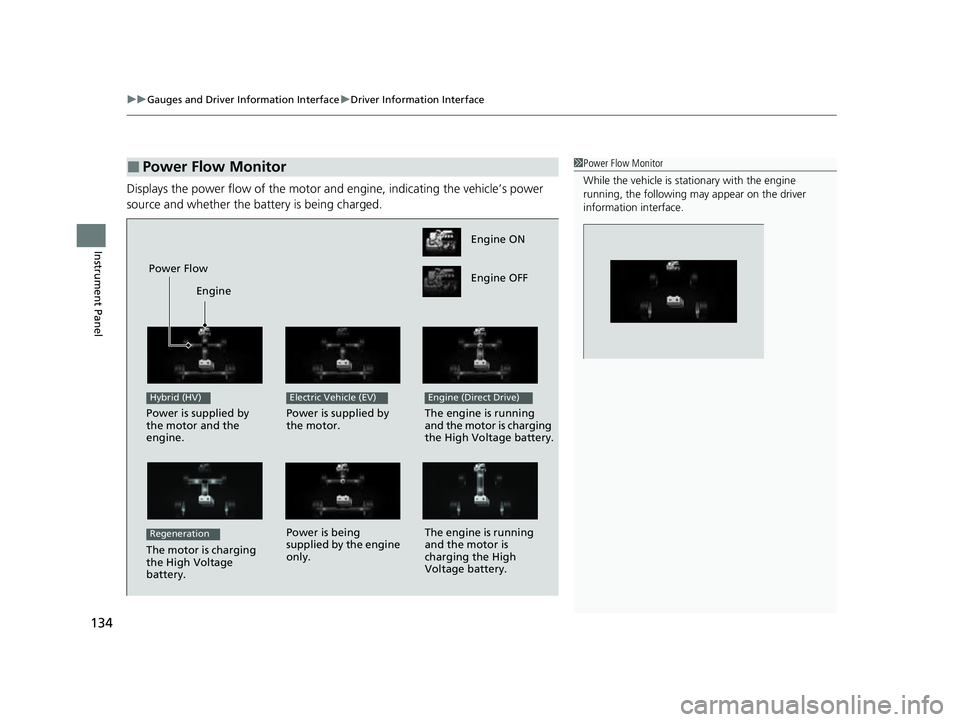

Displays the power flow of the motor an d engine, indicating the vehicle’s power
source and whether the battery is being charged.
■Power Flow Monitor1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following ma y appear on the driver
information interface.
Power is supplied by
the motor and the
engine.
The motor is charging
the High Voltage
battery. The engine is running
and the motor is
charging the High
Voltage battery.
RegenerationPower is being
supplied by the engine
only.
Hybrid (HV)
Engine ON
Engine OFF
Power is supplied by
the motor.
Electric Vehicle (EV)
The engine is running
and the motor is charging
the High Voltage battery.
Engine (Direct Drive)
Power Flow Engine
22 CR-V HEV ELP-31TPG6200.book 134 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued135
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

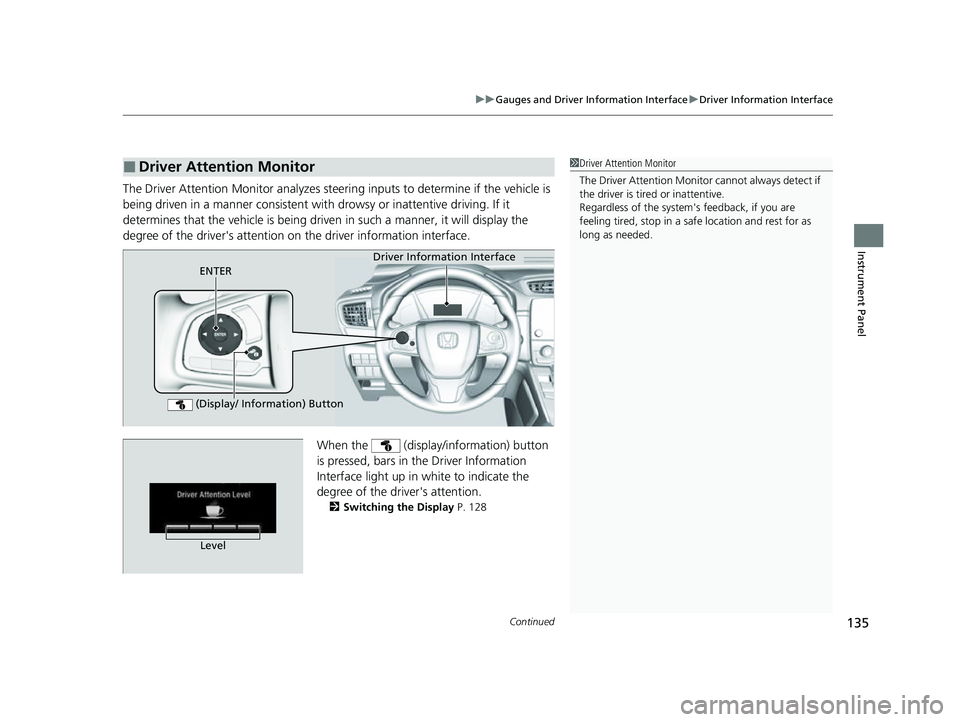

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver's attention on the driver information interface.
When the (display/information) button
is pressed, bars in the Driver Information
Interface light up in white to indicate the
degree of the driver's attention.
2 Switching the Display P. 128
■Driver Attention Monitor1Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system's feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information Interface
ENTER
(Display/ Information) Button
Level
22 CR-V HEV ELP-31TPG6200.book 135 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
138
Instrument Panel
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM P. 492
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature read ing by up to ±5°F if the temperature reading seems
incorrect.
■AWD Torque Distribution Monitor
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading.
2 Customized Features P. 140, 369
22 CR-V HEV ELP-31TPG6200.book 138 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued139
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android AutoTM P. 336
Show the current audio information.
2Audio System Basic Operation P. 272
Show the current phone information.
2Bluetooth ® HandsFreeLink ® P. 422
■Navigation*
■Audio*
■Phone*
1 Navigation*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 369
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 139 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
140
Instrument Panel

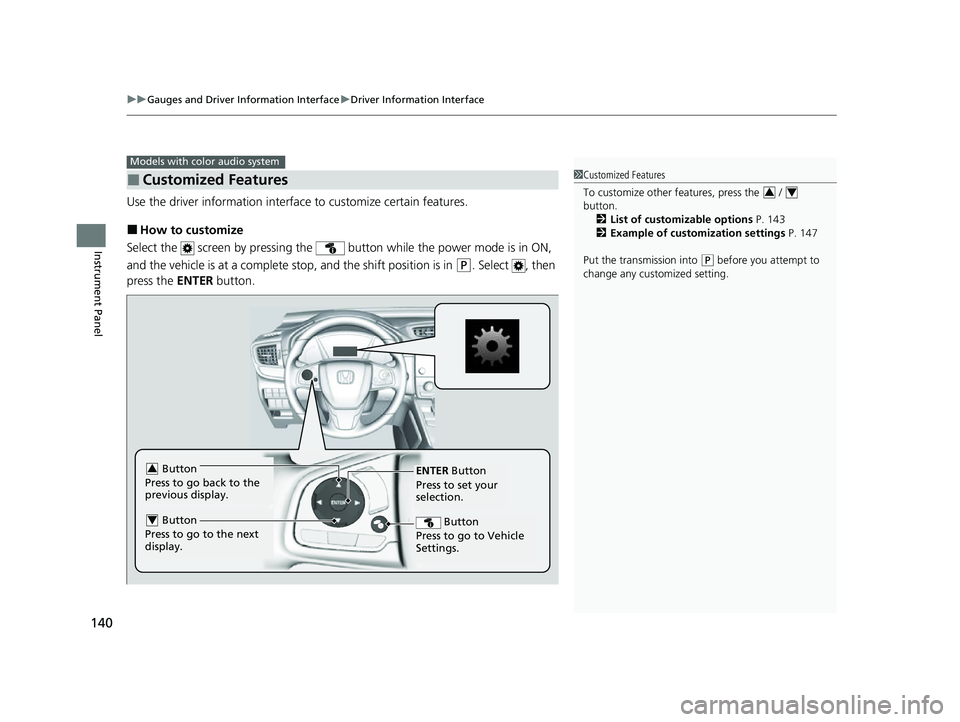

Use the driver information interfac e to customize certain features.
■How to customize
Select the screen by pressing the button while the power mode is in ON,
and the vehicle is at a complete stop, and the shift position is in
(P. Select , then
press the ENTER button.
■Customized Features
Models with color audio system
1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 143
2 Example of customization settings P. 147
Put the transmission into
( P before you attempt to
change any customized setting.
34
ENTER Button
Press to set your
selection.
Button
Press to go to Vehicle
Settings. Button
Press to go to the next
display.4
Button
Press to go back to the
previous display.3
