557
uuBraking uAnti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS)
Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you can.
The electronic brake distribu tion (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.“
■ABS operation
The brake pedal may pulsate slightly when the ABS is working. Depress the brake
pedal and keep holding the pedal firmly do wn. On dry pavement, you will need to
press on the brake pedal very hard before th e ABS activates. However, you may feel
the ABS activate immediately if you are trying to stop on snow or ice.
ABS may activate when you depres s the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surf aces, such as potholes, cracks, manholes, etc.
When the vehicle speed goes under 6 mph (10 km/h), the ABS stops.
■ABS1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correctly if you use a tire of
the incorrect size or type.
If the ABS indicator comes on while driving, there
may be a problem with the system.
While normal braking is not affected, there is a
possibility that the ABS wi ll not be operating. Have
your vehicle checked by a dealer immediately.
The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lo ckup which can lead to
skidding and loss of steering control.
In the following cases, yo ur vehicle may need more
distance to stop than a vehicle without the ABS:
•You are driving on rough or uneven road surfaces,
such as gravel or snow.
The following may be observed with the ABS system:
•Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
engine has been started and while the vehicle
accelerates.
•Brake pedal and/or the vehicle body vibration when
ABS activates.
These vibrations and sounds are normal to ABS
systems and are no cause for concern.
22 CR-V HEV ELP-31TPG6200.book 557 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
592
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including filter):
4.0 US qt (3.8 L)
10. Reinstall the engine oi l fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.
13. Reinstall the under cover in the same order
it was removed.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Be sure to verify that the o il filter is designed for your
vehicle. A genuine Honda oil filter is recommended
for optimum lubrication flow and filtration properties
to assure the reliability of the engine.
Oil Filter
22 CR-V HEV ELP-31TPG6200.book 592 ページ ２０２１年６月３０日　水曜日　午前１１時６分

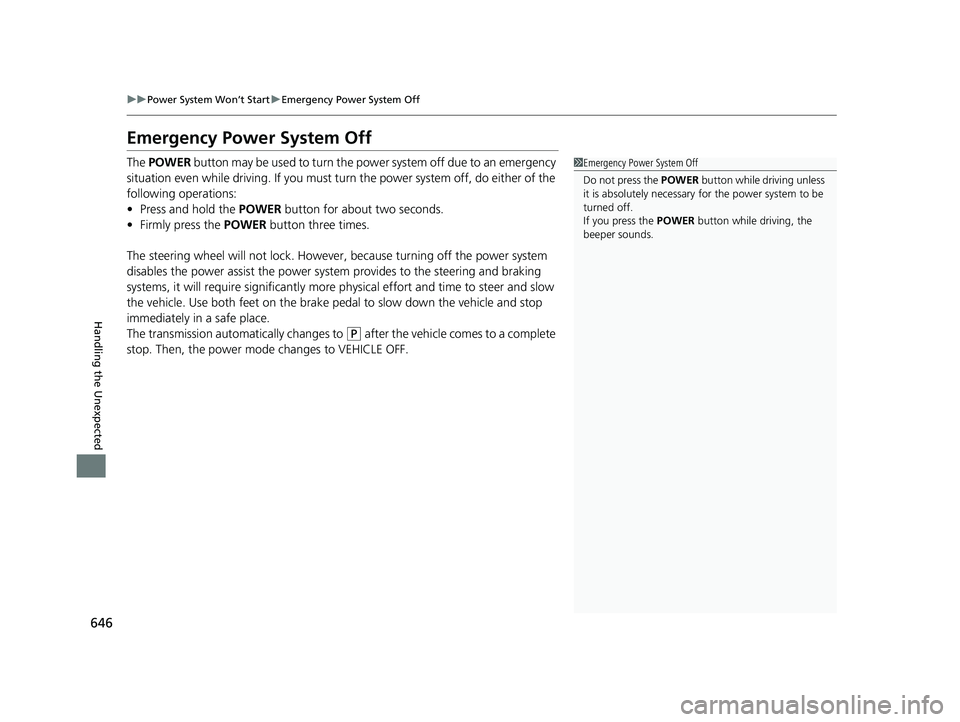

646
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the pow er system off due to an emergency
situation even while driving. If you must turn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
22 CR-V HEV ELP-31TPG6200.book 646 ページ ２０２１年６月３０日　水曜日　午前１１時６分

652
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let the engine sit for approximately
three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 589
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Immediately turn
the power system off and contact a dealer for repairs.
If the 12-volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when there is a prob lem with the charging system.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediatelyM
1If the 12-volt Battery Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. The power system uses the 12-volt
battery to activate. You may not be able to turn the
power system on again if you have turned it off with
this indicator on.
This indicator may come on when the outside
temperature is below -40°F (-40°C). It will go off after
the battery warms up.
22 CR-V HEV ELP-31TPG6200.book 652 ページ ２０２１年６月３０日　水曜日　午前１１時６分

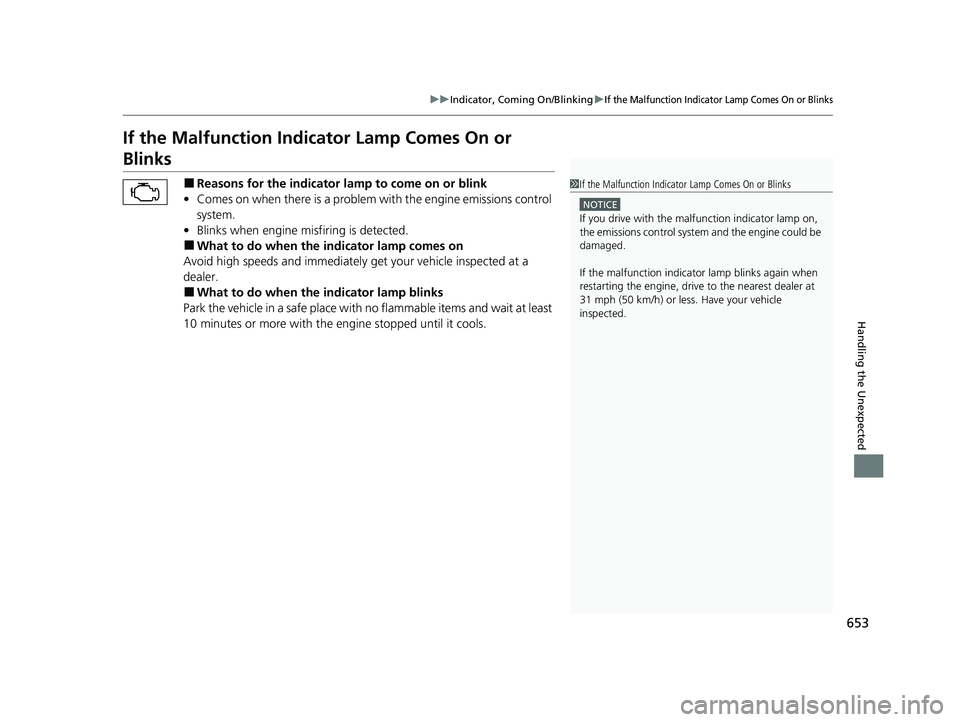

653
uuIndicator, Comi ng On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indica tor Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
22 CR-V HEV ELP-31TPG6200.book 653 ページ ２０２１年６月３０日　水曜日　午前１１時６分

688
Index
Specifications............................................ 668
Specified Fuel .................................... 572, 668
Speedometer ............................................. 126
SPORT Mode Indicator ............................................ 96, 483
SRS Airbags (Airbags) ................................. 59
Starting the Engine Engine Switch Buzzer............................... 187
If the 12-Volt Battery Is Dead ................... 647
Steering Wheel ......................................... 205
Adjusting ................................................. 205
Stopping .................................................... 559
Summer Tires ............................................ 614
Sunglasses Holder ..................................... 226
Supplemental Restraint System (SRS) ........ 59
Switches (Around the Steering Wheel) ............................................. 6, 7, 186
System Message Indicator ........................ 100
T
Tailgate..................................................... 167
Unable to Open ....................................... 664
Temperature
Outside Temperature Display ................... 138
Temperature Sensor ................................. 138
Temporary Repair Kit (TRK) ..................... 629
Theft Protection ........................................ 247
Time (Setting) ........................................... 150
Tire Pressure Monitoring System
(TPMS) ...................................................... 493 Tires
........................................................... 606
Air Pressure ..................................... 607, 669
Checking and Maintaining ...................... 606
Inspection ............................................... 606
Labeling .................................................. 607
Puncture (Flat Tire) .................................. 629
Regulations ............................................. 609
Rotation .................................................. 613
Summer .................................................. 614
Temporary Repair Kit (TRK) ...................... 629
Tire Chains .............................................. 614
Wear Indicators ....................................... 611
Winter..................................................... 614
Tonneau Cover ......................................... 227
Tools .......................................................... 628
Towing a Trailer ....................................... 465
Towing Behind a Motorhome ................. 466
Towing Your Vehicle Emergency .............................................. 663
TPMS (Tire Pressure Monitoring System) .................................................... 493
Transmission ..................................... 476, 477
Number................................................... 670
Operating the Shift Button ...................... 479
Operation.................................................. 32
Shift Position Indicator....................... 95, 479
Shifting ................................................... 477
Transmission System
Indicator............................................ 95, 658
TRIP Knob ................................................. 129
Trip Meter ................................................. 129 TRK (Temporary Repair Kit)
.................... 629
Troubleshooting ...................................... 627
Blown Fuse ............................. 659, 660, 661
Brake Pedal Vibrates ................................. 38
Buzzer Sounds When Opening Door ......... 38
Emergency Towing ................................. 663
If the 12-Volt Battery Is Dead .................. 647
Noise When Braking ................................. 39
Overheating ............................................ 649
Power System Won’t Start ...................... 644
Puncture/Flat Tire .................................... 629
Rear Door Won’t Open ..................... 38, 165
Warning Indicators.................................... 90
Turn Signals .............................................. 189
Turn signals Indicators (Instru ment Panel) ................... 100
Turning on the Power
Does Not Activate ................................... 644
U
Unlocking the Doors ................................ 155
Unlocking the Front Doors from the Inside ................................................ 163
USB Flash Drives ....................... 265, 321, 346
USB Port(s) ................................................ 245
V
Vanity Mirrors .............................................. 9
Vehicle Identification Number ................ 670
22 CR-V HEV ELP-31TPG6200.book 688 ページ ２０２１年６月３０日　水曜日　午前１１時６分
